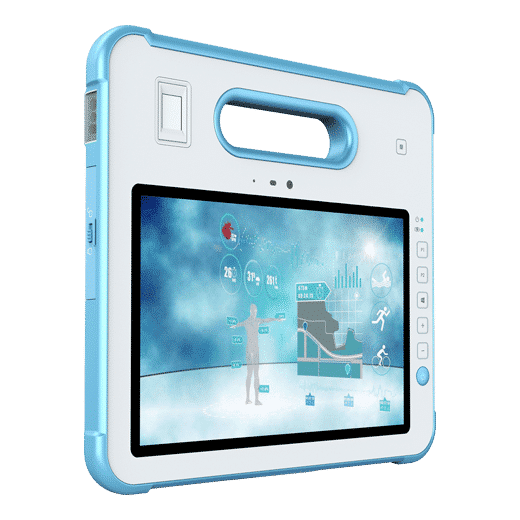

MD-100MA Medical Android Tablet
A 10.1-inch Android medical tablet for clinical data capture, bedside workflows and connected-care applications. IEC 60601 compliance, rugged protection and modular readers support safe integration into healthcare processes.
Deployment Capabilities
Dedicated clinical applications
The Android platform can host purpose-built bedside, telehealth and data-capture applications.
Protected mobile use
The sealed enclosure and documented drop testing suit routine movement within healthcare facilities.
Identification and traceability
NFC, RFID, barcode, smart-card and biometric options can support configured clinical workflows.
Medical-system integration
The documented tablet, power and accessory configuration should be assessed within the intended healthcare application.
Technical Features
Android application platform
Android 11 supports mobile clinical and workflow applications. It is suitable for dedicated bedside, telehealth and clinical data-capture applications.
Medical compliance
IEC 60601-1 and IEC 60601-1-2 support use in healthcare environments. These standards address electrical safety and electromagnetic compatibility for the documented medical configuration.
Protected mobility
IP65 and MIL-STD-810G 4 ft drop protection suit mobile use. The enclosure supports repeated transport and routine mobile use across healthcare facilities.
Readable display
Optional 800-nit sunlight-readable display supports bright environments. Higher brightness improves visibility near windows, outdoors and in mobile-care environments.
Modular peripherals
NFC, RFID, smart-card, barcode, fingerprint and stylus options support identity and data capture. A single tablet can combine patient identification, staff authentication and specimen tracking functions.
Arm processing
Cortex-A72 and Cortex-A53 cores provide balanced mobile performance. The processor architecture supports responsive applications while managing battery demand for mobile use.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| COMPUTE & DISPLAY | ||
| Display | inch | 10.1 IPS. |
| Resolution | pixels | 1920 × 1200. |
| Processor | — | Dual Cortex-A72 up to 1.8 GHz plus quad Cortex-A53 up to 1.4 GHz. |
| Operating system | — | Android image and BSP availability vary by hardware revision. |
| Brightness | nit | 350 nit standard; high-brightness option varies by hardware revision and order code. |
| MEDICAL & RUGGEDNESS | ||
| Medical certification | — | IEC 60601-1 and IEC 60601-1-2. |
| Ingress protection | — | IP65. |
| Drop / shock | — | 4 ft drop/shock protection to MIL-STD-810G. |
| Chassis | — | Plastic + TPU; anti-microbial medical chassis option. |
| Dimensions | mm | 276.7 × 252.8 × 22. |
| Weight | kg | Approximately 1.25. |
| POWER & OPTIONS | ||
| Main battery | Wh | 40, hot-swappable. |
| Internal battery | Wh | 3.5 for battery-change continuity. |
| AC adapter | — | 19 VDC / 3 A standard; medical-grade 19 VDC / 3.15 A option. |
| Options | — | NFC, RFID, smart-card, barcode, fingerprint and capacitive stylus. |
| Application areas | — | Clinical forms, bedside workflows, patient identification and mobile care. |
IEC 60601 references apply to certified product variants and the specified medical power system.
Applications
Clinical mobility
Run Android-based healthcare, bedside and workflow applications on a medically certified mobile platform. The compact format supports routine movement between care locations.
Patient identification
Integrate RFID, barcode, NFC or smart-card readers for patient, specimen and staff identification. This supports traceable workflows at the point of care.
Telehealth
Use front and rear cameras, wireless communication and mobile data capture for remote consultation. Android applications can guide structured clinical forms and follow-up tasks.
Medical logistics
Track samples, equipment and consumables throughout healthcare facilities. Optional reader modules reduce the need for separate handheld scanning devices.
Home healthcare
Support visiting clinicians with portable records, forms, communication and patient data collection. Rugged protection helps the device withstand frequent transport.
Specialised applications
Build dedicated Android workflows around the tablet and its modular peripherals. This suits medical-device interfaces, therapy systems and customised care processes.
