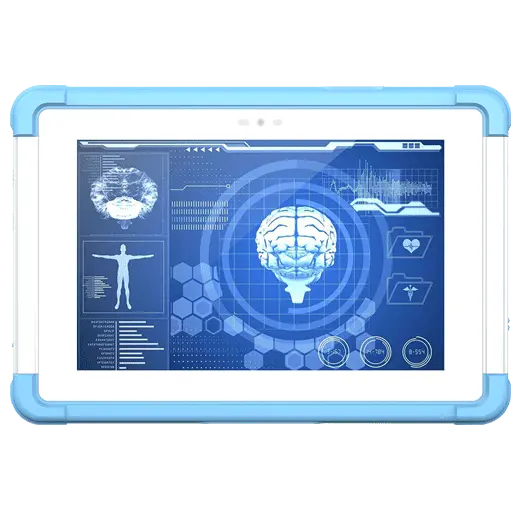

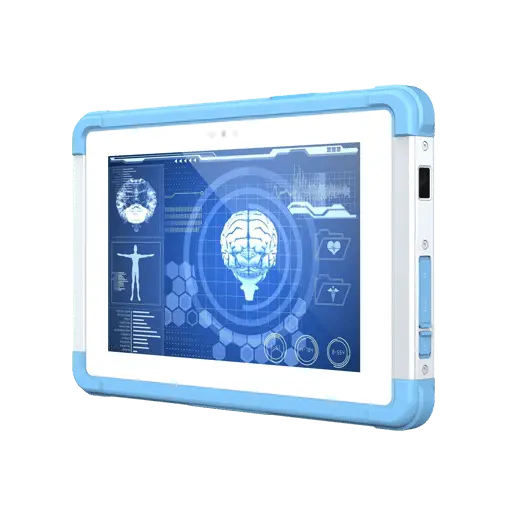

MJ-80M Medical Tablet
A compact 8-inch medical tablet for patient identification, clinical forms and mobile healthcare applications. The smaller format supports one-hand use while maintaining medical electrical certification and rugged protection.
Deployment Capabilities
Compact clinical mobility
The 8-inch format is suited to rounds, sample collection and applications where one-hand use is useful.
Task-specific software
Android or supported Linux configurations can host mobile or embedded healthcare applications.
Identification options
NFC, barcode and fingerprint modules can support patient, sample, asset and staff workflows.
Documented operating runtime
Published battery runtime provides a reference for task planning and should be checked with the selected workload.
Technical Features
Compact form factor
The 8-inch display is suited to handheld clinical and logistics workflows. The smaller body is easier to carry during rounds, sample collection and inventory tasks.
Medical compliance
IEC 60601-1 and IEC 60601-1-2 support healthcare deployment. These standards address electrical safety and electromagnetic compatibility for the documented medical configuration.
Rugged mobility
IP65 and 4 ft drop protection support regular mobile use. The protected enclosure is suited to frequent movement and repeated handheld use.
Flexible software
Android and Linux options support mobile and embedded applications. This allows the same hardware base to support mobile applications or embedded system integration.
Identification options
NFC, barcode and fingerprint modules support patient, sample and asset workflows. The modules reduce manual entry and improve traceability across clinical and logistics processes.
Shift runtime
Battery runtime of up to approximately eight hours depends on workload and configuration. The compact platform is therefore suited to routine rounds and task-based mobile workflows.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| COMPUTE & DISPLAY | ||
| Display | inch | 8 IPS. |
| Resolution | pixels | 1200 × 800. |
| Brightness | nit | 300. |
| Viewing angle | ° | ±85. |
| Processor | — | Rockchip RK3368, octa-core Cortex-A53 at 1.5 GHz. |
| GPU / video | — | PowerVR G6110 with 4K H.265 video support. |
| Memory | GB | 2 or 4 LPDDR3. |
| Storage | GB | 32 eMMC; 64 GB option. |
| Operating system | — | Android 7.1; Linux available for custom projects. |
| MEDICAL & RUGGEDNESS | ||
| Medical certification | — | IEC 60601-1 and IEC 60601-1-2. |
| Battery compliance | — | IEC 62133. |
| Ingress protection | — | IP65. |
| Drop / shock | — | 4 ft drop/shock protection to MIL-STD-810G. |
| Touch | — | 10-point capacitive multi-touch with chemically hardened cover glass. |
| CONNECTIVITY & OPTIONS | ||
| Wireless | — | Wi-Fi 5 and Bluetooth 4.0. |
| Deployment role | — | Optional GPS. |
| Battery runtime | hour | Up to approximately 8. |
| Options | — | NFC, barcode reader and fingerprint reader. |
| Application areas | — | Patient identification, medication workflows and compact clinical data capture. |
IEC 60601 references apply to certified product variants and the specified medical power system.
Applications
Patient identification
Use NFC, barcode or fingerprint options to identify patients, staff and treatment records. The compact 8-inch format supports one-hand use at the point of care.
Sample tracking
Scan and update specimen information during collection, transport and laboratory handover. Wireless connectivity helps maintain traceability across departments.
Bedside documentation
Access forms, observations and patient information without carrying a full-size workstation. The smaller device is suited to short, frequent interactions.
Healthcare logistics
Track medication, equipment, consumables and inventory using optional reader modules. Rugged protection supports repeated movement through clinical areas.
Home care
Provide portable Android or Linux applications for visiting-care teams. The device can combine records, communication, photographs and structured forms.
Mobile diagnostics
Connect compact sensors and peripherals for field or bedside measurements. Local processing can display results and transfer data to clinical systems.
