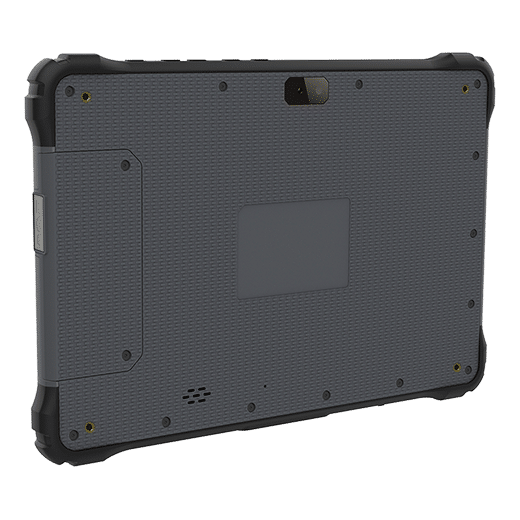

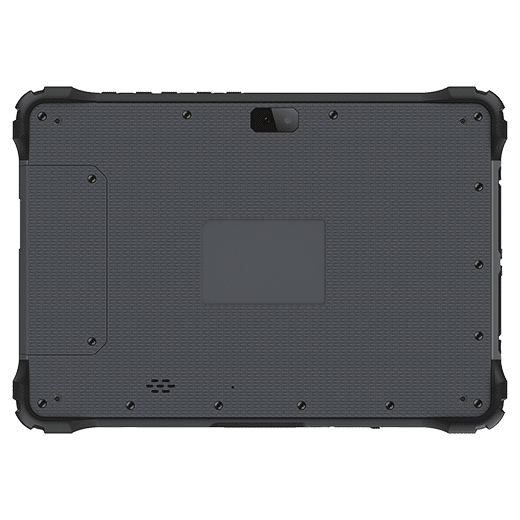

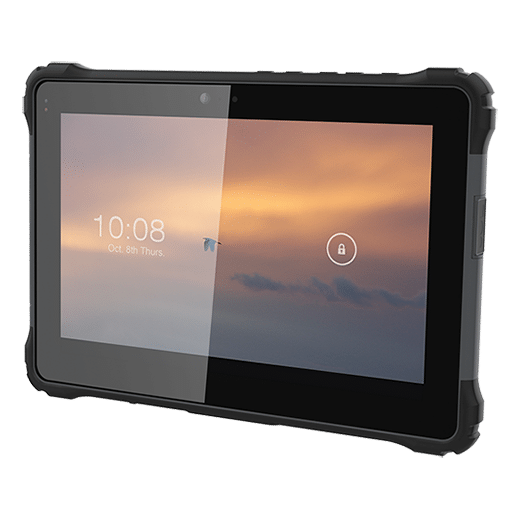

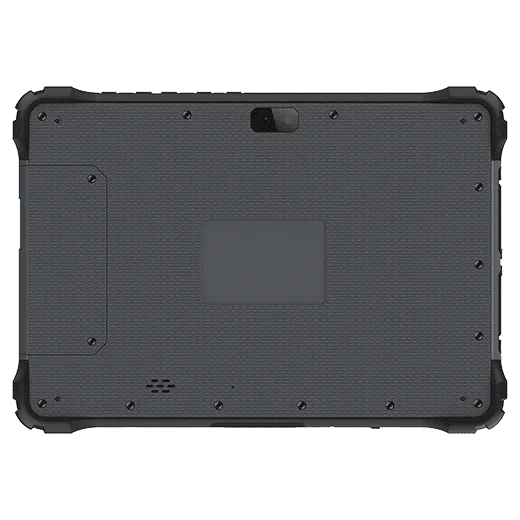

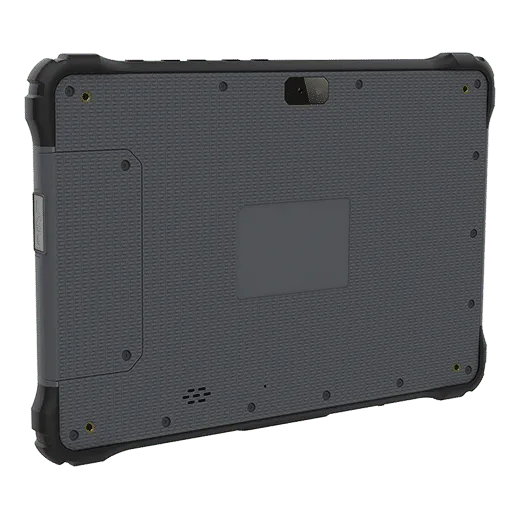

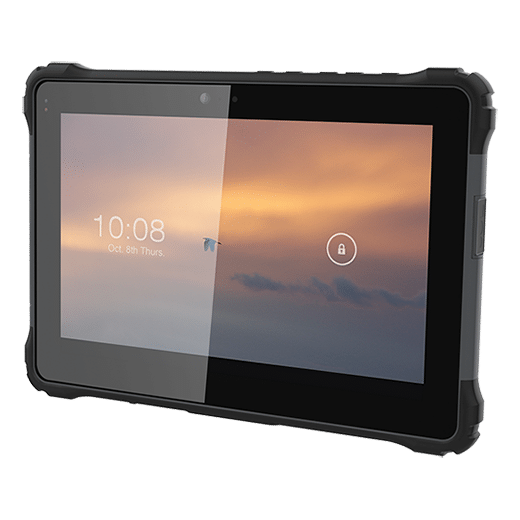

MS-100A Rugged Android Tablet
A rugged Android tablet for logistics, manufacturing and mobile data capture. IP67 protection, 12-hour class runtime and up to four optional reader modules support demanding enterprise workflows.
Deployment Capabilities
Enterprise mobile applications
Android supports digital work instructions, data collection and managed task-specific software.
High ingress protection
The IP67 enclosure is intended for dusty, wet and outdoor environments within its documented limits.
Multi-reader workflows
Pogo-connected reader modules can combine identification and transaction functions on one tablet.
Shift-length reference runtime
Published battery duration provides a planning reference and varies with radios, peripherals, display and workload.
Technical Features
Android mobility
Android 10 supports mobile enterprise and purpose-built applications. It supports digital work instructions, data collection and managed enterprise mobility deployments.
High ingress protection
IP67 protects against dust and temporary water immersion. The sealed enclosure is appropriate for dusty areas, wash-prone work zones and outdoor use.
Rugged construction
MIL-STD-810G 4 ft drop resistance supports field operation. This helps protect the device from accidental drops during handheld and vehicle-based work.
Long runtime
Up to 12 hours of standard operation depends on workload and configuration. The capacity supports full-shift use for many warehouse, field and inspection workflows.
Modular peripherals
Pogo-connected NFC, RFID, smart-card, barcode and magnetic-stripe modules support data capture. Multiple readers can be combined to support identification, inventory and access workflows.
Integrated deployment role
Wi-Fi, Bluetooth and GPS support connected field workflows. Location and wireless data can be captured together for mobile service and asset applications.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| COMPUTE & DISPLAY | ||
| Display | inch | 10.1 IPS. |
| Resolution | pixels | 1920 × 1200. |
| Processor | — | Qualcomm SDM660, octa-core Kryo 260. |
| Operating system | — | Android 10. |
| RUGGEDNESS & MECHANICAL | ||
| Ingress protection | — | IP67. |
| Drop / shock | — | 4 ft drop/shock protection to MIL-STD-810G. |
| Chassis | — | Double-injection moulding with magnesium-alloy chassis and rubber protection. |
| Dimensions | mm | 270 × 180 × 16. |
| Weight | kg | Approximately 0.98. |
| CONNECTIVITY & POWER | ||
| Wireless | — | Dual-band Wi-Fi, Bluetooth 5.0 and GPS. |
| Battery | mAh | 3.85 V, 7792. |
| Runtime | hour | Up to 12 standard operation. |
| Charging | hour | Approximately 3.5. |
| Expansion modules | — | 1D/2D barcode, magnetic-stripe, smart-card, UHF RFID and NFC modules; up to four modules depending on build. |
| Application areas | — | Warehouse, logistics, manufacturing and field data capture. |
IP and MIL-STD ratings refer to the stated laboratory test conditions.
Applications
Logistics
Use barcode, RFID, NFC or smart-card modules for receiving, picking, proof of delivery and inventory control. Long battery runtime supports full-shift mobile work.
Field service
Access work orders, capture photographs and update asset records at the job site. GPS and wireless connectivity support distributed service teams.
Manufacturing
Record inspections, material movement and production information directly on the shop floor. IP67 protection helps the tablet tolerate dust and accidental water exposure.
Retail
Support mobile stock checks, assisted selling and queue-busting workflows. Reader modules can combine product identification and staff authentication.
Transportation
Use the device for route, depot, fleet and proof-of-delivery tasks. GPS and wireless communication help keep mobile operations synchronised.
Public sector
Deploy secure Android forms, identity and field-data applications for inspections or public services. Rugged construction reduces damage during frequent mobile use.
