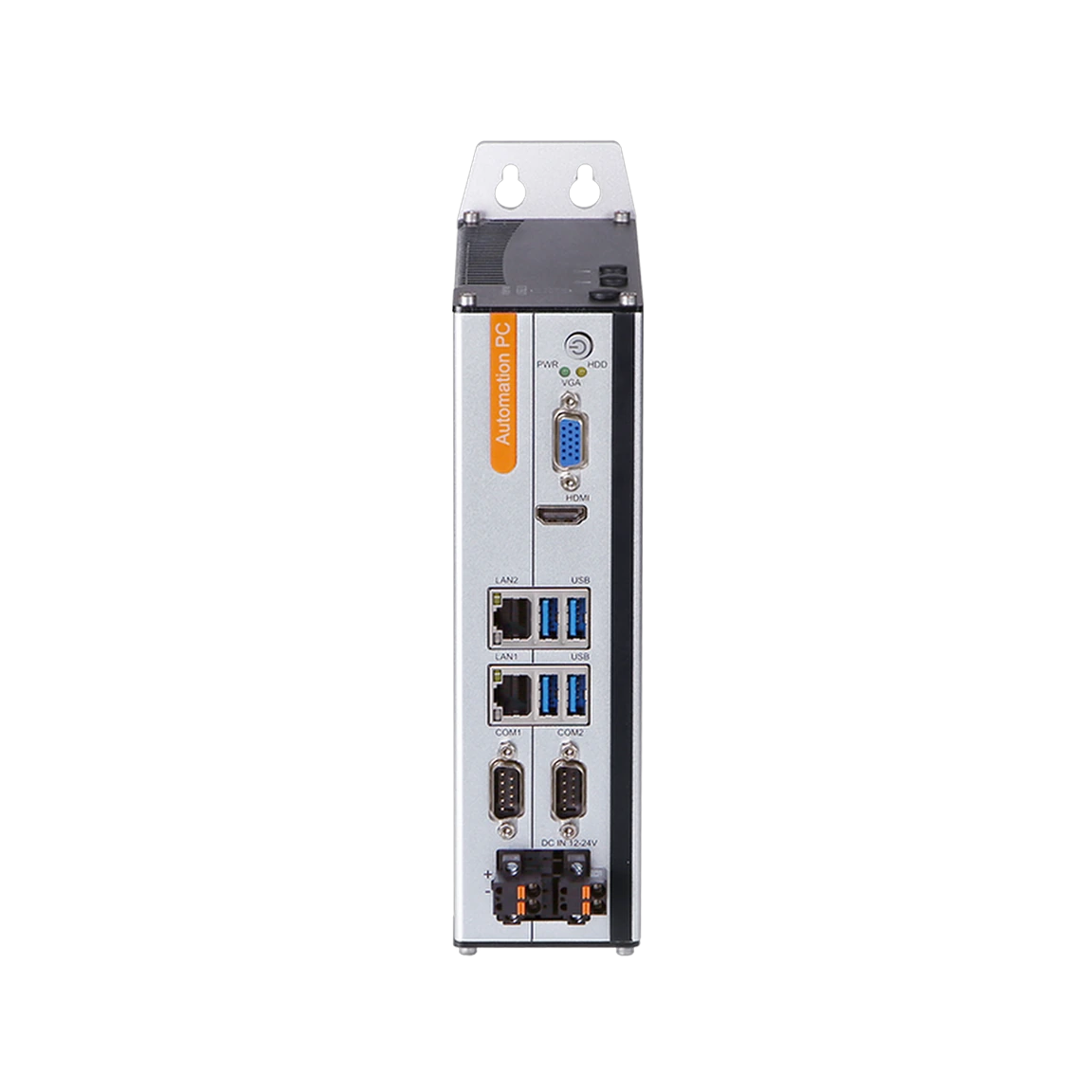

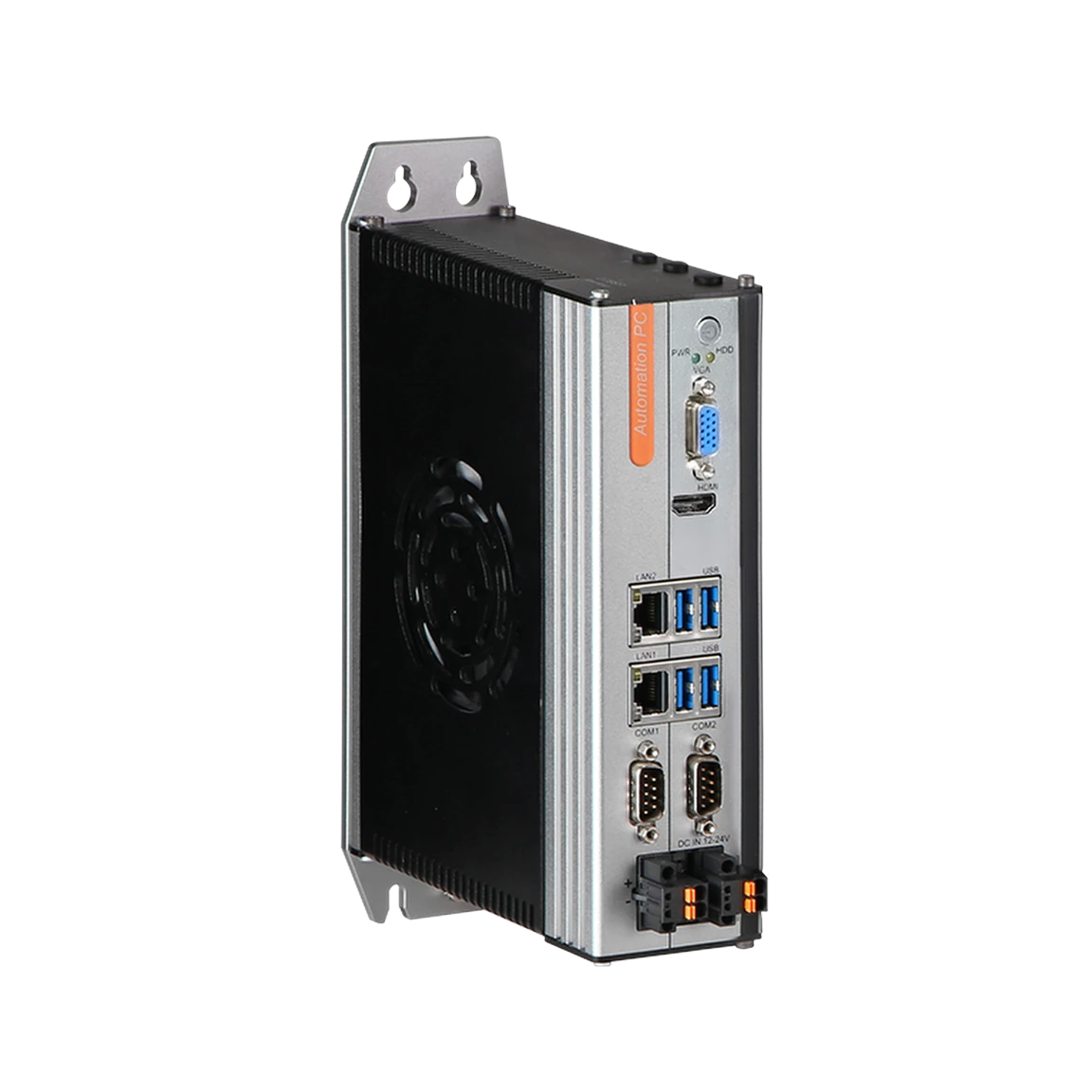

NP-6135 Ultra Automation PC
A control-cabinet automation PC based on an Intel Core Ultra 5 125H or Core Ultra 7 255H processor. It combines DDR5-5600 memory, integrated Intel Arc graphics, Intel AI Boost, dual Gigabit Ethernet, dual RS232/RS485, mSATA plus M.2 SATA storage, discrete TPM 2.0 and DIN-rail or wall mounting for modern machine and edge applications.
| Model | Processor | Memory | Graphics / AI | Network / serial |
|---|---|---|---|---|
| NP-6135-125H | Intel Core Ultra 5 125H · 14 cores / 18 threads · 28 W processor base power | 2 × DDR5-5600 SO-DIMM · up to 96 GB | Intel Arc graphics · Intel AI Boost · 33 overall INT8 TOPS | 2 × Intel i210-AT GbE · 2 × RS232/RS485 |
| NP-6135-255H | Intel Core Ultra 7 255H · 16 cores / 16 threads · 28 W processor base power | 2 × DDR5-5600 SO-DIMM · up to 96 GB | Intel Arc 140T GPU · Intel AI Boost · 96 overall INT8 TOPS | 2 × Intel i210-AT GbE · 2 × RS232/RS485 |
Deployment Capabilities
Modern automation compute
Core Ultra processors support supervisory control, local analytics, vision pre-processing and multi-application workloads.
Local AI acceleration
Integrated Intel AI Boost provides an NPU resource for supported inference and AI-assisted applications.
Industrial communication
Dual Intel Gigabit Ethernet and two RS232/RS485 ports support machine networks and field-device integration.
Secure platform foundation
A discrete TPM 2.0 device supports operating-system security features and protected credential storage where configured.
Technical Features
Intel Core Ultra platform
125H and 255H options combine performance and efficiency cores with integrated graphics and NPU resources.
DDR5 memory architecture
Two DDR5-5600 SO-DIMM sockets support up to 96 GB total memory according to the published platform specification.
Dual storage interfaces
mSATA and M.2 2280 Key-B SATA interfaces support separate boot and application-data devices.
Industrial I/O
Four USB 3.0 ports, an internal USB 2.0 Type-A, dual Ethernet and dual serial interfaces support machine peripherals.
Protected wide-range input
The 12–24 VDC input includes overcurrent, overvoltage and reverse-polarity protection.
Cabinet deployment
The aluminium-magnesium chassis supports DIN-rail or wall mounting and fan-assisted cooling for continuous industrial operation.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| SYSTEM | ||
| Processor options | — | Intel Core Ultra 5 125H: 14 cores / 18 threads, P-core base 1.2 GHz, E-core base 700 MHz. Intel Core Ultra 7 255H: 16 cores / 16 threads, P-core base 2.0 GHz, E-core base 1.5 GHz. |
| Processor base power | W | 28 for both processor options. |
| BIOS | — | AMI UEFI BIOS. |
| Memory | GB | 2 × DDR5-5600 SO-DIMM; platform capacity up to 96 GB. |
| Graphics | — | Core Ultra 5 125H: integrated Intel Arc graphics. Core Ultra 7 255H: Intel Arc 140T GPU. |
| NPU | — | Intel AI Boost. |
| Peak AI performance | INT8 TOPS | Core Ultra 5 125H: 33 overall, including 18 GPU and 11 NPU TOPS. Core Ultra 7 255H: 96 overall, including 74 GPU and 13 NPU TOPS. These are processor-level theoretical peak values; application performance depends on software and workload. |
| Watchdog | — | Programmable, 1–255 levels. |
| Security | — | Discrete TPM 2.0, SLB9672XU2.0. |
| COMMUNICATION, DISPLAY & STORAGE | ||
| Ethernet | — | 2 × Intel i210-AT Gigabit Ethernet controllers. |
| Serial | — | 2 × RS232/RS485 ports; maximum published baud rate 115.2 kbit/s. |
| USB | — | 4 × USB 3.0 plus 1 × internal USB 2.0 Type-A for a USB dongle. |
| Display | — | VGA up to 1920 × 1080 @ 60 Hz and HDMI up to 3840 × 2160 @ 60 Hz. |
| Storage interfaces | — | 1 × mSATA SATA 3.0 and 1 × M.2 2280 Key-B SATA 3.0. |
| Expansion | — | 1 × full-size Mini PCIe slot with SIM-card holder for supported Wi-Fi, cellular or CAN expansion modules. |
| Remote switch | — | 1 × remote switch connection (SW). |
| POWER, OS & MECHANICAL | ||
| Input voltage | VDC | 12–24 VDC ±10% with overcurrent, overvoltage and reverse-polarity protection. |
| Maximum power consumption | W | 90. |
| Operating systems | — | Microsoft Windows 10 and Windows 11; Linux distributions including Ubuntu and Debian. |
| Construction and mounting | — | Aluminium-magnesium alloy enclosure with fan-assisted cooling; wall-mount or DIN-rail installation. |
| Dimensions (L × W × H) | mm | 200 × 150.5 × 57.6. |
| Net weight | kg | 1.9. |
| ENVIRONMENT & COMPLIANCE | ||
| Operating temperature | °C | -20 to +60 with airflow and SSD storage. |
| Storage temperature | °C | -40 to +80 with airflow and SSD storage. |
| Relative humidity | — | 95% RH at 40 °C, non-condensing. |
| Operating vibration | — | 5–500 Hz, 3 Grms with SSD and wall mounting; IEC 60068-2-64 reference. |
| Operating shock | — | 30 G peak acceleration, 11 ms duration, with SSD and wall mounting; IEC 60068-2-27 reference. |
| EMC | — | CE EMC; IEC/EN 61000-6-2, IEC/EN 61000-6-4 and FCC Class A references. |
| Safety | — | IEC/EN 62368-1 reference. |
Applications
Advanced machine control
Run control coordination, recipes, local databases and supervisory applications on one industrial platform.
Machine vision support
Perform image pre-processing, inspection support or local inference with integrated graphics and NPU resources.
Industrial edge analytics
Aggregate machine data and execute local analytics, rules or containerized applications near production equipment.
SCADA and historian nodes
Host visualization, alarms, local historian functions and communication services in the control cabinet.
Robotics and motion cells
Coordinate networked controllers, serial devices and peripheral equipment around a robotic or motion system.
Automated test systems
Control instruments, fixtures, data acquisition and report generation with current x86 performance and industrial I/O.
