PNC-CXX25 Industrial Panel PC
A fanless Full HD panel-PC platform for production monitoring, operator interfaces and connected equipment. Built-in NFC, four serial ports and flexible mounting support access control, traceability and machine interaction.
Deployment Capabilities
Clear process visualisation
Full HD display options provide space for dashboards, alarms, trends and detailed operator controls.
Direct equipment connection
Four serial ports and dual Ethernet support controllers, instruments and plant-network communication.
Operator identification
Integrated NFC can support login, access or traceability functions implemented by the application.
Flexible installation
Panel and VESA mounting allow the system to be integrated into cabinets, machines, arms or wall stations.
Technical Features
Large-format display
15.6-inch and 21.5-inch Full HD options support dashboards, process graphics and detailed operator interfaces. The larger screen sizes make dense process graphics and multi-panel dashboards easier to operate.

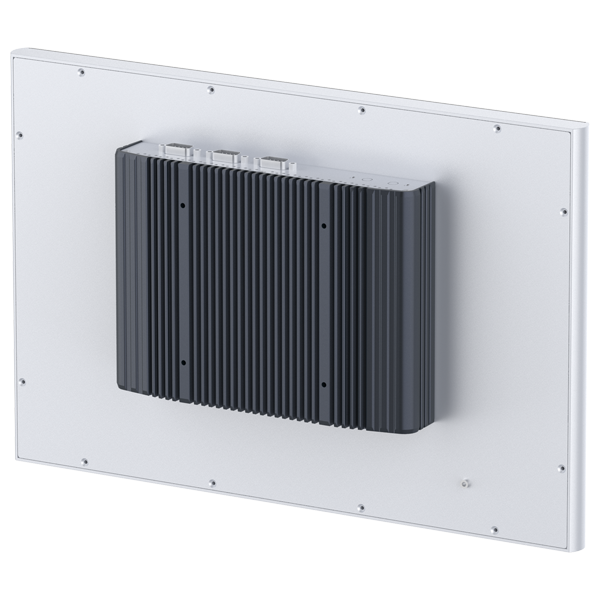

Fanless design
Passive cooling supports quiet, low-maintenance operation. Removing the fan reduces noise, maintenance demand and dust circulation through the system.
Serial connectivity
Four COM ports connect controllers, instruments and legacy equipment. The ports can consolidate several machine devices without adding separate serial converters.
NFC integration
Built-in NFC supports operator identification, access or workflow functions. This can link user identity to login, recipe selection, traceability or access permissions.
Industrial mounting
Panel and VESA mounting support machine and wall installation. The same platform can be embedded in a panel or attached to an arm, stand or wall.
Protected front
Front IP65 design supports dusty or splash-prone operator environments. Only the installed front face receives the stated protection after correct panel mounting.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| DISPLAY & COMPUTE | ||
| Display sizes | inch | 15.6 and 21.5. |
| Resolution | pixels | 1920 × 1080 at 60 Hz. |
| Processor | — | Intel N97; 7th Gen Core i5/i7; or 12th Gen Alder Lake-U Core i3/i5/i7, depending on selected series variant. |
| System memory | — | 1 × DDR4-3200 SO-DIMM, up to 32 GB. |
| Touch | — | Projected-capacitive multi-touch display. |

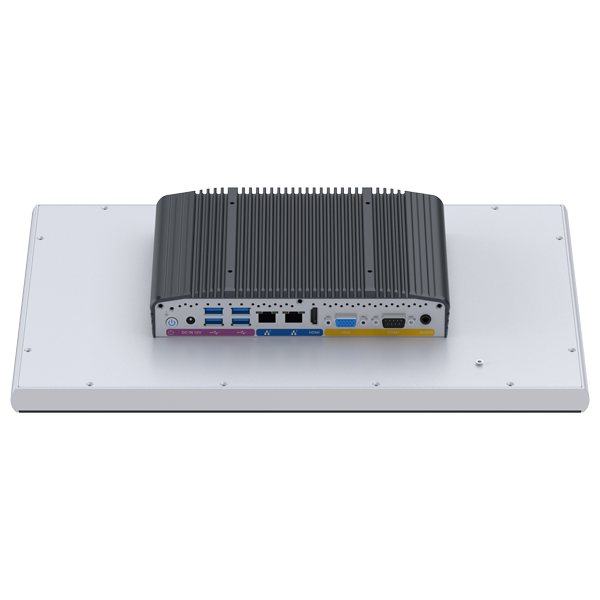

| INTERFACES | ||
| Ethernet | — | 2 × Gigabit Ethernet. |
| USB | — | 4 × USB 3.2 Gen1 Type-A. |
| Serial | — | 4 × RS-232; COM1 can be configured as RS-485 in BIOS. |
| Display outputs | — | HDMI and VGA for additional displays. |
| NFC | — | Integrated front NFC module. |
| MECHANICAL & DEPLOYMENT | ||
| Cooling | — | Fanless. |
| Front protection | — | IP65. |
| Mounting | — | Panel or VESA mounting. |
| Chassis | — | Aluminium-magnesium die-cast front frame. |
| Application areas | — | HMI, production tracking, access control and intelligent manufacturing. |
Front-panel IP protection applies to the installed operator-facing surface.
Applications
Factory HMI
Present process graphics, alarms, recipes and machine controls on a 15.6- or 21.5-inch Full HD display. Four COM ports support direct connection to industrial equipment.
Building management
Use the panel PC as a supervisory interface for HVAC, energy, access and facility systems. Integrated NFC can support operator identification or access workflows.
Test labs
Control automated instruments and display measurements on a large touch interface. Windows compatibility supports established laboratory and production-test software.
Energy monitoring
Visualise electrical, environmental and production data at the point of operation. Dual Ethernet and serial connectivity support meters, controllers and plant networks.
Kiosks
Build industrial information, check-in or operator terminals with touch and NFC. Panel or VESA mounting supports wall, enclosure and standalone installations.
Process equipment
Connect multiple serial devices while providing a clear local operator interface. Fanless cooling reduces maintenance in continuous-duty systems.
