PPC-CXX27 Industrial Panel PC
A modular industrial panel PC for HMI, process monitoring and equipment control. The compute module and display assembly can be serviced independently, while wide-voltage power and configurable serial, CAN/DIO or PoE interfaces support machine integration.
Deployment Capabilities
Combined HMI and compute
The display, touch interface and computer are supplied as one platform for machine and process applications.
Machine-specific connectivity
Serial, CAN/DIO, PoE and wireless options can be selected around the connected equipment.
Industrial power and mounting
Wide-voltage input, panel mounting and front protection support installation in machine and control-panel environments.
Modular product configuration
The host and display architecture supports different screen and I/O combinations within the documented series.
Technical Features
Industrial touch interface

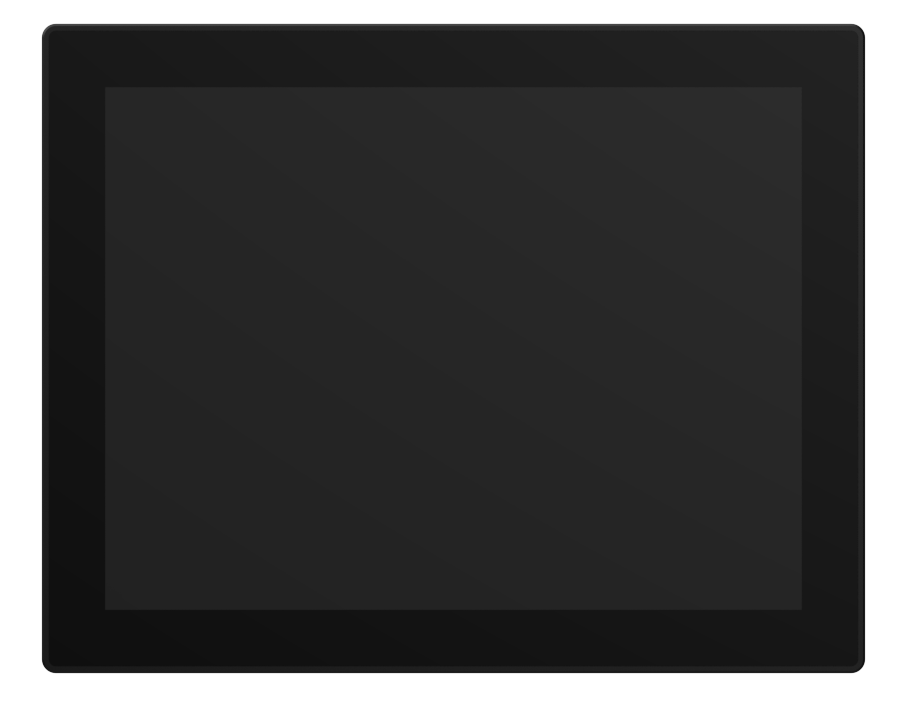

Projected-capacitive touch and front IP65 protection support machine and process interfaces. The combination supports frequent operator interaction in dusty or splash-prone work areas.
Modular construction

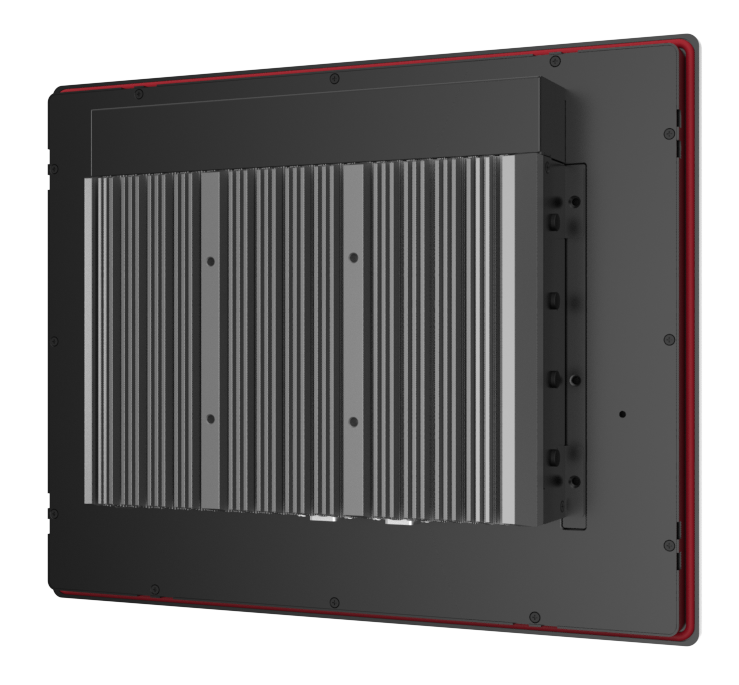

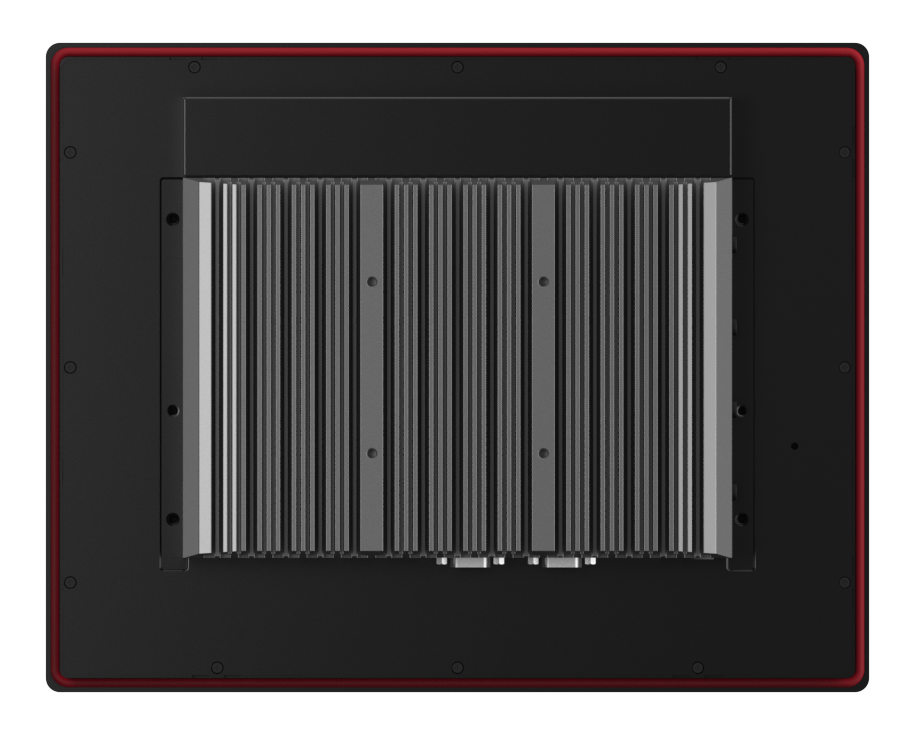

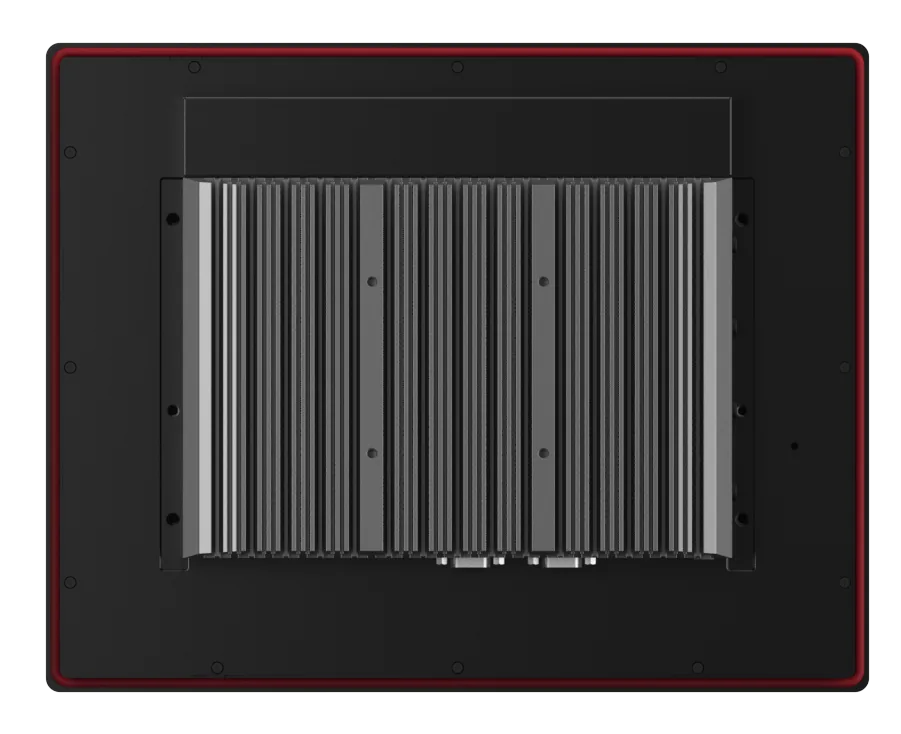

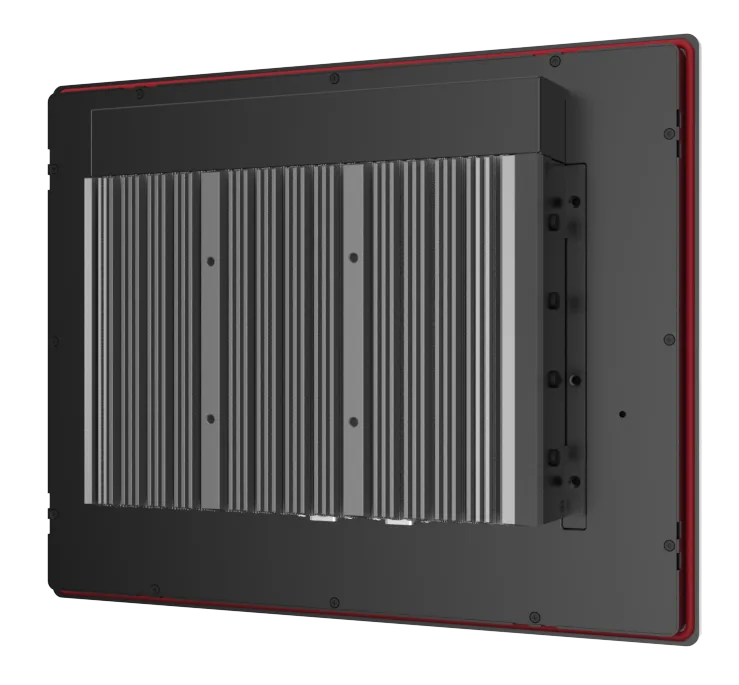

The host and display are connected through a modular architecture for easier service and product variation. Separating the compute and display assemblies can simplify servicing and product-family variation.
Configurable I/O
Additional serial, CAN/DIO or PoE options adapt the panel to equipment requirements. Integrated options may limit the need for separate gateways, switches or I/O modules in some equipment configurations.
Wide-voltage power
12–36 VDC input with protection functions suits cabinet and machine power systems. The protected input is compatible with common industrial DC supplies and fluctuating machine power.
Surface options
Anti-glare and anti-fingerprint coatings improve readability and maintainability. These treatments reduce reflections and visible fingerprints on frequently used touch surfaces.
Remote power
Remote switching supports embedded installation and service access. The computer can be started or shut down when its physical power button is not readily accessible.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| DISPLAY & COMPUTE | ||
| Processor | — | Intel Alder Lake-U Core i3/i5/i7 options. |
| Display | — | Projected-capacitive multi-touch panel; size and resolution selected by model. |
| Front protection | — | IP65 front panel. |
| Surface treatment | — | Anti-glare and anti-fingerprint coating options. |
| Memory / storage | — | 1 × DDR5-4800 SO-DIMM up to 32 GB; M.2 NVMe and optional 2.5-inch SATA storage, depending on model. |
| CONNECTIVITY | ||

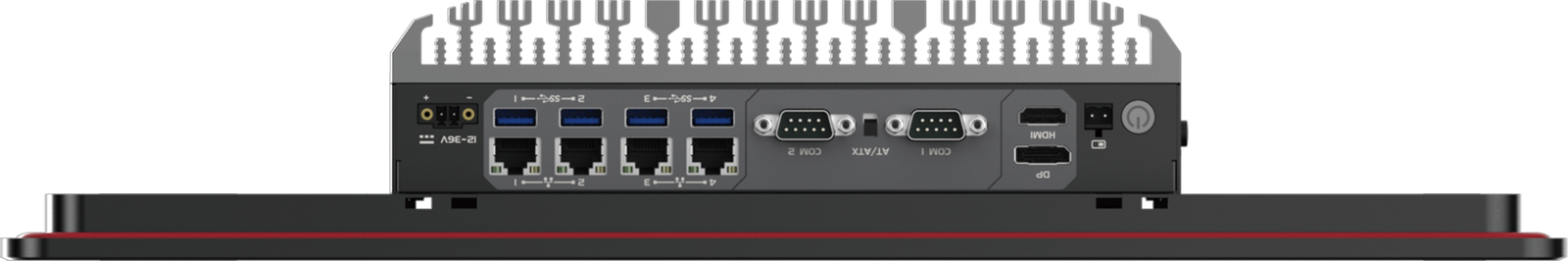

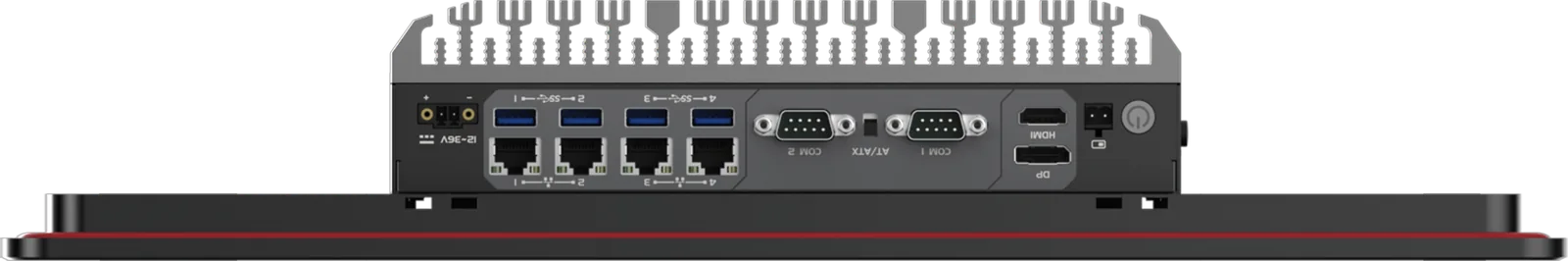

| Ethernet | — | 3 × 2.5GbE plus 1 × Gigabit Ethernet in the published host configuration. |
| USB | — | USB 3.2 interfaces for peripherals and service. |
| Serial | — | RS-232 and RS-232/422/485 selection through BIOS. |
| Expansion options | — | Additional serial, CAN/DIO, PoE, Wi-Fi and 5G modules. |
| Remote control | — | Remote power-switch support. |
| POWER & INSTALLATION | ||
| Power input | VDC | 12–36 with reverse-polarity, short-circuit, over-voltage and over-current protection. |
| Mounting | — | Panel and VESA mounting according to display model. |
| Mechanical design | — | Socket-connected host and display modules for easier assembly and service. |
| Application areas | — | Machine HMI, SCADA terminals, process monitoring and equipment control. |
Front-panel IP protection applies to the installed operator-facing surface.
Applications
Machine HMI
Provide touch-based machine operation, recipes, alarms and status visualisation. Alder Lake-U processing gives headroom for richer HMI and local analytics.
Process equipment
Integrate the panel into packaging, environmental, energy or production systems. Configurable serial, CAN/DIO and PoE options reduce the need for separate interface hardware.
Vision workcells
Combine a local operator display with camera and network connectivity for inspection stations. Optional PoE can simplify power and data wiring for network cameras.
Building automation
Use the wide-voltage panel PC as a supervisory interface for distributed building systems. Touch operation supports local control and maintenance access.
Test systems
Integrate display, Windows compute and instrument connectivity into fixtures and benches. The modular construction can simplify servicing the display or compute section.
Renewable energy
Deploy as a local HMI for inverters, storage, charging or distributed power equipment. The 12–36 VDC input suits common industrial DC supplies.
