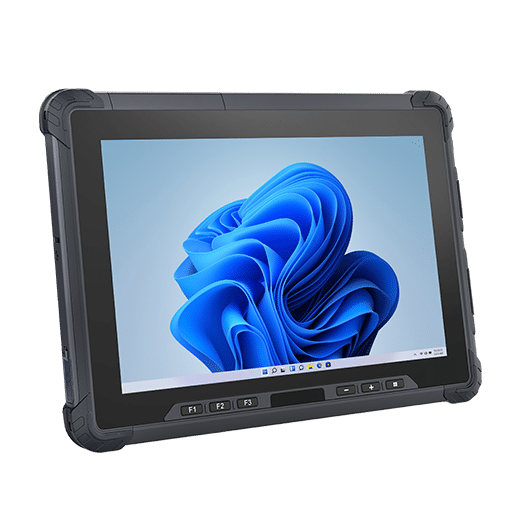

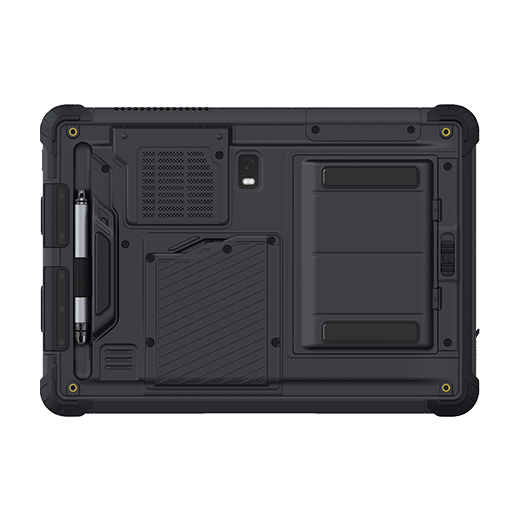

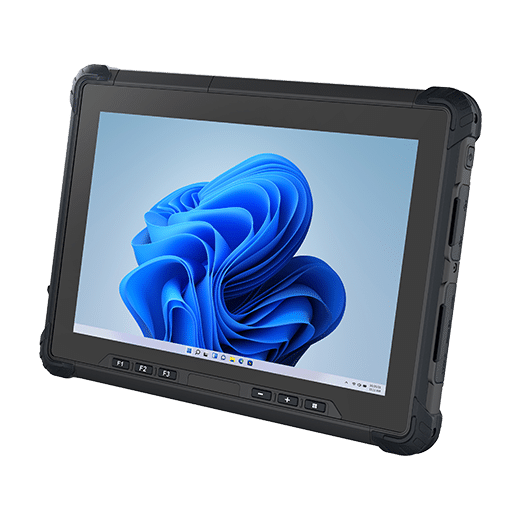

UR-100N Ultra-Rugged Tablet
An ultra-rugged Windows tablet for defence, utilities, transportation and harsh-environment service. Core i5 processing, IP66 protection and an internal plus hot-swappable battery support sustained field operation.
Deployment Capabilities
Full Windows field computing
The Core i5 platform can run compatible desktop, diagnostic, GIS and service applications.
Harsh-environment mobility
The enclosure and documented environmental testing suit demanding mobile work within the stated limits.
Extended field operation
Internal and hot-swappable batteries support battery replacement during active field use.
Docking and interface adaptation
Vehicle, desktop and modular-I/O options can adapt the same tablet to handheld and mounted roles.
Technical Features
Reinforced construction
The platform is designed for high-impact field and mobile use. The strengthened enclosure suits utilities, transport, construction and other demanding work sites.
Windows compatibility
Supports established field-service, GIS and diagnostic software. Users can retain full desktop applications, device utilities and enterprise management tools.
Outdoor operation
Display and enclosure options are selected for field readability and environmental exposure. The sealed design supports work in dust, rain and changing ambient conditions.
Wireless connectivity
Wi-Fi, Bluetooth, cellular and GPS options support remote operations. These options can provide access to central systems and deployment role data away from fixed networks.
Docking and accessories
Vehicle, desktop and data-capture accessories can be integrated. The same tablet can move between handheld, desktop and vehicle-based operating modes.
Project configuration
Processor, protection and accessory options support different field deployments. Interfaces, storage and accessories can be selected around the intended field role.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| COMPUTE & DISPLAY | ||
| Display | inch | 10.1 IPS. |
| Resolution | pixels | 1920 × 1200. |
| Processor | — | Intel Alder Lake Core i5-1235U. |
| Operating system | — | Windows 11 Pro or Windows 10/11 IoT. |
| RUGGEDNESS & MECHANICAL | ||
| Ingress protection | — | IP66. |
| Drop / shock | — | 4 ft drop/shock protection to MIL-STD-810H. |
| Operating temperature | °C | -20 to +60. |
| Storage temperature | °C | -40 to +70. |
| Dimensions | mm | 268.5 × 191 × 22.35 (29 max). |
| Weight | kg | Approximately 1.2. |
| CONNECTIVITY & POWER | ||
| Wireless | — | Intel AX210 Wi-Fi 6E, Bluetooth 5.2 and GPS. |
| Cellular | — | Optional 4G LTE. |
| Main battery | Wh | 66.6, hot-swappable. |
| Internal battery | Wh | 6.5. |
| Expansion options | — | High-precision module, RJ45 + USB 2.0 or RS-232 module. |
| Application areas | — | Defence field systems, utilities, transport and harsh-environment diagnostics. |
IP and MIL-STD ratings refer to the stated laboratory test conditions.
Applications
Defence field systems
Run Windows applications, mapping and communications in demanding mobile environments. Modular I/O and docking options support mission-specific peripherals and vehicle integration.
Utility maintenance
Use GIS, inspection, diagnostic and asset-management software around distributed infrastructure. IP66 protection and wide operating temperature support outdoor service.
Public safety
Access incident information, forms, maps and communication tools in the field. Hot-swappable power helps maintain operation during extended deployments.
Transportation
Use the tablet handheld or vehicle-mounted for fleet, rail, depot and roadside tasks. Cellular, GPS and docking options support connected mobile operations.
Mining and construction
Capture field data and service heavy equipment in dusty, wet and high-impact environments. The Core i5 platform supports full Windows engineering applications.
Industrial commissioning
Run diagnostics, configuration tools and documentation beside equipment in harsh locations. Modular serial, Ethernet and USB options support direct device access.
