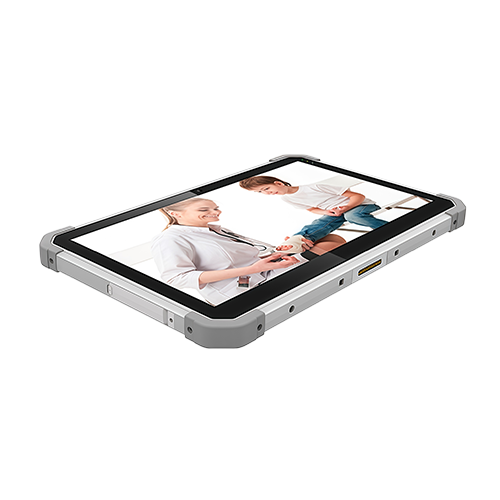

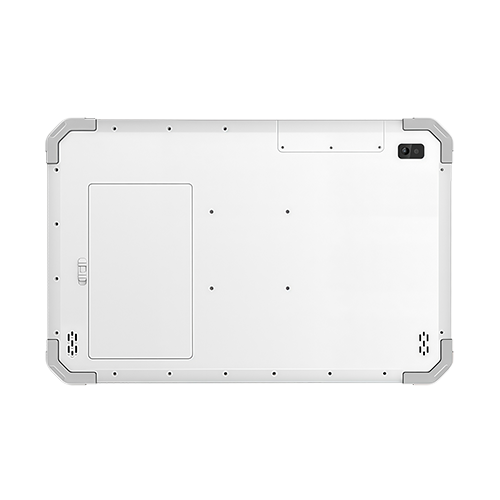

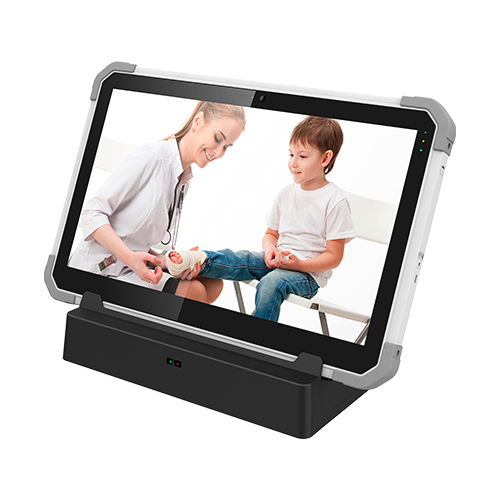

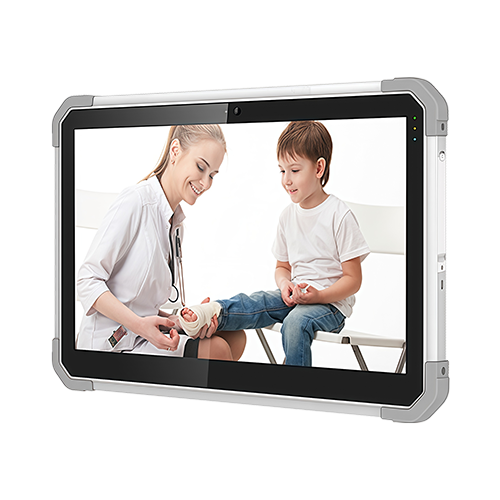

MD-150 Medical Tablet
A large-format medical tablet for imaging, cart-based documentation and equipment interfaces. Full HD display, Intel Core processing and hot-swappable battery support sustained clinical operation and high-content applications.
Deployment Capabilities
Large application workspace
The 15.6-inch Full HD display can present live content, controls and records on one interface.
Integrated x86 processing
Intel Core processing supports compatible imaging, documentation and instrument-control software.
Cart-oriented deployment
Mounting, battery and peripheral options support use as the main interface in a mobile medical workstation.
Configurable OEM basis
The platform can provide a documented starting point for specialised medical equipment and application software.
Technical Features
Imaging-oriented display
The 15.6-inch format provides more workspace for endoscopy, diagnostics and procedure guidance. Operators can view live content, controls and patient information together on one screen.
Integrated compute
Windows-compatible processing supports imaging, documentation and instrument software. The processor platform provides the performance needed for richer interfaces and connected peripherals.
Medical deployment
The platform is designed for medical safety, EMC and routine cleaning requirements. Its enclosure and certification set support integration into professional healthcare equipment.
Cart integration
Power, mounting and peripheral options support mobile medical carts. The large display can function as the main interface for a complete mobile diagnostic workstation.
Custom I/O
Camera, USB, Ethernet and application-specific interfaces can be configured. This flexibility supports cameras, instruments, storage devices and hospital network connections.
OEM platform
The system can be adapted for specialised medical equipment and workflow software. It provides a configurable basis for a specialised medical system without requiring the compute platform to be developed from the component level.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| COMPUTE & DISPLAY | ||
| Display | inch | 15.6 IPS. |
| Resolution | pixels | 1920 × 1080. |
| Processor | — | 11th Gen Intel Tiger Lake Core i5 or i7. |
| Operating system | — | Windows 11 Pro 64-bit or Linux. |
| Storage | — | PCIe Gen4 SSD, 256 GB standard configuration with expansion up to 1 TB. |
| MEDICAL & RUGGEDNESS | ||
| Medical certification | — | IEC 60601-1 and IEC 60601-1-2. |
| Ingress protection | — | IP54. |
| Drop / shock | — | 3 ft drop/shock protection to MIL-STD-810G. |
| Safety / EMC | — | Medical-grade safety and electromagnetic-compatibility certification. |
| CONNECTIVITY & POWER | ||
| Wireless | — | Intel AX210 Wi-Fi 6E and Bluetooth 5.2. |
| Cellular | — | Optional 4G LTE. |
| Battery | — | One internal plus one hot-swappable battery. |
| Application areas | — | Medical imaging, cart computing, documentation and equipment integration. |
IEC 60601 references apply to certified product variants and the specified medical power system.
Applications
Endoscopy systems
Use the 15.6-inch Full HD display and Intel compute for procedural imaging, documentation and equipment control. The larger format provides more workspace for live video and patient information.
Diagnostic carts
Build a mobile workstation around a large integrated display, Windows software and connected instruments. Hot-swappable power helps maintain operation during movement between locations.
Surgical support
Present procedure guidance, images and system status on a large touch interface. The platform can act as the operator terminal for supporting medical equipment.
Medical imaging
Support image acquisition, processing, review and local storage on an x86 platform. PCIe Gen4 storage provides capacity for data-intensive imaging workflows.
Telemedicine carts
Combine video consultation, documentation and peripheral connectivity in a large-screen mobile system. The display size improves shared viewing during remote consultations.
Medical OEM systems
Integrate the tablet into specialist diagnostic, therapy or imaging equipment. Windows or Linux support provides flexibility for proprietary application software.
