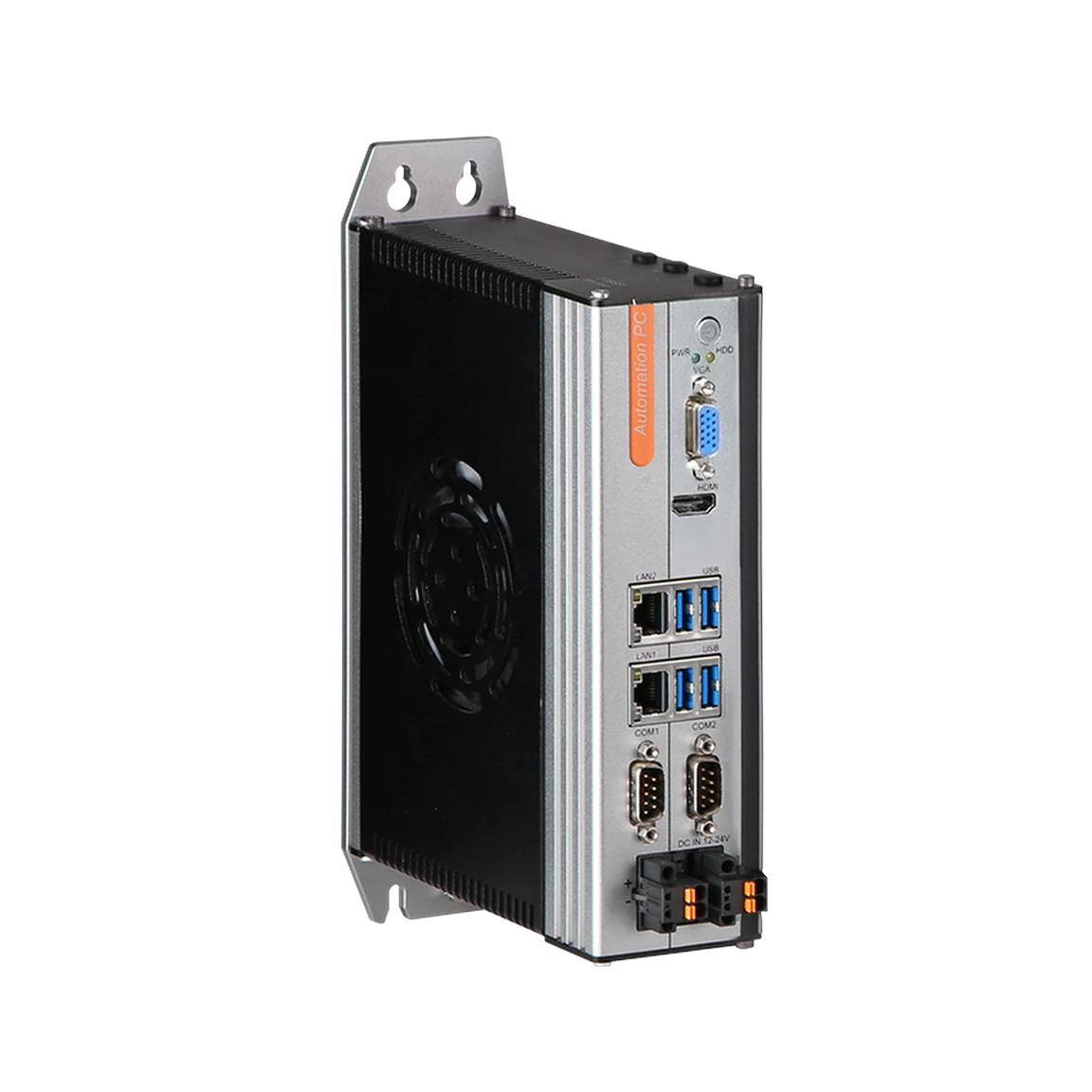

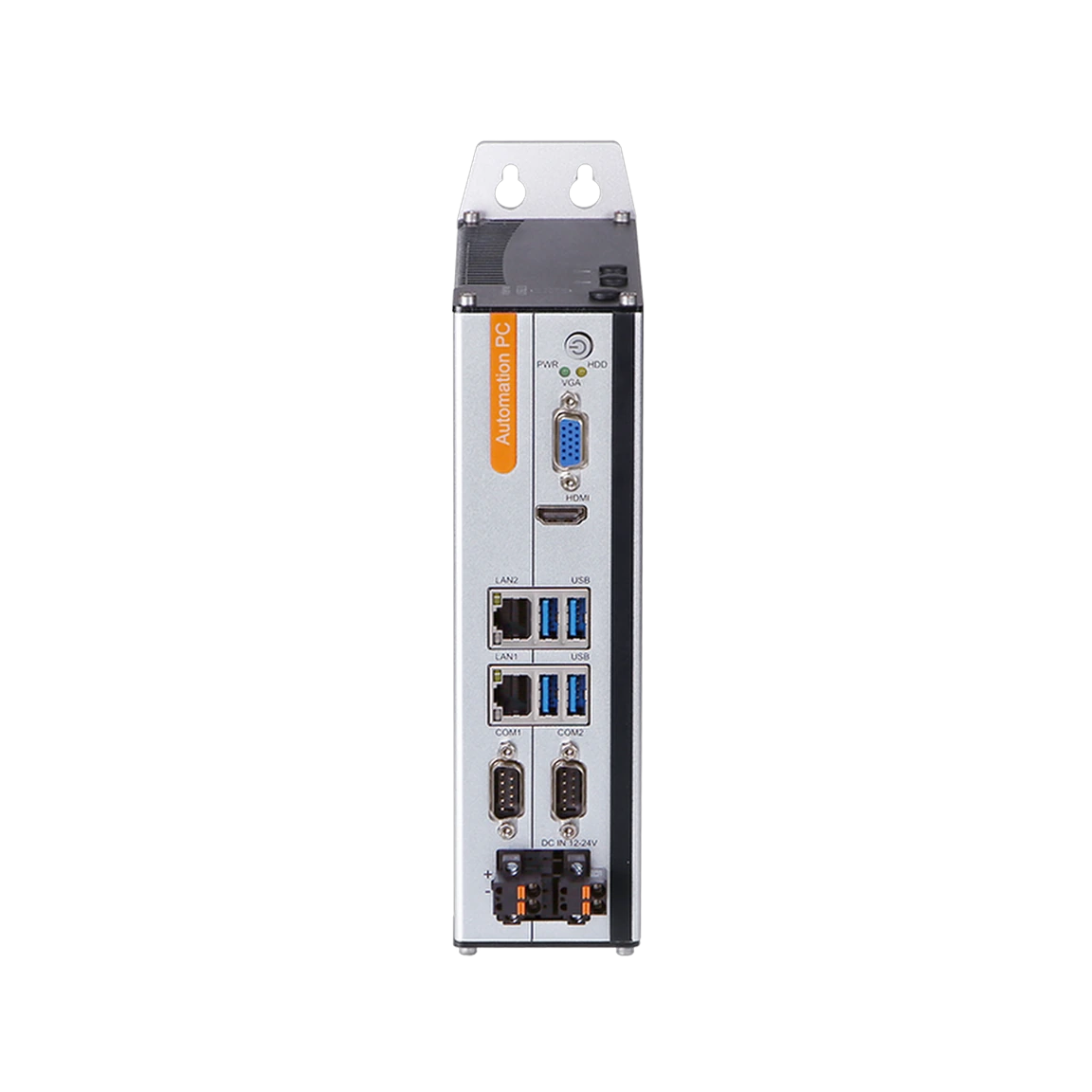

NP-6125 / NP-6135 Automation PC
Control-cabinet industrial computers for machine control, SCADA, industrial communication and supervisory applications. The NP-6125 supports 6th–8th Gen Intel Core i7/i5/i3, Pentium and Celeron processors, while the NP-6135 supports 10th–11th Gen Intel Core i9/i7/i5/i3 processors. Both platforms provide dual Gigabit Ethernet, dual RS232/RS485, mSATA and M.2 SATA storage, and DIN-rail or wall mounting.
| Model | Processor platform | Memory | Network / serial | Display |
|---|---|---|---|---|
| NP-6125 | 6th–8th Gen Intel Core i7/i5/i3, Pentium or Celeron · LGA1151 · up to 65 W TDP | 2 × DDR4 SO-DIMM · up to 32 GB | 2 × Intel GbE · 2 × RS232/RS485 | VGA 1920 × 1080 · HDMI 3840 × 2160 |
| NP-6135 | 10th–11th Gen Intel Core i9/i7/i5/i3 · LGA1200 · up to 65 W TDP | 2 × DDR4 SO-DIMM · up to 32 GB | 2 × Intel GbE · 2 × RS232/RS485 | VGA 1920 × 1200 · HDMI 3840 × 2160 |
Deployment Capabilities
Cabinet-mounted control computing
DIN-rail and wall-mount options support integration inside machine and control cabinets.
Industrial communication
Dual Gigabit Ethernet and two configurable RS232/RS485 ports connect controllers, drives, instruments and supervisory networks.
Serviceable storage
mSATA and M.2 SATA interfaces separate operating-system and application-data storage where required.
Flexible processor selection
Two platform generations provide a choice between established long-life systems and higher 10th–11th Gen Intel Core performance.
Technical Features
Socketed Intel processor platform
LGA processor support allows the CPU to be selected within the model-specific generation and 65 W TDP limit.
Dual-mode serial interfaces
Each DB-9 serial port can be configured for RS232 or RS485; the RS485 mode supports automatic flow control.
Dual display output
VGA and HDMI support local commissioning, service display or industrial HMI use.
Protected DC input
The 12–24 VDC input includes overcurrent, overvoltage and reverse-polarity protection.
Expansion and wireless options
A full-size Mini PCIe slot with SIM support can accommodate selected wireless or communication modules.
Industrial environmental design
The fan-assisted aluminium-magnesium chassis is specified for -20 to +60 °C operation with airflow and SSD storage.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| SYSTEM | ||
| Processor support | — | NP-6125: 6th–8th Gen Intel Core i7/i5/i3, Pentium or Celeron on LGA1151. NP-6135: 10th–11th Gen Intel Core i9/i7/i5/i3 on LGA1200. |
| Maximum processor TDP | W | 65. |
| BIOS | — | AMI UEFI, 64 Mbit. |
| Memory | GB | 2 × DDR4 SO-DIMM; up to 32 GB total. |
| I/O, DISPLAY & STORAGE | ||
| Ethernet | — | 2 × Intel Gigabit Ethernet controllers. |
| Serial | — | 2 × DB-9 ports, individually selectable as RS232 or RS485; RS485 supports automatic flow control. |
| USB | — | 4 × USB 3.0 plus 1 × internal USB 2.0 Type-A for a USB dongle. |
| Display | — | NP-6125: VGA up to 1920 × 1080 @ 60 Hz. NP-6135: VGA up to 1920 × 1200 @ 60 Hz. Both models: HDMI up to 3840 × 2160 @ 60 Hz. |
| Storage interfaces | — | 1 × mSATA bay and 1 × M.2 2280 Key-B bay with SATA support. |
| Expansion | — | 1 × full-size Mini PCIe slot with SIM-card holder; USB signal support is specified for the slot. |
| POWER & MECHANICAL | ||
| Input voltage | VDC | 12–24 VDC ±10% with overcurrent, overvoltage and reverse-polarity protection. |
| Maximum power consumption | W | 120. |
| Construction and mounting | — | Aluminium-magnesium alloy enclosure with fan-assisted cooling; wall-mount or DIN-rail installation. |
| Dimensions (L × W × H) | mm | 200 × 154.5 × 57.6. |
| Net weight | kg | 1.9. |
| ENVIRONMENT & COMPLIANCE | ||
| Operating temperature | °C | -20 to +60 with airflow and SSD storage. |
| Storage temperature | °C | -40 to +80 with airflow and SSD storage. |
| Relative humidity | % RH | 5–95, non-condensing. |
| Vibration resistance | — | 5–500 Hz, 1.5 Grms with SSD; IEC 60068-2-64 reference. |
| Shock resistance | — | 20 G peak acceleration, 11 ms duration, with SSD; IEC 60068-2-27 reference. |
| EMC | — | CE and FCC Class A, as specified for the platform. |
Applications
Machine control
Run supervisory control, motion coordination, protocol handling and machine applications close to the equipment.
SCADA and HMI hosting
Host local visualization, historian or SCADA software with optional display connection for service or operator access.
Industrial gateways
Bridge Ethernet and serial equipment while running protocol conversion, buffering and edge applications.
Data acquisition
Collect process, instrument and production data using Ethernet, serial or USB-connected acquisition hardware.
Test and inspection systems
Control instruments, fixtures, cameras and production-test peripherals from a cabinet-mounted computer.
Legacy equipment integration
Retain RS232/RS485 connectivity while adding current Ethernet, storage and operating-system capability.
