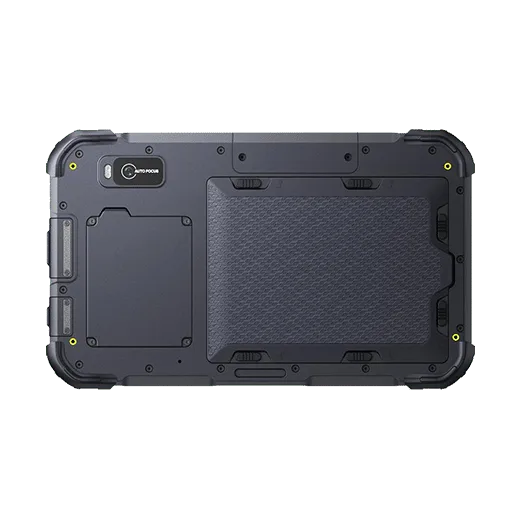

MW-80 Rugged Windows Tablet
A compact rugged Windows tablet for warehouse, maintenance and commissioning tasks. The 8-inch format, dual-battery architecture and optional Ethernet, serial or barcode modules support mobile industrial work.
Deployment Capabilities
Desktop software in the field
Compatible Windows tools and device utilities can be used close to the equipment or asset.
Compact protected mobility
The 8-inch enclosure suits confined work areas and repeated handheld use within the documented ratings.
Task-specific interface modules
Ethernet, serial, USB or barcode modules can provide direct connection without separate adapters.
Battery exchange during operation
The internal battery can maintain the system while the removable battery is replaced.
Technical Features
Compact mobility
The 8-inch format supports one-hand and space-constrained workflows. It can be carried easily in warehouses, vehicles and confined equipment areas.
Rugged protection
IP65 and MIL-STD-810H shock/drop testing suit industrial field use. The construction is suited to repeated mobile use around machinery and outdoor assets.
Continuous operation
Internal and hot-swappable batteries support extended shifts. The removable battery can be exchanged while the internal battery maintains application continuity.
Expansion slot
RJ45, RS-232, dual USB or barcode modules adapt the tablet to the task. This enables direct connection to controllers, networks and identification systems without bulky adapters.
Modern connectivity
Wi-Fi 6, Bluetooth 5.1, GPS and optional 4G LTE support mobile operations. The connection set supports mobile access to plant systems, cloud services and location data.
Windows platform
Windows 11 IoT supports industrial applications and device integration. Existing Windows tools, drivers and management policies can be retained in the mobile workflow.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| COMPUTE & DISPLAY | ||
| Display | inch | 8 IPS. |
| Resolution | pixels | 1920 × 1200. |
| Processor | — | Intel Pentium N6415. |
| Operating system | — | Windows 11 IoT Enterprise. |
| RUGGEDNESS & POWER | ||
| Ingress protection | — | IP65. |
| Drop / shock | — | MIL-STD-810H compliant configuration. |
| Battery | — | One internal and one hot-swappable battery. |
| Use model | — | Compact one-hand and space-constrained industrial operation. |
| CONNECTIVITY & EXPANSION | ||
| Wireless | — | Wi-Fi 6, Bluetooth 5.1 and GPS. |
| Cellular | — | Optional 4G LTE. |
| Expansion modules | — | RJ45, RS-232, 2 × USB 2.0 or barcode scanner. |
| Application areas | — | Warehouse operations, field service and equipment commissioning. |
IP and MIL-STD ratings refer to the stated laboratory test conditions.
Applications
Field maintenance
Run compact Windows diagnostic and service software beside equipment. Optional Ethernet or serial modules allow direct connection to industrial devices.
Warehouse work
Use barcode and wireless applications for picking, counting and inventory verification. The 8-inch form factor is practical in narrow aisles and vehicles.
Utilities
Carry inspection, mapping and asset-management tools into the field. Hot-swappable battery support helps extend operation across longer work periods.
Manufacturing
Capture quality data, work instructions and machine status on the shop floor. Rugged protection supports frequent handling around production equipment.
Transport
Support depot, fleet and route workflows with Windows software, GPS and optional cellular connectivity. The compact format fits vehicle and handheld use.
Equipment commissioning
Connect to controllers and networked equipment through optional serial or RJ45 modules. This provides a portable interface for setup, testing and troubleshooting.
