PUC-CXX65 Industrial Panel PC
A fanless panel PC for cost-sensitive HMI and monitoring systems. Intel J6412 processing, front-panel protection and 12–24 VDC input support straightforward integration into machines and control panels.
Deployment Capabilities
Integrated HMI platform
Display, touch and x86 computing are combined for routine visualisation and operator tasks.
Accessible service connection
The front USB port supports commissioning and data-transfer tasks without opening the cabinet.
Panel or VESA installation
The platform can be embedded in a machine panel or mounted on a wall, stand or articulated arm.
Configurable application capacity
SO-DIMM memory and storage options allow the system to be sized for the selected software workload.
Technical Features

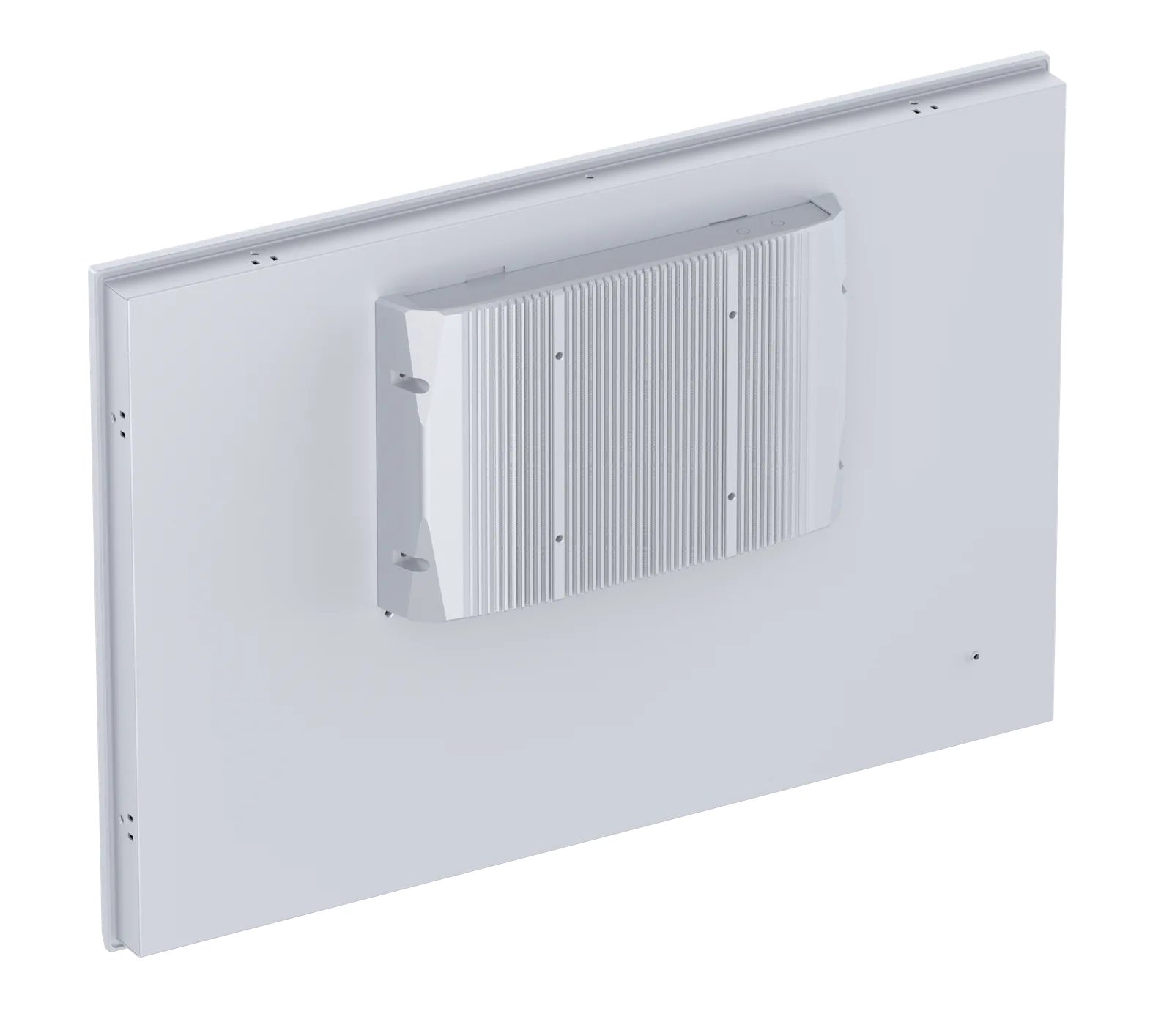

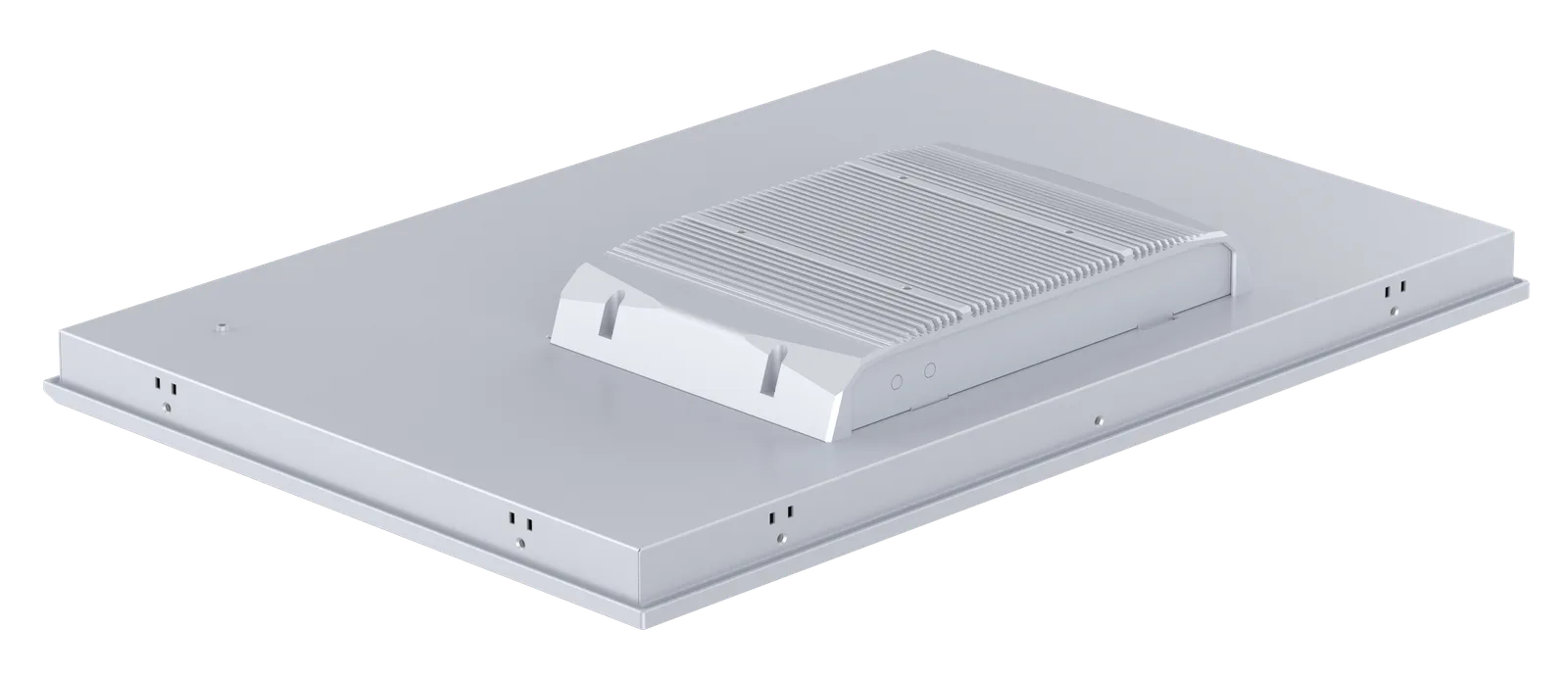

Fanless operation
Passive cooling supports maintenance-reduced machine interfaces. The design is well suited to basic HMI and monitoring duties in continuous operation.
Front service access
A front USB port supports service and data-transfer workflows. Technicians can connect a service device without opening the cabinet or machine enclosure.

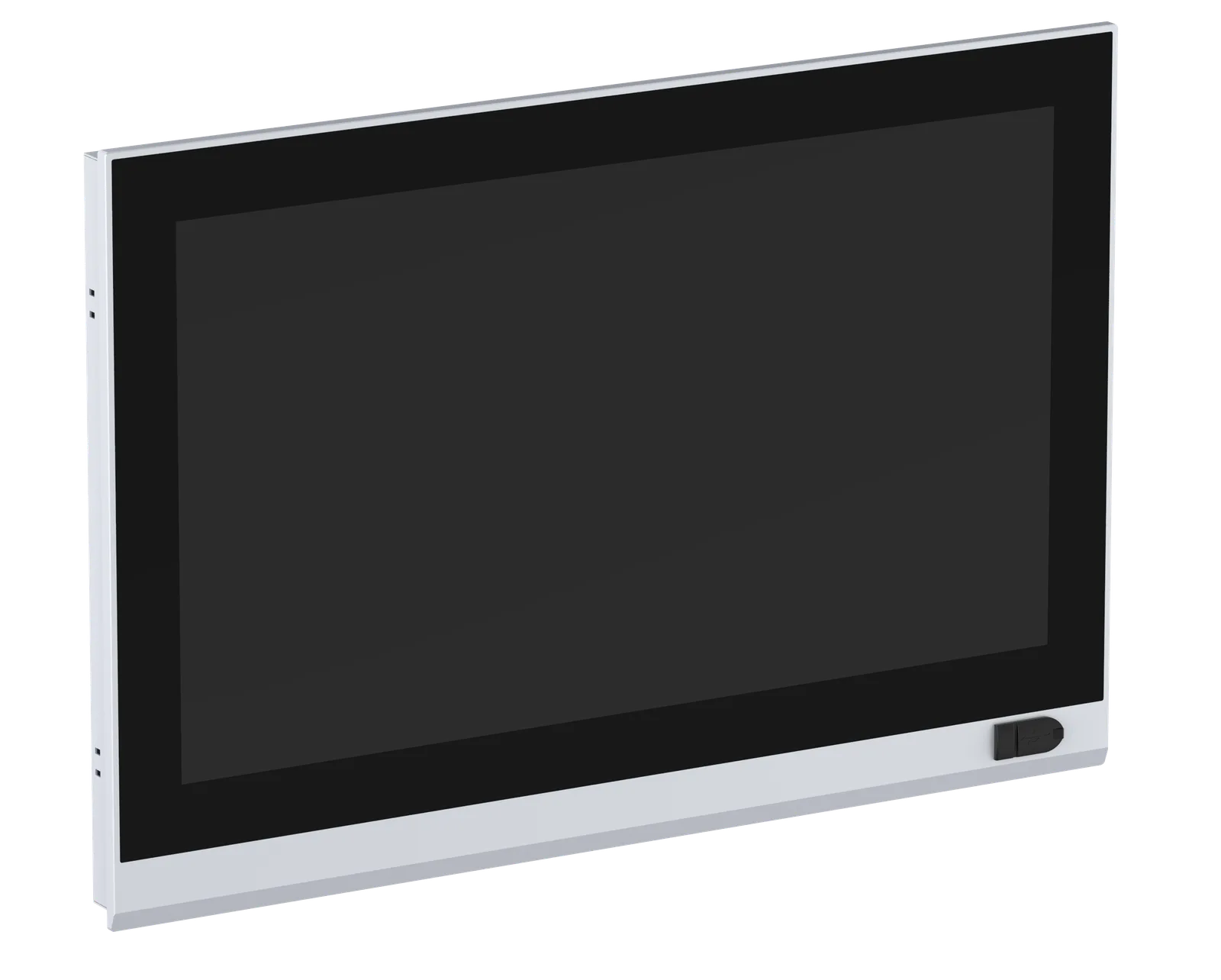

Protected display
Front IP65 construction is suitable for equipment and factory environments. After proper installation, the exposed front is protected against dust and water jets.
Flexible mounting
Panel and VESA mounting cover machine, cabinet and wall installation. This allows the same computer to serve embedded panels, wall stations and articulated mounts.
Standard memory
DDR4 SO-DIMM allows capacity to be matched to the application. Memory can be scaled for lightweight visualisation or more demanding Windows applications.
Industrial DC input
12–24 VDC supports common equipment power systems. The voltage range simplifies integration with standard control-panel and machine power supplies.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| COMPUTE & DISPLAY | ||
| Processor | — | Intel Celeron J6412. |
| System memory | — | 1 × DDR4-3200 SO-DIMM, up to 32 GB. |
| Display | — | Industrial LCD and projected-capacitive touch; size selected by series model. |
| Cooling | — | Fanless design. |
| Operating system | — | Windows and Linux options. |
| INTERFACES | ||
| Front USB | — | 1 × USB 2.0. |

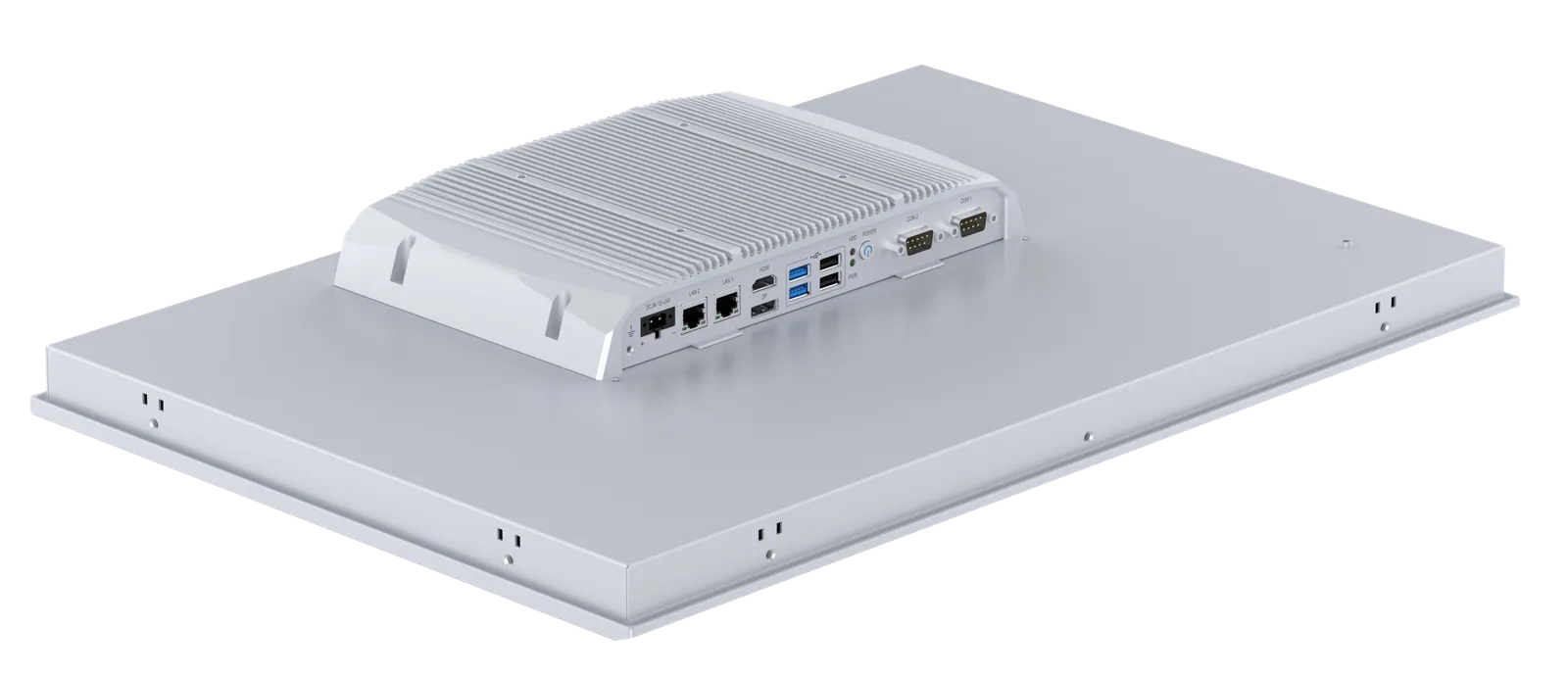

| Rear I/O | — | Ethernet, USB, serial and display interfaces according to selected model. |
| Storage | — | M.2 or SATA storage option according to configuration. |
| Power input | VDC | 12–24. |
| INSTALLATION | ||
| Front protection | — | IP65-compliant front panel. |
| Mounting | — | Panel and VESA mounting. |
| Application areas | — | Machine HMI, production terminals, building control and equipment monitoring. |
Front-panel IP protection applies to the installed operator-facing surface.
Applications
Machine operation
Provide a cost-effective touch HMI for machine status, recipes and basic operator control. Fanless cooling supports continuous use with limited maintenance.
Information terminals
Display instructions, production information or building data at the point of use. Panel and VESA mounting support different installation formats.
Control cabinets
Install a compact supervisory interface directly in cabinet or machine panels. Front IP65 protection applies to the exposed operator side after installation.
Data entry
Capture production quantities, quality results and work-order information close to the process. The front USB port provides convenient service access.
Light process control
Run local visualisation and communication tasks for small machines or auxiliary systems. Ethernet, serial and USB interfaces connect common industrial peripherals.
OEM equipment
Use a standard fanless display computer across repeatable equipment designs. DDR4 memory and storage options can be matched to the software workload.
