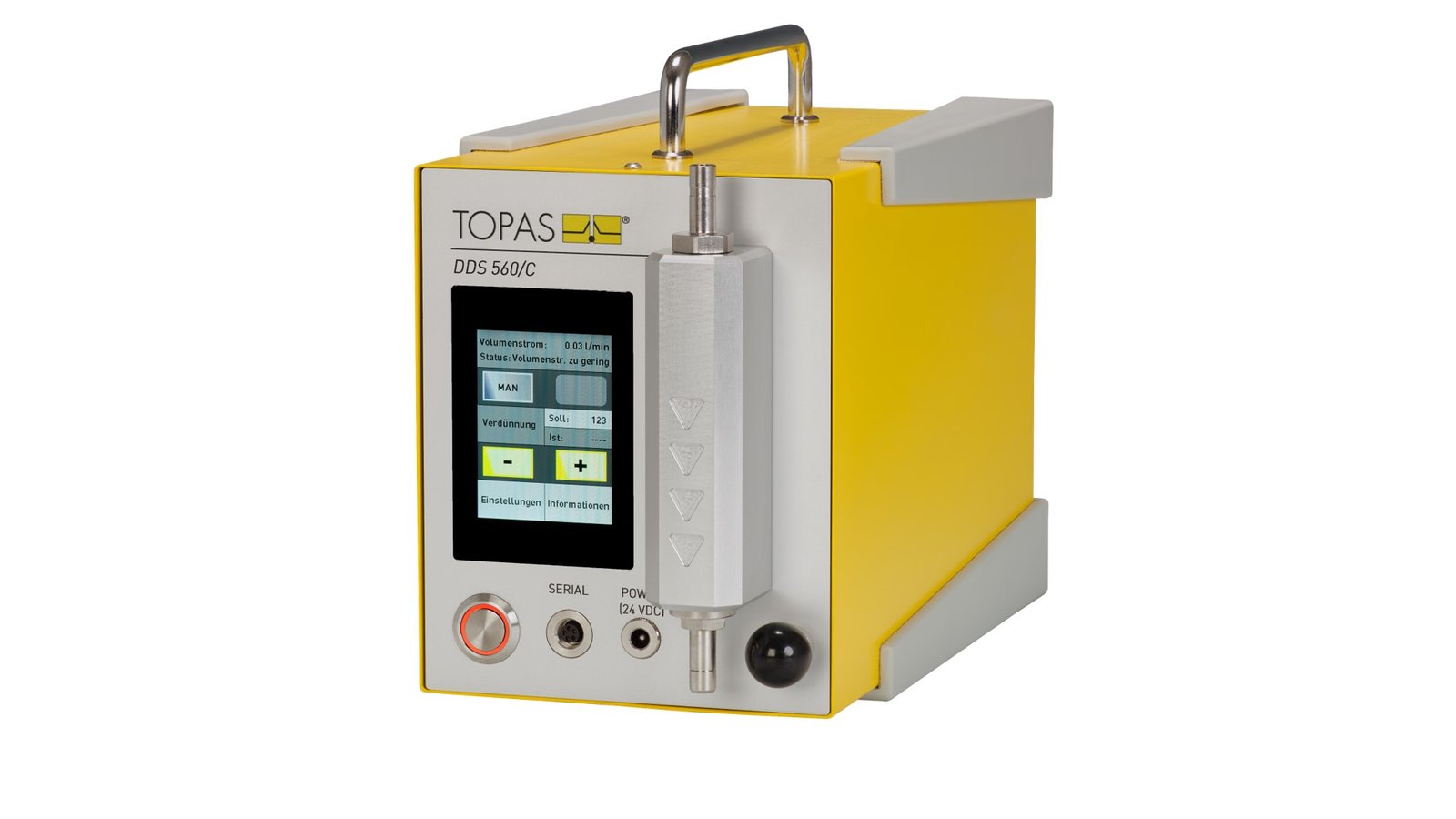

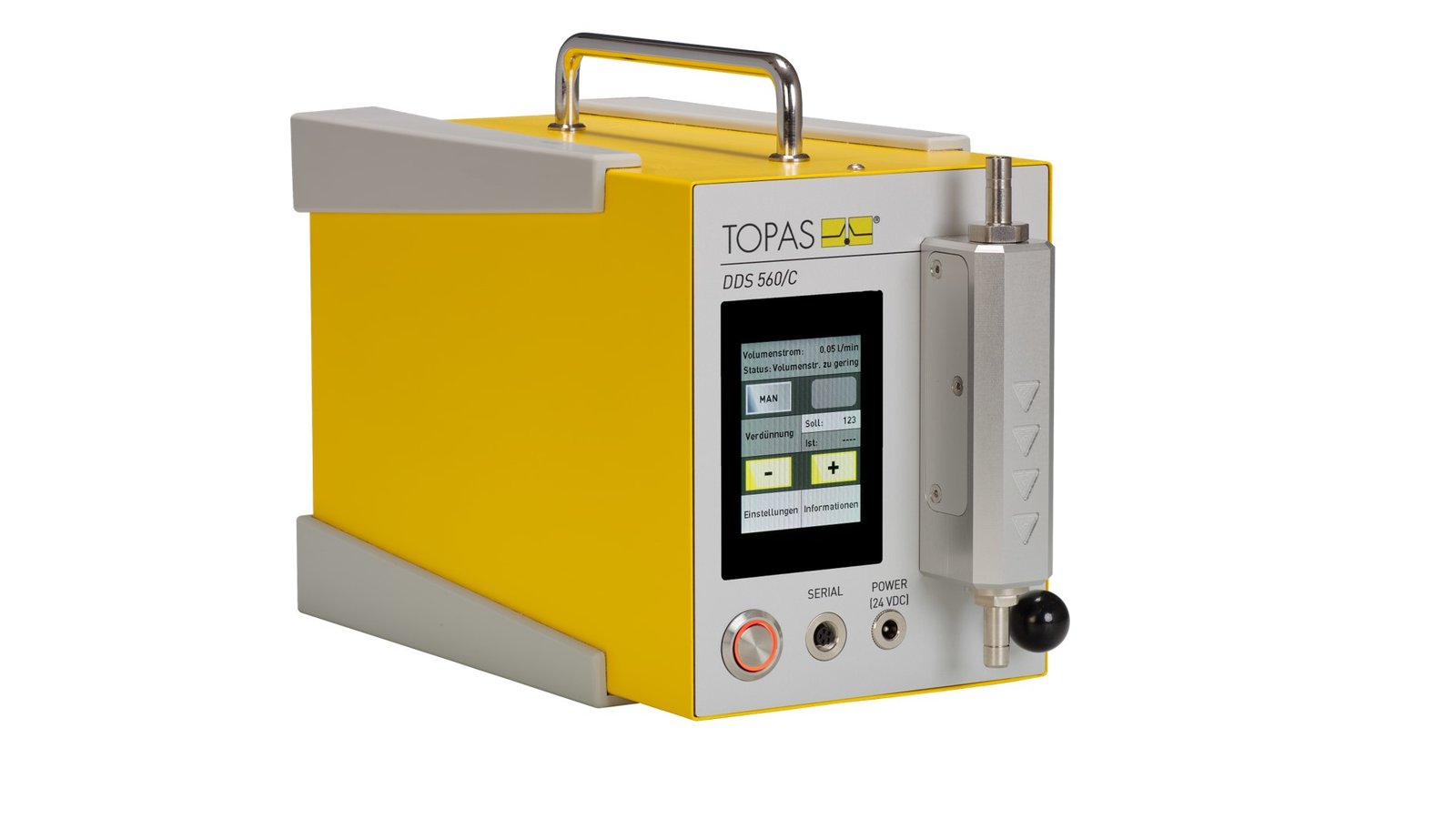

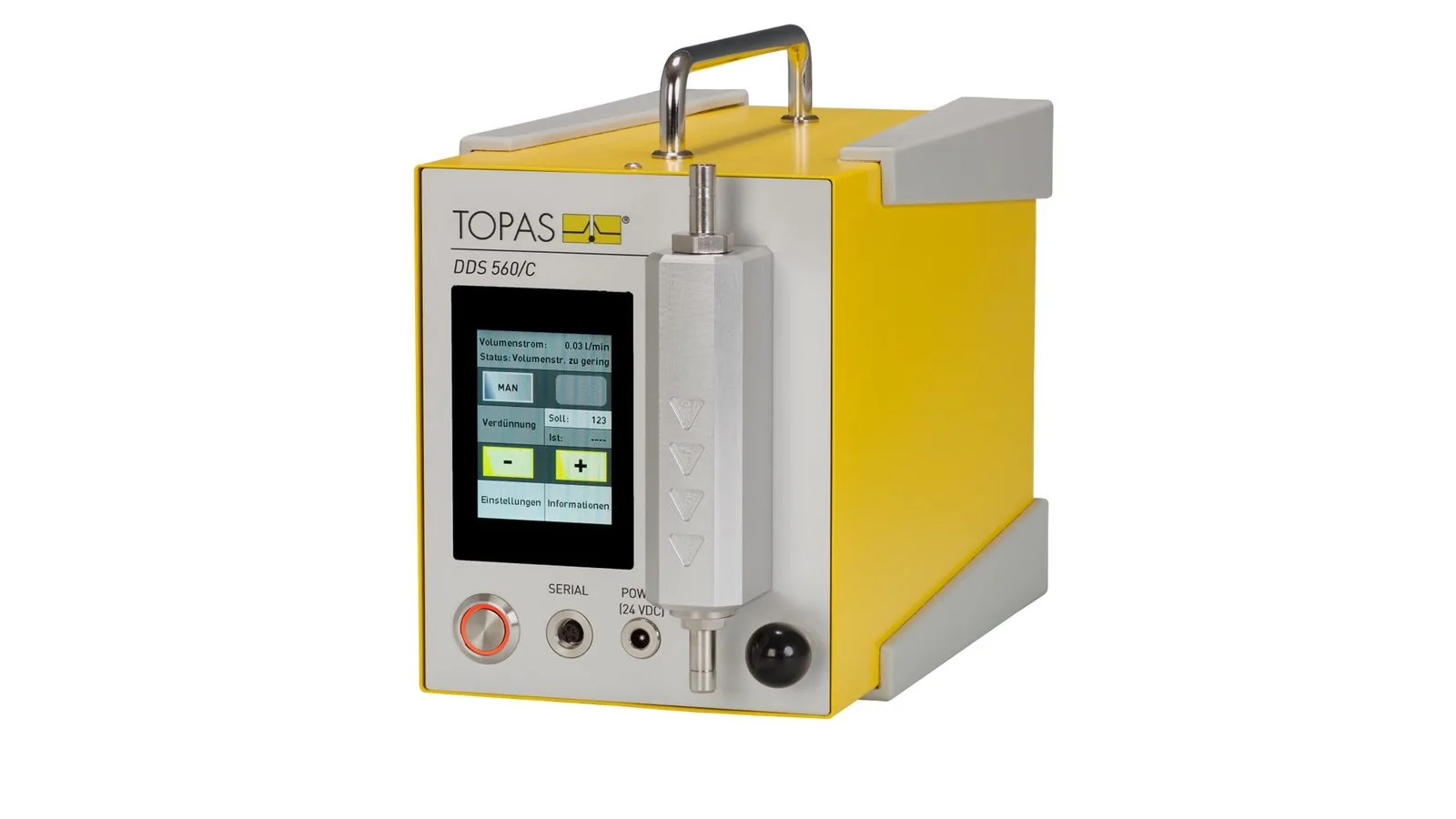

DDS 560/C Dynamic Dilution System
Touchscreen-controlled dynamic aerosol dilution system with automatic readjustment, variable 0.5–3.0 L/min sample flow and RS-232 integration for automated aerosol measurements.
Model Overview
| Model | Configuration | Primary use | Selection note |
|---|---|---|---|
| DDS 560/C | 5–370, flow-dependent; 0.5–3.0 L/min | Touchscreen-controlled dynamic aerosol dilution system with automatic readjustment, variable 0 | Select DDS 560/C for automated, remotely monitored dilution with automatic setpoint control and variable instrument sample flow. |
Key Features
Wide adjustable dilution range
Provides a freely adjustable dilution factor over approximately one decade, with the available range dependent on sample flow.
Automatic setpoint readjustment
The control system readjusts the dilution setting to maintain the selected value as operating conditions change.
Variable passive sample flow
Compatible with aerosol analytical instruments using sample flow rates between 0.5 and 3.0 L/min.
Touchscreen operation
Local touchscreen menus support setup, operation and instrument-status review.
Remote communication
RS-232 communication supports remote control and parameter monitoring in automated measurement systems.
Fast operating setup
Published setup time is no more than 10 seconds under the specified operating conditions.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| DILUTION PERFORMANCE | ||
| Setting parameter | — | Dilution factor |
| Setting range | — | 5–200 at 0.5 L/min; 10–370 at 1.0 L/min; 30–190 at 3.0 L/min |
| Setting resolution | — | Steps of 1 or 10 |
| Inlet volumetric flow rate | L/min | 0.5–3.0, continuously variable |
| Setup time | s | Maximum 10 |
| CONTROL & CONNECTIONS | ||
| Power supply | — | 24 V DC via power adapter |
| Operating medium | — | Air; other media on request |
| Communication | — | RS-232, M9 IP67 5-pole |
| User interface | — | Touchscreen |
| Power consumption | W | Maximum 25 |
| Hose connector | mm | Ø 8 outer diameter |
| PHYSICAL | ||
| Dimensions (W × H × D) | mm | 140 × 285 × 200 |
| Weight | kg | 3.3 |
Specifications follow the current Topas GmbH product information reviewed for this page. Confirm the final configuration, accessories and calibration documentation at quotation stage.
Applications
Aerosol-instrument calibration
Provides defined concentration reduction for calibration and verification of aerosol analytical instruments.
Indoor aerosol analysis
Conditions indoor aerosol samples before particle counting or size-distribution measurement.
Workplace aerosol measurements
Extends the useful concentration range of instruments used for occupational aerosol monitoring.
Fundamental aerosol research
Allows automated and repeatable variation of aerosol concentration in experimental studies.
Remote-controlled test systems
Integrates with automated benches through RS-232 communication and monitored operating parameters.
Coincidence-error reduction
Reduces concentrated aerosol samples before optical particle counting or mobility analysis.
