SYS 529 Rectangular Sampling Probe

Rectangular isokinetic sampling probe for installed-filter leakage and integrity scanning at a 28.3 L/min particle-counter flow, designed according to ISO 14644-3 and VDI 2083-3.

Sample flow

28.3 L/min

Velocity range

31–47 cm/s

Outlet

Ø 8 mm

Material

Anodised aluminium

Isokinetic sampling28.3 L/minRectangular inletISO 14644-3

ISO 14644-3VDI 2083-3

Request price and availability ← Back to Category

Model Overview

Model	Group	Positioning	Core fit
SYS 529	Rectangular isokinetic sampling probe	28.3 L/min probe for installed-filter leakage and integrity scanning	HEPA/ULPA filter scanning with 28.3 L/min particle counters

Key Features

Isokinetic sampling design

The inlet dimensions are matched to the required sample flow and downstream filter velocity to reduce size-dependent sampling errors.

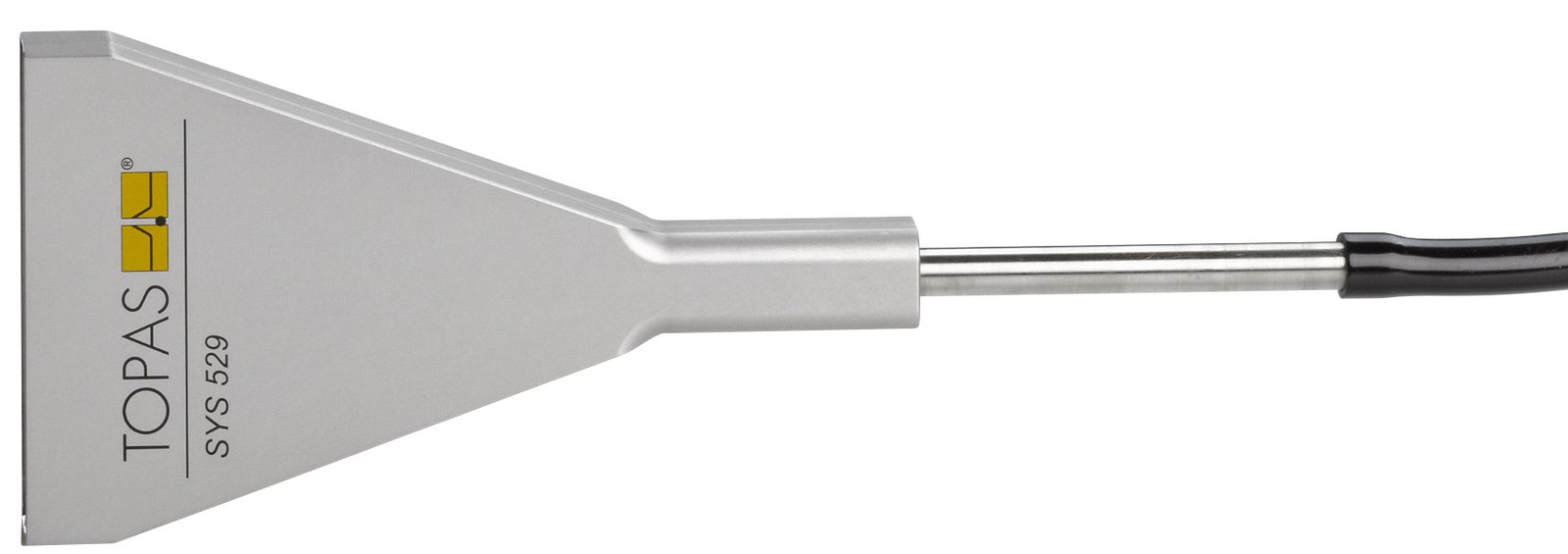

Rectangular-to-round transition

A smooth internal transition supports particle transport from the rectangular scan inlet to the circular hose connection.

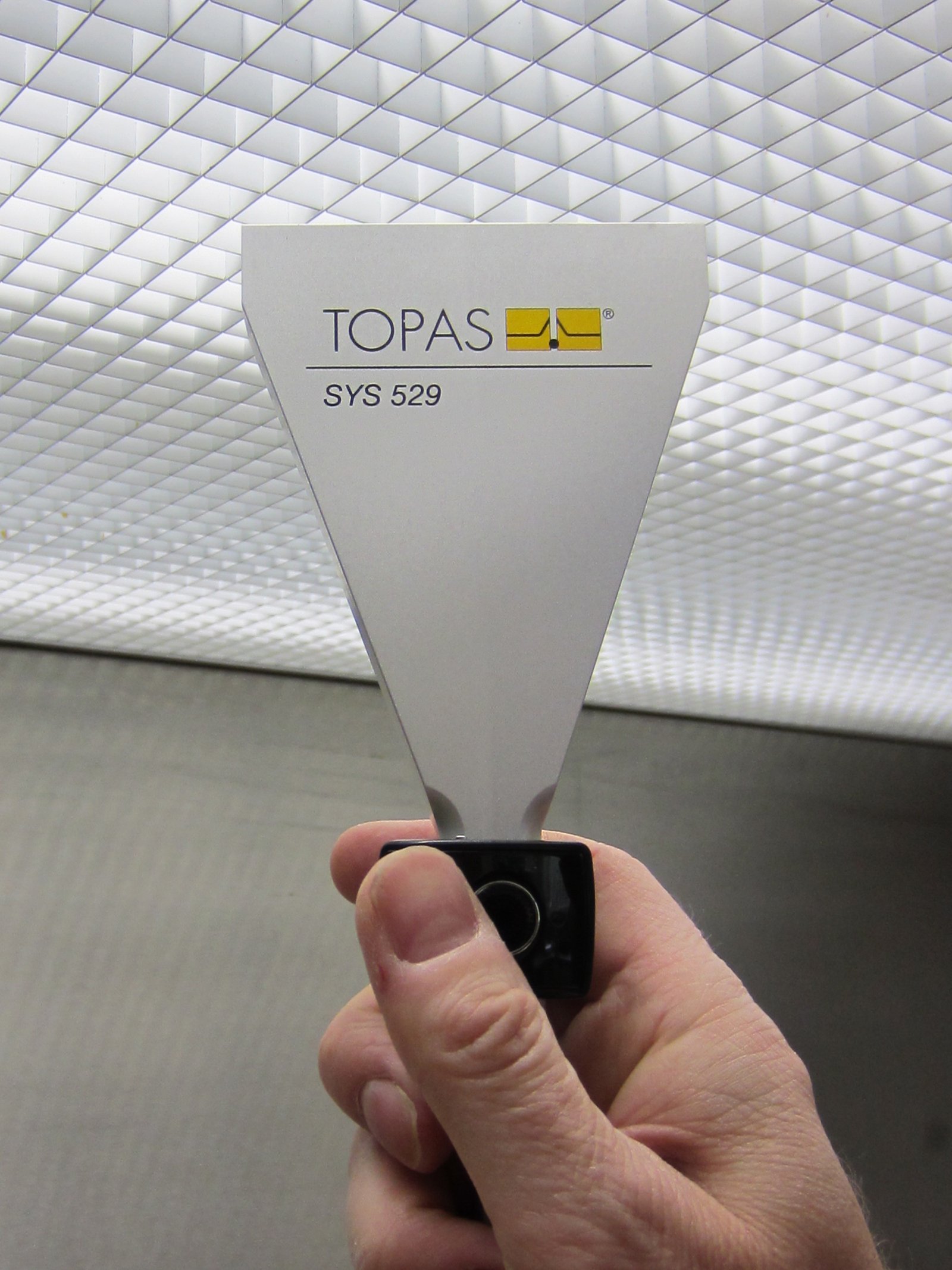

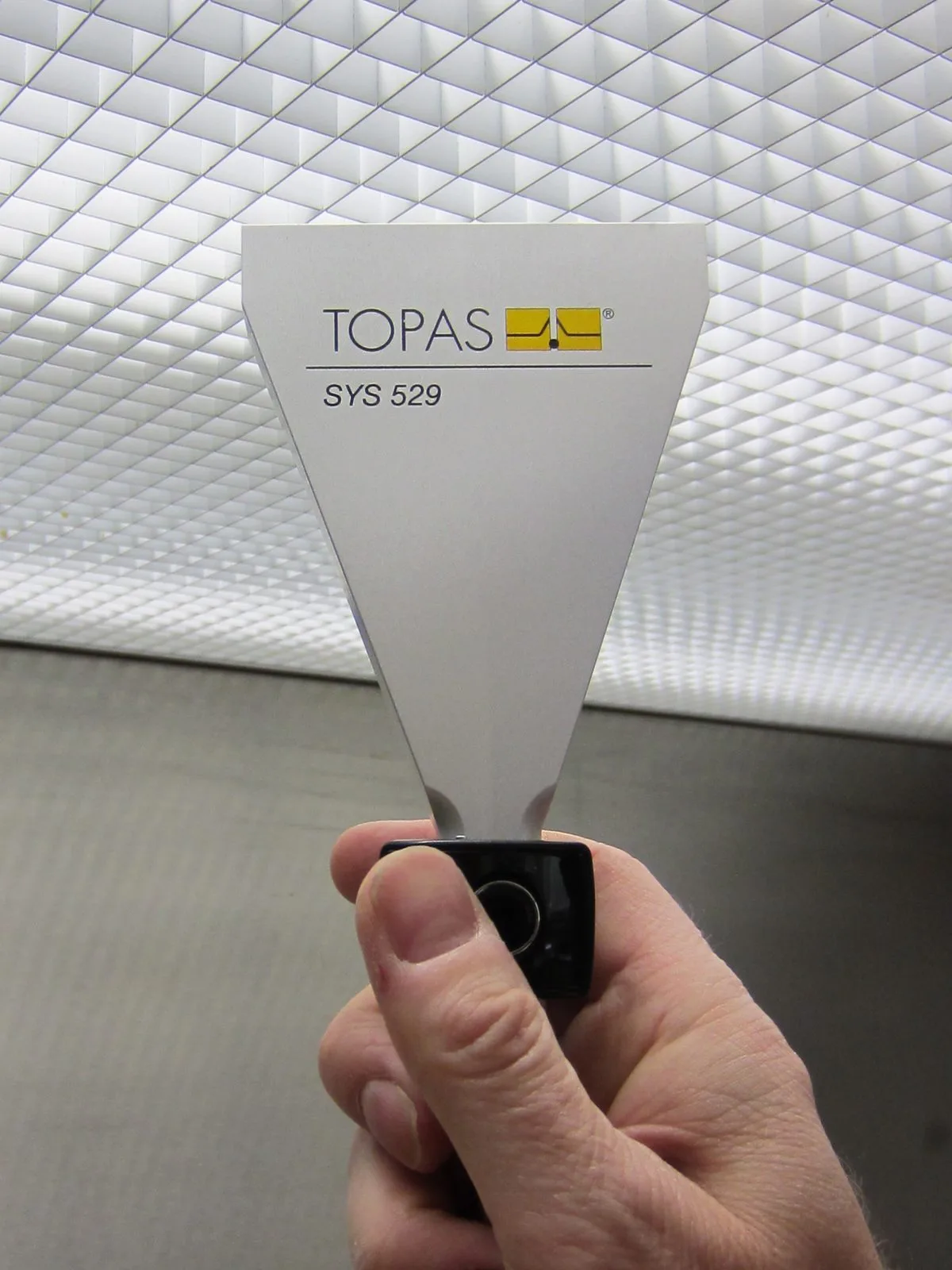

Precise edge and corner access

The probe geometry allows systematic scanning near filter frames, corners and sealing interfaces.

Efficient scanning width

The rectangular opening provides useful coverage transverse to the scan direction.

Consistent count response

Correct matching of inlet and downstream velocities supports location-independent particle-count results.

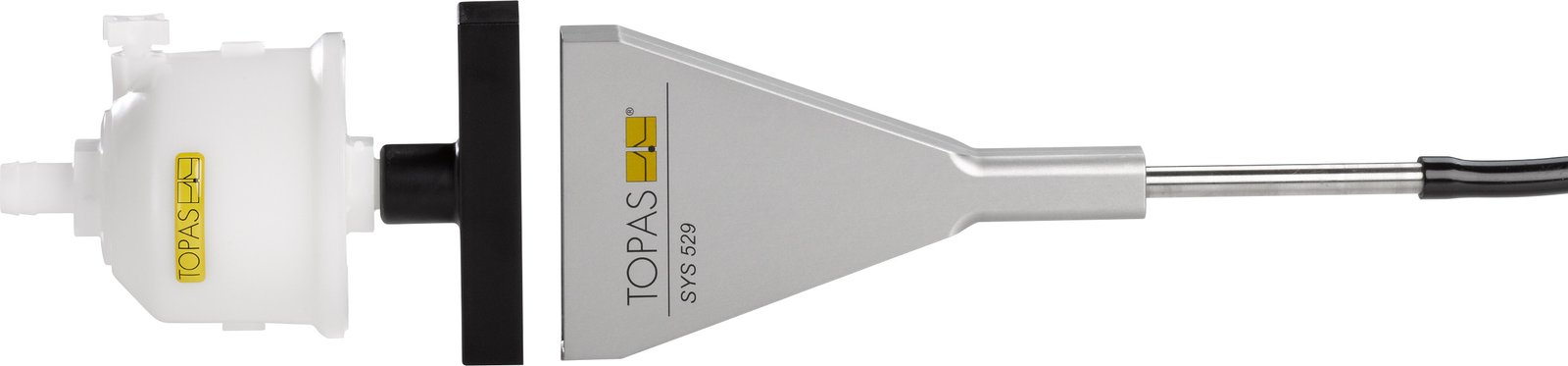

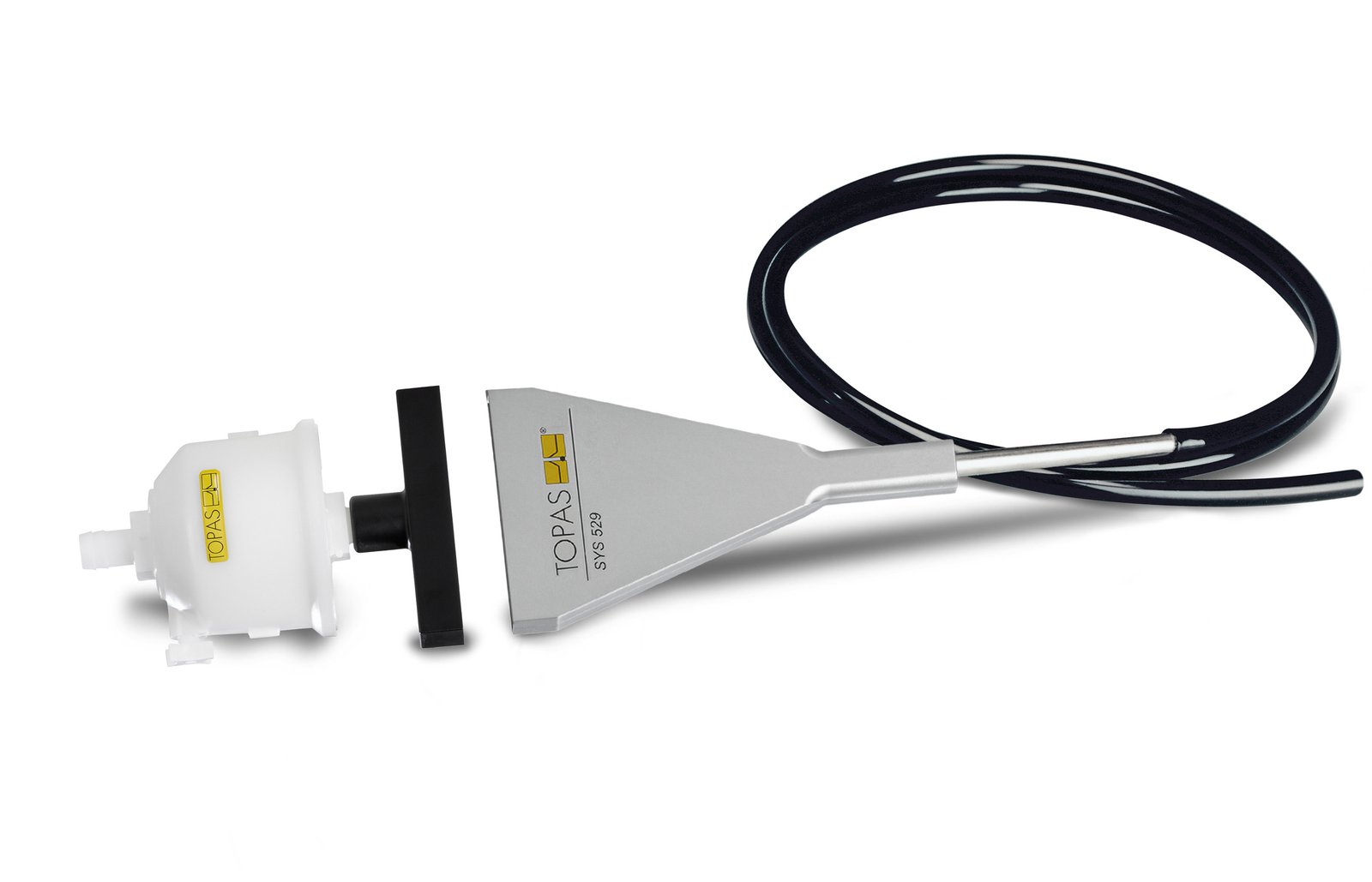

Optional protective cap

A cap and antistatic silicone hose are available for handling and connection to the particle counter.

Technical Specifications

Parameter	Unit	Value / Description
SAMPLING
Purpose	—	Isokinetic aerosol sampling
Inlet flow rate	L/min	28.3
Applicable flow velocity	cm/s	31–47
Outlet connector	mm	Ø 8
PHYSICAL
Length	mm	150 without hose connection; 230 with hose connection
Material	—	Anodised aluminium
Weight	kg	Approximately 0.17

Specifications are based on Topas GmbH published product information. Confirm the current configuration, accessories and calibration scope before order placement.
