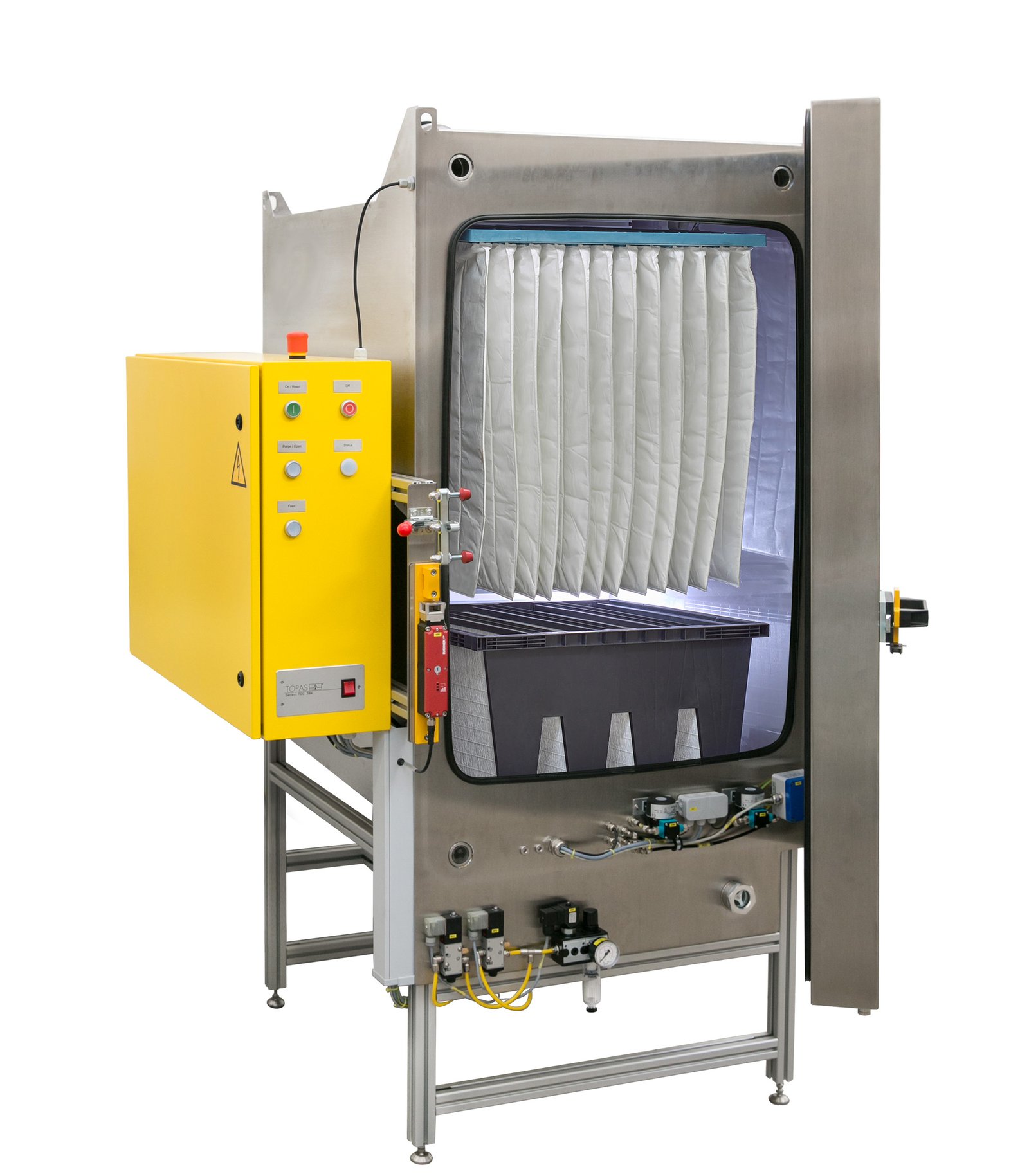

TDC 584 Filter Neutralisation Cabinet
Controlled conditioning cabinet for electrostatic neutralisation of complete air filters, filter bags and media using isopropanol vapour according to ISO 16890-4, with reduced IPA consumption and monitored operation.
Model Overview
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| TDC 584 | IPA filter-neutralisation cabinet | Controlled cabinet for complete filters, filter bags and flat media | ISO 16890-4 conditioning before mechanical filter-efficiency testing |
Key Features
Efficient charge neutralisation
Vaporised isopropanol conditions electrostatically charged filter elements and media before mechanical separation-efficiency testing.
Reduced IPA consumption
The Topas cabinet is designed to minimise isopropanol use compared with open-tray conditioning approaches.
Uniform vapour distribution
The system provides rapid, homogeneous and time-stable distribution of IPA vapour within the conditioning chamber.
Adjustable IPA saturation
The vapour saturation level can be controlled for a defined conditioning process.
Monitored operating conditions
Temperature, liquid level, airflow and relative-humidity sensors support controlled operation.
Complete-filter capacity
The chamber accommodates pocket filters, cassette filters, filter bags and flat filter media.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| CONDITIONING | ||
| Purpose | — | Electrostatic neutralisation of filter elements |
| Outlet condition | — | Electrostatically neutralised filter |
| Test objects | — | Pocket filter, cassette filter, filter bag and flat filter media |
| Liquids | — | Isopropanol and water |
| Process gas | — | Particle-free, dry compressed air |
| Compressed-air supply | bar | 6 |
| ELECTRICAL & SENSORS | ||
| Power supply | — | 230 V AC, 10 A; 400 V AC, 16 A for blower |
| Sensors | — | Temperature, liquid level, airflow and relative humidity |
| PHYSICAL | ||
| Overall dimensions | mm | 1200 × 1900 × 1200 |
| Chamber dimensions | mm | 610 × 610 × 950 |
| Weight | kg | 250 |
Specifications are based on Topas GmbH published product information. Confirm the current configuration, accessories and calibration scope before order placement.
Applications
ISO 16890 conditioning
Neutralisation of complete air filters before testing of mechanical separation behaviour.
Bag and cartridge filters
Conditioning of pocket, cassette and cartridge-type air filters during development and comparison.
Flat-media neutralisation
Electrostatic discharge of filter bags and flat media before efficiency measurement.
