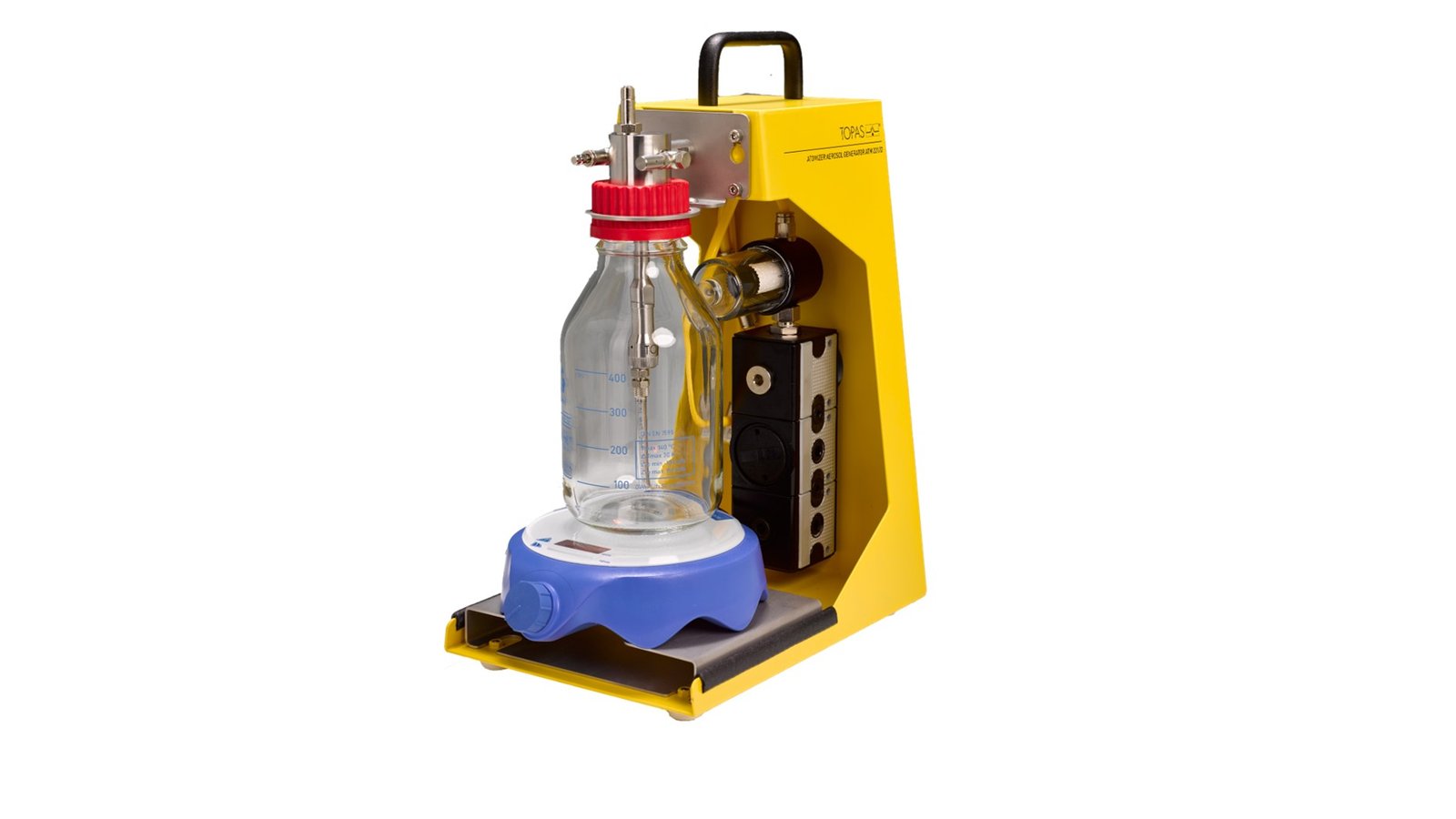

ATM 221/D Suspension Aerosol Generator
Suspension aerosol generator with a removable dispersion unit and magnetic stirrer for reproducible particle aerosols used in PM-sensor calibration, validation and filter-testing workflows.
Model Overview
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| ATM 221/D | Suspension aerosol generator — stirred dispersion | Generator for reproducible aerosolisation of particle suspensions with removable dispersion unit and magnetic stirring | PM-sensor calibration, particle-instrument validation and suspension-based filter testing |
Key Features
Suspension aerosolisation
Atomises particle suspensions for solid-particle aerosol generation after downstream drying.

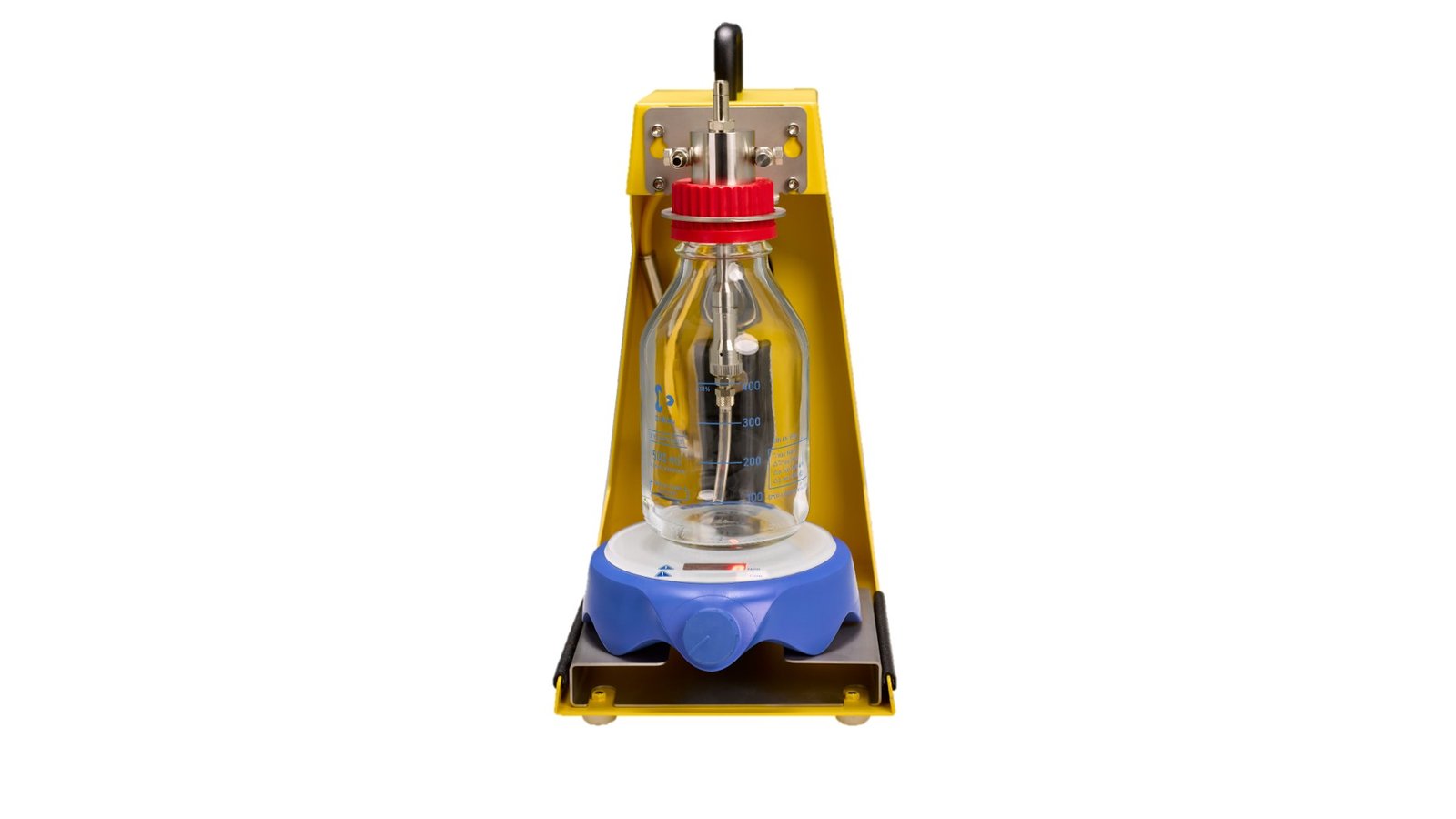

Integrated magnetic stirring
Maintains a more uniform suspension concentration during longer test sequences.

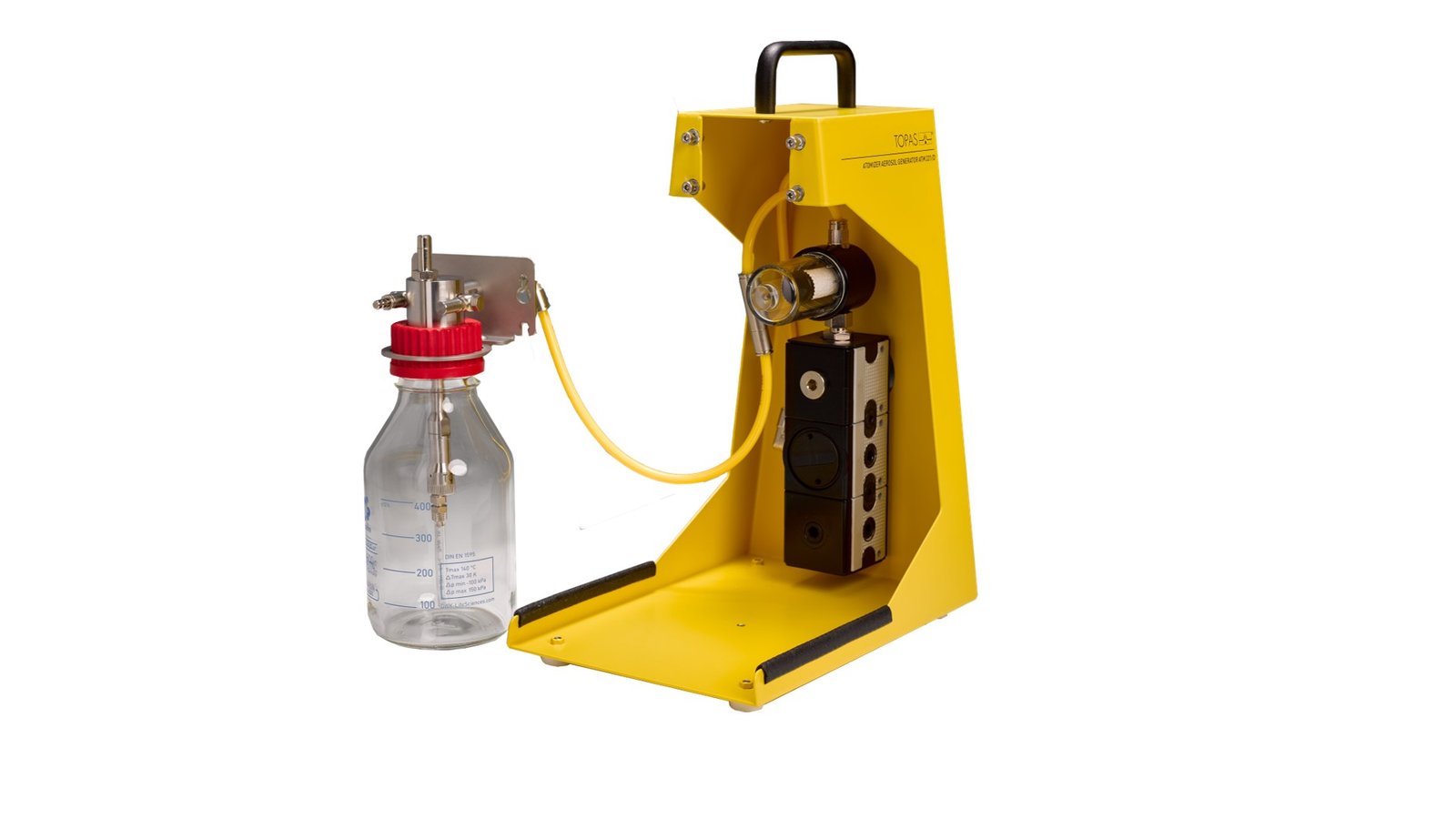

Removable dispersion unit
Facilitates filling, cleaning and changeover between aerosol substances.
Adjustable operating range
Supports 200–750 L/h aerosol flow for calibration and test-system integration.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| AEROSOL GENERATION | ||
| Aerosol volumetric flow rate | L/h | 200–750 |
| Aerosol mass flow, DEHS | g/h | 1.3–3.7 |
| Aerosol mass flow, 10 wt% ISO A1 after drying | g/h | 0.010–0.025 |
| Suspension filling volume | mL | Max. 400 |
| Dispersion | — | Removable dispersion unit with magnetic stirrer |
| OPERATING CONDITIONS | ||

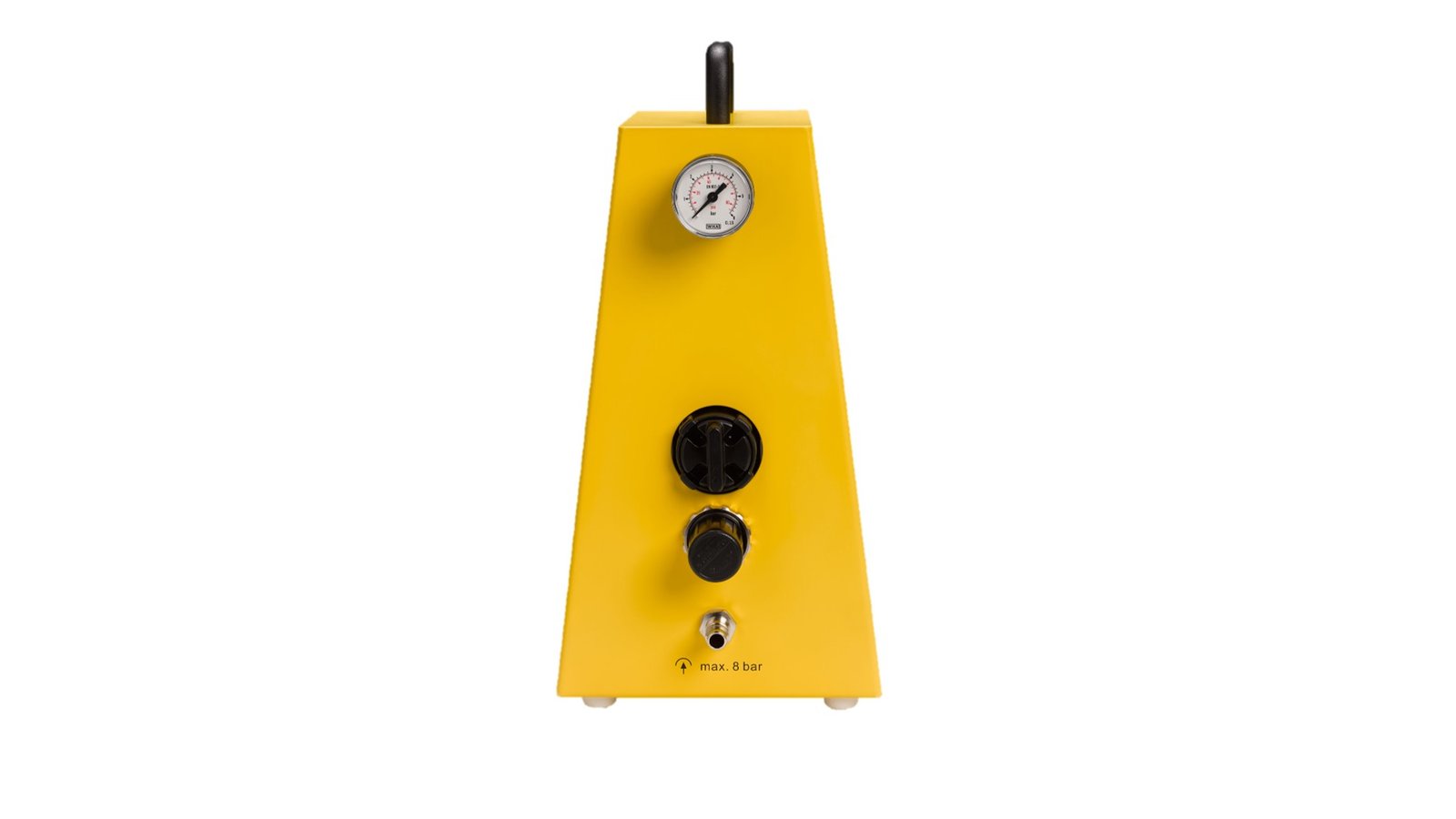

| Compressed-air supply | bar | Max. 6 |
| Maximum counter-pressure | kPa | 20 |
| Outlet connector | mm | Ø 8 OD |
| Operating gas | — | Dry, particle-free compressed air |
| PHYSICAL | ||
| Dimensions W × H × D | mm | 250 × 300 × 200 |
| Weight | kg | 4.7; 4.4 without stirrer |
Values shown are manufacturer specifications for model selection. Confirm the final configuration, accessories, utilities and calibration scope before ordering.
Applications
Reproducible particle challenge aerosol
Produces suspension-derived test aerosol for calibration and validation of particulate-matter sensors.
Instrument comparison and response testing
Supports repeatable concentration steps for optical and electrical particle instruments.
Suspension-derived solid aerosol
Generates solid aerosol after drying for media and filter-efficiency studies.
Flexible suspension preparation
Allows different compatible particle suspensions to be prepared, stirred and aerosolised.
