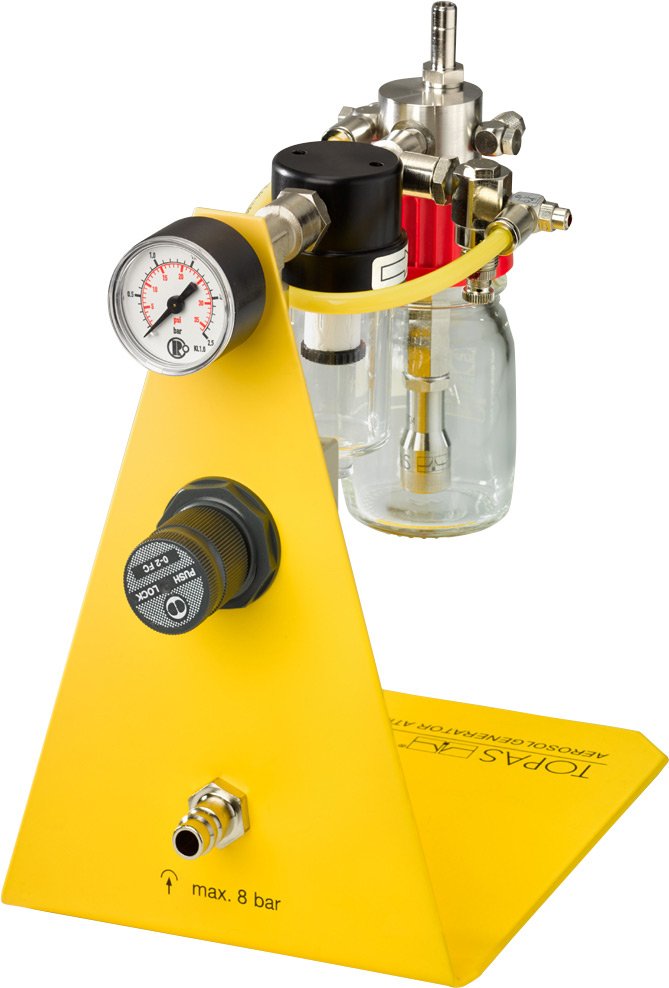

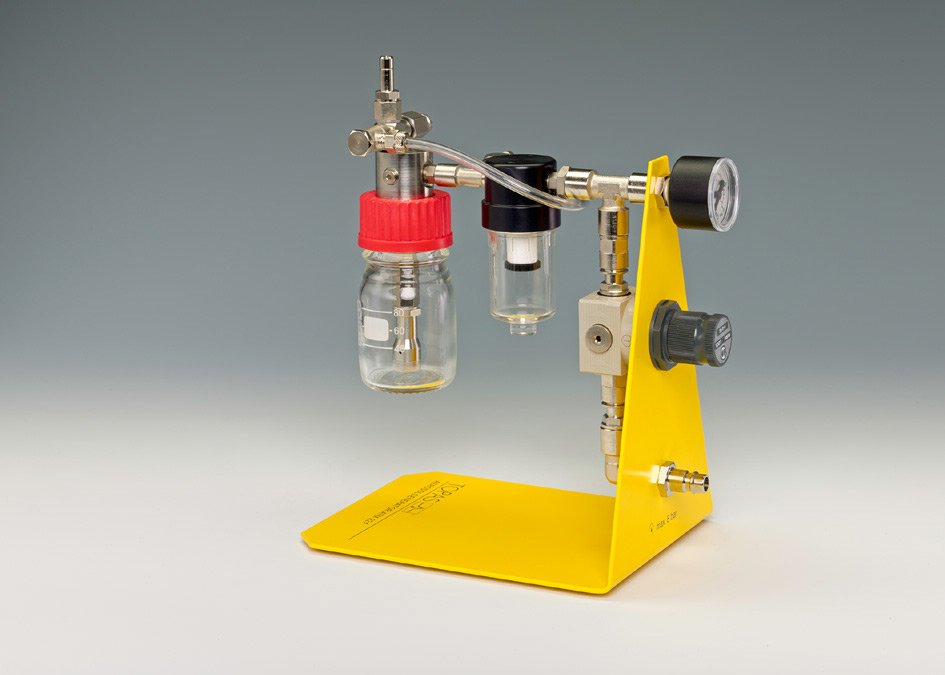

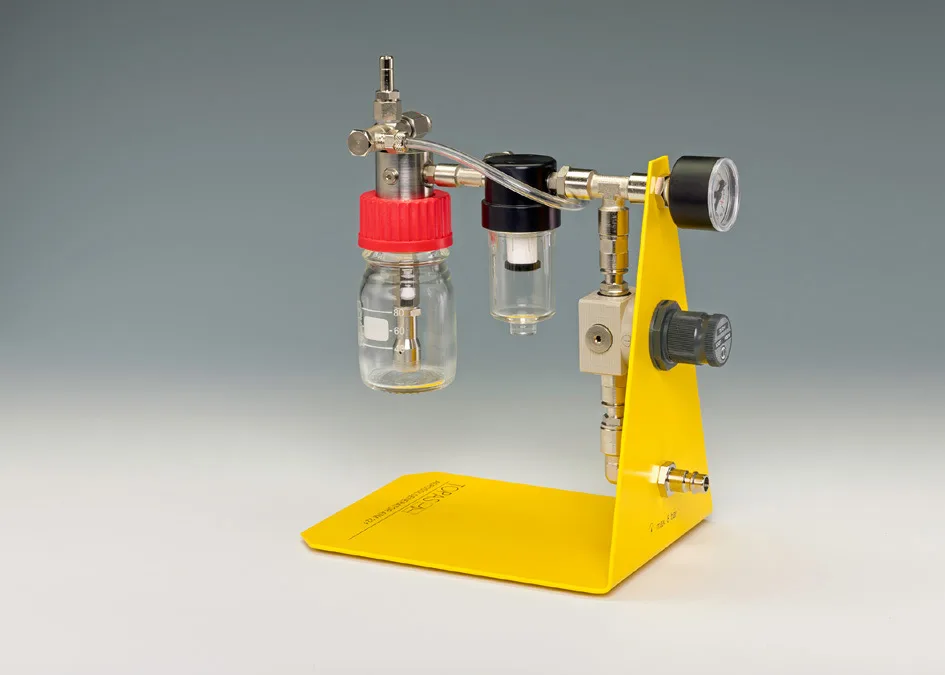

ATM 221 Liquid Aerosol Generator
Low-output submerged-nozzle aerosol generator for stable and reproducible liquid aerosol production where low particle concentration and fine adjustment are required.
Model Overview
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| ATM 221 | Low-output liquid aerosol generator — submerged nozzle | Submerged-nozzle atomizer for reproducible liquid aerosol generation at low particle output | Low-concentration aerosol tests, instrument studies and compact laboratory setups |
Key Features
Low particle production
Designed for applications requiring lower aerosol concentrations than conventional high-output atomizers.
Submerged-nozzle principle
The immersed two-substance nozzle provides stable atomisation and repeatable output.
Simple pressure adjustment
Aerosol concentration can be adjusted through the supplied operating pressure.
Compact reservoir
A 40–80 mL working volume supports practical laboratory operation with limited test liquid.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| AEROSOL GENERATION | ||
| Generation principle | — | Submerged Collison two-substance nozzle |
| Aerosol volumetric flow rate | L/h | 50–130 |
| Aerosol-substance mass flow rate | g/h | Max. 0.6 |
| Liquid filling volume | mL | 40–80 |
| OPERATING CONDITIONS | ||
| Compressed-air supply | bar | Max. 8 |
| Maximum counter-pressure | kPa | 20 |
| Outlet connector | mm | Ø 8 OD |
| Operating gas | — | Dry, particle-free compressed air |
| PHYSICAL | ||
| Dimensions W × H × D | mm | 220 × 270 × 150 |
| Weight | kg | 1.9 |
Values shown are manufacturer specifications for model selection. Confirm the final configuration, accessories, utilities and calibration scope before ordering.
Applications
Fine aerosol concentration adjustment
Supplies stable liquid aerosol where high-output generators would exceed the target concentration.
Controlled upstream aerosol source
Supports evaluation and comparison of particle counters and aerosol sensors.
Small-scale filter experiments
Provides reproducible aerosol for research-scale media and component testing.
Compact configurable aerosol source
Supports development of new aerosol procedures using compatible liquid test media.
