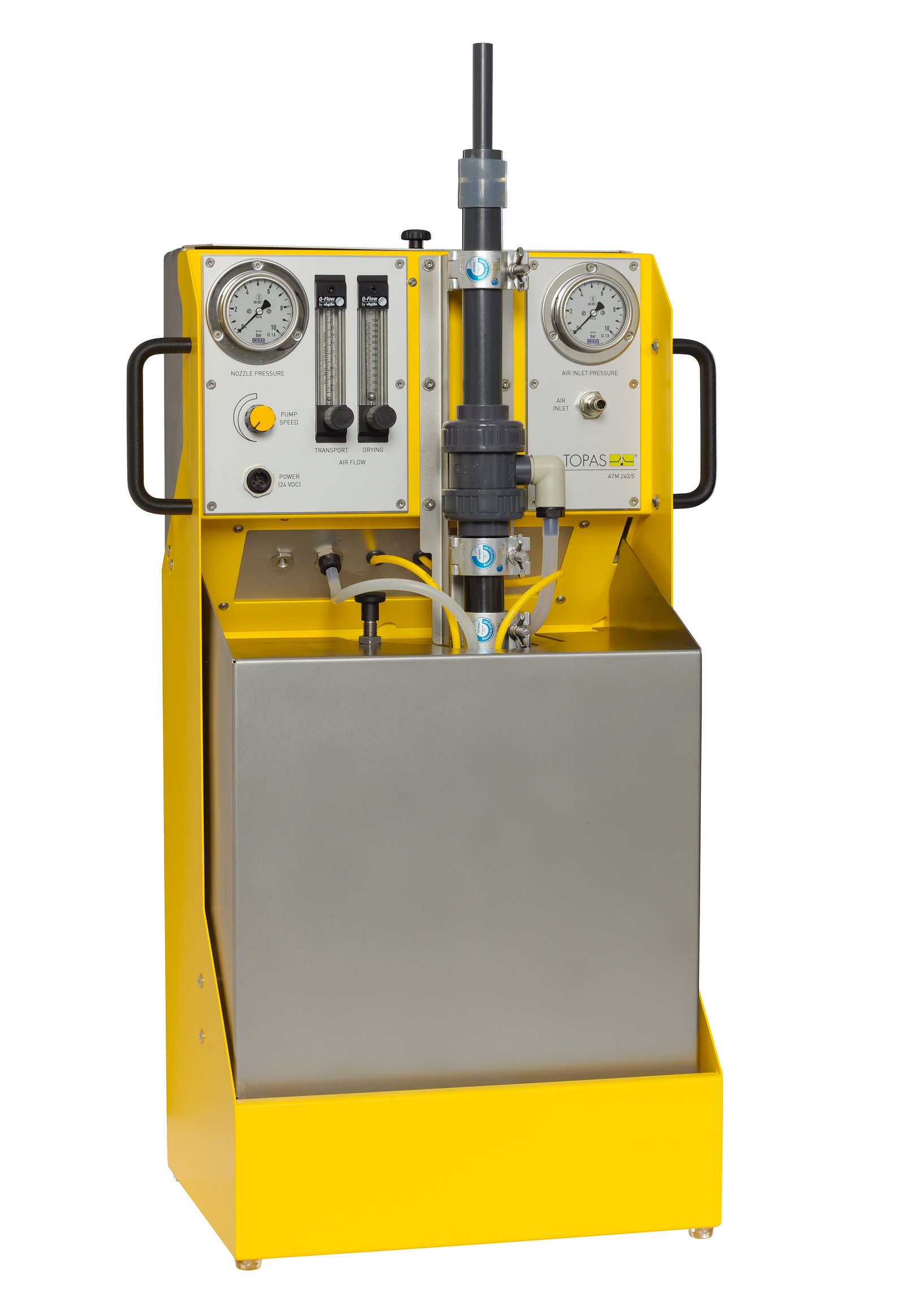

ATM 240/S Suspension Aerosol Generator
Suspension aerosol generator with integrated drying for producing KCl and other solid-particle challenge aerosols used in ISO 16890 ventilation-filter efficiency testing.
Model Overview
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| ATM 240/S | Suspension aerosol generator with dryer — ventilation-filter testing | Generator for KCl and compatible suspension aerosols with integrated drying and a high coarse-particle fraction | ISO 16890 ventilation-filter efficiency testing and solid-particle challenge generation |
Key Features
KCl suspension aerosol
Generates a solid KCl test aerosol from a prepared suspension.
Integrated drying stage
Removes the liquid carrier before the aerosol enters the filter test duct.
Coarse-particle capability
Produces a relevant fraction above 1 µm for ventilation-filter efficiency measurements.
ISO 16890 workflow fit
Designed for integration into ePM filter test systems and standardised ventilation-filter procedures.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| OPERATING RANGE | ||
| Setting parameters | — | Aerosol flow rate and relative pump power |
| Aerosol flow-rate range | L/h | 218–230 |
| Relative pump-power range | % | 0–100, continuously adjustable |
| Particle-size range | µm | 0.01–10 for KCl aerosol |
| MEDIA AND UTILITIES | ||
| Aerosol substances | — | Aqueous salt solutions including NaCl and KCl |
| Filling volume | mL | 100–300 |
| Compressed-air supply | bar | Max. 5 at approximately 0.5 m³/h |
| Operating gas | — | Dry, particle-free compressed air |
| ELECTRICAL AND PHYSICAL | ||
| Power supply | — | 110–230 V AC, 50/60 Hz; 24 V DC adapter |
| Outlet connector | mm | Ø 13 inner diameter |
| Dimensions W × H × D | mm | 900 × 400 × 300 |
| Weight | kg | 25.0 |
Values shown are manufacturer specifications for model selection. Confirm the final configuration, accessories, utilities and calibration scope before ordering.
Applications
KCl challenge aerosol
Produces dried KCl particles for ePM ventilation-filter efficiency measurements.
Coarse and fine particle challenge
Supports development and comparison of HVAC filter media and complete filters.
Suspension aerosol with drying
Combines atomisation and drying in a dedicated upstream source for filter test ducts.
Solid aerosol from suspensions
Generates dried aerosol from compatible suspensions for laboratory studies.
