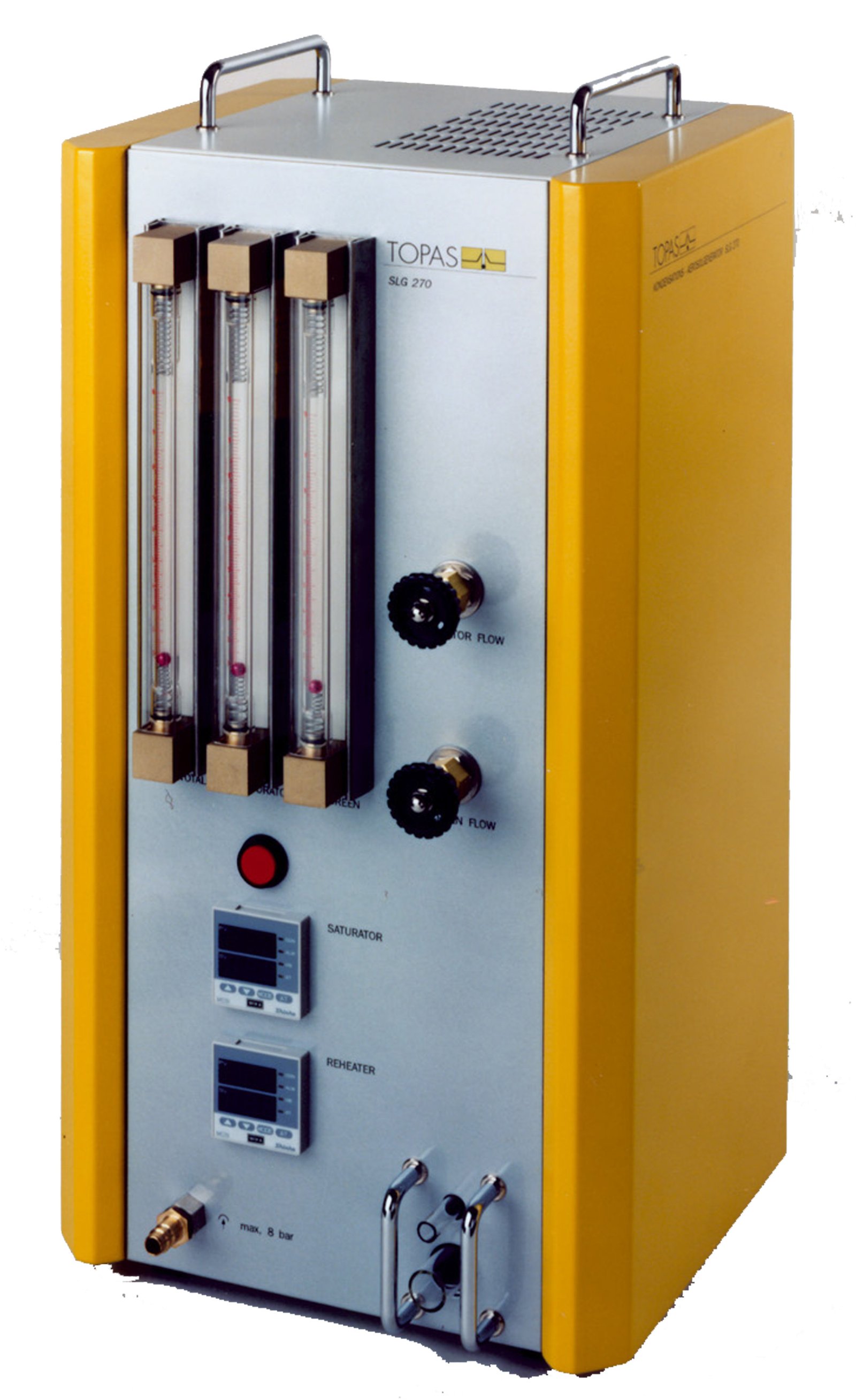

SLG 270 Condensation Aerosol Generator
Sinclair–LaMer condensation aerosol generator for reproducible monodisperse droplet or solid aerosols, with rapidly adjustable particle size and concentration and a patented screen-bypass unit for extended large-particle generation.
Model Overview
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| SLG 270 | Monodisperse condensation aerosol generator | Sinclair–LaMer system with screen-bypass control for rapid adjustment of particle size and concentration | Instrument calibration, aerosol research, filter testing, tracer-particle and seeding applications |
Key Features
Adjustable monodisperse aerosol
Generates narrowly distributed particles with geometric standard deviation below 1.15 and high number concentration.
Patented screen-bypass unit
Reduces the salt-nuclei concentration and extends the achievable range toward larger particle sizes, including DEHS droplets up to 8 µm.
Rapid reproducible adjustment
Particle size is adjusted through controlled flow and temperature settings without lengthy changes to the complete operating state.
Droplet or solid particles
Supports DEHS, carnauba wax, stearic acid and other tested materials, producing spherical particles that are electrically nearly neutral.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| AEROSOL GENERATION | ||
| Generation principle | — | Controlled heterogeneous condensation according to Sinclair–LaMer |
| DEHS particle-size range | µm | 0.1–8 |
| Carnauba-wax particle-size range | µm | 0.1–5 |
| Stearic-acid particle-size range | µm | 0.1–12 |
| Other tested materials | — | Emery 3004 and paraffin oil |
| Geometric standard deviation | — | < 1.15 |
| Particle-number concentration | particles/cm³ | 10⁶ |
| Aerosol volumetric flow rate | L/h | 200–250 |
| TEMPERATURES AND UTILITIES | ||
| Saturator temperature | °C | Up to 400 |
| Reheater temperature | °C | Up to 400 |
| Nitrogen supply | — | 250 L/h at 5 bar |
| Power supply | — | 240 V AC, 50 Hz; 110 V versions available |
| PHYSICAL | ||
| Dimensions H × W × D | mm | 550 × 300 × 250 |
| Weight | kg | 19 |
Values shown are manufacturer specifications for model selection. Confirm the final configuration, accessories, utilities and calibration scope before ordering.
Applications
Size-response and counting studies
Provides adjustable monodisperse reference aerosols for particle counters, aerosol spectrometers and related instruments.
Controlled particle source
Supports studies of particle transport, deposition, optical response and aerosol dynamics using defined droplet or solid particles.
Size-resolved separation efficiency
Enables controlled penetration and collection-efficiency measurements at selected aerodynamic particle sizes.
Reproducible spherical particles
Generates well-defined particles for flow tracing, seeding, inhalation studies and other laboratory aerosol workflows.
