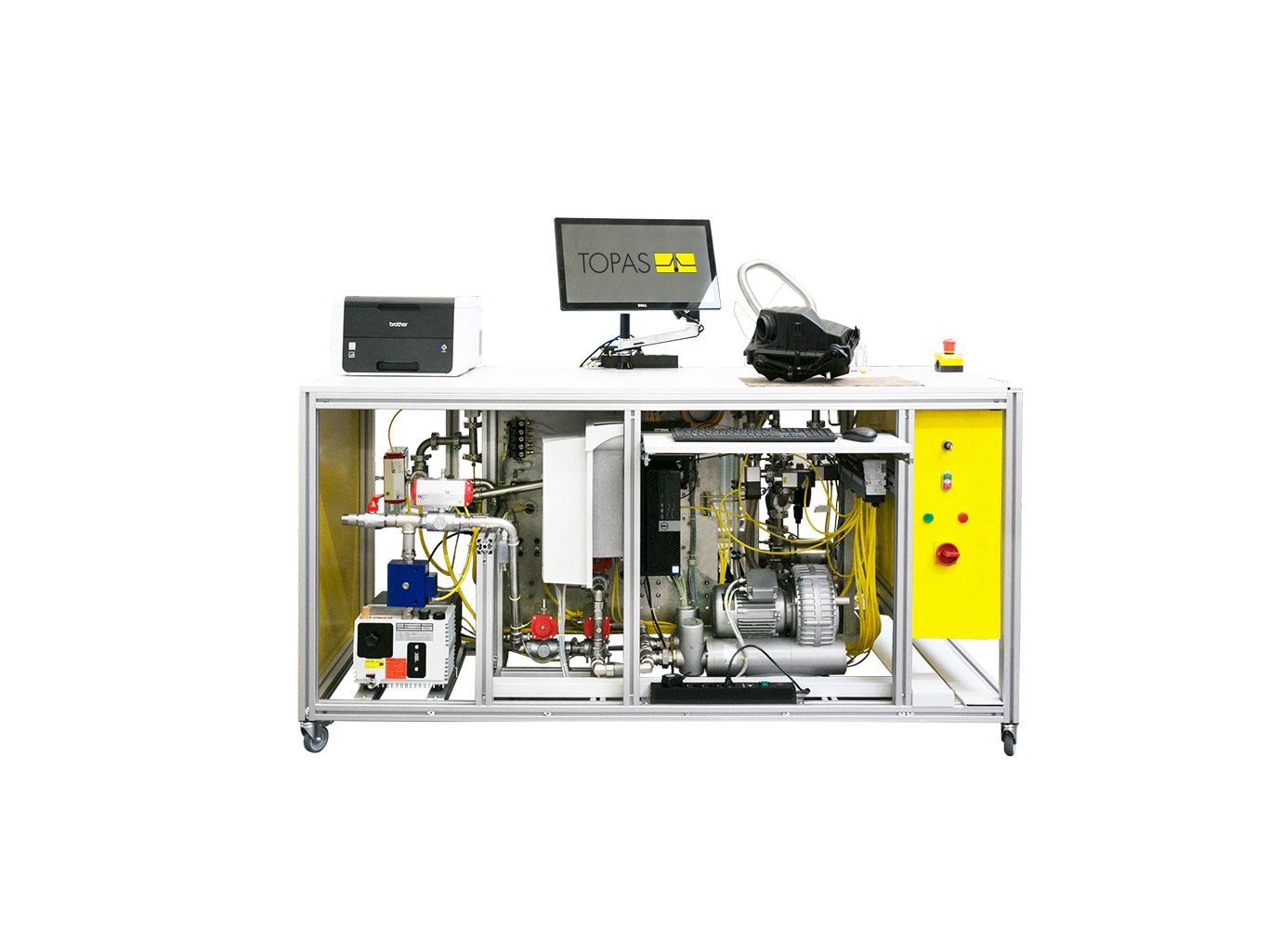

DHP 145 Leakage Test System
Computer-controlled leakage test system for components and devices, measuring leak rate as a function of pressure in overpressure or vacuum operation across a wide test-air temperature range.
Model Overview
| Model | System purpose | Standards / method | Core fit |
|---|---|---|---|
| DHP 145 | Pressure- and suction-mode leak testing with direct pressure measurement at the test specimen | Application-specific leak-test methods | Tightness testing of technical components and devices under controlled pressure and temperature conditions |
Key Features
Overpressure and vacuum testing
Supports both pressure and suction modes for a broad range of component-leakage tasks.
Direct specimen pressure measurement
Measures test pressure directly at the connected test object for representative results.
Wide leak-flow range
Cascaded laminar-flow elements cover test flows from 0.005 to 300 L/min.
Extended temperature operation
Handles test air from -40 to 120 °C while protecting measurement instrumentation through heat exchange.
Remote specimen connection
Two-metre connection lines allow the specimen to remain inside a climatic chamber during testing.
Automated DHPWin operation
PC-based software guides test sequences, captures data and supports repeatable evaluation.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MEASUREMENT RANGE | ||
| Test-flow range | L/min | 0.005–300 during operation |
| Test pressure, vacuum | kPa | -0.1 to -90 |
| Test pressure, overpressure | kPa | +0.1 to +500 |
| Test-air temperature | °C | -40 to 120 |
| SYSTEM DATA | ||
| Operating medium | — | Dry, particle-free compressed air |
| Compressed-air supply | bar | Maximum 8; maximum 600 L/min |
| Power supply | — | 230 V AC |
| Power consumption | W | Approx. 500 |
| Dimensions (W × H × D) | mm | 2000 × 1100 × 900 |
| Weight | kg | Approx. 280 |
Published values support initial model selection. Confirm final configuration, utilities, accessories and calibration scope during technical review.
Applications
Tightness testing
Leak-rate measurement for technical components and assemblies under defined pressure conditions.
Vacuum-side leakage
Suction-mode tests for devices that operate below atmospheric pressure.
Overpressure leakage
Pressure-mode tests up to 500 kPa for housings, valves and connected assemblies.
Climatic-chamber testing
Remote specimen connections support leakage tests across controlled environmental temperatures.
Design validation
Comparison of seals, joints, housings and connection concepts during development.
Production and acceptance checks
Repeatable computer-guided leak testing for quality-control and release workflows.
