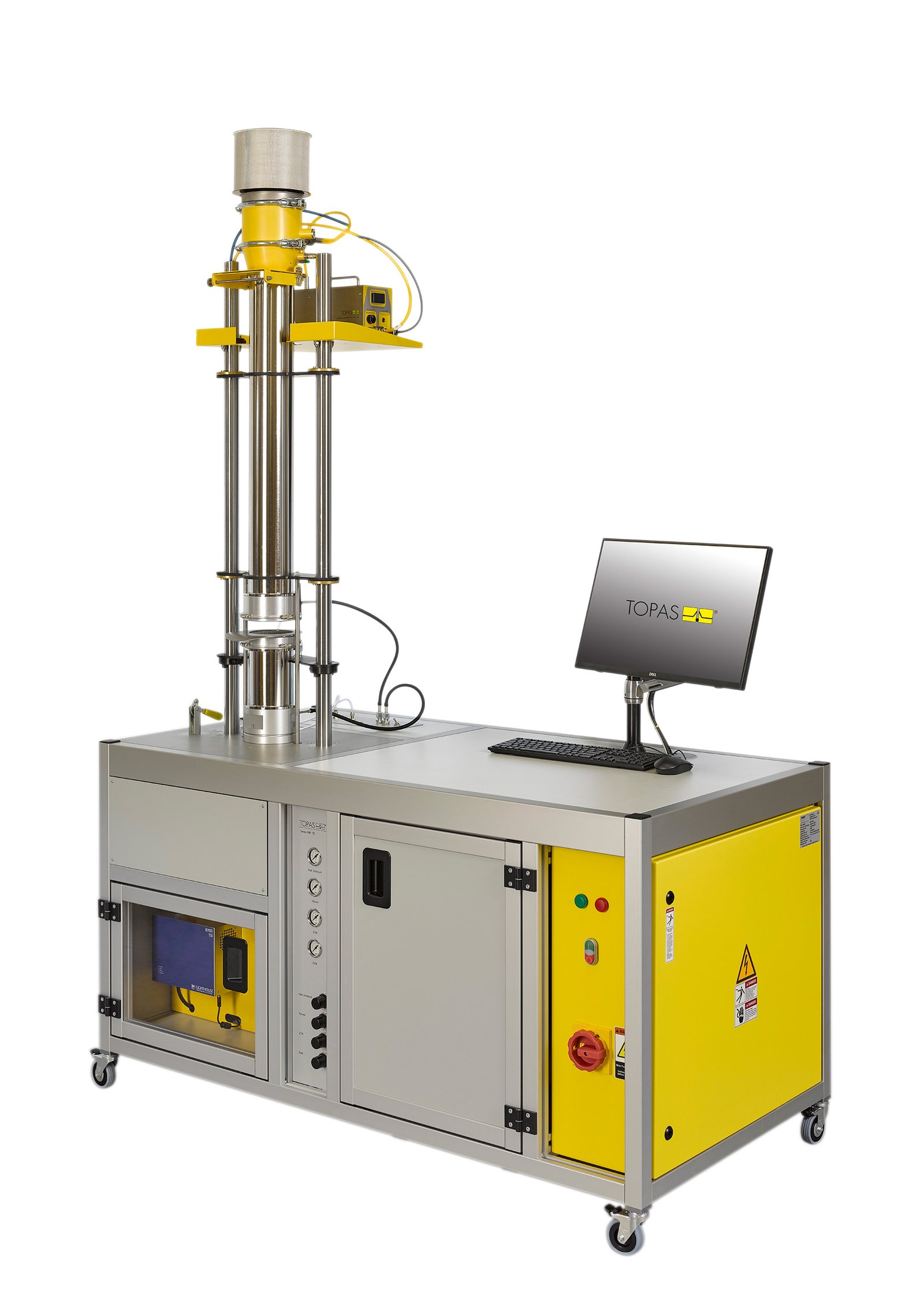

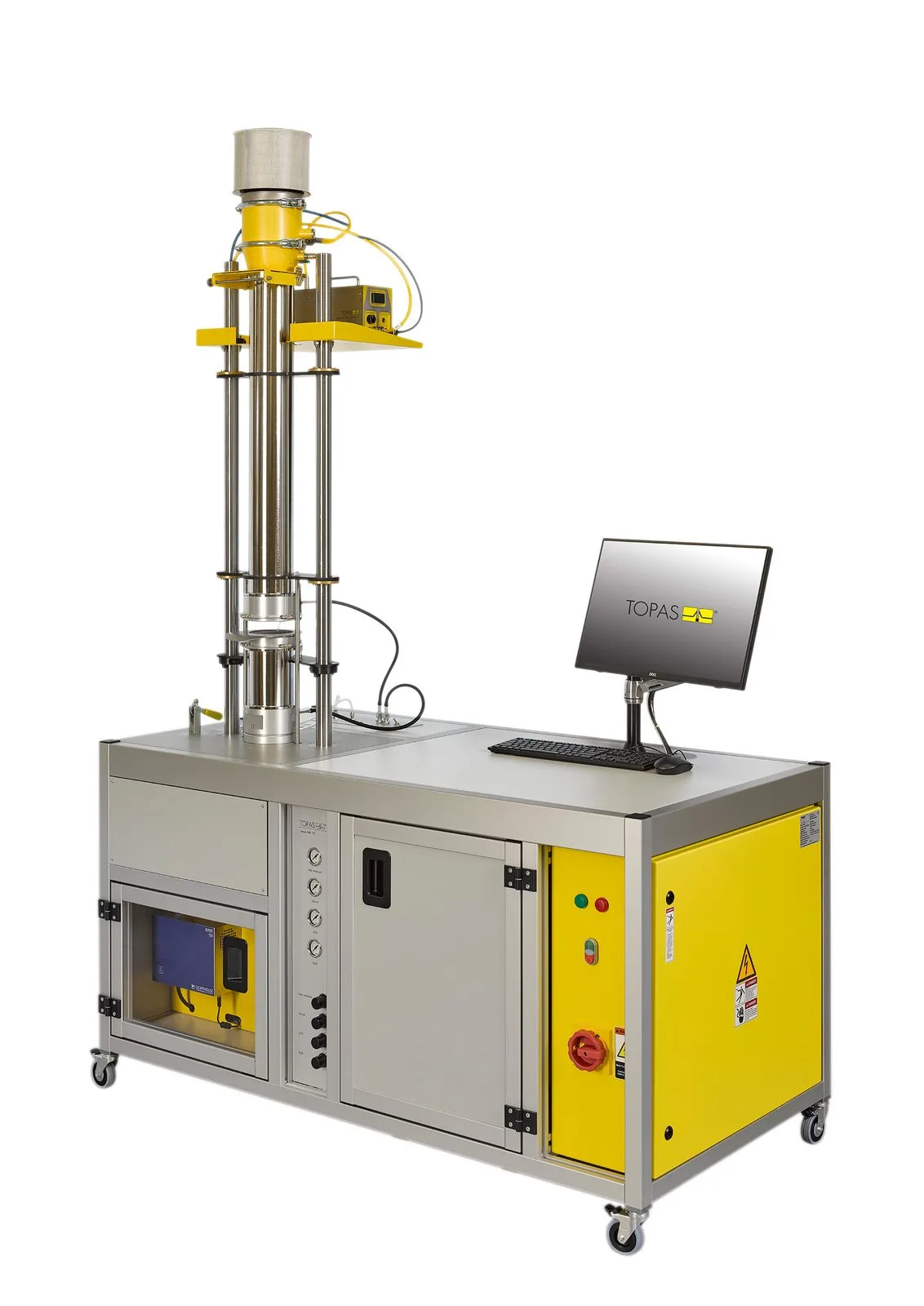

MBP 116 Manual Filter Media Test System
Space-saving manual test system with a vertical flow channel for multi-parameter characterisation of flat filter media, including pressure drop, gravimetric efficiency and dust holding.
Model Overview
| Model | System purpose | Standards / method | Core fit |
|---|---|---|---|
| MBP 116 | Compact vertical-flow system for pressure-drop, dust-loading and efficiency measurements on flat media | ISO 5011, EN 13274-7, ISO 29463-3, ISO 29463-5 | Filter-media development, incoming inspection and production quality assurance |
Key Features
Multi-parameter testing
Measures pressure drop, gravimetric efficiency, dust holding and optional fractional efficiency.
Vertical test channel
The space-saving vertical arrangement is especially suited to ISO 5011-oriented filter-media testing.
Manual cost-efficient operation
A robust manually operated design supports laboratories that do not require full automation.
Integrated solid-aerosol generation
A SAG 410-series generator provides controlled dust feed for loading and efficiency tests.
Separate weighable holders
Test and backup filters can be removed and weighed independently without disturbing the media arrangement.
Breakthrough protection
A backup filter protects the flow unit if the test media experiences breakthrough.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| TEST RANGE | ||
| Test-flow range | m³/h | 1.5–18 |
| Differential-pressure range | Pa | Up to 5000 |
| Test specimens | — | Flat-sheet filter media |
| Aerosol challenges | — | DEHS and ISO 12103-1 A2 test dust |
| Aerosol generation | — | Exchangeable SAG 410-series solid-aerosol generator |
| SYSTEM DATA | ||
| Compressed-air supply | bar | 6 |
| Power supply | — | 110–230 V AC; 50/60 Hz |
| Optional particle measurement | — | LAP 322 with dilution and sample switching |
Published values support initial model selection. Confirm final configuration, utilities, accessories and calibration scope during technical review.
Applications
Incoming inspection
Receiving inspection and final clearance of flat-sheet filter media.
Filter-media development
Performance comparison of media formulations, structures and treatments.
Gravimetric efficiency
Mass-based determination of particle retention under controlled dust challenge.
Dust-holding capacity
Measurement of pressure-drop development and retained dust mass.
Differential-pressure testing
Airflow-resistance characterisation across defined face velocities.
Fractional efficiency option
Optional size-resolved measurement using aerosol spectrometry and dilution modules.
