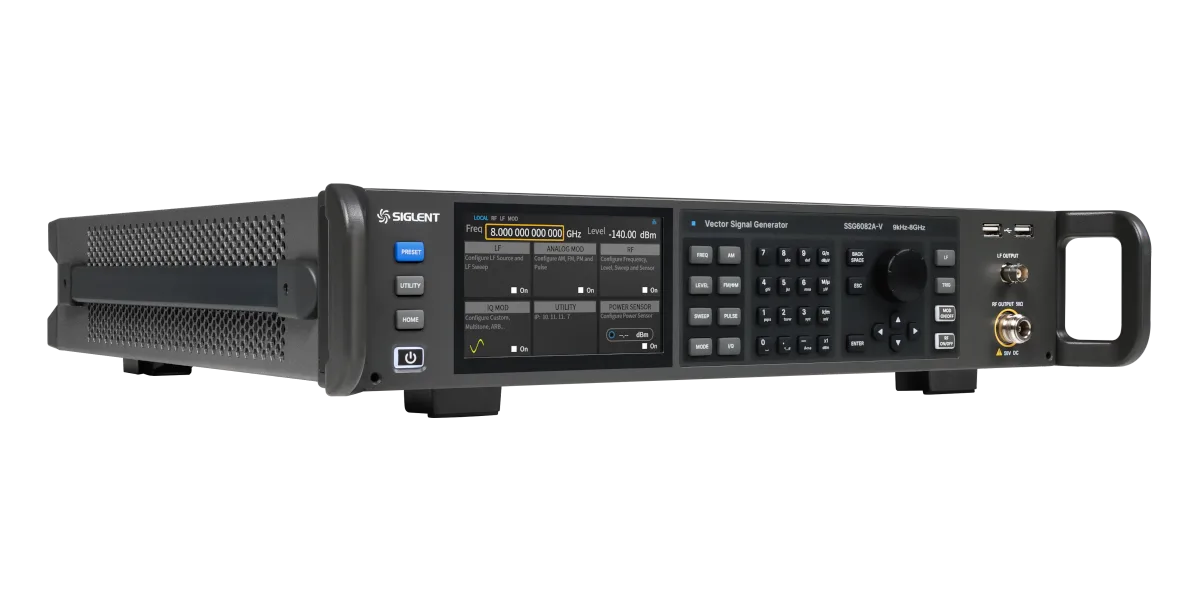

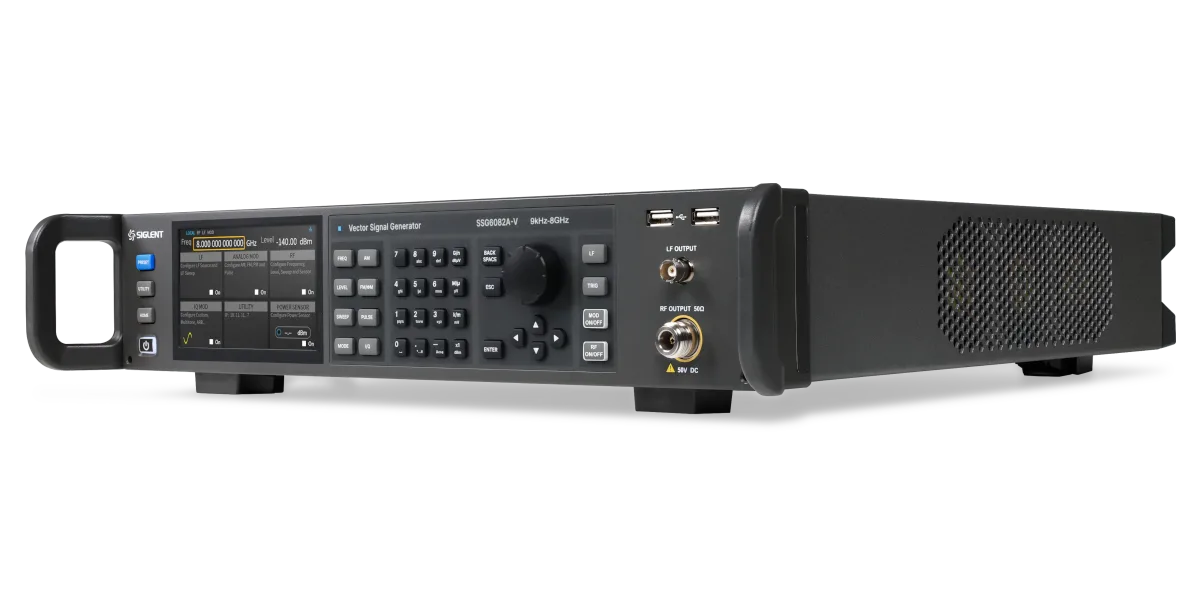

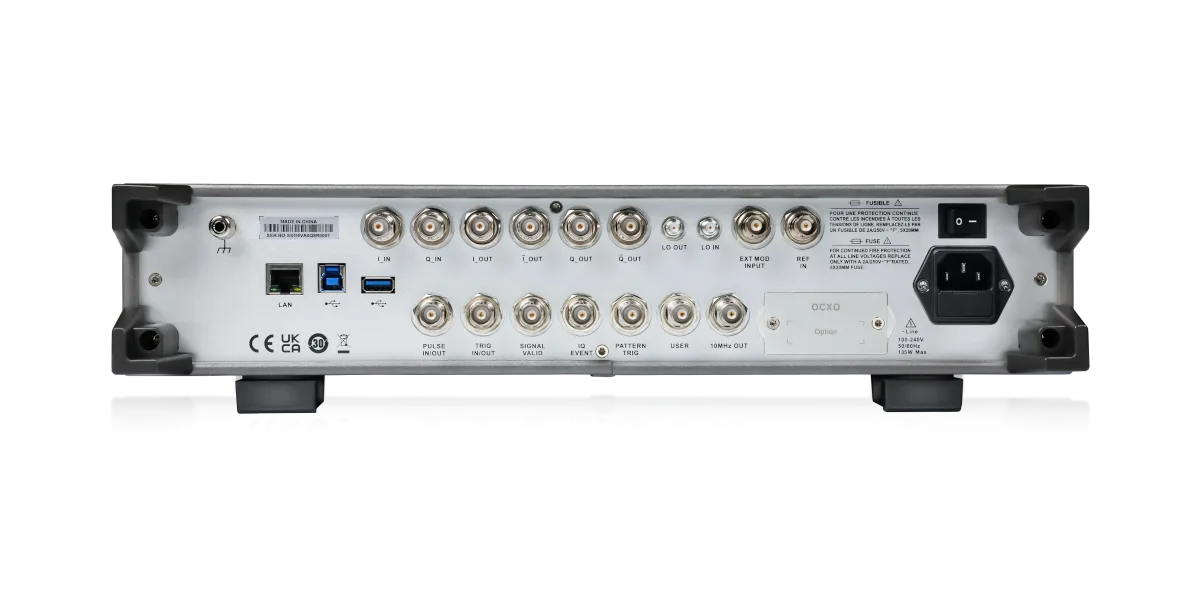

SSG6082A-V — RF Vector Signal Generator up to 8 GHz
RF vector signal generator for receiver, transceiver and communication waveform testing. It supports CW output from 9 kHz to 8 GHz, IQ mode from 10 MHz to 8 GHz, low phase noise, 1 GHz RF modulation bandwidth and protocol waveform generation with SigIQPro.
| Model | CW Frequency | IQ Frequency | Level Range | Phase Noise | RF Modulation BW |
|---|---|---|---|---|---|
| SSG6082A-V | 9 kHz – 8 GHz | 10 MHz – 8 GHz | -140 dBm to +30 dBm | < -132 dBc/Hz @ 1 GHz, 10 kHz offset typ. | 1 GHz |
Key Features
8 GHz Vector RF Generation
CW mode covers 9 kHz to 8 GHz, while IQ mode covers 10 MHz to 8 GHz. This makes the generator suitable for sub-8 GHz wireless receiver, transceiver and RF module testing.
Low Phase Noise Carrier
Typical phase noise is specified below -132 dBc/Hz at 1 GHz and 10 kHz offset, supporting cleaner receiver sensitivity, BER and EVM-oriented test setups.
Wide Level Setting Range
The -140 dBm to +30 dBm level setting range supports receiver sensitivity checks, strong-signal blocking tests, amplifier stimulus and general RF path validation.
IQ Waveform Generation
The platform uses an internal 500 MHz IQ baseband source and supports 1 GHz RF modulation bandwidth for digital modulation, arbitrary waveform playback and protocol waveform generation.
Communication Protocol Signals
With SigIQPro waveform generation, the instrument supports common protocol signals including 5G NR, WLAN, LTE, Bluetooth and IoT workflows for R&D and production validation.
Compensation and AWGN Functions
S-parameter compensation, real-time IQ baseband AWGN and support for pre-distorted signals help flatten test-system response and simplify receiver measurement setups.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| FREQUENCY | ||
| CW output range | — | 9 kHz to 8 GHz |
| IQ output range | — | 10 MHz to 8 GHz |
| Frequency setting resolution | Hz | Up to 0.001 |
| OUTPUT AND SPECTRAL PURITY | ||
| Level setting range | dBm | -140 to +30 |
| Amplitude resolution | dB | 0.01 |
| Phase noise | dBc/Hz | < -132 @ 1 GHz, 10 kHz offset typ. |
| VECTOR / MODULATION | ||
| RF modulation bandwidth | GHz | 1 |
| Internal IQ baseband source | MHz | 500 |
| Analog modulation | — | AM · FM · PM, internal and external modulation options |
| Digital waveforms | — | QAM · FSK · ASK · PSK · multi-tone · protocol waveform playback |
| REMOTE AND SYSTEM FUNCTIONS | ||
| Remote operation | — | Web remote control and automated test integration |
| Compensation | — | S-parameter compensation and power-meter-based level correction support |
Applications
Sub-8 GHz Receiver Test
Generate 5G NR-style vector signals for receiver sensitivity, demodulation and RF-path validation across FR1-oriented development and production setups.
WLAN Receiver Validation
Support WLAN waveform generation for receiver performance checks, RF module validation and wireless-device production screening.
LTE / LTE-A Transceiver Testing
Use protocol waveforms and low-noise RF output for LTE receiver sensitivity, blocking and regression test workflows.
IoT Radio Development
Generate Bluetooth and IoT-oriented RF waveforms for module bring-up, receiver margin testing and production verification.
Custom Modulation Research
Arbitrary waveform playback, IQ modulation and pre-distortion support help evaluate experimental modulation formats and RF signal-chain behaviour.
Automated Wireless Test
Remote operation, wide level range and repeatable RF output make the instrument suitable for automated receiver and module production test benches.
