SHA850A Series — Handheld Spectrum / Vector Network Analyzer
Portable field RF analyzer for spectrum, cable-and-antenna and optional vector network analysis. The series covers 9 kHz to 3.6 GHz or 7.5 GHz with -165 dBm/Hz DANL, CAT mode as standard and optional VNA, modulation, GPS and source functions.
| Model | Spectrum Range | CAT / VNA Range | DANL | Phase Noise |
|---|---|---|---|---|
| SHA851A | 9 kHz – 3.6 GHz | 100 kHz – 3.6 GHz | -165 dBm/Hz typ. | -104 dBc/Hz typ. |
| SHA852A | 9 kHz – 7.5 GHz | 100 kHz – 7.5 GHz | -165 dBm/Hz typ. | -104 dBc/Hz typ. |
Key Features
Spectrum Analyzer + Cable/Antenna Tester

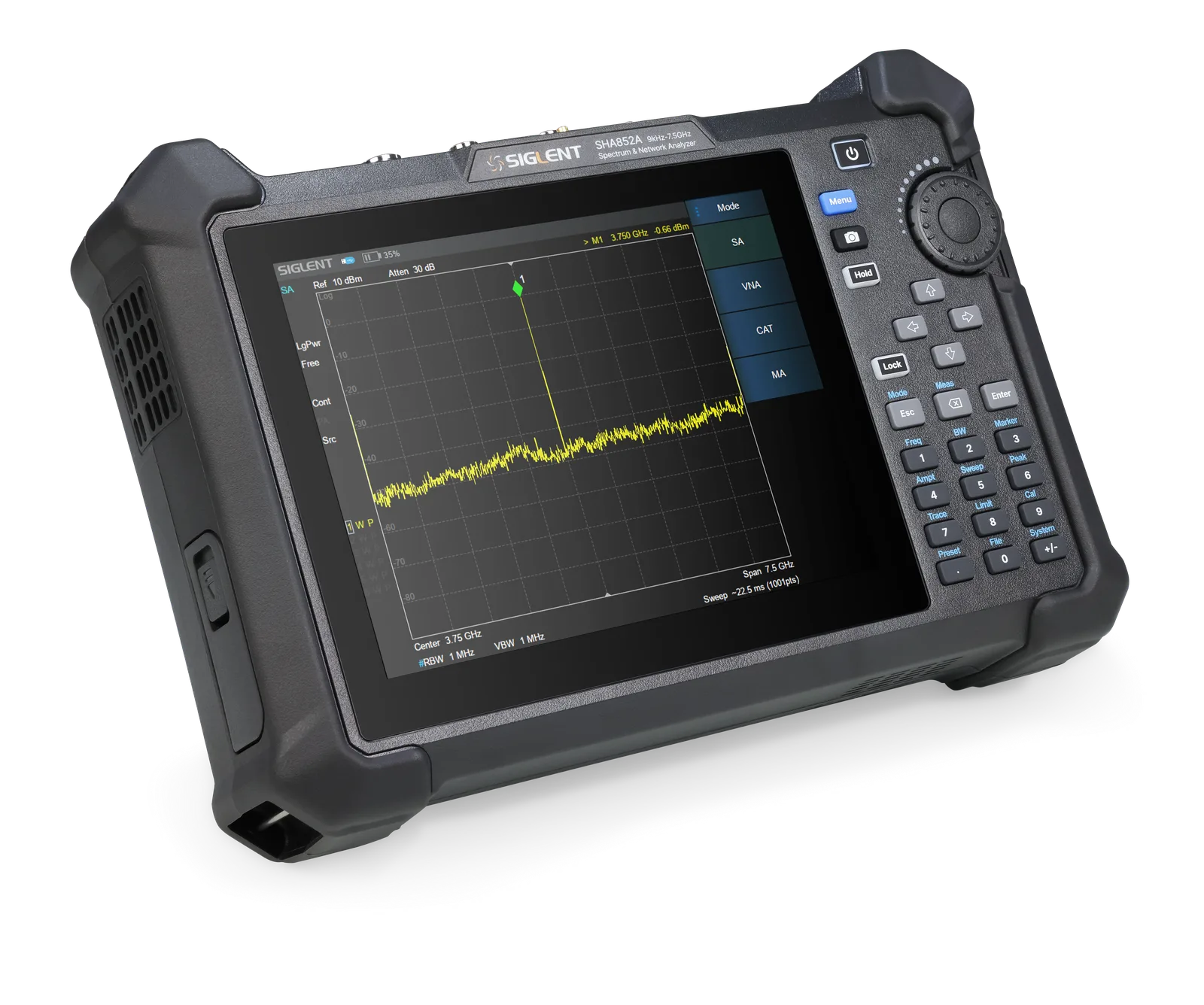

Standard spectrum and cable/antenna modes support field RF installation, broadcast monitoring, interference location, channel power scanning, VSWR, return loss and distance-to-fault workflows.
Optional Vector Network Analysis
Optional VNA mode adds vector S11 and S21 measurements, Smith chart, insertion loss, port matching, cable loss and tower-amplifier debugging from 100 kHz up to the model frequency limit.
-165 dBm/Hz DANL and Standard Preamplifier
High sensitivity helps detect weak field signals, spurious emissions and low-level interference while keeping the instrument practical for outdoor RF troubleshooting.

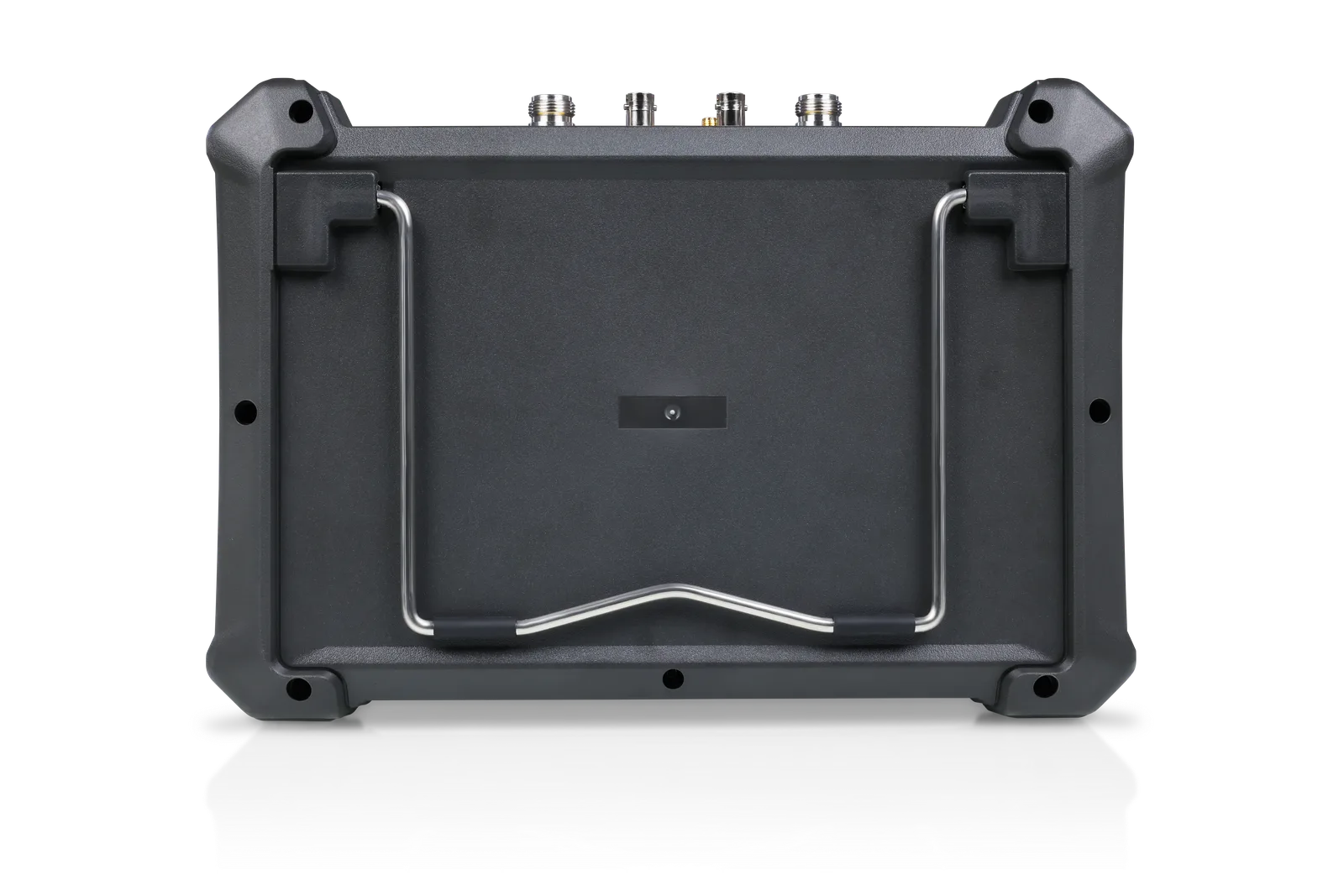

8.4-inch Touch Display for Field Work
The handheld form factor, large touch screen, knob/key operation, shoulder bag and hand strap make the instrument usable at remote sites and tower locations.
GPS Location and Logging Options
GPS receiver and logging workflows help document measurement location during site surveys, interference hunting and field acceptance reports.
Modulation and Advanced Measurement Options

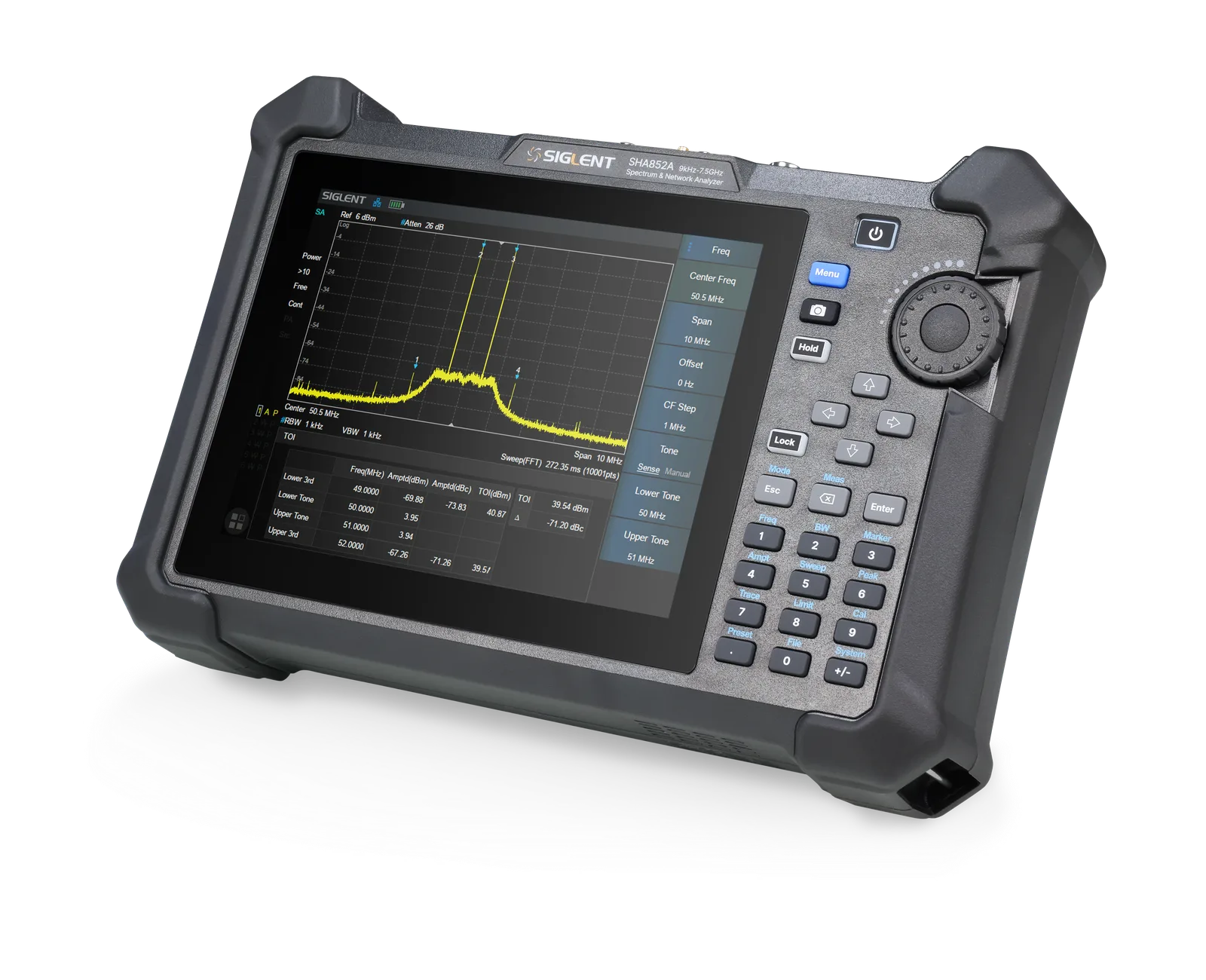

Analog/digital modulation analysis, waterfall chart, independent source, DC bias out and advanced measurement workflows can be configured for specific RF field tasks.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| SHA851A spectrum range | GHz | 0.009 to 3.6 |
| SHA852A spectrum range | GHz | 0.009 to 7.5 |
| CAT / optional VNA range | GHz | 0.0001 to 3.6 / 7.5, model dependent |
| SPECTRUM ANALYZER | ||
| RBW range | Hz | 1 to 3 MHz, 1-3-10 sequence |
| DANL | dBm/Hz | -165 typ. |
| SSB phase noise | dBc/Hz | -104 typ. @ 1 GHz, 10 kHz offset |
| Total amplitude accuracy | dB | ±0.7 |
| CABLE / ANTENNA / VNA | ||
| CAT mode | — | Standard cable and antenna test, VSWR, return loss, distance-to-fault and time-domain analysis |
| VNA mode | — | Optional vector S11 / S21, Smith chart, insertion loss and phase-related network measurements |
| VNA dynamic range | dB | 114 typ. |
| DC bias out | Vdc | 12 to 32, optional |
| FIELD OPERATION | ||
| Display | — | 8.4-inch multi-touch screen with knob and key operation |
| Working time | h | Up to 4 typical |
| Net weight | kg | 3.2 |
| Logging | — | GPS location and logging options |
| Measurement options | — | Channel power, ACPR, harmonics, TOI, modulation analysis and waterfall workflows depending on configuration |
Applications
Antenna and Feedline Verification
Verify return loss, VSWR and cable condition during RF site installation and maintenance.
Wireless Interference Hunting
Use spectrum analysis, directional antennas and GPS logging workflows to locate unwanted emitters.
Broadcast Monitoring
Check occupied bandwidth, channel power and spurious signals at transmitter and relay sites.
Distance-to-Fault Diagnosis
Find cable damage, poor connectors and feedline degradation by distance before replacing hardware.
Matching and Filter Work
Use optional VNA mode for S11/S21, Smith chart, insertion loss and impedance-matching tasks.
Portable RF Service Kit
Combine spectrum, cable/antenna and optional network-analysis workflows in one field instrument.
