NOVUS · Data Logging, Remote I/O & IIoT

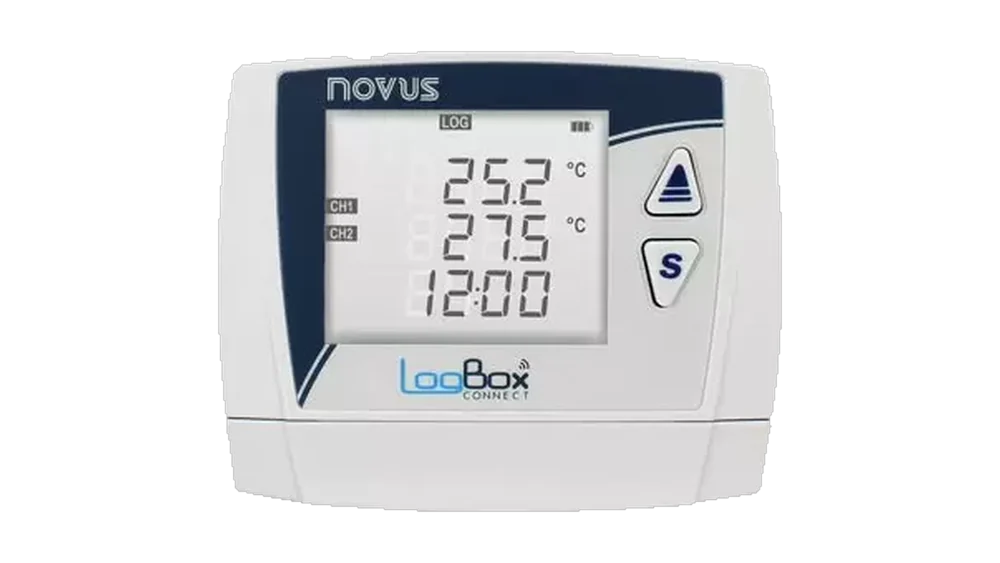

LogBox Wi-Fi
Wi-Fi data logger for autonomous or remote recording of universal analogue and digital variables with MQTT/Modbus TCP integration.
Rolewireless industrial data logger
CategoryData Acquisition & Communication
IntegrationModel-specific
SupportPrimionics application engineering
Engineering position
Wireless industrial data logger for the industrial data layer
The product belongs to the acquisition and information layer: it records, converts, exchanges or publishes process and machine data. Deterministic machine or process control remains in the controller; logging, remote I/O and IIoT functions should be designed as a separate information path. Wi-Fi data logger for autonomous or remote recording of universal analogue and digital variables with MQTT/Modbus TCP integration.
Field-data integrationDefine field signals, channel count, acquisition purpose and the receiving PLC/SCADA/MES/cloud system.
Commissioning and diagnosticsProvide software access, network settings, firmware baseline and a repeatable commissioning procedure.
Documented protocol operationConfirm protocol role, addressing, network topology, security and data ownership for the selected model.
Current product position: Current LogBox Wi-Fi positioning combines local logging, universal inputs, Wi-Fi, MQTT and Modbus TCP for remote environmental or process monitoring.
System role
LogBox Wi-Fi signal and system architecture
The architecture separates the field/process interface, the NOVUS function and the downstream control or information path. Exact electrical interfaces, protocol roles and accessories remain model-dependent.
01Sensors / signals
02LogBox Wi-Fi
03Local memory
04Wi-Fi / MQTT
05Monitoring platform
Use the current NOVUS product page, manual and exact order code as the final authority for numeric ratings, approvals, firmware-dependent functions and supplied accessories.
Application scope
LogBox Wi-Fi application environments
These application classes indicate the engineering context. Final selection still depends on the exact range, I/O, communication, installation and performance requirements.
Cold-storage monitoring
For cold-storage monitoring, define the source signals, acquisition rate, record-retention requirement and destination system before selecting the communication and storage architecture.
Remote process logging
For remote process logging, define the source signals, acquisition rate, record-retention requirement and destination system before selecting the communication and storage architecture.
Technical data
Technical data and model boundaries
The table is a selection summary, not a substitute for the current NOVUS manual or ordering information. Product families and optional versions can differ in input, output, communication, supply and approvals.
| Inputs | 3 universal analogue inputs and 1 configurable digital input |
|---|---|
| Memory | 140,000 records |
| Communication | Wi-Fi 802.11 b/g/n and USB |
| Protocols | MQTT and Modbus TCP |
| Configuration | NXperience via USB or Wi-Fi |
| Backup operation | Battery-supported logging; actual autonomy depends on operating mode |
| Compliance support | NOVUS documents 21 CFR Part 11 / ANVISA workflow support; system validation remains application-specific |
Selection context
LogBox Wi-Fi within the NOVUS portfolio
Use role, range, I/O, installation and communication requirements to distinguish nearby products. Similar naming does not imply interchangeable electrical or functional capability.
Current page
LogBox Wi-Fi
Wi-Fi data logger for autonomous or remote recording of universal analogue and digital variables with MQTT/Modbus TCP integration.
Inputs: 3 universal analogue inputs and 1 configurable digital inputMultichannel industrial data loggerFieldLogger
Multichannel industrial data-acquisition platform for continuous recording of analogue/digital variables with local storage and Ethernet/USB/RS485 integration.
Universal analogue inputs: 8 channelsWall-mounted temperature and humidity transmitterRHT-WM
Wall-mounted temperature and relative-humidity transmitter for room and controlled-area measurement points.
Mounting: Wall mountSelection basis: application duty, exact interface requirements and current orderable configuration.
Documentation & engineering inputs
Current NOVUS documentation and application data
Use the manufacturer page for the current orderable configuration, then provide the application information below so Primionics can review technical fit, accessories and commercial scope.
Signals & channelsAnalogue/digital signals, Modbus devices, pulse/event inputs and channel count.
AcquisitionSampling/recording interval, event triggers, buffering and record-retention requirement.
ConnectivityRS485, Ethernet, Wi-Fi, MQTT, Modbus TCP/RTU and receiving system.
IT/OT boundaryIP addressing, broker/cloud ownership, certificates, remote access and cybersecurity rules.
Software & validationNXperience, SCADA/MES/cloud integration, reports and validation requirements.
Commercial scopeQuantity, accessories, storage/media, software and commissioning support.
