Industrial heaters and ovens
Industrial heaters and ovens is a suitable application class when the selected N1050 input, control output and process-response capability match the sensor, load interface and thermal dynamics.
NOVUS · Temperature & Process Control

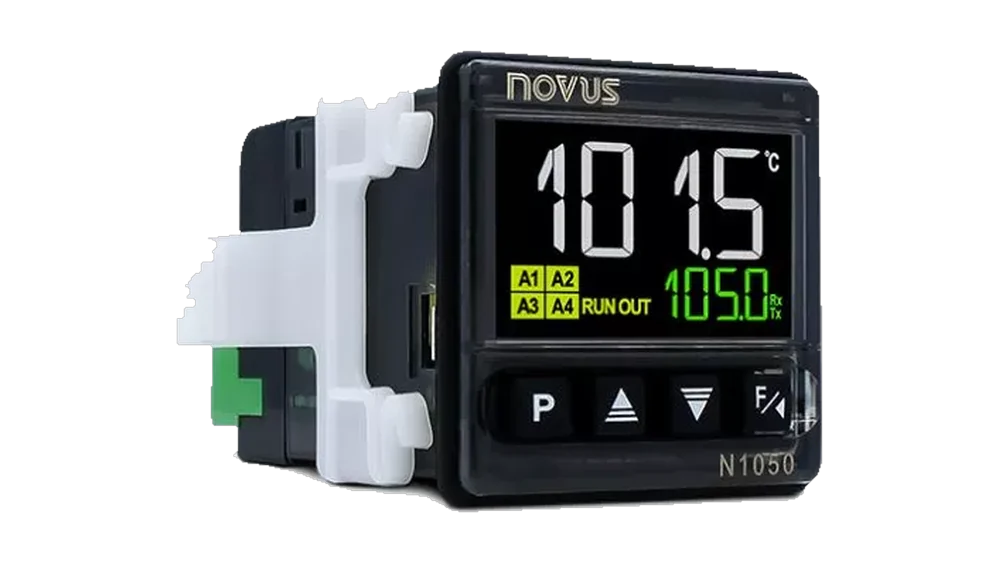

N1050
LCD PID controller for thermal applications that need clear local operation, ramp-and-soak programs, optional RS485 and model-dependent analogue output.
RolePID controller with LCD interface and process programs
CategoryProcess Control & Indication
SelectionInput · output · control duty
SupportPrimionics application engineering
Engineering position
PID controller with LCD interface and process programs for industrial process control
The controller forms the closed-loop control layer between the process measurement and the final power or actuating device. Model selection should be based on sensor type and range, control algorithm, output hardware, panel format, supply, communication and the thermal dynamics of the application. LCD PID controller for thermal applications that need clear local operation, ramp-and-soak programs, optional RS485 and model-dependent analogue output.
Configured process inputMatch the ordered sensor/input version and usable measurement range to the actual process signal before panel design.
PID or ON/OFF control as documentedConfirm the required control mode, heating/cooling action, tuning behavior and process response for the selected model.
Alarm and output selectionAllocate control, alarm and auxiliary outputs against the load-interface and sequence requirements.
Panel integrationConfirm cutout, depth, supply, terminal access and front protection for the machine panel.
Current product position: Current NOVUS positioning combines an LCD interface, PID control, ramp-and-soak programs, optional RS485 and model-dependent analogue output.
System role
N1050 signal and system architecture
The architecture separates the field/process interface, the NOVUS function and the downstream control or information path. Exact electrical interfaces, protocol roles and accessories remain model-dependent.
01Supported sensor
02N1050
03Control output
04SSR / contactor
05Thermal process
Use the current NOVUS product page, manual and exact order code as the final authority for numeric ratings, approvals, firmware-dependent functions and supplied accessories.
Application scope
N1050 application environments
These application classes indicate the engineering context. Final selection still depends on the exact range, I/O, communication, installation and performance requirements.
Packaging and sealing machinery
Packaging and sealing machinery is a suitable application class when the selected N1050 input, control output and process-response capability match the sensor, load interface and thermal dynamics.
Machine temperature control
Machine temperature control is a suitable application class when the selected N1050 input, control output and process-response capability match the sensor, load interface and thermal dynamics.
Technical data
Technical data and model boundaries
The table is a selection summary, not a substitute for the current NOVUS manual or ordering information. Product families and optional versions can differ in input, output, communication, supply and approvals.
| Inputs | Thermocouples J, K, T, S; Pt100 |
|---|---|
| Control | PID/PWM with automatic tuning; heating or cooling |
| Outputs | Pulse/relay configurations; analogue output on supported version |
| Programs | 5 ramp-and-soak programs with 4 segments |
| Communication | Optional RS485 Modbus RTU |
| Configuration | USB with NOVUS configuration software |
| Panel | 48 × 48 mm; IP65 front |
Selection context
N1050 within the NOVUS portfolio
Use role, range, I/O, installation and communication requirements to distinguish nearby products. Similar naming does not imply interchangeable electrical or functional capability.
Current page
N1050
LCD PID controller for thermal applications that need clear local operation, ramp-and-soak programs, optional RS485 and model-dependent analogue output.
Inputs: Thermocouples J, K, T, S; Pt100Compact temperature controller with digital configurationN1020
Compact 1/32 DIN PID controller for applications that need universal input capability, ramp-and-soak profiles, USB-C configuration and optional RS485 without using a 48 × 48 mm panel format.
Panel format: 48 × 24 mm (1/32 DIN)Auto-adaptive PID process controllerN1200
High-performance universal process controller for demanding thermal or analogue-variable loops that need fast acquisition, flexible I/O and extensive ramp-and-soak programming.
Inputs: Thermocouples J, K, T, N, R, S, B, E; Pt100; current and voltageSelection basis: application duty, exact interface requirements and current orderable configuration.
Documentation & engineering inputs
Current NOVUS documentation and application data
Use the manufacturer page for the current orderable configuration, then provide the application information below so Primionics can review technical fit, accessories and commercial scope.
Process variableSensor type, normal range and maximum process temperature.
Control dutyHeating/cooling action, process dynamics, required stability and cycle profile.
Output stageRelay, SSR pulse, analogue output, alarm outputs and final load interface.
Panel integrationCutout, depth, supply voltage, wiring and environmental protection.
CommunicationStandalone operation, RS485/Modbus or connected/modular interface requirements.
Commercial scopeQuantity, required accessories, configuration support and delivery target.
