Handheld Micromanometer Model 6720-DP
Detachable touchscreen micromanometer for pressure, pitot-tube and velocity-grid measurements, with Bluetooth, USB and 8,000-record logging.
Products
| Product | Product line | Application area | Selection note |
|---|---|---|---|
| 6720-DP | Handheld micromanometer | Pressure and calculated velocity measurement with multiple accessories | HVAC/TAB, HEPA-face surveys and critical-environment certification |
Key Features
Multiple measurement methods
Connect pitot tubes, flow grids, differential-pressure tubing or the optional velocity grid.

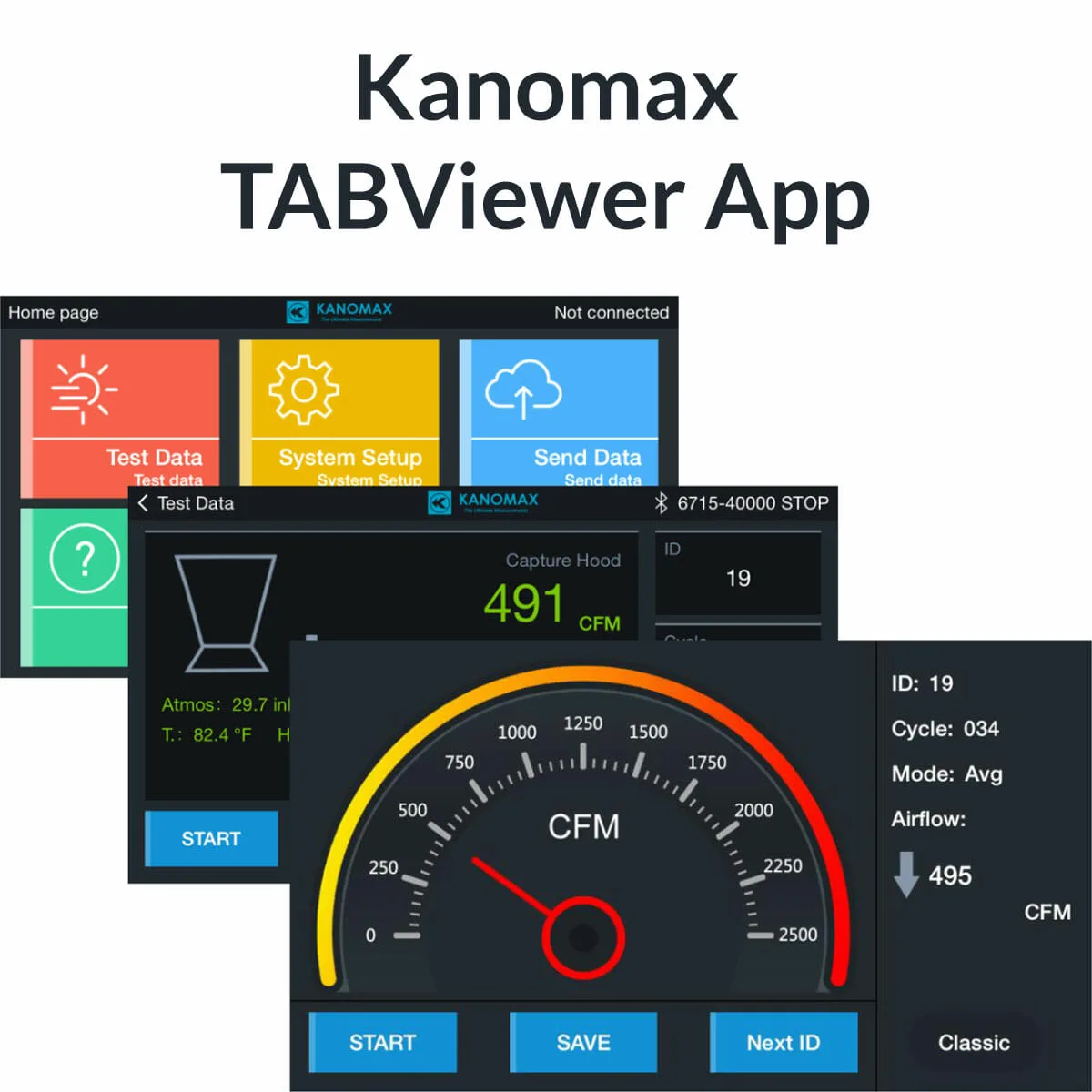

Touchscreen and Bluetooth
Configure, view and record measurements locally or through supported mobile workflows.
Automatic correction
Auto-range, auto-zero and air-density correction simplify field calculations.

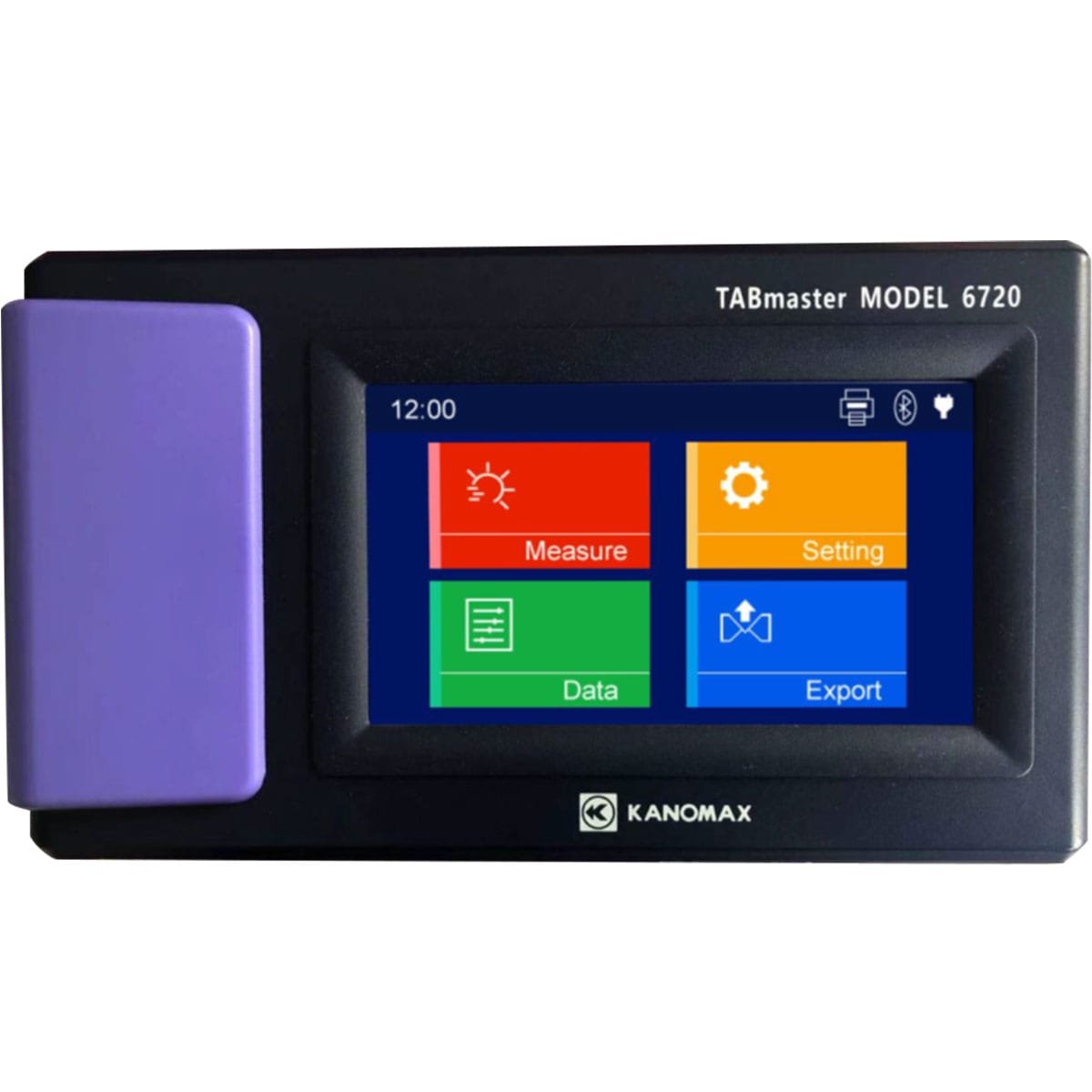

Standalone or hood meter
Use independently or as the removable meter supplied with the TABmaster 6720.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VELOCITY AND PRESSURE | ||
| Pitot-tube velocity range | m/s | 0.15–40 |
| Velocity-grid range | m/s | 0.15–15 |
| Velocity accuracy | — | ±3% of reading ±0.05 m/s |
| Differential-pressure range | Pa | −2,500 to 2,500 |
| Pressure accuracy | — | ±1.5% of reading ±0.25 Pa |
| GENERAL | ||
| Interfaces | — | USB and Bluetooth |
| Data memory | measurements | Up to 8,000 |
| Velocity-grid size | in | 11 × 11 |
| Power | — | 4 × AA batteries or optional AC adapter |
Values shown are manufacturer specifications or documented configuration details. Confirm final model, probe, accessories, regional availability and calibration scope before ordering.
Applications
Pitot-tube duct traverse
Calculate velocity and volume flow from differential pressure.
Average face velocity
Use the optional grid for filter and opening measurements.
Room-pressure verification
Measure low differential pressure across doors and barriers.

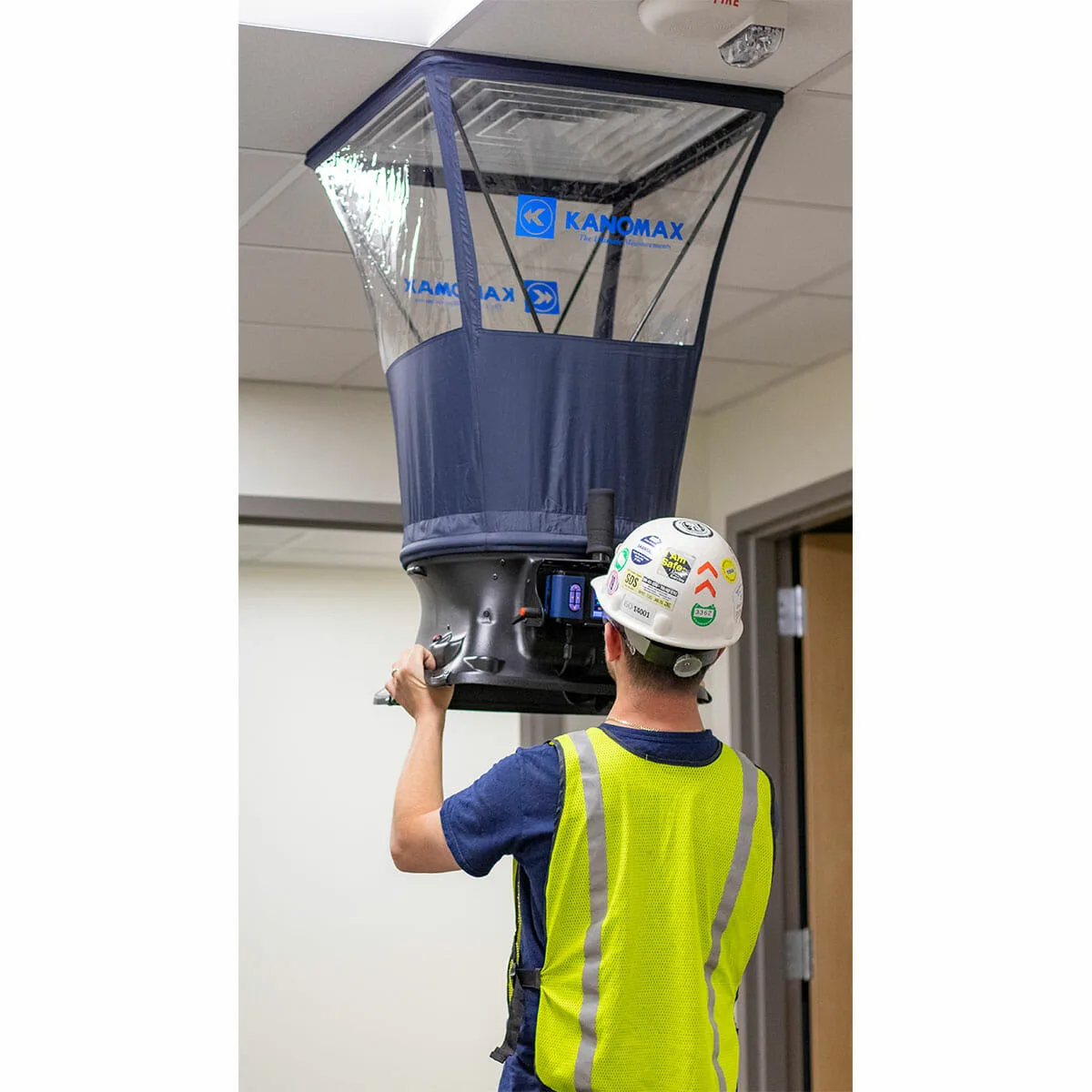

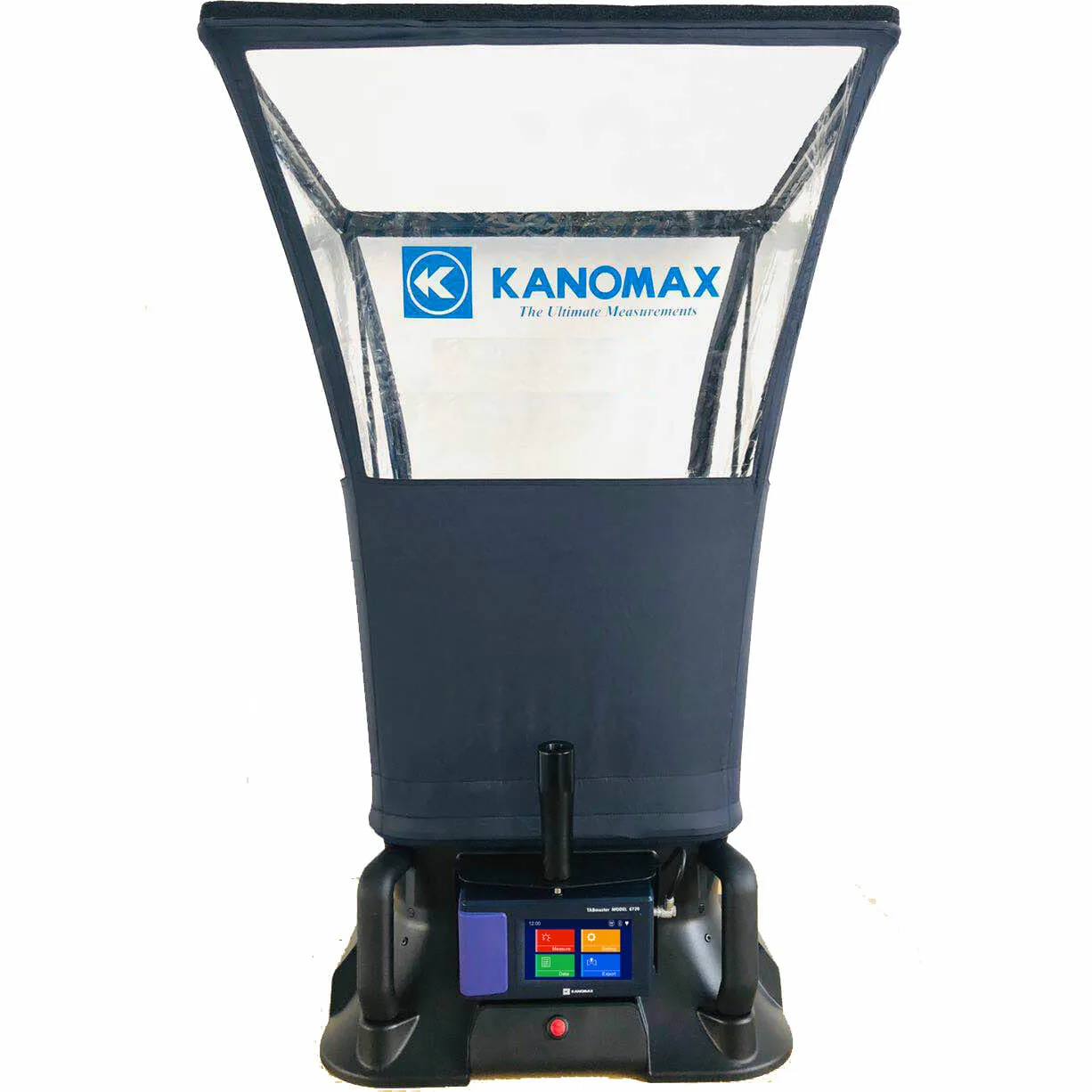

TABmaster 6720 meter
Use as the detachable control and measurement module.
