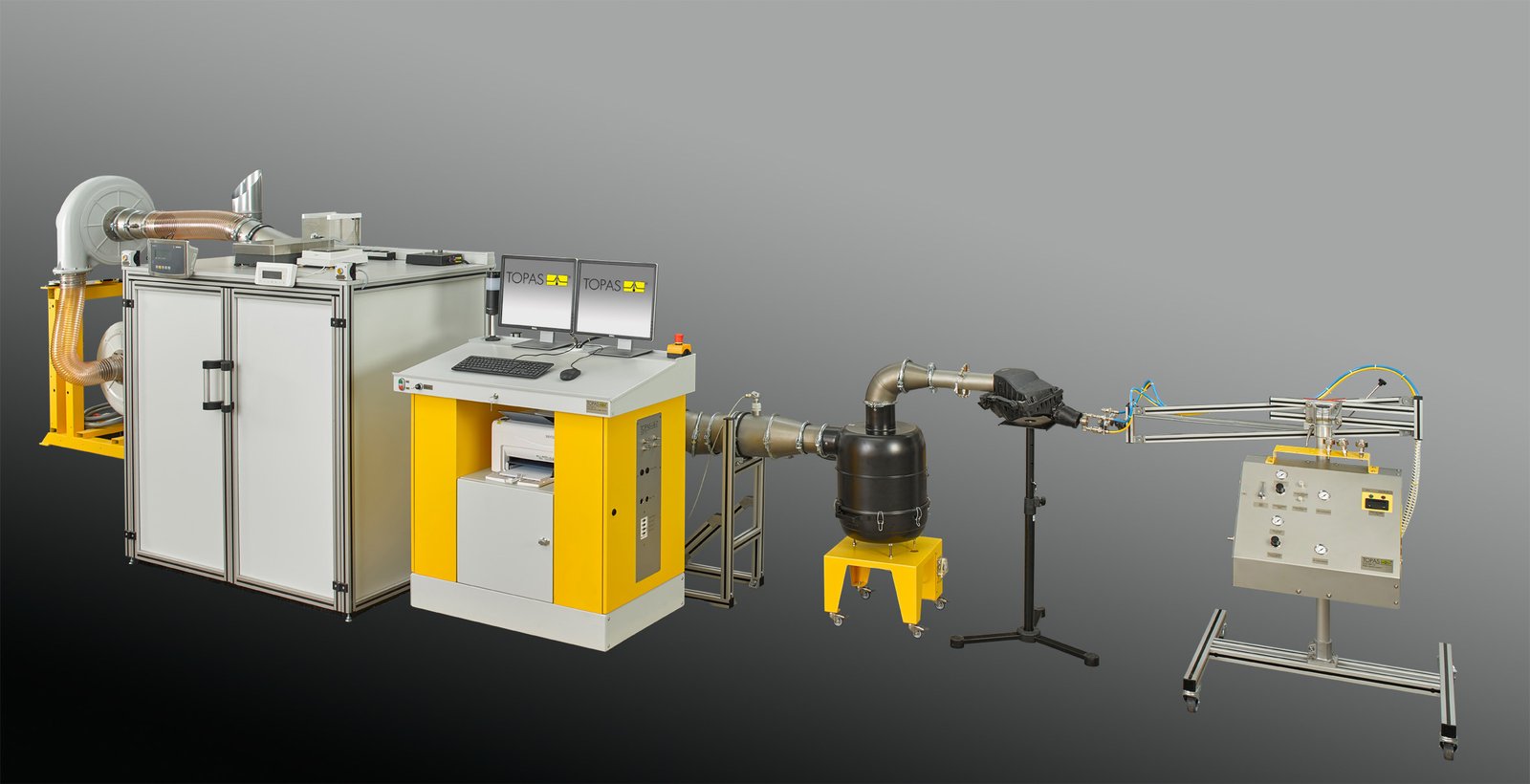

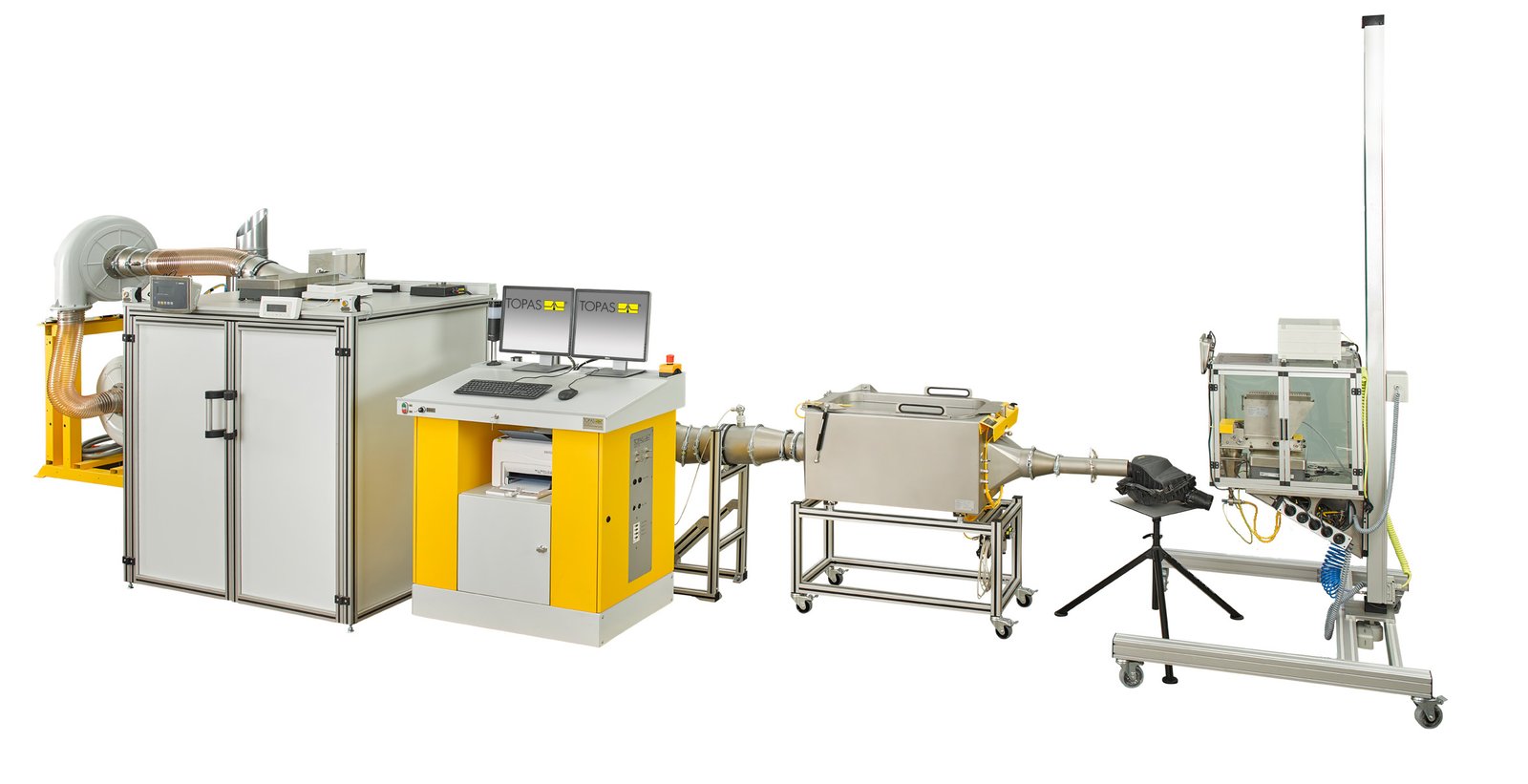

ABP 115 Engine Intake & Industrial Filter Test System
Automated test system for engine intake and industrial air filters according to ISO 5011, measuring pressure drop, air restriction, dust-loading capacity, gravimetric efficiency and downstream particle size.
Model Overview
| Model | System role | Primary measurements | Standards / application fit |
|---|---|---|---|
| ABP 115 | Engine-intake and industrial-filter test system | Pressure drop, restriction, dust capacity, gravimetric efficiency and downstream particle monitoring | ISO 5011 testing and customer-specific intake-filter procedures |
Key Features
ISO 5011 test workflow
Performs standardised inlet-air-cleaner testing for combustion engines and industrial machinery.
Two-stage volume-flow generation
Provides the high and adjustable airflows required for engine and industrial intake filters.
Mass-flow-regulated dust dosing
Controls ISO 12103-1 test-dust delivery for reproducible loading and capacity measurements.
Multiple performance outputs
Records pressure drop, air restriction, dust-loading capacity, gravimetric efficiency and downstream particle behaviour.
Automated operation
Operator-guided test sequences, data handling and protocol generation reduce manual intervention.
Customer-specific procedures
The system can be engineered for additional intake-filter standards and internal test methods.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| PERFORMANCE | ||
| Test flow rate | m³/min | 2–50 at 20 °C and 1013 hPa |
| Differential-pressure range | Pa | ≤ 15,000 |
| Measured outputs | — | Pressure drop, air restriction, dust capacity, gravimetric efficiency and downstream particle size |
| TEST MEDIA & UTILITIES | ||
| Test dust | — | ISO 12103-1 A2 (AC fine) and A4 (AC coarse) |
| Compressed-air supply | bar | 6 |
| Power supply | — | 400 VAC, 125 A |
Values shown are based on the standard system configuration. Confirm the final test method, specimen fixtures, instrumentation, utilities and calibration scope before order placement.
Applications
Engine intake filters
Standardised testing of inlet-air-cleaning filters for combustion engines.
Industrial machinery filters
Qualification of high-flow intake filters used on compressors and industrial equipment.
Filter design optimisation
Comparison of pressure restriction, dust capacity and separation performance during development.
Quality assurance
Automated acceptance and comparative testing with traceable test reports.
