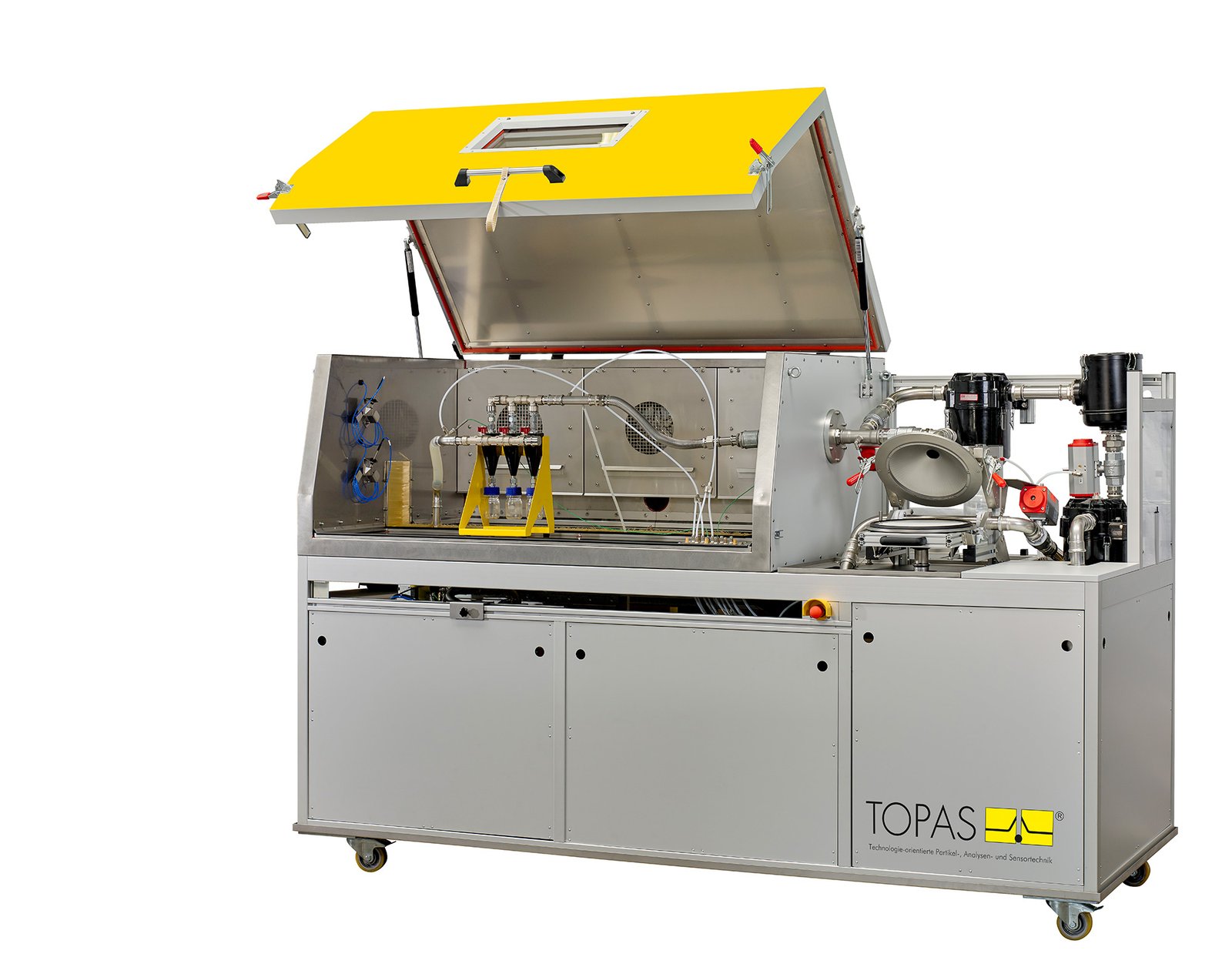

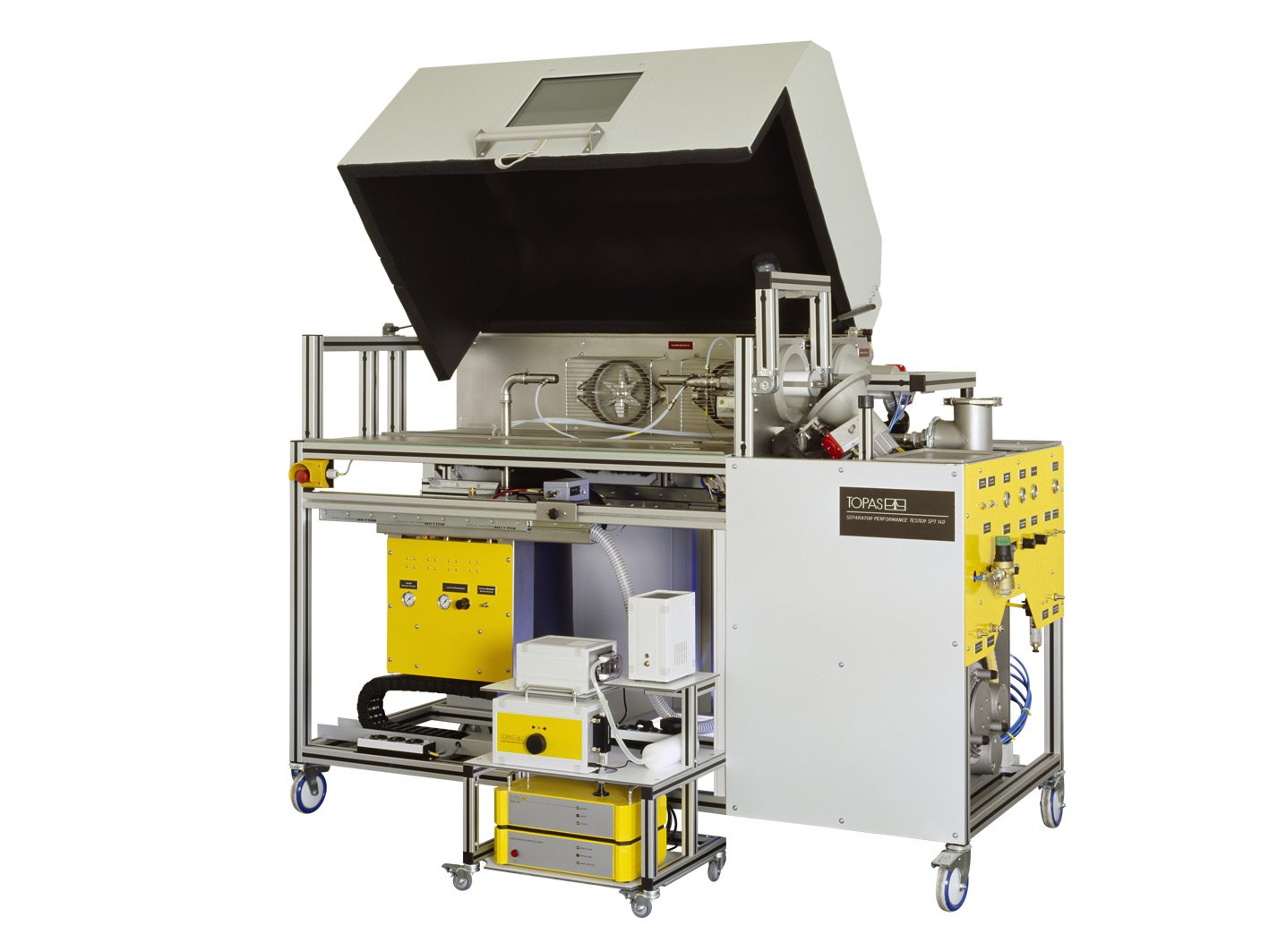

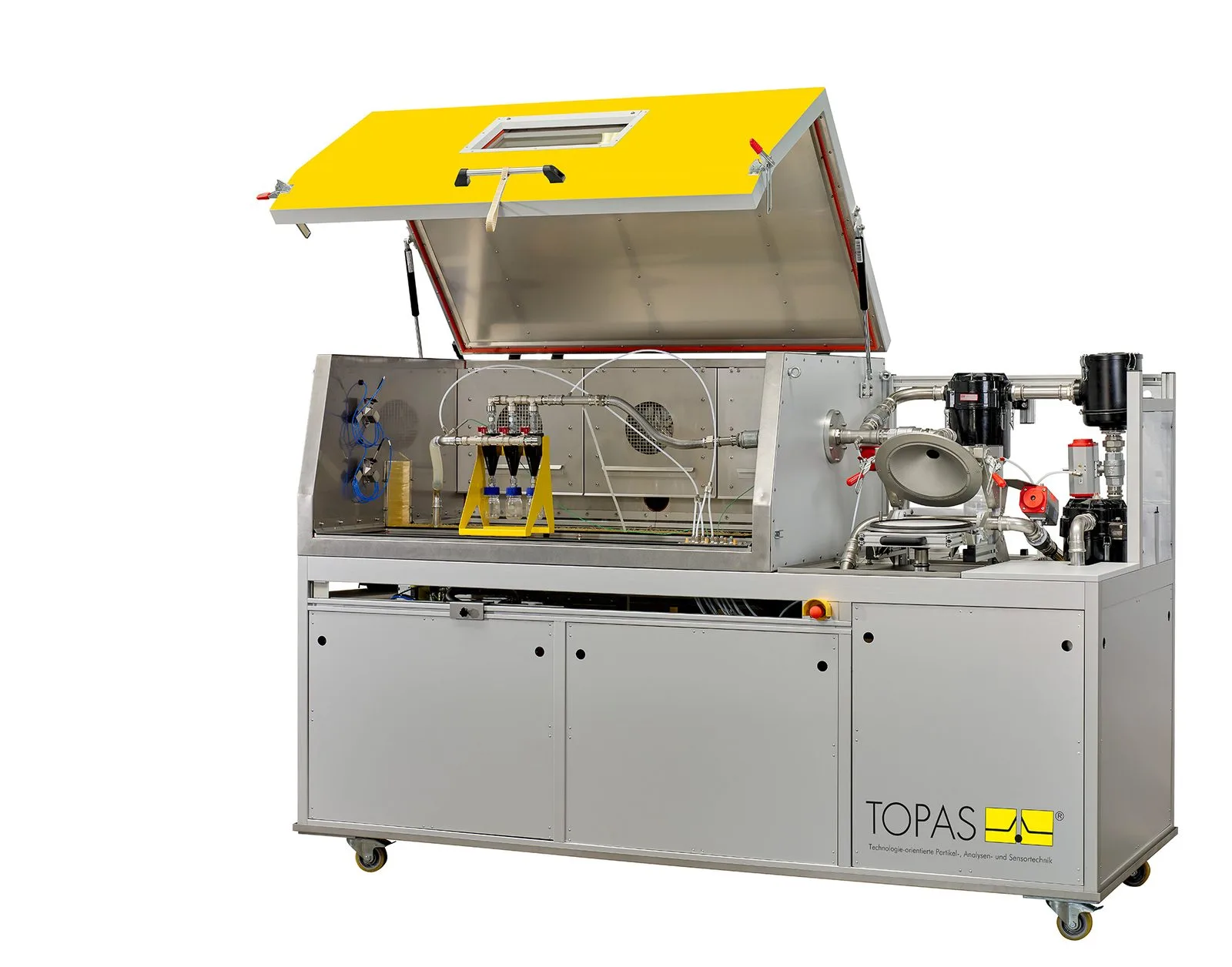

SPT 140 Oil Mist Separator Test System
Automated blow-by oil-mist separator test system for gravimetric and fractional separation efficiency, pressure-flow characteristics, pressure regulation and leakage under conditioned aerosol operation.
Model Overview
| Model | System purpose | Standards / method | Core fit |
|---|---|---|---|
| SPT 140 | Automated test bench for flow, pressure, leakage and gravimetric/fractional separation performance | Application-specific blow-by separator methods | Crankcase-ventilation separator development, benchmarking and validation |
Key Features
Gravimetric separation efficiency
Measures separated and downstream oil mass across defined volume-flow conditions.
Fractional efficiency option
Supports size-resolved oil-droplet removal-efficiency characterisation.
Pressure and flow regimes
Tests separators in overpressure and underpressure modes with controlled flow.
Pressure-regulation curves
Records crankcase-system pressure against intake pressure at multiple flow rates.
Leakage measurement
Evaluates separator and oil-drain leakage as part of the complete performance assessment.
Conditioned oil-mist generation
Uses a heated oil-mist generator up to 120 °C with mineral or synthetic engine oils.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| TEST RANGE | ||
| Test-flow range | m³/h | 0.9–18 or 1.2–24 |
| Specimen differential pressure | Pa | ±20,000 |

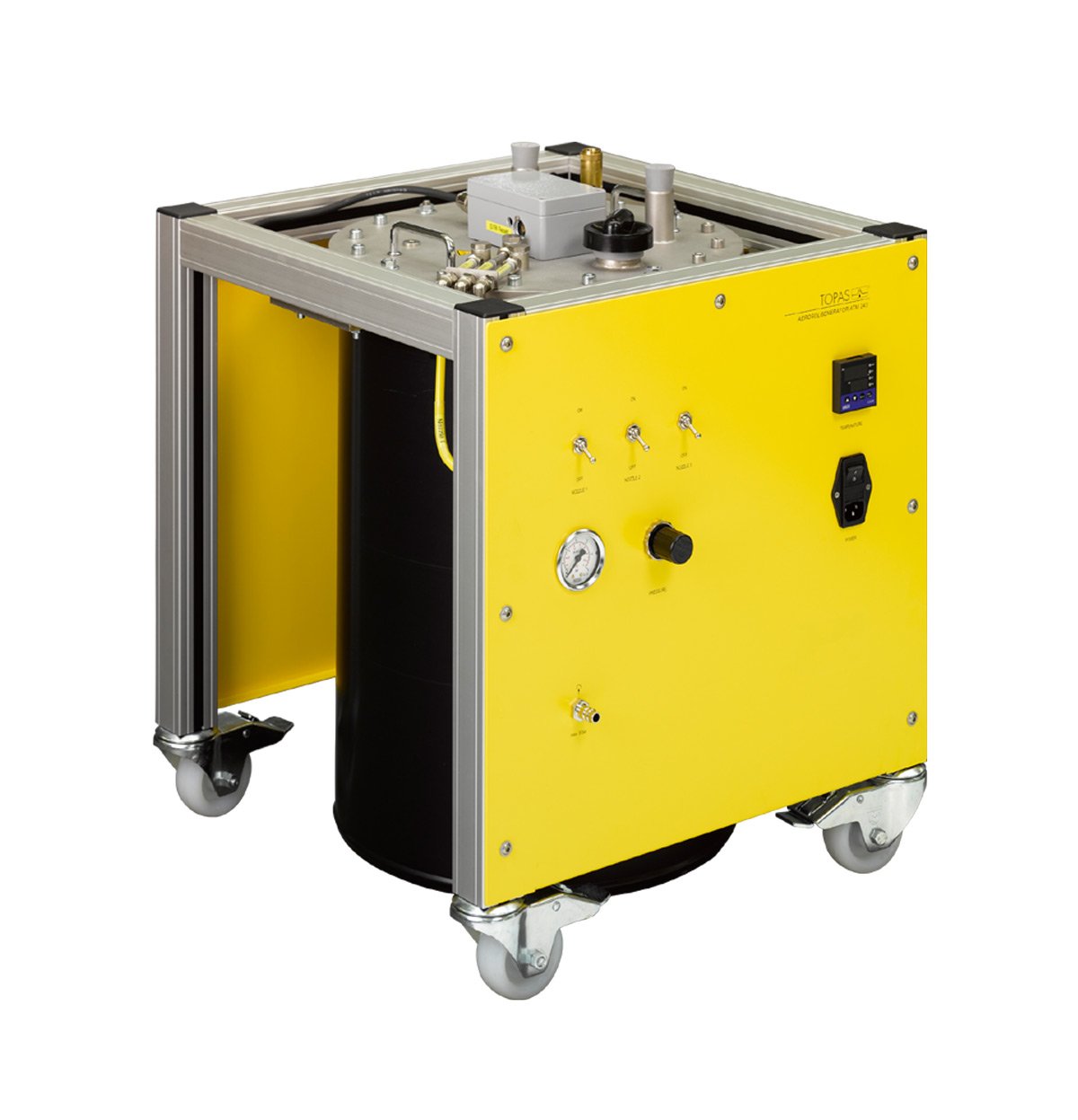

| Test aerosol | — | Mineral- or synthetic-engine-oil droplet aerosol |
| Aerosol generation | — | ATM 243 or optional LDG 243 |
| SYSTEM DATA | ||
| Compressed-air supply | bar | Maximum 6; approximately 300 L/min |
| Cooling-water supply | bar | Maximum 6; maximum 20 L/h |
| Power supply | — | 400 V; 16 A |
| Dimensions (W × H × D) | mm | 2100 × 1200 × 925 |
| Weight | kg | Approx. 400 |
Published values support initial model selection. Confirm final configuration, utilities, accessories and calibration scope during technical review.
Applications
Blow-by separator testing
Performance evaluation of crankcase-ventilation oil-mist separators.
Gravimetric oil separation
Measurement of total retained and penetrated oil mass.
Fractional removal efficiency
Size-resolved characterisation of oil-droplet separation performance.
Pressure-flow curves
Determination of separator restriction and discharge behaviour.
Crankcase pressure regulation
Evaluation of pressure-regulation characteristics over multiple operating points.
Separator and drain leakage
Measurement of leakage paths within the separator and oil-drain arrangement.
