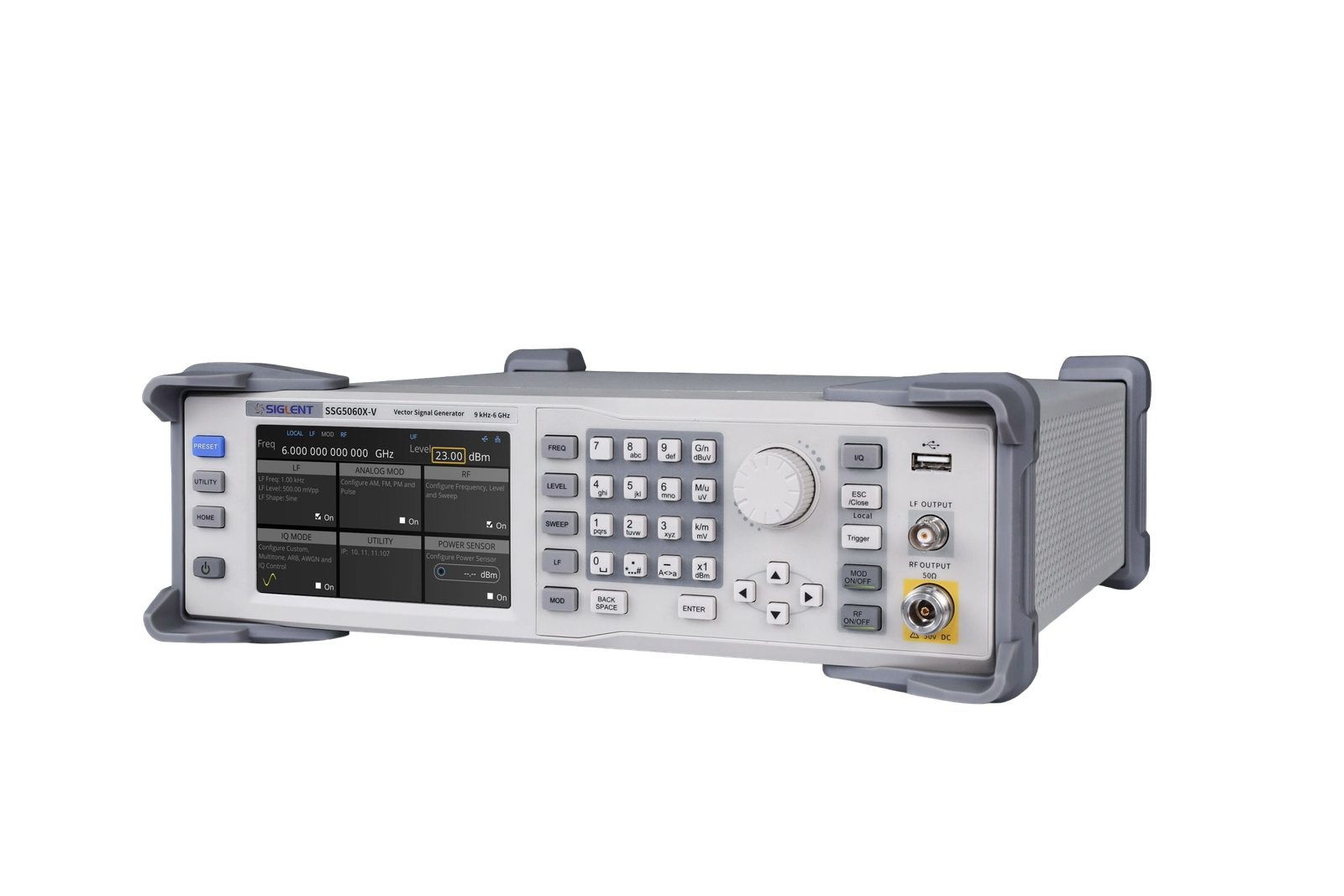

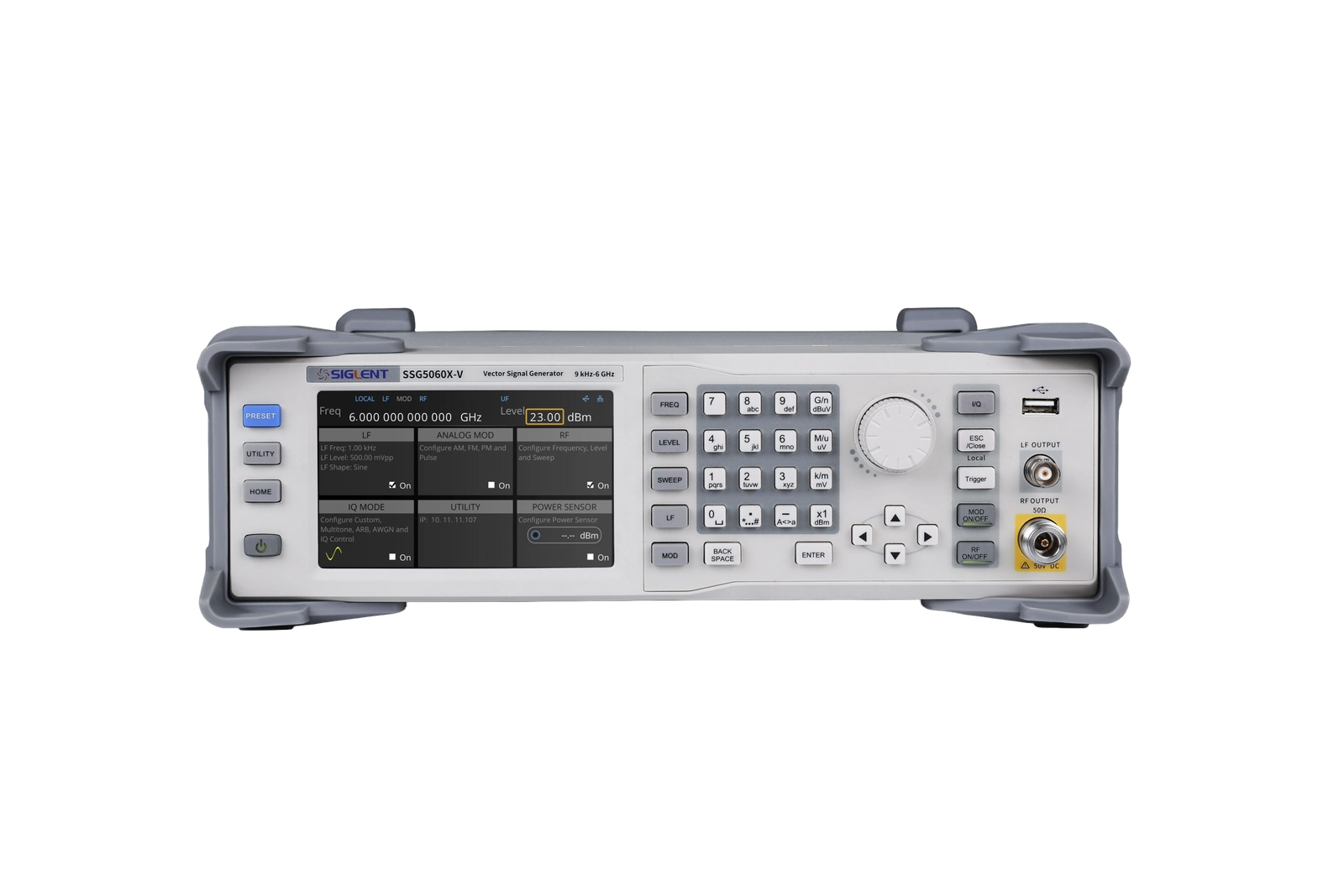

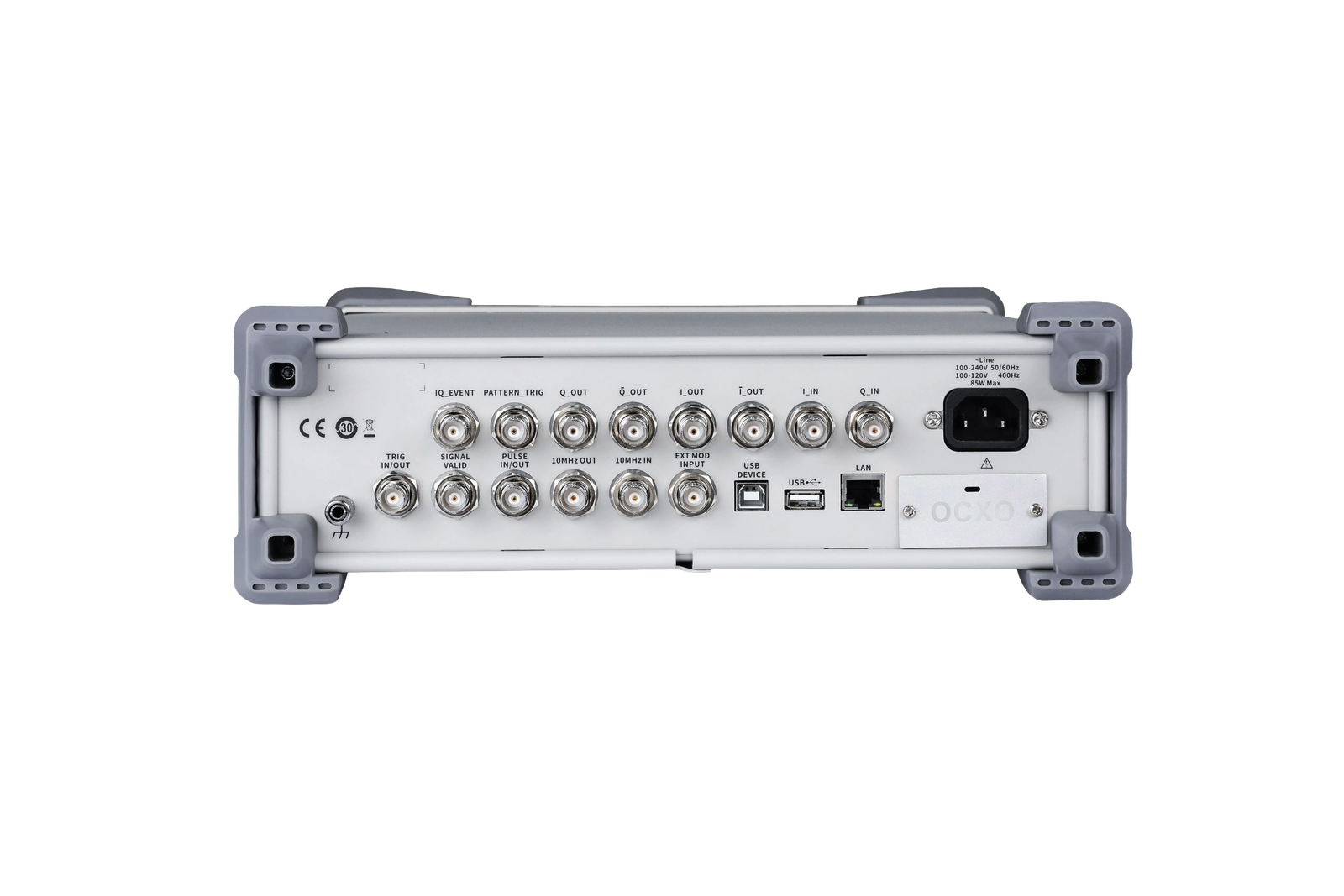

SSG5000X — RF Signal Generators, 9 kHz to 4 / 6 GHz
RF signal generator family with CW analog models and -V vector/IQ models. It covers 9 kHz to 4 GHz or 6 GHz, supports AM/FM/PM, user flatness correction, optional pulse functions, and IQ waveform playback on V models for wireless receiver and RF module testing.
| Model | Mode | Frequency Range | I/Q Modulation | Phase Noise | Output Power |
|---|---|---|---|---|---|
| SSG5040X | CW analog | 9 kHz – 4 GHz | No | −120 dBc/Hz @ 1 GHz, 20 kHz typ. | Up to +26 dBm typ. |
| SSG5060X | CW analog | 9 kHz – 6 GHz | No | −120 dBc/Hz @ 1 GHz, 20 kHz typ. | Up to +26 dBm typ. |
| SSG5040X-V | Vector / IQ | CW: 9 kHz – 4 GHz IQ: 10 MHz – 4 GHz | Yes | −120 dBc/Hz @ 1 GHz, 20 kHz typ. | Up to +26 dBm typ. |
| SSG5060X-V | Vector / IQ | CW: 9 kHz – 6 GHz IQ: 10 MHz – 6 GHz | Yes | −120 dBc/Hz @ 1 GHz, 20 kHz typ. | Up to +26 dBm typ. |
Key Features
CW Analog and -V Vector Models
The SSG5000X family includes CW analog generators for clean RF carrier work and -V models for internal I/Q modulation and waveform playback. This avoids overbuying vector capability when only CW, sweep, AM/FM/PM or pulse testing is required.
4 GHz / 6 GHz RF Coverage
Model choices cover 9 kHz to 4 GHz or 6 GHz for RF receiver testing, wireless module validation, education labs, RF component characterisation and production signal-source applications.
Low Phase Noise Carrier
Typical phase noise of −120 dBc/Hz at 1 GHz and 20 kHz offset supports receiver sensitivity testing, LO substitution and RF module troubleshooting where carrier purity matters.
High Output Power
Output power up to +26 dBm typical provides enough level for many component and receiver tests without adding an external RF amplifier.
Analog Modulation and Pulse Options
AM, FM and PM modulation are supported with internal, external or combined sources. Optional single pulse, double pulse and pulse-train functions support radar-style and gated RF tests.

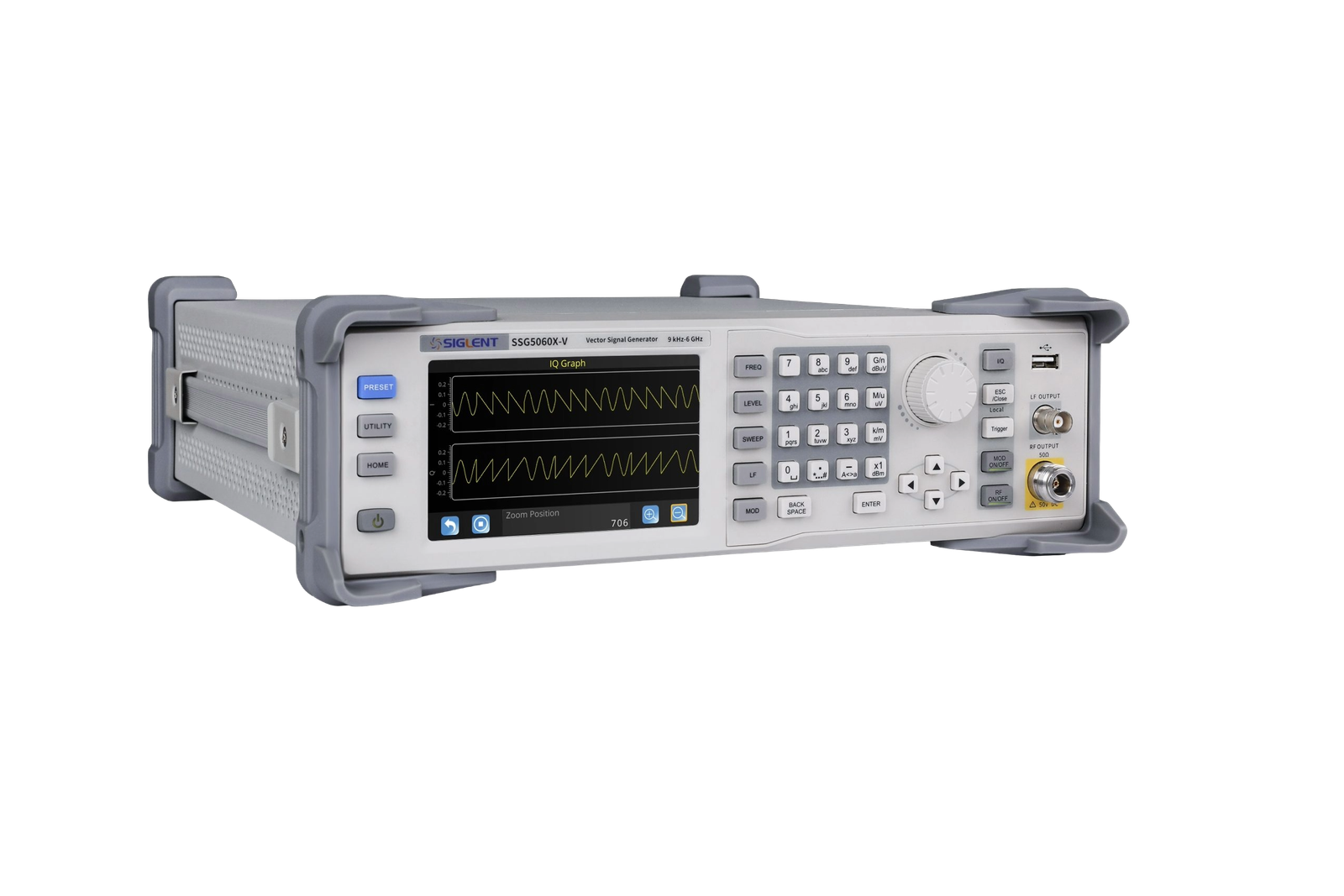

I/Q Waveform Workflows on V Models
The -V versions support internal I/Q modulation, external analog I/Q input and waveform playback for custom IQ, QAM, PSK, ASK, FSK, OFDM and other wireless-signal experiments.
User Flatness Correction
User-programmable flatness correction and USB power-meter correction help compensate cable, fixture and path loss for more controlled RF level delivery at the DUT.

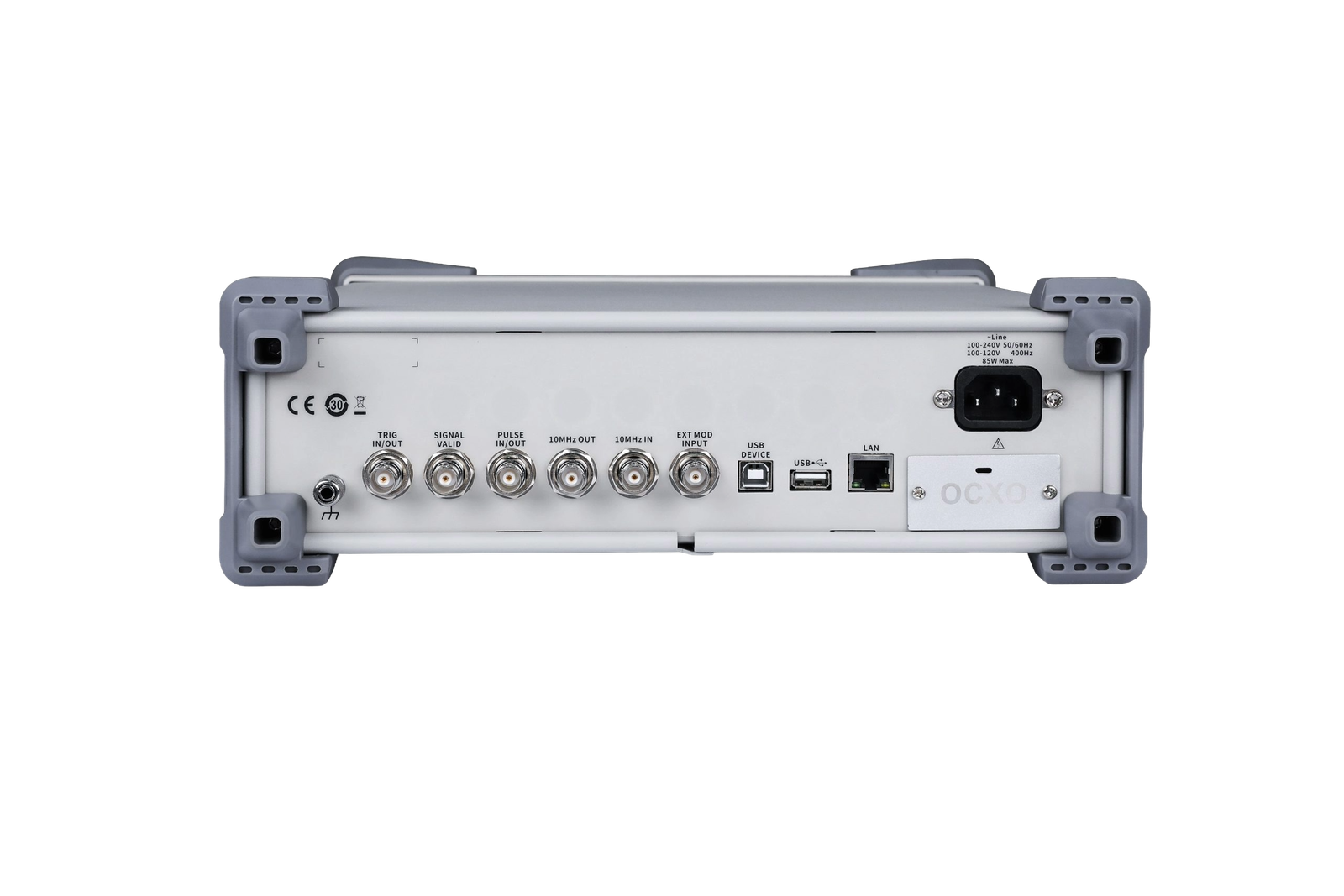

Remote Control for ATE
USB Host, USB Device and LAN interfaces support remote control from automated test systems. GPIB can be added where legacy ATE compatibility is required.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| FREQUENCY | ||
| Frequency range | — | 9 kHz to 4 GHz / 6 GHz, model-dependent |
| Frequency resolution | Hz | 0.001 |
| SPECTRAL PURITY | ||
| Phase noise | dBc/Hz | −120 @ 1 GHz, 20 kHz offset, typical |
| OUTPUT | ||
| Maximum output power | dBm | Up to +26, typical |
| Amplitude resolution | dB | 0.01 |
| Level correction | — | User flatness correction · USB power-meter correction |
| MODULATION | ||
| Analog modulation | — | AM · FM · PM with internal, external or combined source |
| Pulse functions | — | Single pulse · double pulse · pulse-train generator option |
| Vector / I/Q | — | Available on SSG5040X-V and SSG5060X-V only |
| I/Q frequency range | — | 10 MHz to 4 GHz / 6 GHz, model-dependent |
| I/Q bandwidth | MHz | Up to 150, depending on configuration |
| DISPLAY AND CONTROL | ||
| Display | — | 5-inch TFT capacitive touch screen |
| Standard interfaces | — | USB Host · USB Device (USBTMC) · LAN (VXI-11, Socket, Telnet) |
| Optional interface | — | GPIB |
Applications
Receiver Sensitivity Testing
Stable RF carrier and controlled output level for sensitivity, blocking, gain-compression and front-end verification up to 4 GHz or 6 GHz.
Vector Signal Experiments
-V models support IQ waveform playback and custom modulation for Bluetooth, IoT, OFDM, QAM, PSK, ASK, FSK and related wireless experiments.
Amplifier, Filter and Mixer Test
Frequency sweep, level control and flatness correction support RF component response and gain testing across common sub-6 GHz bands.
RF Module Production QC
LAN/USB remote control and repeatable RF level setting make the series suitable for production RF module screening and automated receiver checks.
RF and Communication Labs
CW, AM/FM/PM and optional vector waveform generation support RF fundamentals, modulation, receiver and communication-system teaching labs.
Automated Test Integration
USB, LAN and optional GPIB make the instrument practical for modern and legacy test racks using Python, LabVIEW, MATLAB or SCPI-based control.
