Test & Measurement

Professional
Test & Validation
Platforms

Electronic, RF, power and real-time validation platforms for engineering laboratories, embedded development, automotive electronics, power systems and automated testing—including oscilloscopes, waveform generators, spectrum analysers, VNAs, RF signal generators and switch systems, power supplies, electronic loads, digital multimeters, data acquisition, source/measure units and HIL systems.

Discuss Requirement

Test & Real-Time Validation

Real-Time Test & HIL Systems

Deterministic CPU- and FPGA-based target systems with configurable real-time I/O for rapid control prototyping, hardware-in-the-loop testing and closed-loop validation of embedded controllers, power electronics, electric drives, automotive ECUs and vehicle systems.

Application-led platform

Real-Time Target, RCP & HIL Systems

CPU and FPGA target systems, deterministic I/O, development kits and closed-loop validation workflows.

HILRCPCPU / FPGA I/O

Oscilloscopes

Bench, PC-based and handheld oscilloscopes spanning 50 MHz to 8 GHz, with up to 12-bit high-definition acquisition for embedded-system debugging, power-electronics analysis, RF time-domain measurements, serial-bus decoding and advanced signal validation.

SIGLENT — High-resolution Bench (12-bit HD)

SDS7000A

SDS7000A / AP Series

Up to 8 GHz · 12-bit · 20 GSa/s · 2 Gpts/ch. Eye/jitter, RTSA, MIPI-DPHY, 2.5G/5G/10GbE compliance, Bode plot, MSO, CAN XL.

8 GHz 12-bit 20 GSa/s 2 Gpts/ch RTSA

SDS6000A

SDS6000A / 6000L Series

1–2 GHz · 12-bit · 5 GSa/s · 500 Mpts/ch. SDS6000A (4-ch) and SDS6000L (8-ch) for multi-channel high-speed validation.

1–2 GHz8-ch option12-bit5 GSa/s

SDS5000X HD

SDS5000X HD / 5000L Series

500 MHz–1 GHz · 12-bit · up to 8 channels · 2 GSa/s · 400 Mpts/ch. Multi-channel power electronics and embedded validation.

Up to 1 GHz8-ch12-bit400 Mpts

SDS3000X HD

SDS3000X HD Series

200 MHz–1 GHz · 12-bit · 4 GSa/s · 400 Mpts/ch. Power electronics, motor drive debug and MSO option.

200 MHz–1 GHz12-bit4 GSa/sMSO opt.

SDS2000X HD

SDS2000X HD Series

100–350 MHz · 12-bit · 2 GSa/s · 200 Mpts. Serial decode, pass/fail mask testing, optional AWG. Education and general R&D.

100–350 MHz12-bit200 MptsMask test

SDS1000X HD

SDS1000X HD Series

100–200 MHz · 12-bit · 2 GSa/s entry HD. Affordable 12-bit resolution for classroom and engineering labs.

100–200 MHz12-bitEntry HD

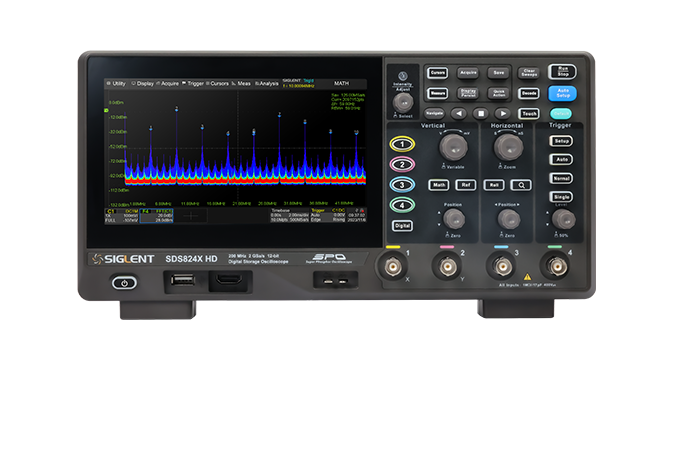

SDS800X HD

SDS800X HD Series

70–200 MHz · 12-bit · compact form. Entry HD with 70 µVrms noise floor and 0.5% DC gain accuracy.

70–200 MHz12-bitCompact

SIGLENT — Standard Bench Oscilloscopes

SDS2000X Plus

SDS2000X Plus Series

100–350 MHz · 4 analog + 16 digital channels (MSO). Embedded hardware-firmware co-debug platform.

100–350 MHzMSO 4+16Serial decode

SDS1000X-E

SDS1000X-E Series

100–200 MHz · built-in 25 MHz AWG · serial decode. Practical for university labs and field service with integrated stimulus.

100–200 MHzBuilt-in AWGEasyPulse

SDS1000X-U

SDS1000X-U / SDS1104X-U

100 MHz · 4 channels · Super Phosphor display. Professional results on a budget for teaching labs and service engineers.

100 MHz4-chSuper Phosphor

Pico Technology — PC-based USB Oscilloscopes

PicoScope 2000

Pico Technology

PicoScope 2000 Series

Ultra-compact USB oscilloscope family for education, embedded debug and portable measurement — up to 100 MHz, 1 GS/s, deep memory and built-in signal generation.

Up to 100 MHzUSB poweredAWG / MSO options

PicoScope 3000

Pico Technology

PicoScope 3000 Series

USB 3.0 PC oscilloscope family with 2 or 4 analog channels, MSO variants, up to 200 MHz, 1 GS/s and up to 512 MS memory.

Up to 200 MHzMSO option512 MS

PicoScope 3000E

Pico Technology

PicoScope 3000E Series

Next-generation 3000E platform — 4 analog channels, MSO variants, up to 500 MHz, 5 GS/s and up to 2 GS memory for modern embedded validation.

Up to 500 MHz5 GS/sMSO option

PicoScope 4444 differential USB oscilloscope

Pico Technology

4 fully differential high-impedance inputs, 20 MHz bandwidth, 12/14-bit resolution and 256 MS memory for floating and three-phase measurements.

4 differential ch20 MHz12/14-bit

PicoScope 4000A high-resolution USB oscilloscope

Pico Technology

PicoScope 4000A Series

2, 4 or 8-channel 12-bit USB 3.0 oscilloscopes with 20 MHz bandwidth, 80 MS/s sampling and 256 MS capture memory.

2/4/8 ch12-bit256 MS

PicoScope 4262 precision 16-bit oscilloscope

Pico Technology

2-channel 16-bit precision oscilloscope with 5 MHz bandwidth, 10 MS/s sampling, 16 MS buffer, low noise and low-distortion signal generation.

16-bit5 MHzLow noise

PicoScope 5000

Pico Technology

PicoScope 5000 Series

FlexRes USB oscilloscope family with 8 to 16-bit hardware resolution, up to 200 MHz, 1 GS/s at 8-bit and up to 512 MS memory.

FlexRes 8–16 bitUp to 200 MHz512 MS

PicoScope 5000E

Pico Technology

PicoScope 5000E Series

4-channel 16-bit USB oscilloscope family with Plus models up to 500 MHz, up to 5 GS/s and up to 2 GS memory.

16-bit / FlexResUp to 500 MHz2 GS

PicoScope 6000E

Pico Technology

PicoScope 6000E Series

High-performance USB oscilloscopes with 4 or 8 analog channels, up to 3 GHz bandwidth, up to 10 GS/s and up to 4 GS memory.

Up to 3 GHz4/8 channels4 GS

PicoScope 9300 sampling oscilloscope

Pico Technology

PicoScope 9300 Series

20/30 GHz sampling oscilloscopes with 15 TS/s sequential sampling, optical option, eye/mask testing and TDR/TDT workflows.

20/30 GHz15 TS/sTDR/TDT

PicoScope 9400 SXRTO oscilloscope

Pico Technology

PicoScope 9400 Series

SXRTO oscilloscopes with 5/16 GHz bandwidth, 2 or 4 channels, 12-bit 500 MS/s ADCs and up to 2.5 TS/s equivalent sampling.

5/16 GHz2/4 ch12-bit

PicoScope 9400A high-bandwidth sampling oscilloscope

Pico Technology

PicoScope 9400A Series

High-bandwidth 4-channel sampling oscilloscopes covering 6/16/25/33 GHz with 12-bit resolution and up to 5 TS/s equivalent sampling.

Up to 33 GHz4 ch5 TS/s

SIGLENT — Battery-operated Handheld Oscilloscopes

SHS800X

100 MHz · battery-operated · oscilloscope + multimeter + waveform recorder. Field service and installation diagnostics in one handheld unit.

100 MHzBattery op.DMM combo

SHS1000X

SHS1000X Series

150 MHz · isolated channels · battery-operated. Higher bandwidth for demanding field measurements — power, motor drive and industrial diagnostics.

150 MHzIsolated ch.Field

Need oscilloscope guidance?

Share your bandwidth, channel count, resolution requirement and application — we will recommend the right series and configuration from SIGLENT or Pico Technology.

Discuss Requirement

Waveform Generators

Function and arbitrary waveform generators from 10 MHz entry-level instruments to 5 GHz high-performance AWGs, with 2- and 4-channel configurations, up to 10/12 GSa/s sampling, 14- to 16-bit resolution, EasyPulse, burst, modulation, IQ and PRBS capabilities for circuit stimulation, serial-bus simulation, RF and mixed-signal testing, radar waveform generation and semiconductor validation.

SDG800

10 / 30 MHz active function/arbitrary waveform generator family with 125 MSa/s, 14-bit resolution, EasyPulse and common modulation modes.

10 / 30 MHz14-bit125 MSa/s

SDG1000X

SDG1000X Series

Up to 60 MHz · 14-bit DAC · 2-channel. Comprehensive modulation, EasyPulse edge control, burst output.

Up to 60 MHz14-bit DACEasyPulse

SDG1000X Plus

SDG1000X Plus Series

Dual-channel function/arbitrary waveform generators with 25/30/60 MHz models, 1 GSa/s, 16-bit vertical resolution, 8 Mpts/ch and PRBS output.

25/30/60 MHz16-bit1 GSa/s

SDG2000X

SDG2000X Series

Up to 120 MHz · 16-bit DAC · 1.2 GSa/s · IQ modulation output. RF testing, serial bus simulation and arbitrary waveform replay.

Up to 120 MHz16-bit IQ1.2 GSa/s

SDG3000X

SDG3000X Series

Up to 500 MHz · dual-channel AFG+AWG · wideband noise · complex modulation. Advanced semiconductor testing and RF mixed-signal stimulus.

Up to 500 MHzAFG+AWGSemiconductor

SDG6000X

SDG6000X Series

Up to 500 MHz · 2.4 GSa/s · high-bandwidth 2-channel AWG. High-speed digital stimulus, radar waveform and broadband signal generation.

Up to 500 MHz2.4 GSa/sRadar

SDG7000A

SDG7000A Series

Dual-channel arbitrary waveform generator family up to 1 GHz with 5 GSa/s, 14-bit vertical resolution and 512 Mpts memory.

Up to 1 GHz5 GSa/s14-bit

SDG8000A

SDG8000A Series

High-performance arbitrary waveform generator with 2/4 channels, up to 5 GHz output, 10/12 GSa/s sampling, 16-bit resolution and deep memory.

Up to 5 GHz10/12 GSa/s16-bit

Spectrum Analysers

Bench, real-time and handheld spectrum analysers covering up to 7.5 GHz, with real-time signal capture, low-noise measurements, EMI pre-compliance tools, phase-noise analysis and optional VNA or cable-and-antenna functions for wireless development, 5G NR sub-6, Wi-Fi 6E, interference hunting, RF infrastructure installation and field diagnostics.

SSA3000X

SSA3000X Series

0–3.2 GHz · −161 dBm DANL · EMI pre-compliance mode · optional tracking generator. Bench analyser for Wi-Fi, Bluetooth, ISM and sub-GHz IoT.

3.2 GHz−161 dBm DANLEMI mode

SSA3000X Plus

SSA3000X Plus Series

3.2 GHz · −165 dBm DANL · optional VNA mode · interference hunting. Enhanced performance over the standard SSA3000X.

3.2 GHz−165 dBmVNA option

SSA3000X-R

SSA3000X-R Real-time Series

3.2 GHz · real-time spectrum capture for burst and transient signals. Interference hunting and wireless coexistence testing requiring gap-free coverage.

3.2 GHzReal-timeGap-free

SSA5000A

SSA5000A Series

3.2–7.5 GHz · 5G NR sub-6 · Wi-Fi 6E · LTE/NR coverage. Wireless product development, EMC and 5G base station measurement.

3.2–7.5 GHz5G NRWi-Fi 6E

SSM5000A

SSM5000A Signal Source Analyser

Phase noise measurement and residual noise characterisation for oscillators, PLLs, synthesisers and clock distributions up to 7.5 GHz.

Phase noisePLL / synth7.5 GHz

SHA860A

9 kHz–7.5 GHz · handheld spectrum analyser + VNA + cable/antenna analyser. 5G/LTE field testing, base station deployment and RF infrastructure work.

9 kHz–7.5 GHzHandheldSA+VNA+CA

SHA850A

Portable spectrum analyser and cable/antenna analyser for field installation, maintenance and RF infrastructure characterisation and troubleshooting.

PortableCable/AntennaField

Vector Network Analysers

PC-based, benchtop and handheld vector network analysers covering 300 kHz to 26.5 GHz, with 2-port and multi-port configurations, full S-parameter measurements, Smith charts, group delay, time-domain analysis and fixture-compensation workflows for antennas, cables, filters, amplifiers, RF components and multi-port network characterisation.

PicoVNA

Pico Technology

PicoVNA 106 / 108

300 kHz–6 GHz (106) / 8.5 GHz (108) · 122 dB dynamic range · full 2-port S-parameters · USB powered · free software + SDK. Portable VNA for field and lab.

300 kHz–8.5 GHz122 dB DRUSB poweredSDK

SVA1000X

SVA1000X Series

0–3.2 GHz · combined spectrum analyser + 2-port VNA. Smith chart, group delay. Cost-effective single instrument for RF design characterisation.

Up to 3.2 GHzSA + VNASmith chart

SNA5000A

SNA5000A Series

2/4-port vector network analyser family covering 4.5 / 8.5 / 13.5 / 26.5 GHz configurations for RF component and antenna characterisation.

Up to 26.5 GHz2/4-portVNA

SNA5000X-E

SNA5000X-E Series

Compact 2-port VNA family with 3 GHz and 6.5 GHz models, up to 125 dB typical dynamic range and time-domain / fixture workflows.

3 / 6.5 GHz2-port125 dB typ.

SNA6000A

SNA6000A Series

Multi-port · up to 26.5 GHz · mmWave component characterisation, radar module qualification and high-frequency RF validation.

Up to 26.5 GHzmmWaveMulti-port

SHN900A

SHN900A Handheld VNA

Portable 2-port handheld VNA family from 30 kHz to 14 / 20 / 26.5 GHz for field antenna, cable and component measurements.

30 kHz–26.5 GHzHandheld2-port

RF Switch Systems & SMU

Programmable RF switch matrices covering configurations up to 26.5 GHz for automated multi-port signal routing, together with precision source/measure units for current-voltage sweeps, semiconductor characterisation, component testing and scalable automated test-system integration.

SSU5000A

SSU5000A RF Switch Matrix

Programmable RF switch matrix for automated multi-port test systems — SCPI/LXI controlled signal routing between instruments and DUTs.

RF matrixSCPI/LXIATE

SMM3000X

SMM3000X Source/Measure Unit

New SMM3000X Series SMU for precision IV characterisation of semiconductors, passive components and materials — launched 2026.

SMUNew 2026IV sweep

Test & Measurement

RF Signal Generators

Programmable RF switch matrices for automated multi-port signal routing, combined with precision source/measure units for current-voltage characterisation, semiconductor testing, component evaluation and scalable automated test systems.

SSG3000X

SSG3000X Analog Signal Generator

9 kHz–3.2 GHz · AM/FM/PM modulation · −130 dBm phase noise · optional pulse modulation. General-purpose bench RF signal source.

9 kHz–3.2 GHzAM/FM/PM

SSG5000X

SSG5000X Analog RF Generator

9 kHz–13.6 GHz · low phase noise · broadband output · pulse modulation. Microwave receiver and LO testing up to 13.6 GHz.

9 kHz–13.6 GHzLow noise

SSG5000A

SSG5000A Vector Signal Generator

Vector signal generators with IQ modulation to 6 GHz — wireless protocol testing and complex modulation waveform generation.

Up to 6 GHzIQ modulationVector

SSG6000A

SSG6000A Microwave Signal Generator

Microwave analog signal generators to 20 GHz — satellite, radar and microwave receiver test requiring high-frequency stimulus.

Up to 20 GHzRadarSatellite

SSG6082A-V

SSG6082A-V Vector Signal Generator

High-performance vector signal generators to 20 GHz with wideband IQ. 5G NR, LTE and satellite payload test applications.

Up to 20 GHz5G NRWideband IQ

DC Power Supplies

Programmable single-, triple- and four-channel DC power supplies, together with high-power switching platforms up to 1.5 kW, for board bring-up, multi-rail electronics development, automated power testing, battery simulation, EV component validation, burn-in and production test.

SPD1000X

SPD1000X Single-channel Supply

Single-channel programmable DC supply — precise voltage and current output with SCPI remote control. Entry bench supply for lab and education.

SPD3303X

SPD3303X / SPD3303C Series

Triple-output programmable DC supply with LAN/USB control and datalogging — for multi-rail circuit development and board bring-up.

Triple outputLAN/USBDatalog

SPD4000X

SPD4000X 4-channel Supply

4-channel precision programmable supply with built-in waveform display, OCP/OVP protection and output sequencing for complex power rail testing.

4-channelBuilt-in measureSequence

SPS5000X

SPS5000X High-power Supply

High-power switching supply for high-current device testing, battery simulation and power subsystem validation. Wide output range.

High powerBattery sim.

SPS6000X

SPS6000X Series — up to 1.5 kW

Up to 1.5 kW programmable switching power supply — battery emulation, EV component testing and high-power burn-in applications.

Up to 1.5 kWAuto batteryEV test

DC Electronic Load

Programmable DC electronic loads with constant-current, constant-voltage, constant-resistance and constant-power operating modes, waveform display and remote-control capabilities for power-supply characterisation, battery discharge analysis, transient testing, protection verification and DUT qualification.

SDL1000X

SDL1000X DC Electronic Load

Programmable electronic load — CC/CV/CR/CP modes · waveform display · battery discharge characterisation · OCP/OVP testing · SCPI/LAN remote control.

CC/CV/CR/CPBattery testSCPI/LAN

Digital Multimeters

Bench and system digital multimeters from 4½- to 6½-digit resolution, with high DC accuracy, fast reading rates, LAN, USB and GPIB connectivity, data logging and rack-integration support for laboratory measurement, QA, calibration, production test and automated test systems.

SDM3045X

SDM3045X — 4½ Digit

4½-digit bench DMM with LAN/USB — for semi-automated test stations with SCPI-controllable measurement and basic precision lab work.

4½ digitLAN/USB

SDM3055

SDM3055 / SDM3055-SC — 5½ Digit

5½-digit · 0.030% DC accuracy · LAN/GPIB/USB · 1M point storage · 14 measurement functions. Precision lab and production test.

5½ digit0.030% DCGPIB

SDM3065X

SDM3065X — 6½ Digit

6½-digit high-resolution for metrology, calibration and precision component measurement — low noise, high stability bench DMM.

6½ digitMetrology

SDM4055A

SDM4055A — 5½ Digit System

5½-digit · 220,000 counts · 4,800 readings/s · touchscreen. 2U system DMM for ATE rack integration — launched 2025.

5½ digit4,800 rdg/sTouchscreen

SDM4065A

SDM4065A — 6½ Digit System

6½-digit system DMM — low measurement uncertainty, fast reading rate for production and calibration labs. 2U rack-mount system format.

6½ digitHigh accuracy2U rack

Data Loggers & DAQ

USB data-logging and data-acquisition platforms for thermocouple and RTD temperature measurement, multi-channel voltage acquisition, precision 20- and 24-bit differential measurement, current monitoring, energy auditing and three-phase motor diagnostics, with PicoLog software for long-duration recording, analysis and reporting.

TC-08

Pico Technology

TC-08 Thermocouple Logger

8-channel USB thermocouple logger · all TC types (K, J, T, E, R, S, B, N) · cold junction compensation · long-duration temperature monitoring.

8-ch TCAll TC typesUSB

PT-104

Pico Technology

PT-104 RTD Data Logger

4-channel precision RTD data logger · 0.001°C resolution · Pt100/Pt1000/resistance measurement · metrology-grade temperature recording.

0.001°C4-ch RTDMetrology

PicoLog 1000

Pico Technology

PicoLog 1000 Series

Up to 16-channel USB voltage data logger for sensor monitoring, environmental recording and multi-parameter low-speed acquisition.

Up to 16-chUSBVoltage/sensor

ADC-24

Pico Technology

ADC-20 / ADC-24 High-resolution DAQ

20-bit and 24-bit USB DAQ modules for simultaneous differential voltage measurement with exceptional noise rejection and signal integrity.

20/24-bitDifferentialLow noise

PicoLog CM3

Pico Technology

PicoLog CM3 Current Data Logger

3-channel current data logger using clamp meters — AC/DC current monitoring for energy auditing, power consumption logging and electrical installation work.

3-ch currentClamp meterEnergy audit

MT03A

Pico Technology

MT03A Motor & Milliohm Tester

3-phase voltage, current and power measurement with harmonic analysis — motor and drive commissioning, condition monitoring and milliohm measurement.

3-phaseHarmonicsMilliohm
