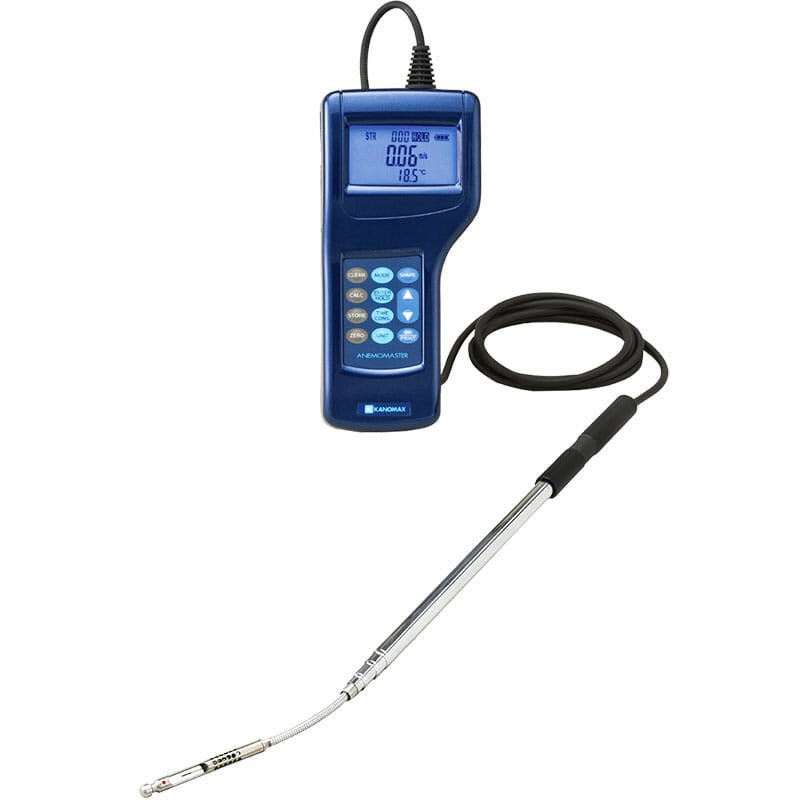

Anemomaster Professional Anemometer 6036 Series
Professional hot-wire platform with an articulating telescopic probe, 1,500-record logging and PC connectivity for HVAC, cleanroom and laboratory airflow surveys.
Products
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| 6036 Series | Professional hot-wire anemometer | Velocity, temperature and calculated volumetric flow | HVAC commissioning, HEPA-face checks and laboratory airflow surveys |
Key Features
Articulating telescopic probe
Reaches ceiling diffusers and difficult duct locations while helping maintain the required probe angle.
Velocity and temperature display
Measures and displays air velocity and air temperature for a combined field assessment.
Volumetric-flow calculation
Stores common round, rectangular or square duct dimensions for direct flow calculations.
Logging and PC workflow
Stores up to 1,500 records and supports USB transfer for analysis and reporting.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MEASUREMENT | ||
| Air velocity range | m/s | 0.01–30.0 |
| Air velocity accuracy | — | ±3.0% of reading or ±0.02 m/s |
| Velocity resolution | m/s | 0.01 |
| Temperature range | °C | −20 to 70 |
| Temperature accuracy | °C | ±0.5 |
| MODEL-DEPENDENT OPTIONS | ||
| Differential-pressure range | kPa | −5 to 5 |
| Analog output | V DC | 0 to 3 |
| Interface | — | USB / printer |
| GENERAL | ||
| Data memory | records | Up to 1,500 |
| Power supply | — | 6 × AA batteries or AC adapter |
| Weight | g | Approx. 500 |
Values shown are manufacturer specifications or documented configuration details. Confirm final model, probe, accessories, regional availability and calibration scope before ordering.
Applications
Duct traverse and balancing
Measure velocity and calculate air volume in common duct geometries.
HEPA-filter face surveys
Support face-velocity checks and airflow uniformity studies.
Fume-hood face velocity
Measure points across sash openings as part of the prescribed test method.
Manufacturing airflow checks
Document local airflow and temperature during process-control investigations.
