Climomaster Anemometer 6501 Series
High-accuracy hot-wire platform with eight interchangeable smart-probe options, 20,000-record memory and optional pressure/analog-output configuration.
Products
| Model | Group | Positioning | Core fit |
|---|---|---|---|
| 6501 Series | Research-grade hot-wire anemometer | Configurable main unit with uni- and omnidirectional probes | HVAC, cleanroom, turbulence and thermal-management studies |
Key Features

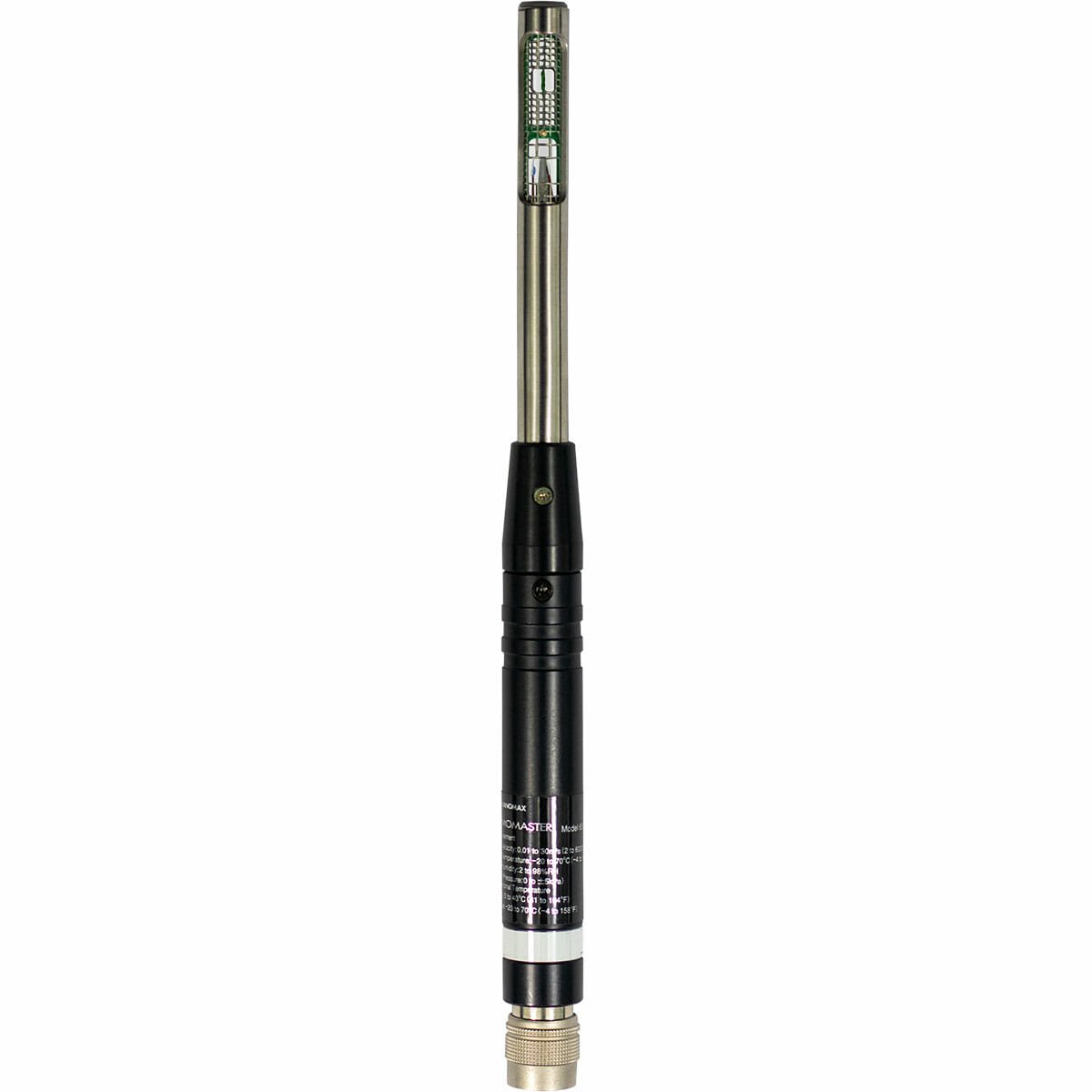

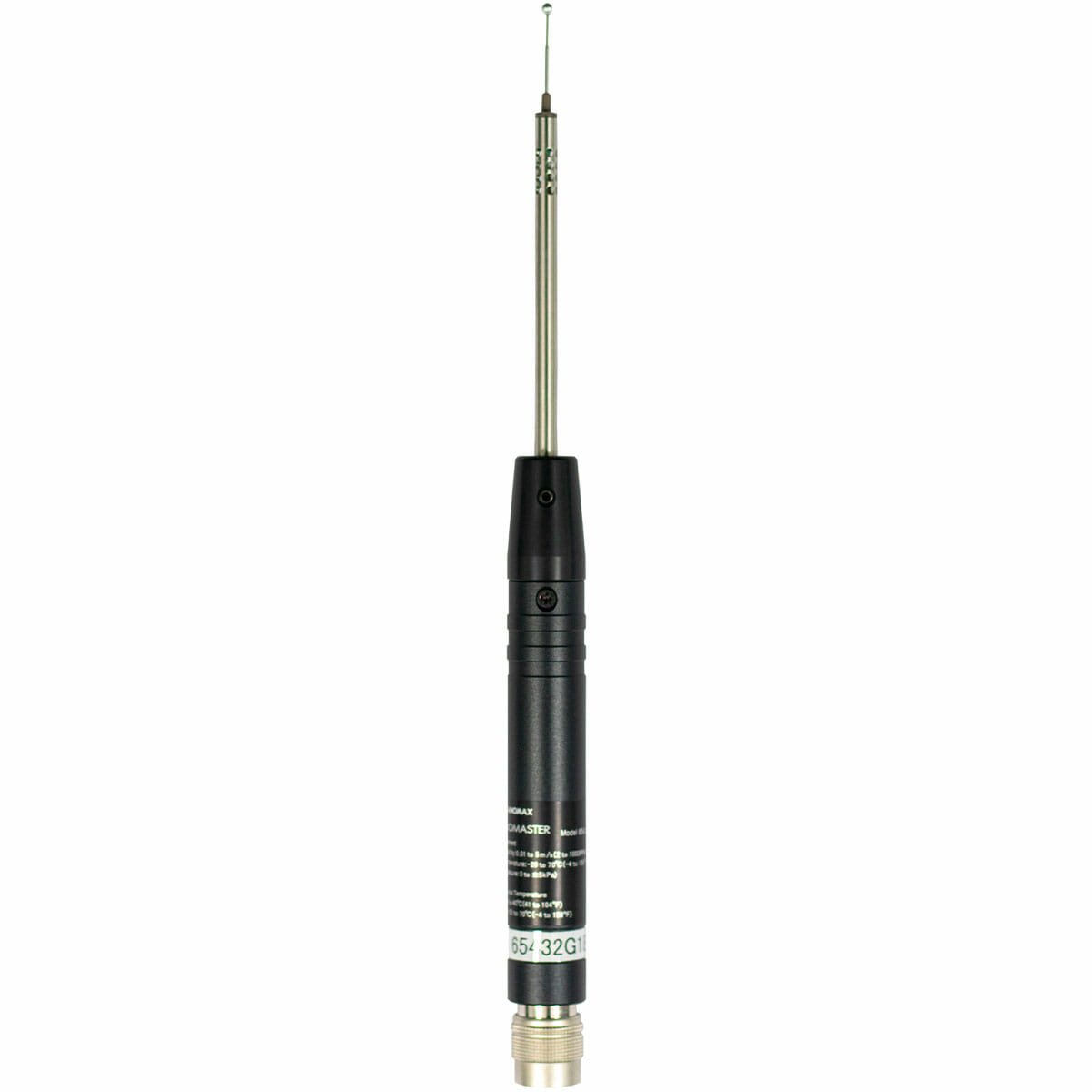

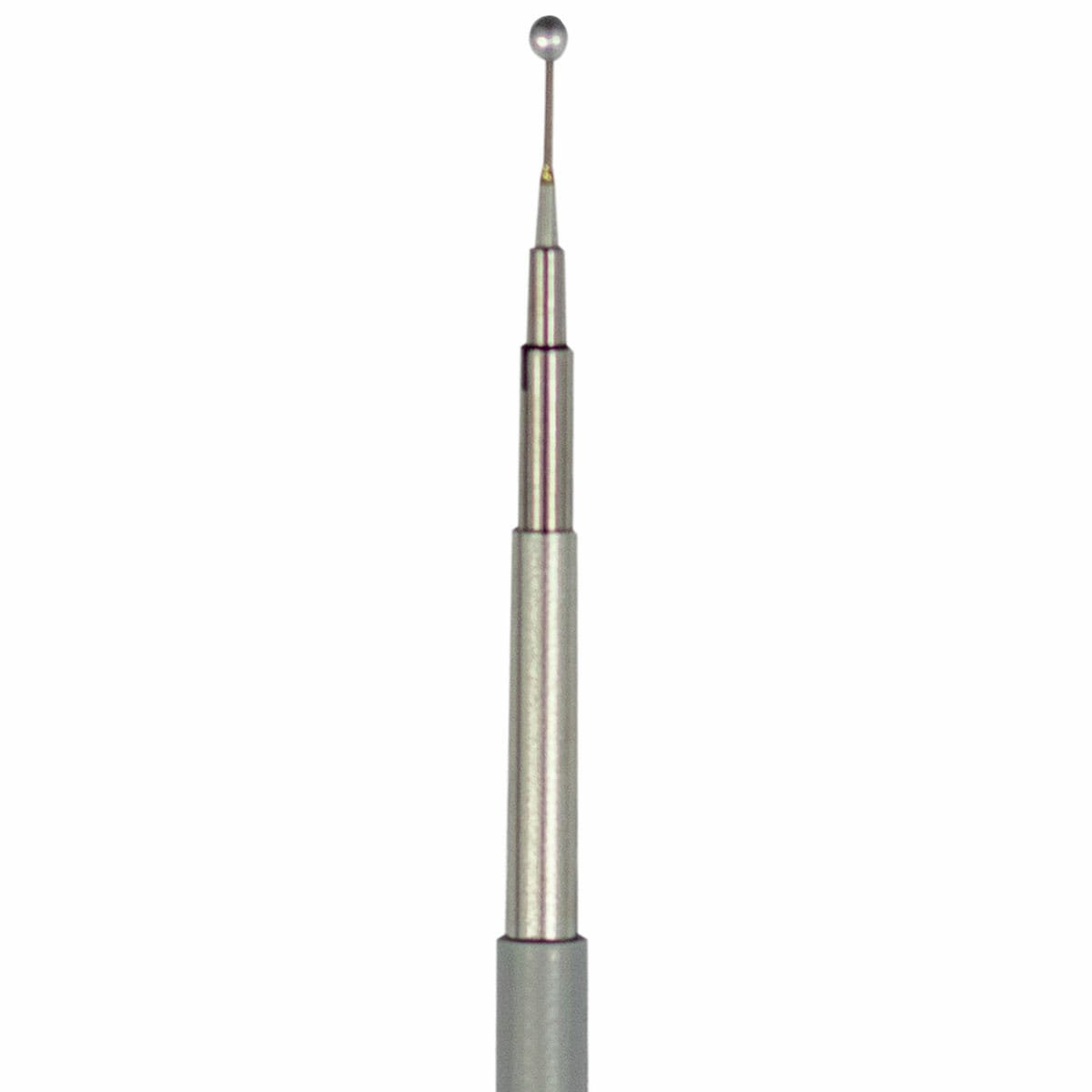

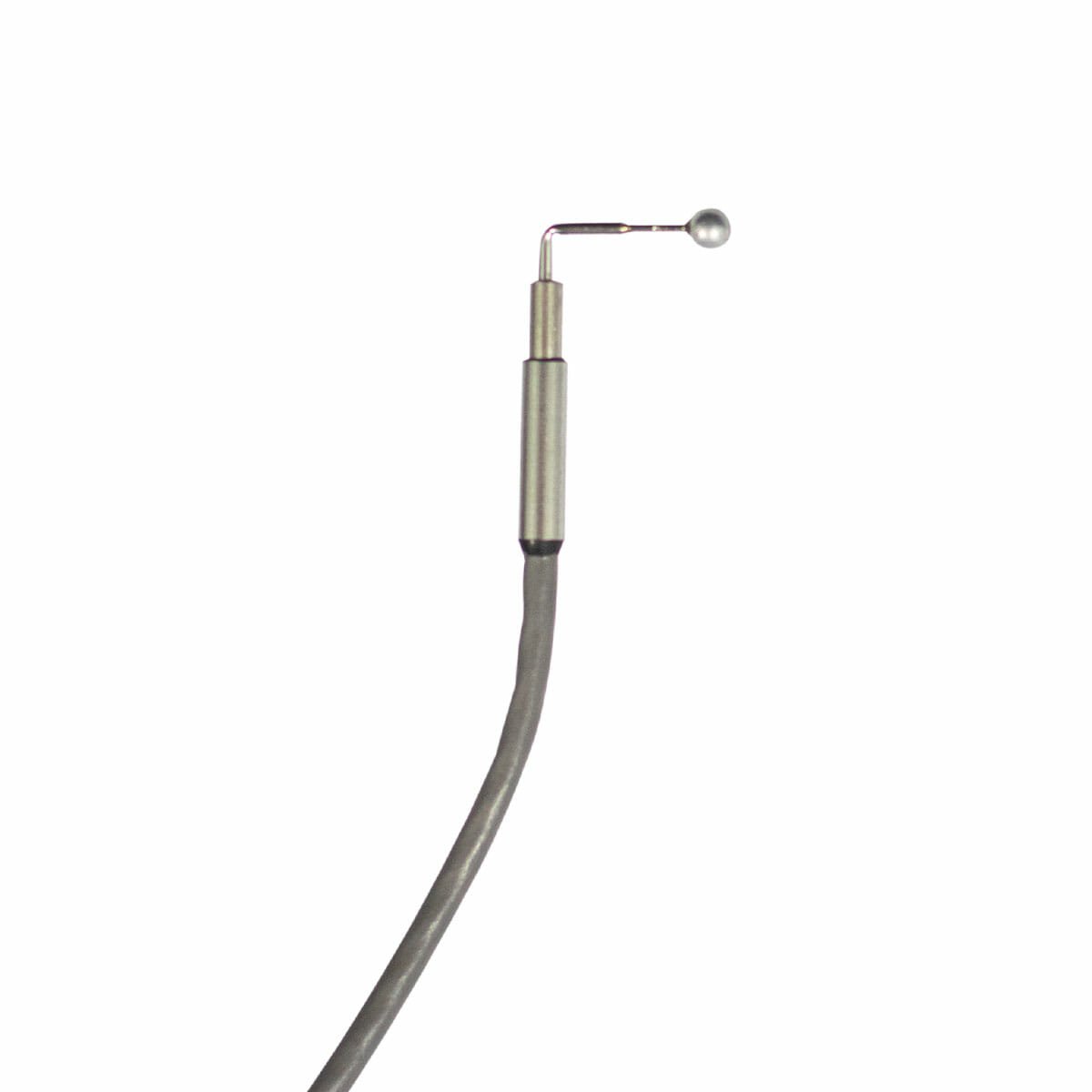

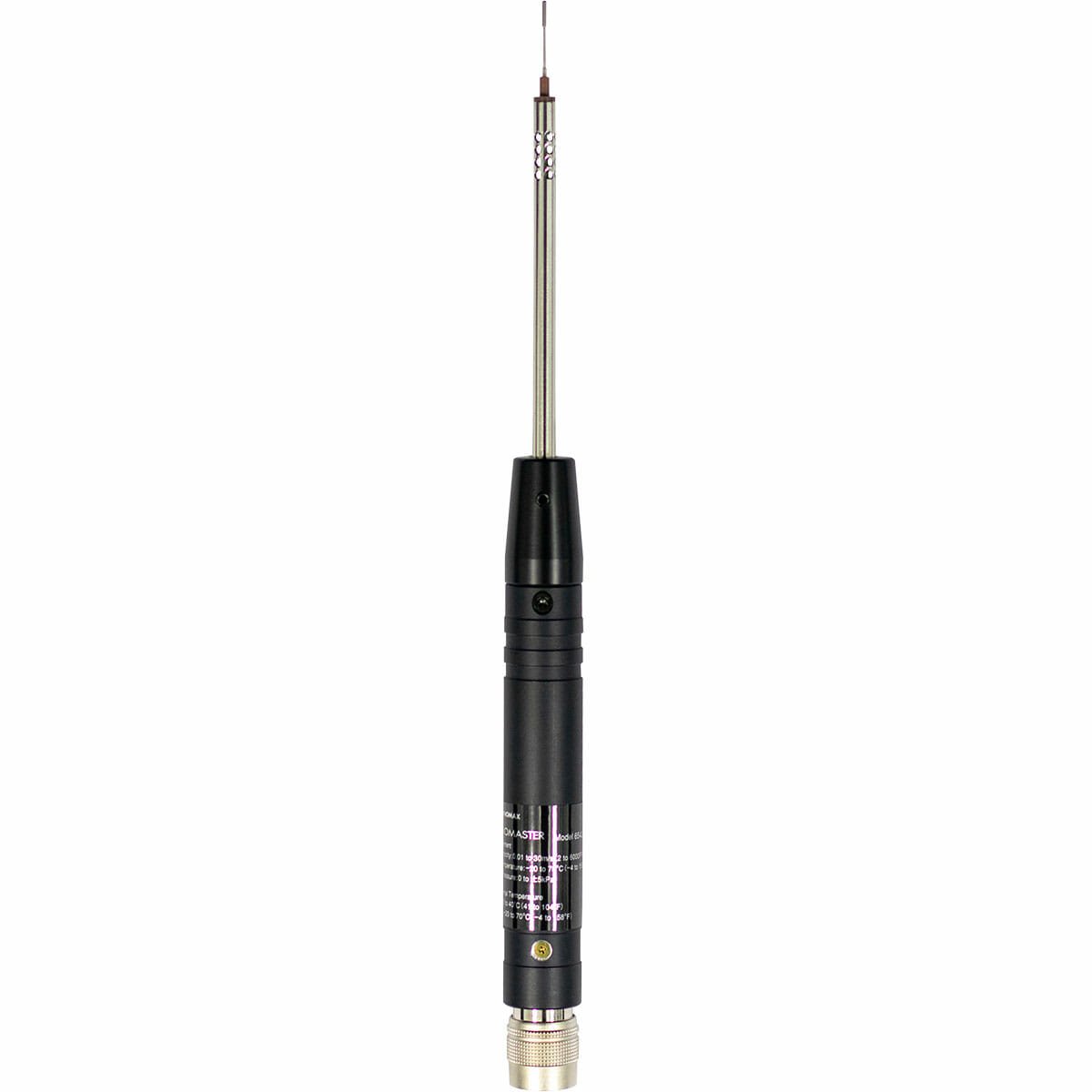

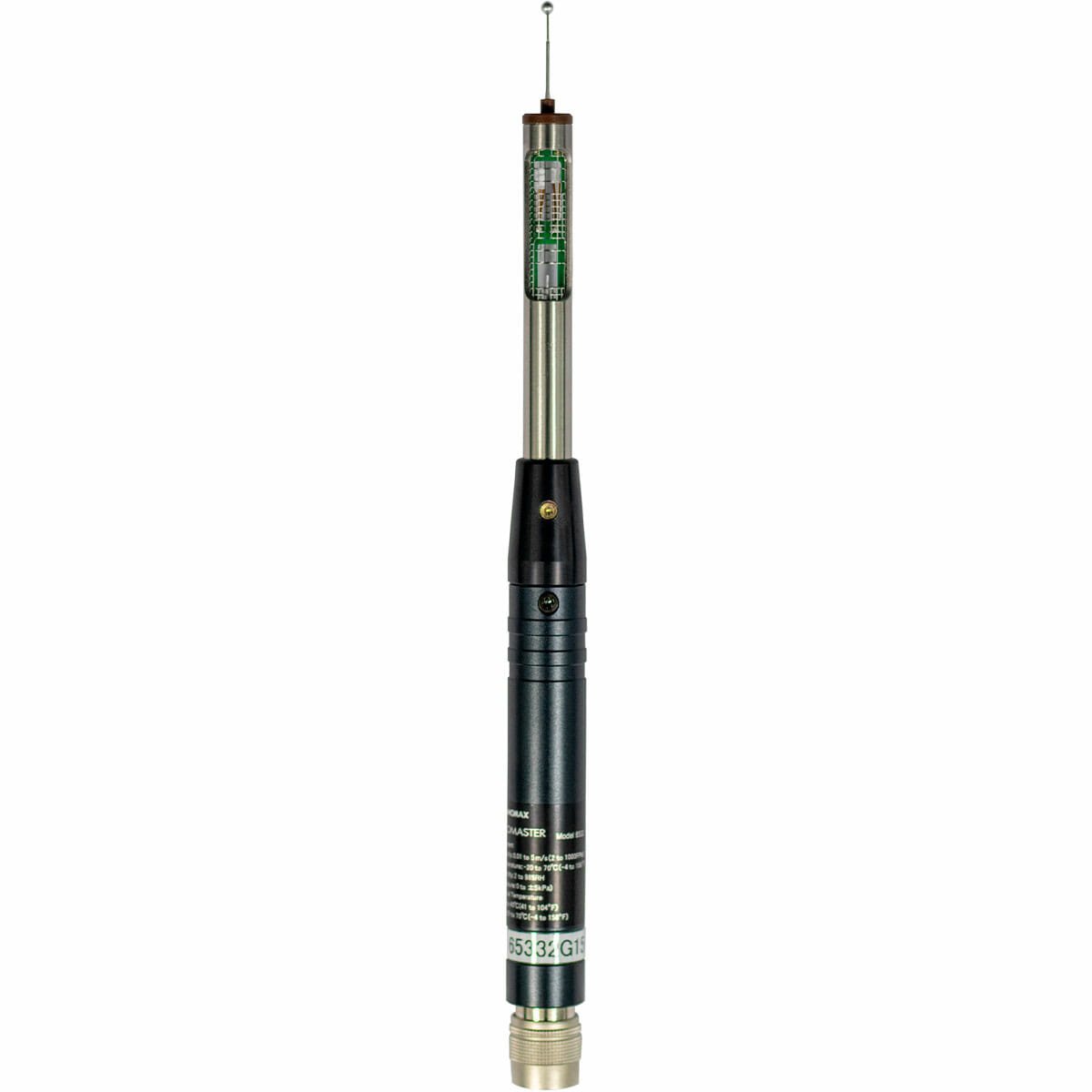

Eight interchangeable probes
Choose uni-directional, omnidirectional, compact and multi-parameter probes for the application.
Probe-stored calibration data
Smart-probe technology allows compatible probes to be exchanged without recalibrating the main unit.
Research-grade accuracy
The manufacturer specifies 2% of measured-value accuracy for compatible airflow probes.
Large data capacity
Stores up to 20,000 measurements and supports USB transfer to a computer.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MAIN UNIT | ||
| Compatible probes | — | Eight interchangeable probe types |
| Data memory | records | Up to 20,000 |
| Interface | — | USB / printer |
| Power supply | — | 6 × AA batteries or AC adapter |
| Weight | g | Approx. 400 |
| OPTIONAL 6501-CE FUNCTIONS | ||
| Differential-pressure range | kPa | −5 to 5 |
| Pressure resolution | kPa | 0.01 |
| Analog output | V DC | 0 to 1 |
| PROBE-DEPENDENT MEASUREMENT | ||
| Parameters | — | Air velocity; selected probes also measure temperature and/or humidity |
| Probe selection | — | Uni-directional or omnidirectional according to airflow direction and turbulence |
Values shown are manufacturer specifications or documented configuration details. Confirm final model, probe, accessories, regional availability and calibration scope before ordering.
Applications
Low-velocity airflow mapping
Use suitable probes for supply-air and work-zone measurements.
Duct and diffuser surveys
Measure velocity, temperature and humidity with the selected probe.
Electronics cooling studies
Use miniature probes in restricted spaces around components and assemblies.
Turbulence and comfort studies
Configure directional or omnidirectional probes for the expected flow field.
