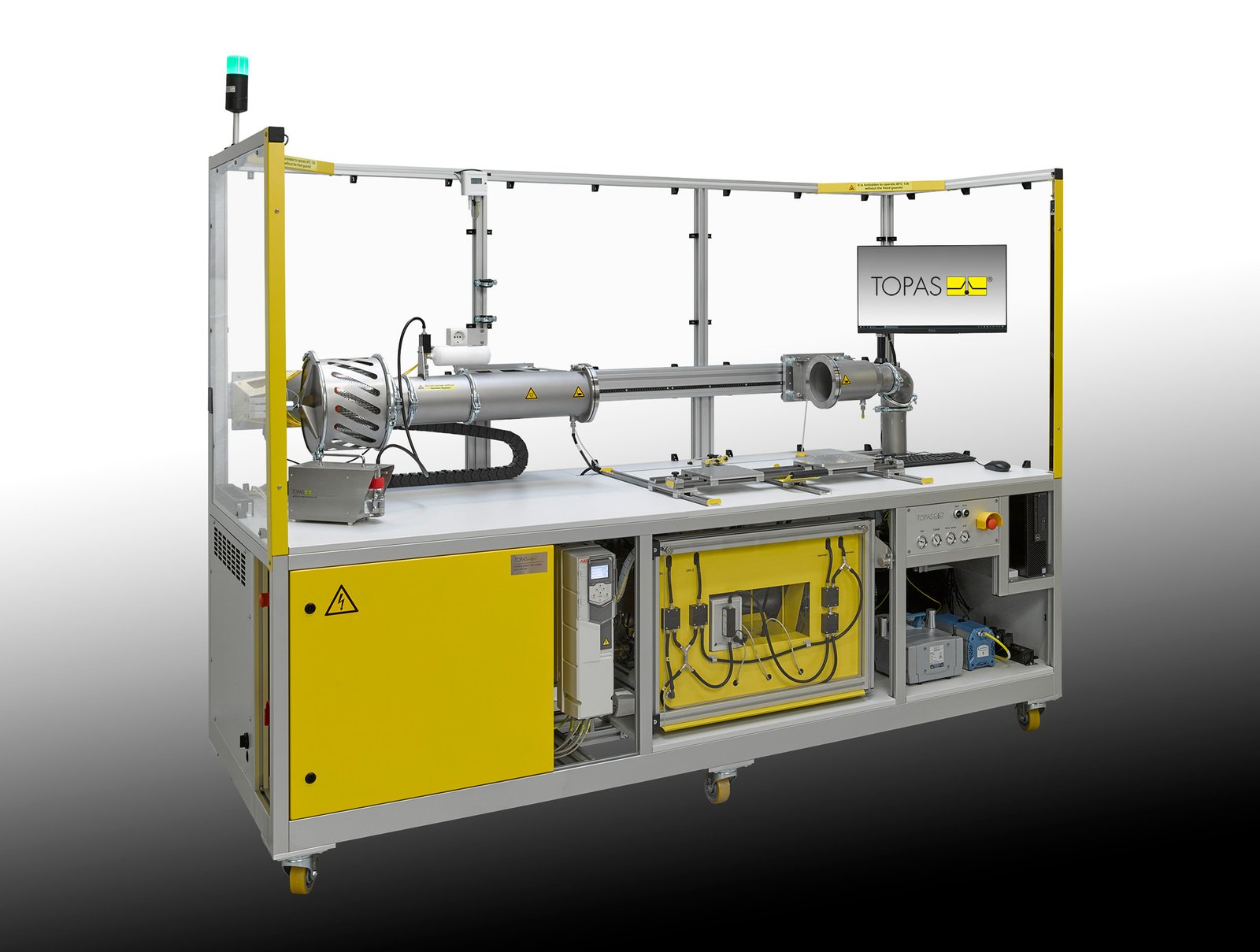

AFC 136 Filter Element Production-Control Test System
Automated production-control system for 100% inspection of integral separation efficiency and pressure drop on exhaust filters, HEPA cartridges and other small air-filter elements, with approximately 30-second cycles.
Model Overview
| Model | System role | Primary measurements | Standards / application fit |
|---|---|---|---|
| AFC 136 | Automated filter-element production-control system | Integral separation efficiency, pressure drop and traceable pass/fail evaluation | GPF/DPF, HEPA cartridges, industrial-vacuum filters and other small elements |
Key Features
High-throughput inspection
Automated supply, analysis and removal enable approximately 30-second test cycles.
24/7 production design
Robust control and safety functions support continuous manufacturing environments.
Configurable acceptance criteria
Efficiency and pressure-drop limits can be set for each product family.
Minimal specimen loading
The measurement concept limits aerosol loading and helps preserve the tested product.
Identification and traceability
Barcode or QR-code integration can link results directly to production databases.
Flexible instrumentation
OPC, CPC and customer-specific aerosol-analysis devices can be selected for the application.
Technical Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| TEST PERFORMANCE | ||
| Test flow rate | m³/h | 40–440; optional up to 1,200 |
| Particle-size range with OPC | µm | 0.1–1 |
| Particle-size range with CPC | µm | 0.001–1 |
| Test cycle duration | s | Approximately 30 |
| Specimen envelope | — | Diameter ≤ 300 mm; length ≤ 850 mm |
| SYSTEM | ||
| Test aerosol | — | Customer-specific, for example DEHS |
| Compressed-air supply | bar | 4–6 |
| Duct diameter | mm | 150 |
| Power supply | — | 3 × 400 VAC; 30 A rated current |
| Dimensions | mm | 2,800 × 2,100 × 1,200 |
Values shown are based on the standard system configuration. Confirm the final test method, specimen fixtures, instrumentation, utilities and calibration scope before order placement.
Applications
GPF and DPF production control
Integral-efficiency and pressure-drop inspection of exhaust particle filters.
HEPA cartridge quality control
Testing of HEPA elements for vacuum cleaners and mobile air cleaners.
100% end-of-line inspection
Fast pass/fail evaluation with specimen identification and traceable data.
Small filter-element development
Comparative efficiency and pressure-drop testing for new element designs.
