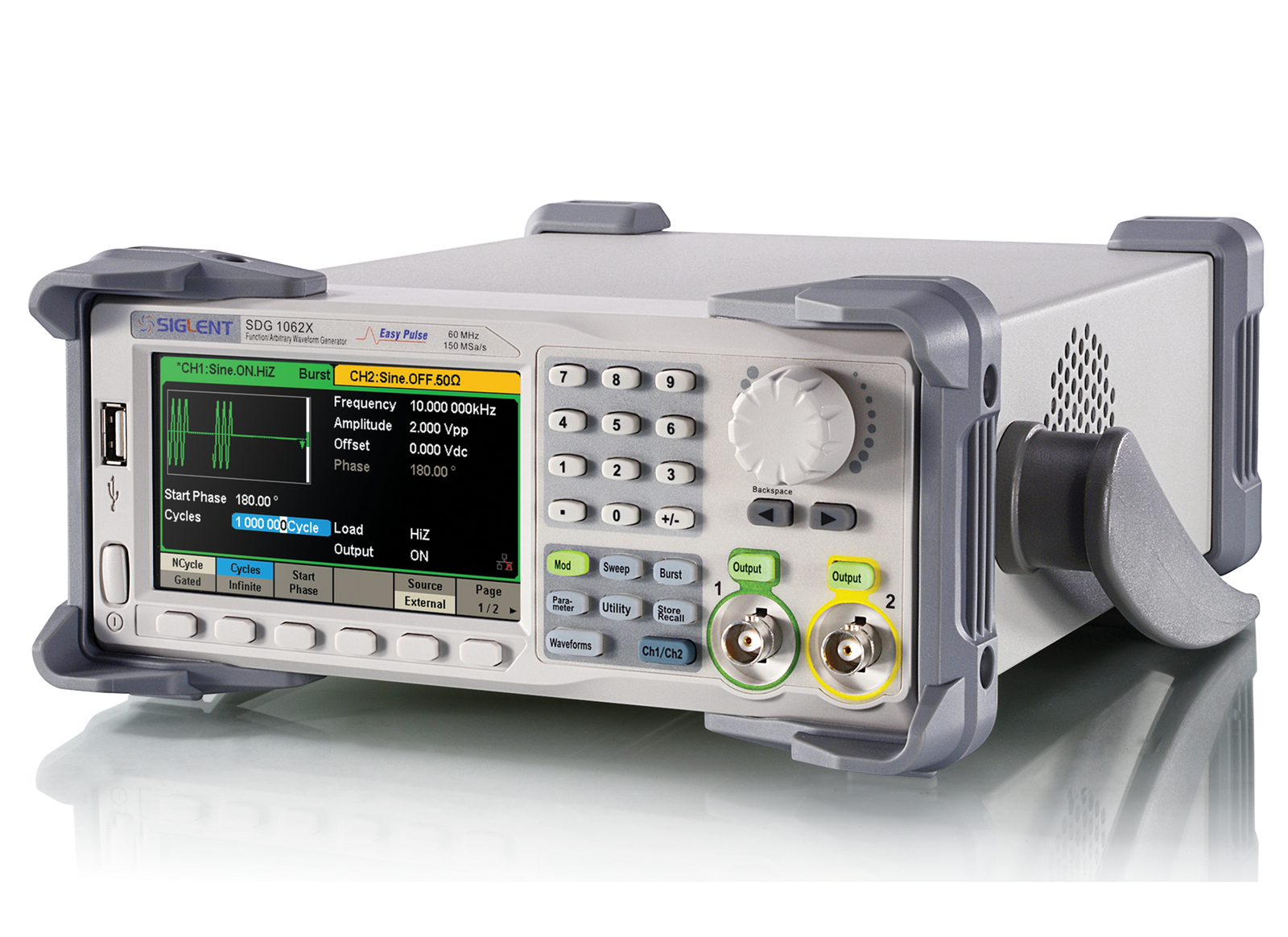

SDG1000X Series — Dual-channel Function / Arbitrary Waveform Generators
Dual-channel function/arbitrary waveform generator platform for education, embedded development, analog stimulus and automated test. The active models cover 30 MHz and 60 MHz, with 150 MSa/s sampling, 14-bit vertical resolution, 16 kpts waveform length, EasyPulse, TrueArb and comprehensive modulation.
| Model | Max Output Frequency | Channels | Sample Rate | Vertical Resolution | Waveform Length |
|---|---|---|---|---|---|
| SDG1032X | 30 MHz | 2 CH | 150 MSa/s | 14-bit | 16 kpts |
| SDG1062X | 60 MHz | 2 CH | 150 MSa/s | 14-bit | 16 kpts |
Key Features
Dual-channel 30 / 60 MHz Signal Generation
SDG1032X and SDG1062X provide two independent output channels with up to 20 Vpp amplitude for general-purpose lab stimulus, control-loop testing and automated production fixtures.
150 MSa/s, 14-bit Architecture
The 150 MSa/s sampling rate and 14-bit vertical resolution support cleaner sine, square, pulse and arbitrary waveform output than basic low-resolution entry generators.
EasyPulse Low-jitter Pulse Generation
EasyPulse improves pulse waveform generation with precise pulse width and rise/fall adjustment, avoiding common DDS pulse jitter limitations.
TrueArb Point-by-point Arbitrary Output
TrueArb supports user-defined waveforms from 2 to 16 kpts with user-defined sample rates from 1 μSa/s to 30 MSa/s for accurate waveform reconstruction.
Modulation, Sweep, Burst and Harmonics
AM, DSB-AM, FM, PM, FSK, ASK, PSK, PWM, sweep, burst, harmonics generation and waveform combining give the SDG1000X useful flexibility for teaching and engineering validation.
Remote Control and Bench Integration
USB Host, USB Device and LAN interfaces support PC-controlled waveform generation using standard remote-control workflows, with optional GPIB conversion when required.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| SDG1032X max output frequency | MHz | 30 |
| SDG1062X max output frequency | MHz | 60 |
| Channels | — | 2 CH |
| SAMPLING / WAVEFORM | ||
| Maximum sampling rate | MSa/s | 150 |
| Vertical resolution | bit | 14 |
| Waveform length | kpts | 16 |
| TrueArb user-defined sample rate | Sa/s | 1 μSa/s to 30 MSa/s |
| OUTPUT / PULSE | ||
| Amplitude | Vpp | Up to 20 |
| Square frequency | MHz | Up to 60 |
| Square jitter | — | <300 ps + 0.05 ppm of period |
| Pulse rise/fall setting | ns | 16.8 minimum; 100 ps adjustment step |
| Pulse width setting | ns | 32.6 minimum; 100 ps adjustment step |
| MODULATION / FUNCTIONS | ||
| Modulation | — | AM · DSB-AM · FM · PM · FSK · ASK · PSK · PWM |
| Sweep | — | Linear / log, up / down, internal / external / manual source |
| Burst | — | N-cycle and gated, internal / external / manual source |
| Frequency counter | Hz | 0.1 to 200 MHz input range |
| Additional functions | — | Harmonics generation up to 16 harmonics and internal two-channel waveform combining |
| DISPLAY / INTERFACES | ||
| Display | — | 4.3-inch TFT-LCD |
| Standard interfaces | — | USB Host · USB Device / USBTMC · LAN / VXI-11 |
| Optional interface | — | GPIB via adapter |
Applications
Electronics Teaching Labs
Dual-channel waveform generation, modulation, sweep, burst and arbitrary output for basic electronics, signals and systems courses.
MCU and Sensor Stimulus
Generate clocks, PWM, sensor-like analog waveforms and digital-style pulse stimuli for microcontroller and embedded board validation.
Filter and Amplifier Testing
Use sine, sweep, two-channel output and high-resolution arbitrary generation for analog filter, amplifier and control-loop response checks.
Modulation Demonstration
AM, FM, PM, ASK, FSK, PSK and PWM modes support laboratory demonstrations of modulation and receiver behaviour.
Automated Test Stimulus
LAN and USB remote-control interfaces allow repeatable signal stimulus in production fixtures and quality inspection benches.
Control-loop and Gate-drive Simulation
Pulse and arbitrary waveform control are useful for low-voltage gate-drive experiments, loop-response stimulus and hardware debug.
