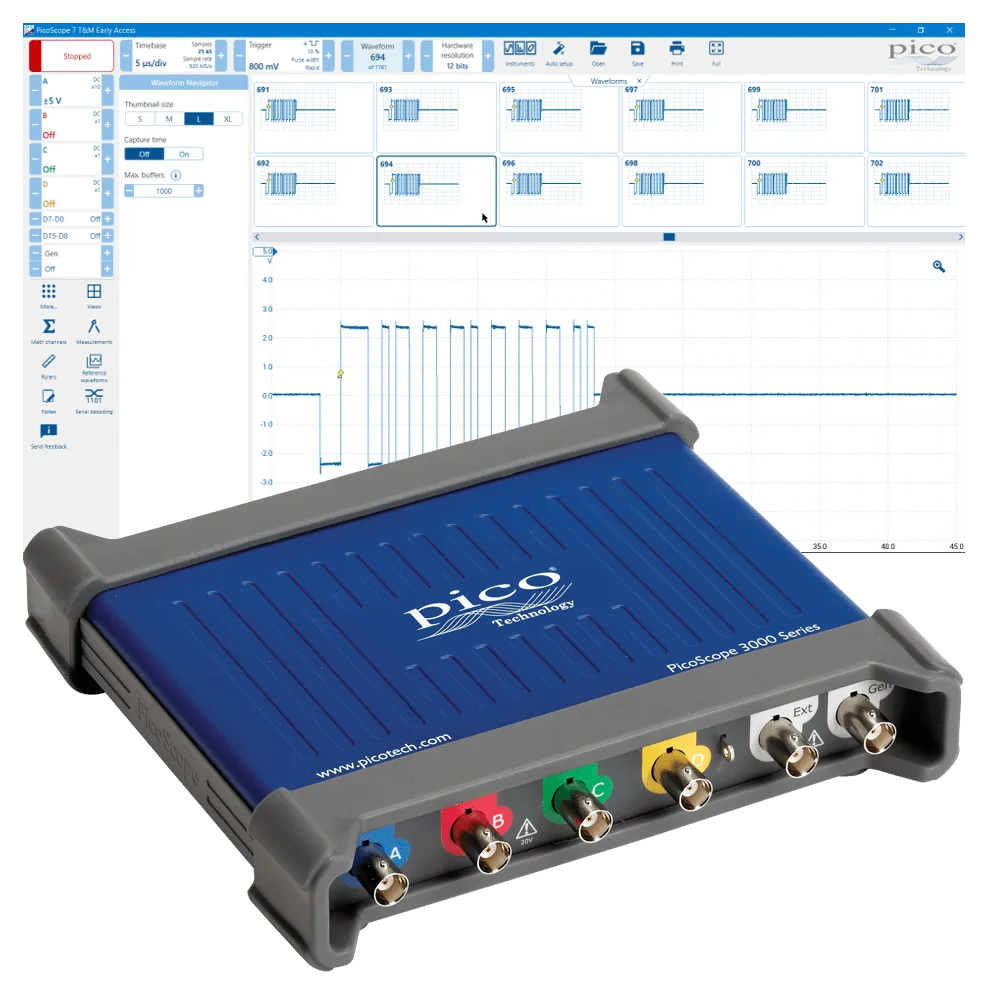

PicoScope 3000 Series — USB 3.0 PC Oscilloscopes & MSOs
Portable PC-based oscilloscope family for embedded debug, education, service, research and production test. The 3000D range covers 50 MHz to 200 MHz, offers 2 or 4 analog channels, adds 16 digital channels on MSO models, and reaches up to 1 GS/s real-time sampling with up to 512 MS capture memory.
| Model | Bandwidth | Channels | Sample Rate | Memory |
|---|---|---|---|---|
| PicoScope 3203D / 3203D MSO | 50 MHz | 2 analog / +16 digital MSO | 1 GS/s max | 64 MS |
| PicoScope 3204D / 3204D MSO | 70 MHz | 2 analog / +16 digital MSO | 1 GS/s max | 128 MS |
| PicoScope 3205D / 3205D MSO | 100 MHz | 2 analog / +16 digital MSO | 1 GS/s max | 256 MS |
| PicoScope 3206D / 3206D MSO | 200 MHz | 2 analog / +16 digital MSO | 1 GS/s max | 512 MS |
| PicoScope 3403D / 3403D MSO | 50 MHz | 4 analog / +16 digital MSO | 1 GS/s max | 64 MS |
| PicoScope 3404D / 3404D MSO | 70 MHz | 4 analog / +16 digital MSO | 1 GS/s max | 128 MS |
| PicoScope 3405D / 3405D MSO | 100 MHz | 4 analog / +16 digital MSO | 1 GS/s max | 256 MS |
| PicoScope 3406D / 3406D MSO | 200 MHz | 4 analog / +16 digital MSO | 1 GS/s max | 512 MS |
Key Features
50–200 MHz USB 3.0 Oscilloscope Family
Choose 2-channel or 4-channel models across 50, 70, 100 and 200 MHz bandwidth classes, with portable USB 3.0 connectivity for laptop-based laboratory and field use.
Deep Memory Up to 512 MS
The larger models capture long serial-bus sessions, intermittent events and extended timing windows without forcing an immediate reduction in sample rate.
MSO Models Add 16 Digital Channels
MSO variants combine analog channels with a 16-channel logic analyzer, enabling time-correlated analog and digital debugging on embedded boards.
Serial Decode and Mask Testing
PicoScope workflows support protocol decode, event tables, mask tests, actions, math channels and FFT spectrum views for debug and validation tasks.
Built-in Function / Arbitrary Generator
All 3000D units include a function generator and 12-bit AWG for stimulus, sweep testing, filter response checks and triggered waveform output.
SDK and Automation Friendly
PicoSDK support enables custom test automation and data capture workflows using common programming environments and test-system integration.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| Analog bandwidth | MHz | 50 / 70 / 100 / 200, model dependent |
| Analog channels | — | 2 channels on 320xD models; 4 channels on 340xD models |
| Digital channels | — | 16 on MSO models |
| SAMPLING / MEMORY | ||
| Maximum real-time sampling | GS/s | 1 with one analog channel |
| Sampling with up to 2 analog channels or digital ports | MS/s | 500 |
| Sampling with up to 4 analog channels or digital ports | MS/s | 250 |
| Maximum memory | MS | 64 / 128 / 256 / 512, model dependent |
| Capture rate | wfms/s | 100,000, PC dependent |
| VERTICAL / DIGITAL | ||
| Vertical resolution | bit | 8 |
| Input ranges | V | ±20 mV to ±20 V full scale, 10 ranges |
| Digital input frequency | MHz | 100, 200 Mb/s |
| Digital threshold range | V | ±5 |
| FUNCTION / ARBITRARY GENERATOR | ||
| Function generator | — | Sine, square, triangle, DC, ramp, sinc, Gaussian, half-sine, white noise and PRBS |
| Function generator frequency | MHz | DC to 1 |
| AWG update rate | MS/s | 20 |
| AWG buffer | kS | 32 |
| AWG resolution | bit | 12 |
| CONNECTIVITY / PHYSICAL | ||
| PC connectivity | — | USB 3.0 SuperSpeed; USB 2.0 minimum |
| Streaming mode | MS/s | Up to 125 using SDK, PC dependent |
| Dimensions | mm | 190 × 170 × 40, including connectors |
| Weight | kg | <0.5 |
| Warranty | years | 5 |
Applications
Analog + Digital Protocol Debug
Use MSO models to view power, clock, analog sensor and 16-channel logic activity with serial protocol decode in one time-correlated capture.
University PC Oscilloscope Labs
Portable USB 3.0 instruments support electronics, embedded systems and signal-analysis labs without large bench-scope infrastructure.
Laptop-based Diagnosis
Small size, USB connectivity and deep memory make the 3000 Series practical for site troubleshooting, service and repair work.
SDK-driven Functional Test
Use PicoSDK to automate capture, measurement, data export and pass/fail checks in compact production or incoming-inspection stations.
Control-loop and Filter Testing
Combine AWG sweep workflows with FFT and measurements for amplifier, filter, power-supply ripple and control-loop checks.
Long-record Data Capture
512 MS memory, segmented capture and export workflows help capture rare events and long-duration experimental signals.
