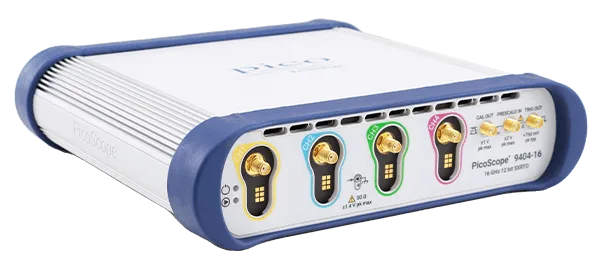

PicoScope 9400 Series — 5 / 16 GHz SXRTO Oscilloscopes
Sampler-Extended Real-Time Oscilloscope family that combines real-time sampling, random equivalent-time sampling and high analog bandwidth. The 9400 Series covers 5 GHz and 16 GHz models with 2 or 4 channels, 12-bit 500 MS/s ADCs, eye/mask testing and up to 2.5 TS/s equivalent sampling.
| Model | Bandwidth | Channels | Equivalent sampling | Transition time |
|---|---|---|---|---|
| PicoScope 9402-05 | 5 GHz | 2 | 1 TS/s | 70 ps |
| PicoScope 9404-05 | 5 GHz | 4 | 1 TS/s | 70 ps |
| PicoScope 9402-16 | 16 GHz | 2 | 2.5 TS/s | 22 ps |
| PicoScope 9404-16 | 16 GHz | 4 | 2.5 TS/s | 22 ps |
Key Features
SXRTO Architecture
Combines real-time sampling with random equivalent-time reconstruction for repetitive high-speed signals.
5 GHz and 16 GHz Models
Choose 5 GHz models for lower-cost high-speed timing, or 16 GHz models for faster serial and pulse work.
12-bit 500 MS/s ADCs
Maintains 12-bit acquisition architecture while using equivalent-time sampling to view fast repetitive signals.
2 or 4 Channels
Two-channel and four-channel models support differential pairs, multi-lane timing and multi-point system validation.
Eye and Mask Testing
Useful for serial-data transmitter checks, pulse analysis and waveform quality evaluation.

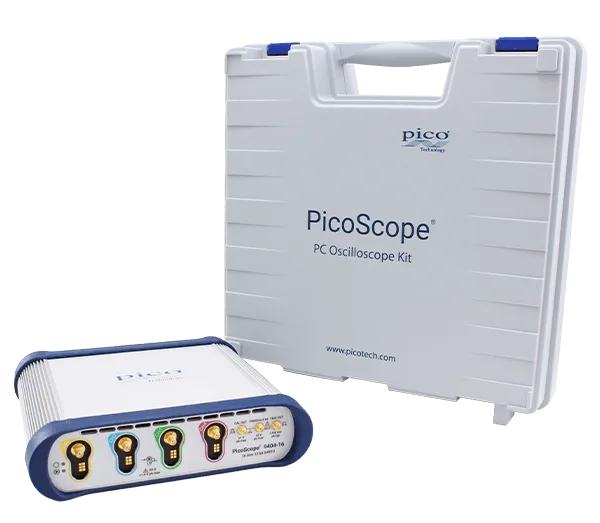

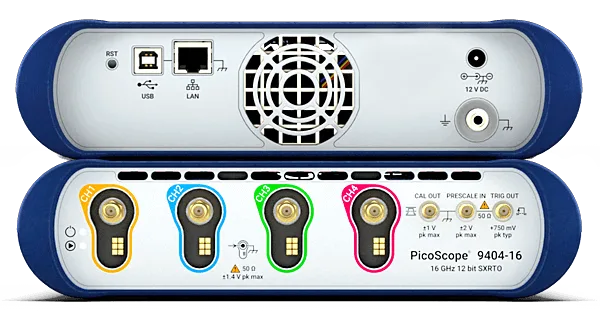

Compact PC-connected Format
USB-connected instrument keeps the measurement hardware close to the DUT while using a large PC display.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| Bandwidth classes | GHz | 5 or 16 |
| Analog channels | — | 2 or 4 |
| Real-time sampling | MS/s | 500 |
| Random equivalent sampling | TS/s | 1 on 5 GHz models; 2.5 on 16 GHz models |
| ADC resolution | bit | 12 |
| HIGH-SPEED ANALYSIS | ||
| Transition time | ps | 70 on 5 GHz models; 22 on 16 GHz models |
| Pulse / eye / mask testing | — | Down to 45 ps and up to 11 Gb/s |
| Acquisition type | — | SXRTO: real-time plus random equivalent-time sampling |
| CONTROL | ||
| Connection | — | USB PC-connected instrument |
| Application fit | — | Fast repetitive pulses, clocks, serial data and signal integrity validation |
Applications
Fast Edge Timing
Measure fast transitions and repetitive high-speed signals beyond conventional low-bandwidth scopes.

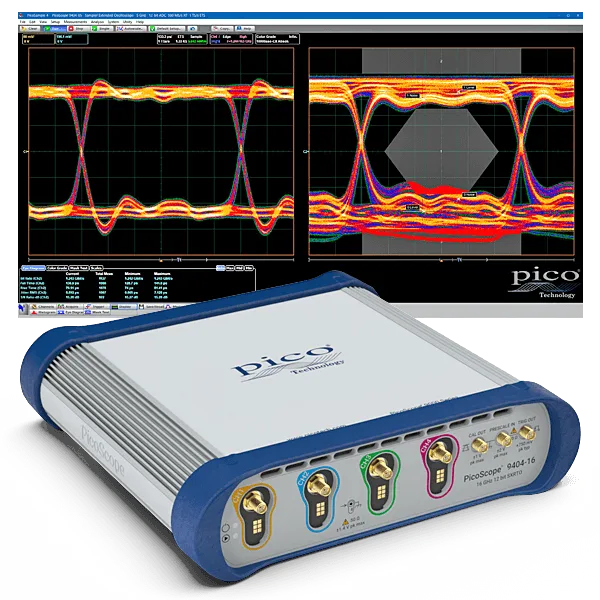

Eye and Mask Testing
Analyze eye diagrams and masks for serial-data transmitters and communication links.
Multi-channel GHz Timing
Use 2 or 4 channels for differential and multi-node timing measurements.
Advanced Sampling Lab
Teach real-time sampling versus equivalent-time sampling using one compact instrument.
Repeatable High-speed Test
Use PC control to repeat timing and eye-diagram measurements in validation workflows.
GHz Pulse Observation
Observe repetitive microwave and pulse waveforms in compact test setups.
