SDS6000A — 12-bit 4-channel Oscilloscopes, 500 MHz to 2 GHz
SIGLENT SDS6000A oscilloscopes are available in 500 MHz, 1 GHz and 2 GHz models. They provide 4 analog channels, optional 16-channel MSO, 5 GSa/s sample rate per channel (10 GSa/s ESR), up to 500 Mpts/ch record length, and up to 750,000 wfm/s capture rate in Sequence mode. The platform supports serial decode, Bode plot, power analysis, optional AWG, and optional eye/jitter analysis.
| Model | Bandwidth | Channels | Sample Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|
| SDS6054A | 500 MHz | 4 + EXT · 16 digital MSO option | 5 GSa/s per channel · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | 170k normal · 750k sequence |
| SDS6104A | 1 GHz | 4 + EXT · 16 digital MSO option | 5 GSa/s per channel · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | 170k normal · 750k sequence |
| SDS6204A | 2 GHz | 4 + EXT · 16 digital MSO option | 5 GSa/s per channel · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | 170k normal · 750k sequence |
Key Features
5 GSa/s Per Channel · 10 GSa/s ESR
The SDS6000A provides 5 GSa/s sample rate at each channel, with 10 GSa/s equivalent sample rate for repetitive signals. It keeps the positioning focused on bandwidth, timing detail and practical lab use.
Up to 500 Mpts/ch Record Length
Long record memory supports detailed capture of embedded, power and high-speed events. Memory scales by channel use: 500 Mpts/ch single-channel, 250 Mpts/ch dual-channel and 125 Mpts/ch with three or four channels.
SPO Capture and Sequence Mode
SIGLENT SPO technology provides up to 170,000 wfm/s in normal mode and up to 750,000 wfm/s in Sequence mode. Sequence acquisition and History can record up to 80,000 segments or frames.

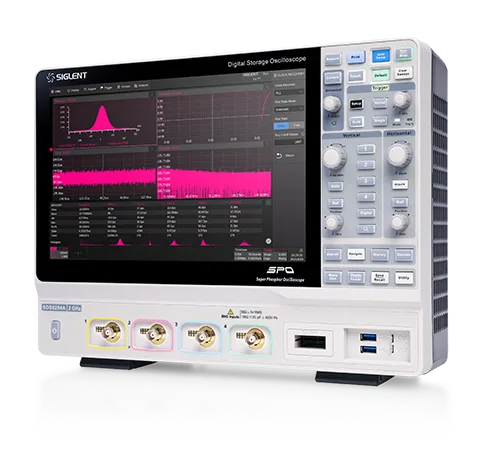

Eye/Jitter, Power Analysis and Bode Plot
Analysis tools include optional eye diagram and jitter analysis, power analysis, Bode plot and mask testing. These should be quoted with the required options.
Serial Trigger and Decode
Serial bus trigger and decode support I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT and Manchester. Use this for embedded and automotive debugging.
MSO and 25 MHz AWG Options
The platform supports 16 digital channels through the MSO option and a 25 MHz function/arbitrary waveform generator option for stimulus and basic response testing.
50+ Measurements and Math
Automatic measurements include statistics, histogram, track, trend and gating. Math tools include FFT, arithmetic, integration, differentiation, square root and a formula editor.

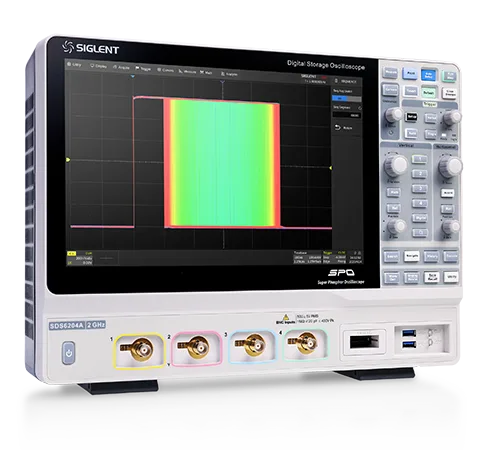

12.1-inch Touch Display and Remote Control
The 12.1-inch capacitive touch display supports multi-touch operation. LAN web control, SCPI, USB, HDMI, external mouse and keyboard support make it suitable for lab and ATE workflows.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VERTICAL | ||
| ADC resolution | bit | 12 |
| Bandwidth | GHz | 0.5 / 1 / 2 model-dependent |
| Analog channels | — | 4 + EXT |
| Digital channels | — | 16 with MSO option |
| Vertical scale | V/div | 0.5 mV/div to 10 V/div |
| HORIZONTAL | ||
| Sample rate | GSa/s | 5 per channel · 10 ESR |
| Record length | Mpts/ch | 500 single-channel · 250 dual-channel · 125 with 3 or 4 channels |
| Waveform capture rate | wfm/s | 170,000 normal mode · 750,000 sequence mode |
| Sequence / History | frames | Up to 80,000 segments / frames |
| TRIGGER AND DECODE | ||
| Trigger types | — | Edge · Slope · Pulse · Window · Runt · Interval · Dropout · Pattern · Qualified · Nth Edge · Setup/Hold · Delay · Video/HDTV · Zone · Serial bus |
| Serial decode | — | I²C · SPI · UART · CAN · LIN · CAN FD · FlexRay · I²S · MIL-STD-1553B · SENT · Manchester |
| ANALYSIS / OPTIONS | ||
| Eye and jitter | — | Optional SDS6000Pro-EJ option |
| Power analysis | — | Optional SDS6000Pro-PA option with DF2001A deskew fixture |
| Bode plot | — | Supported with appropriate generator / option configuration |
| AWG | MHz | 25 MHz function / arbitrary waveform generator option |
| MSO | channels | 16 digital channels with SPL2016 logic probe kit |
| DISPLAY | ||
| Screen | — | 12.1-inch capacitive touch · 1280 × 800 |
| Display modes | — | 256-level intensity grading · colour temperature |
| CONNECTIVITY | ||

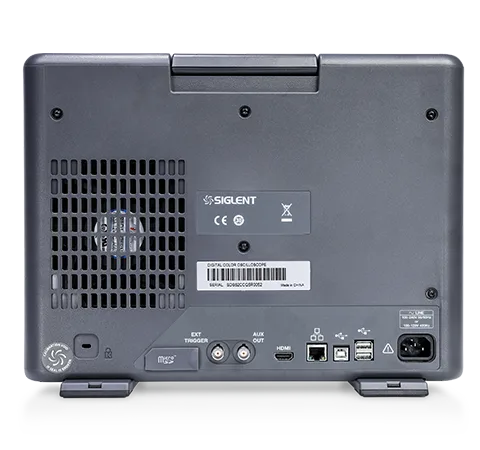

| Interfaces | — | USB Host · USB Device/USBTMC · LAN/VXI-11/Telnet/Socket · microSD · Pass/Fail · Trigger Out · HDMI |
| Remote control | — | Built-in web server · SCPI · external mouse and keyboard support |
Applications
Embedded System Debug
Serial trigger/decode, long memory and mixed-signal options support firmware-hardware correlation across common digital buses.
Power Stage Validation
High-resolution capture, Bode plot and power-analysis options support ripple, switching behaviour and loop-response measurements.
CAN / LIN / CAN FD Development
CAN, LIN, CAN FD, FlexRay and SENT decode options support ECU and vehicle-network debugging without claiming full compliance coverage.
Automated Waveform QA
Mask testing, pass/fail output, SCPI and LAN control make the series usable in production and validation test frameworks.
PCB Signal Quality Debug
500 MHz to 2 GHz bandwidth, eye/jitter option and active probe support make the platform useful for edge-quality, ringing and timing analysis.
Advanced University Lab
A practical mid-to-high range platform for embedded systems, power electronics, mixed-signal and measurement training labs.
