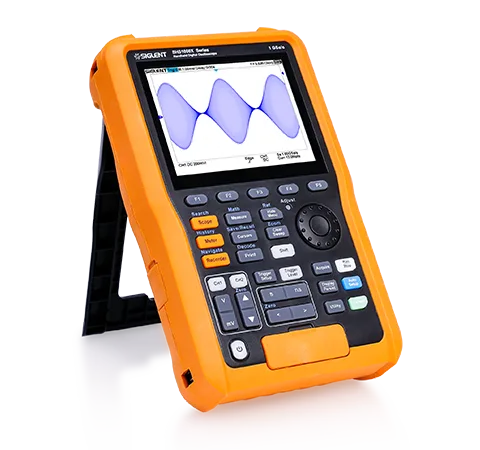

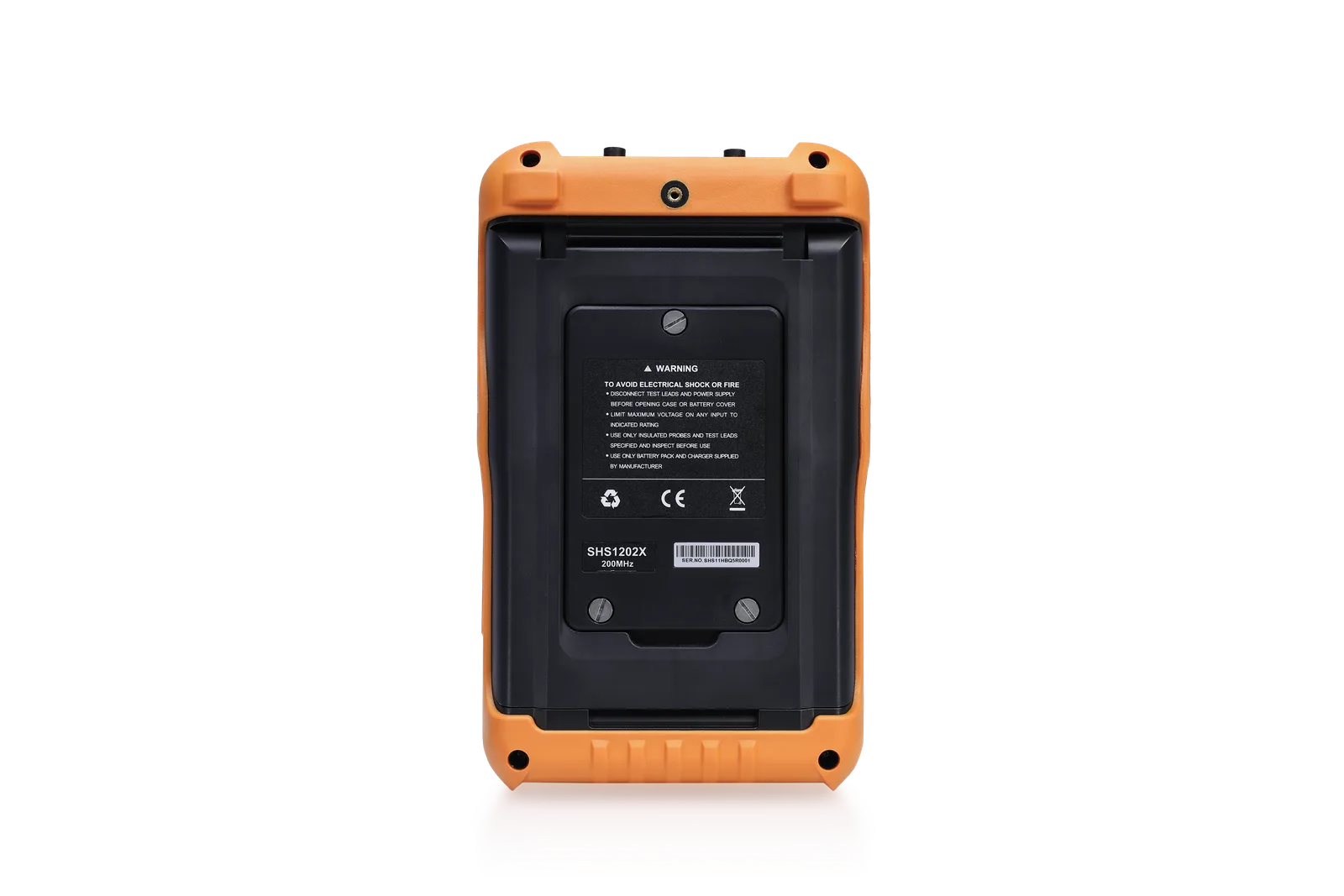

SHS1000X — Isolated Handheld Oscilloscopes, 100 / 200 MHz

Battery-powered isolated handheld oscilloscopes for field service, floating-signal debug and industrial troubleshooting. The SHS1000X combines two isolated oscilloscope channels, serial trigger/decode, spectrum analysis, recorder/data logger functions and a hardware True-RMS multimeter in one portable instrument.

Bandwidth

100 / 200 MHz

Channels

2 isolated analog

Sample Rate

1 GSa/s single · 500 MSa/s dual

Memory Depth

12 Mpts single · 6 Mpts dual

Safety Rating

CAT III 600 Vrms · CAT II 1000 Vrms

DMM

6000-count True-RMS

Isolated handheld 100 / 200 MHz CAT III 600 Vrms Serial decode DMM + recorder

Request price and availability ← All Oscilloscopes

Model	Bandwidth	Channels	Sample Rate	Memory Depth	Isolation / Safety	DMM
SHS1102X	100 MHz	2 isolated analog	1 GSa/s single · 500 MSa/s dual	12 Mpts single · 6 Mpts dual	CAT III 600 Vrms · CAT II 1000 Vrms	6000-count True-RMS
SHS1202X	200 MHz	2 isolated analog	1 GSa/s single · 500 MSa/s dual	12 Mpts single · 6 Mpts dual	CAT III 600 Vrms · CAT II 1000 Vrms	6000-count True-RMS

Key Features

Full Isolation for Floating Measurements

Isolation between the oscilloscope channels, multimeter channel, power adapter and USB ports reduces accidental short-circuit risk when measuring floating or industrial power signals.

100 / 200 MHz with Deep Memory

Choose 100 MHz or 200 MHz bandwidth. Use up to 1 GSa/s and 12 Mpts with one channel active, or 500 MSa/s and 6 Mpts per channel when both channels are enabled.

6000-count True-RMS Multimeter

Integrated hardware True-RMS DMM supports common electrical measurements including DCV, ACV, DCI, ACI, resistance, diode, capacitance and continuity testing.

Standard Serial Trigger and Decode

IIC/I²C, SPI, UART, CAN and LIN trigger/decode functions help debug embedded and automotive systems directly on-site without carrying a separate bench oscilloscope.

SPO Display and Fast Capture

SIGLENT SPO technology provides intensity grading, colour temperature display, up to 100,000 wfm/s normal capture and up to 400,000 wfm/s in Sequence mode.

Recorder, Data Logger and Spectrum View

Oscilloscope, recorder, data logger, spectrum analysis and multimeter functions are integrated into one portable instrument for field diagnostics and maintenance work.

IP51 Rugged Handheld Design

IP51 dust and drip resistance, rubberized housing and large front-panel keys make the instrument more practical for industrial environments than a standard bench oscilloscope.

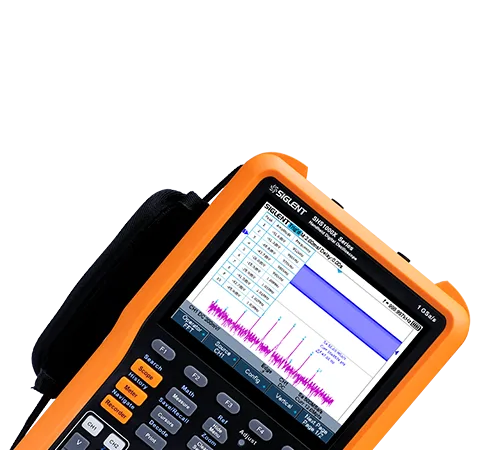

5.6-inch TFT Display

The 5.6-inch TFT-LCD with 640 × 480 resolution provides direct waveform, DMM, decode and recorder visibility in a compact battery-powered field instrument.

Specifications

Parameter	Unit	Value / Description
OSCILLOSCOPE
Bandwidth	MHz	100 / 200, model-dependent
Channels	—	2 isolated analog channels
Sample rate	—	1 GSa/s single-channel · 500 MSa/s two-channel
Record length	—	12 Mpts single-channel · 6 Mpts two-channel
Capture rate	wfm/s	Up to 100,000 normal mode · 400,000 Sequence mode
ISOLATION AND SAFETY
Input rating	Vrms	CAT III 600 · CAT II 1000
Isolation	—	Oscilloscope channels, DMM channel, power adapter and USB host/device ports isolated
MULTIMETER
DMM type	—	Hardware-based True-RMS, 6000 count
Functions	—	DCV · ACV · DCI · ACI · resistance · diode · capacitance · continuity
TRIGGER AND DECODE
Trigger types	—	Edge · slope · pulse width · window · runt · interval · timeout/dropout · pattern
Serial decode	—	IIC/I²C · SPI · UART · CAN · LIN
DISPLAY AND RUGGEDNESS
Display	—	5.6-inch TFT-LCD · 640 × 480
Protection	—	IP51 dust and drip resistance

Applications

Industrial Troubleshooting

Portable isolated oscilloscope for on-site debugging of control panels, machines, drives and floating signals where a bench oscilloscope is impractical.

Floating Power-stage Measurement

Isolated channels and CAT-rated inputs support safer measurement of floating gate-drive, inverter and converter signals during service and commissioning.
