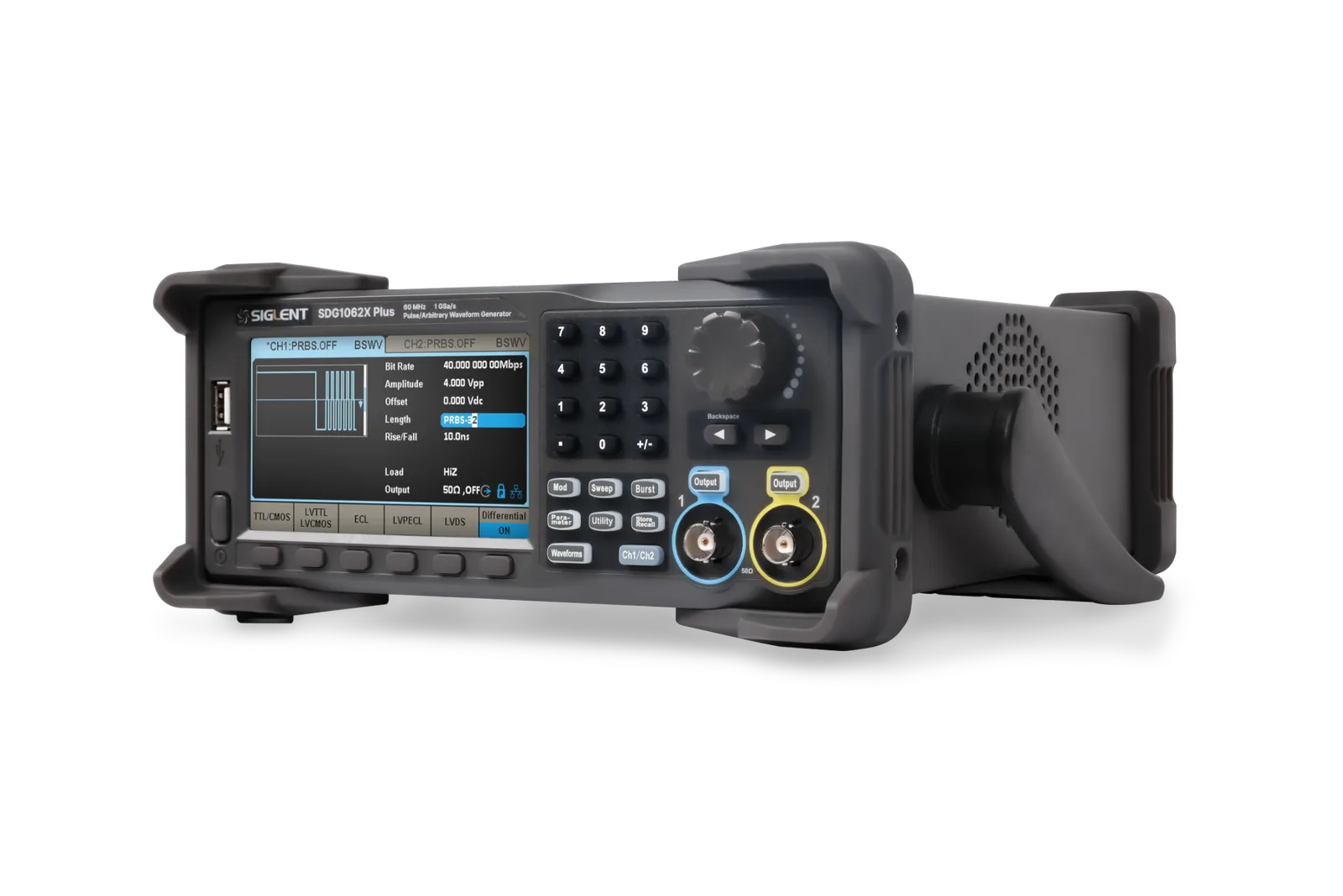

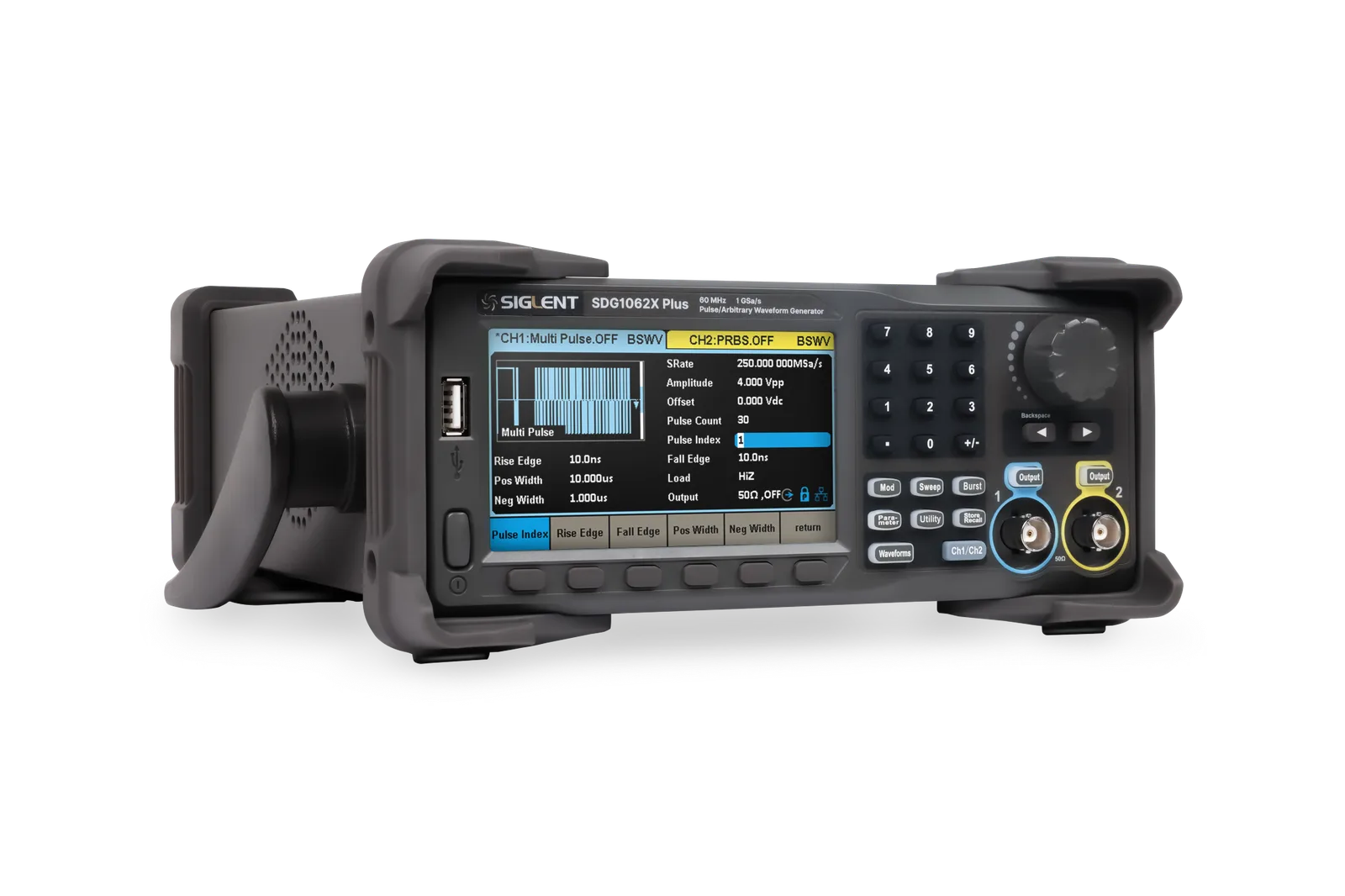

SDG1000X Plus Series
SDG1000X Plus — Enhanced 25–60 MHz AWG
Upgraded SDG1000X platform — improved noise floor and harmonic distortion at 14-bit, 150 MSa/s for more demanding analog test applications.
Max Frequency
25 / 60 MHz
DAC
14-bit
Platform
Enhanced SDG1000X
25–60 MHzEnhanced14-bit
| Model | Max Frequency | Channels | Key Upgrade |
|---|---|---|---|
| SDG1025 Plus | 25 MHz | 2-ch | Enhanced noise floor |
| SDG1060 Plus | 60 MHz | 2-ch | Enhanced noise floor |
Key Features
Improved Noise Floor Over SDG1000X
Better noise floor and lower harmonic distortion — cleaner output for applications requiring higher signal purity at 25–60 MHz.
Same EasyPulse and Modulation
All SDG1000X modulation, EasyPulse and arb capabilities retained with improved signal quality.

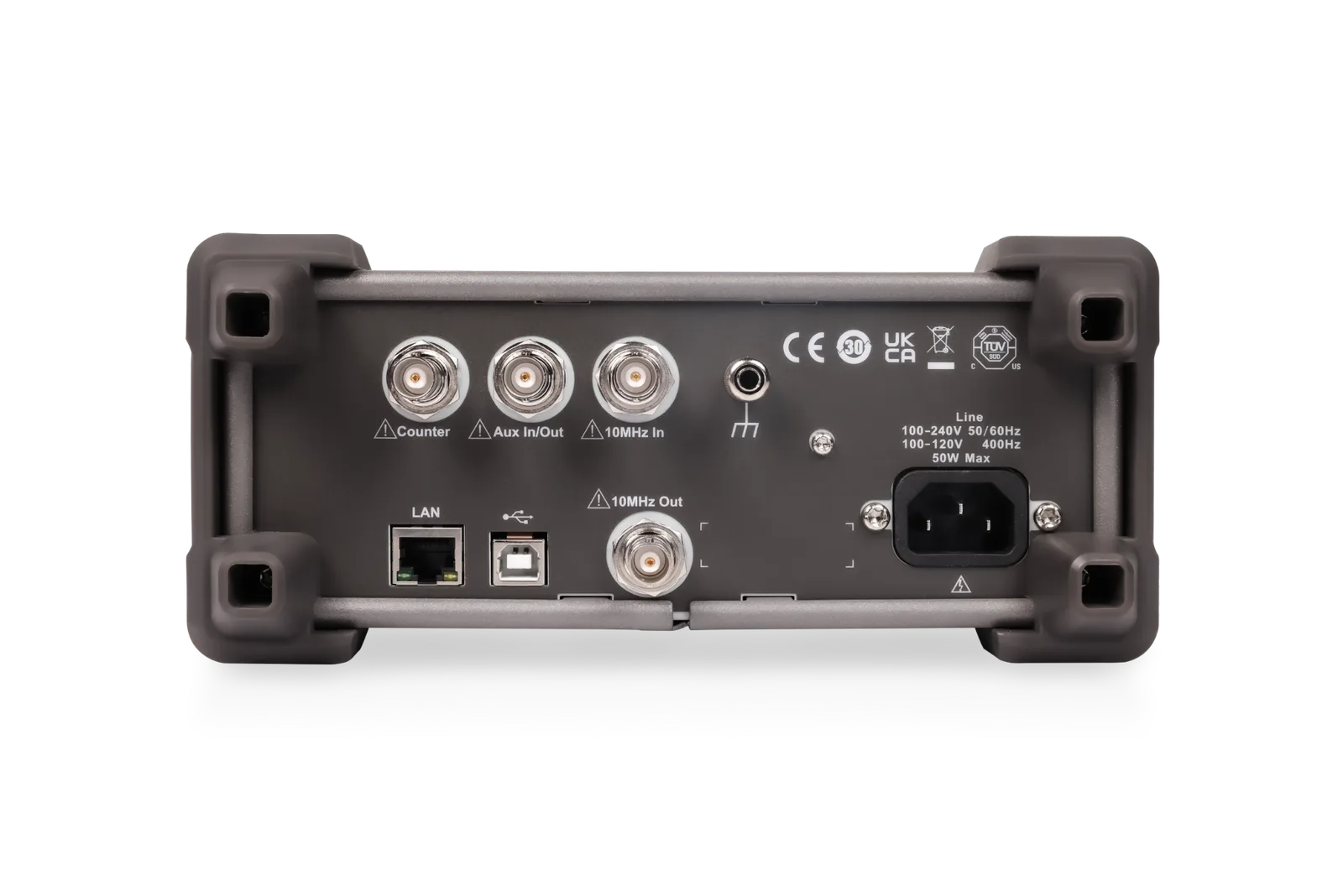

LAN / USB Remote
Full SCPI over LAN for automated test integration.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| FREQUENCY | ||
| Max frequency | MHz | 25 · 60 |
| Platform | — | Enhanced SDG1000X architecture |
Applications
Improved Signal Purity
Better noise for filter characterisation, sensor simulation and analog circuit test.
Enhanced Lab AWG
Improved signal quality for demanding teaching lab applications.
SCPI Automated
Remote-controlled stimulus for production and R&D automated test.
