SDG7000A Series — Arbitrary Waveform Generator
Dual-channel arbitrary waveform generator family for high-speed analog stimulus, pulse generation, vector-signal creation and digital-bus workflows. The series reaches up to 1 GHz bandwidth with 5 GSa/s sampling, 14-bit vertical resolution and 512 Mpts waveform memory.
| Model | Max Output Frequency | Sample Rate | Vertical Resolution | Waveform Length | Channels |
|---|---|---|---|---|---|
| SDG7032A | 350 MHz | 5 GSa/s | 14-bit | 512 Mpts | 2 differential / single-ended |
| SDG7052A | 500 MHz | 5 GSa/s | 14-bit | 512 Mpts | 2 differential / single-ended |
| SDG7102A | 1 GHz | 5 GSa/s | 14-bit | 512 Mpts | 2 differential / single-ended |
Key Features
Up to 1 GHz Dual-channel AWG
The SDG7000A family covers 350 MHz, 500 MHz and 1 GHz models with dual-channel differential or single-ended outputs for RF, pulse, modulation and embedded-system stimulus.
5 GSa/s Sampling and 14-bit Resolution
The high-speed sampling system and 14-bit vertical resolution support cleaner waveform synthesis than lower-resolution arbitrary/function generators in demanding lab work.
TrueArb Point-by-point Arbitrary Generation
Adjustable arbitrary waveform sample rates from 0.01 Sa/s to 2.5 GSa/s allow point-by-point waveform playback without forcing all signals into fixed DDS-style frequency relationships.
Pulse, PRBS and Digital-bus Workflows
Low-jitter pulses with 1 ns minimum pulse width, 500 ps edge capability, PRBS up to 312.5 Mbps and optional 16-bit LVTTL/LVDS digital output support mixed analog/digital test needs.
Wide Output Swing
The analog output supports up to 24 Vpp with ±12 Vdc offset, giving a maximum ±24 V output range for applications that would otherwise require an external power amplifier.
Automation-ready Bench Instrument
10 MHz reference input/output, trigger input/output, marker synchronization, WebServer control and SCPI command support make the generator suitable for automated and synchronized test systems.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| SDG7032A | MHz | 350 max output frequency |
| SDG7052A | MHz | 500 max output frequency |
| SDG7102A | GHz | 1 max output frequency |
| Channels | — | 2 differential / single-ended |
| SAMPLING / MEMORY | ||
| Maximum sample rate | GSa/s | 5 |
| Vertical resolution | bit | 14 |
| Waveform memory | Mpts | 512 |
| TrueArb sample-rate range | Sa/s | 0.01 to 2.5 GSa/s |
| WAVEFORM / MODULATION | ||
| Vector-signal generation | MSa/s | Up to 500 |
| Pulse width | ns | 1 minimum |
| Pulse edge | ps | 500 minimum; 100 ps fine step |
| PRBS | Mbps | Up to 312.5 |
| Digital bus | — | Optional 16-bit LVTTL / LVDS up to 1 Gbps |
| OUTPUT / CONTROL | ||
| Analog output range | V | 24 Vpp with ±12 Vdc offset; maximum ±24 V range |

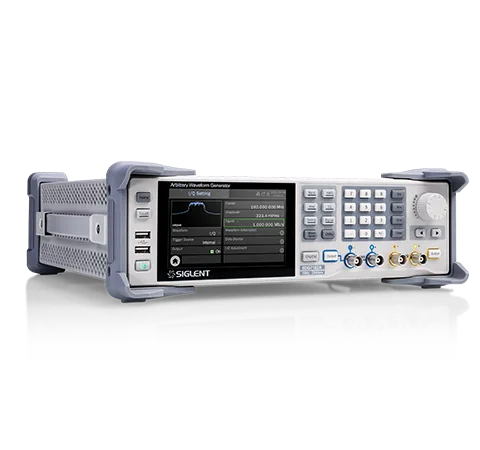

| Display | — | 5-inch capacitive touch screen, 800 × 480 |

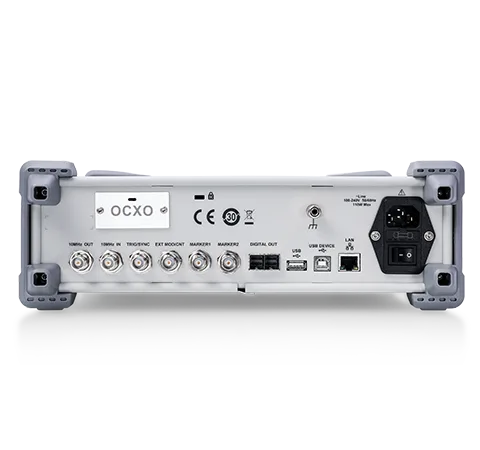

| Reference / sync | — | 10 MHz In/Out, Trigger In/Out and Marker sync |
| Remote control | — | WebServer and SCPI command support |
Applications
Vector-signal and IQ Stimulus
Create custom IQ, OFDM and modulated test signals for RF module and receiver evaluation within the SDG7000A bandwidth range.
High-voltage Stimulus
Use the wide output swing for gate-drive, control-loop, sensor-emulation and hardware-in-the-loop style stimulus where ordinary AWG amplitude is not enough.
Pulse and PRBS Generation
Generate fast pulses, PRBS patterns and optional 16-bit LVTTL/LVDS digital patterns for embedded and digital interface validation.
Advanced Signal-generation Lab
Teach arbitrary waveform generation, modulation, pulse timing, spectral purity and synchronization using one bench platform.
Arbitrary Waveform Playback
Replay measured or simulated waveforms using segmented playback and point-by-point arbitrary generation for product debug.
Production Test Stimulus
Use SCPI and synchronization ports to integrate repeatable stimulus generation into automated test racks.
