Cleanroom Recovery Time Measurement
A controlled particle challenge is introduced and the concentration decay is measured, characterising how quickly the room returns toward its specified condition. The acceptance criterion is set by the room requirement or the project specification, not by the measurement itself.
Recovery Performance Scope
Classification tells you the concentration at a moment. Recovery tells you what happens after something disturbs it — a process event, a door opening, an intervention. It is a measurement of the ventilation system's ability to clear a disturbance, not of the air's steady-state cleanliness.
Applicability of Recovery Testing
Recovery testing is applied where the airflow concept and the applicable method make it meaningful. It is principally relevant to non-unidirectional, turbulently ventilated environments, where air is diluted and displaced over time rather than swept continuously in one direction.
In a fully unidirectional zone the concept behaves differently, and the applicable method may call for a different test entirely. Whether recovery is required, and against which criterion, follows the governing specification.
Result Applicability and Test Conditions
A recovery result is a property of the specific room, its ventilation system, the challenge used and the measurement position. It does not transfer between rooms, and a figure obtained in one facility says nothing about another.
Recovery-time targets and acceptance thresholds are established by the governing method and approved project specification for the facility, operating state and intended application.
Governing references
ISO 14644-3Cleanroom and clean-zone test methods — primary context for the recovery test VDI 2083Supporting cleanroom engineering guidance where applicableRecovery acceptance criteria are established by the governing method and approved project specification. The target depends on the facility, operating condition and intended performance.
Recovery Measurement Sequence
Measurement Controls Across the Recovery Sequence
- Initial stateA stable, documented starting concentration — otherwise the decay has no baseline to be measured against.
- ChallengeReproducible aerosol at a concentration high enough to give a measurable decay across the counter's working range.
- Stopping the challengeA clean, recorded end point, since the decay clock starts here.
- Decay measurementContinuous or repeat measurement at a defined position, sampling fast enough to resolve the decay.
- EvaluationRecovery behaviour determined and recorded with the conditions that produced it.
Particle-Counter Sampling and Time Resolution
A recovery test is a time series, not a single sample. The particle counter has to support repeat or continuous measurement with a sample interval short enough to capture the shape of the decay, and enough stored records to hold the whole run.
The upper end matters too: the counter must still be within its working concentration range immediately after the challenge, or the early part of the curve is unusable.
Interpreting the Concentration-versus-Time Recovery Profile
Standards and Test-Method Context
| Reference | Edition / status | Role |
|---|---|---|
| ISO 14644-3 | 2019 (Edition 2) — Current published reference | Primary test-method context for the recovery test |
| VDI 2083 | Current published reference | Supporting cleanroom engineering guidance where applicable |
Scroll the table horizontally →
Topas maps the recovery test to ISO 14644-3 B.4 in its cleanroom test equipment documentation. Confirm the applicable annex and edition against the standard before citing it on a project document.
Technologies in a recovery measurement
Topas maps the recovery test to ISO 14644-3 in its cleanroom test equipment documentation, and identifies an aerosol generator, a particle counter and an aerosol substance as the required elements, with a dilution system optional for this test.
ATM 228Controlled challenge aerosol whose decay is measured.- 20 – 250 L/h
- Integrated compressor
- Electronic pressure control
CPA 341Concentration-decay measurement across the recovery interval.- 0.3 – 10 µm
- 28.3 L/min
- Repeat / continuous modes

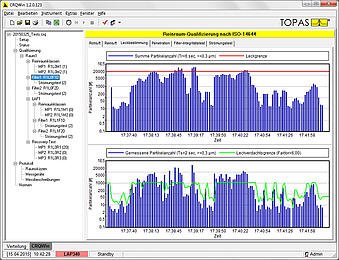

CRQWinRecording and evaluation of the recovery test alongside the other qualification tests.- Recovery test
- Cleanroom classes
- Filter leak test
Recovery Measurement System Configuration
Share the room volume and airflow concept, the challenge aerosol permitted on site, the particle counter flow available and the applicable project or regulatory reference.
