HVAC air monitoring
In hvac air monitoring, place and specify the measurement point according to airflow, condensation risk, calibration requirements and the required analogue, RS485 or wireless information path.
NOVUS · Environmental & Controlled-Environment Monitoring

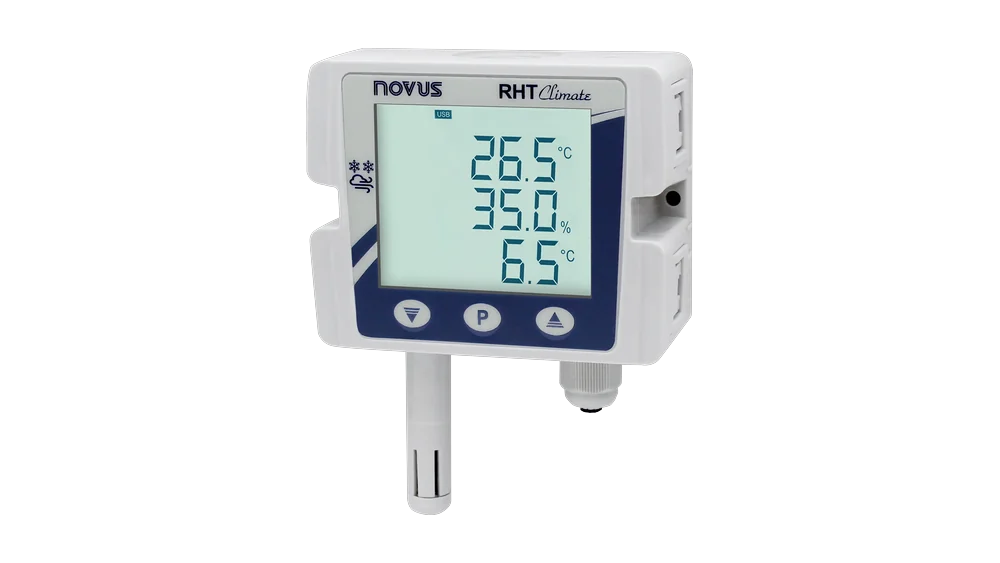

RHT Climate
Environmental transmitter combining temperature/RH measurement, local display, RS485, analogue outputs and calculated psychrometric properties.
VariablesTemperature + RH
RoleTemperature and humidity transmitter with local display and psychrometric calculation
CategorySensing, Conditioning & Transmitters / Data Acquisition
ScopeEnvironmental measurement
Engineering position
Temperature and humidity transmitter with local display and psychrometric calculation for environmental measurement
The product measures or communicates environmental temperature and relative humidity for building, laboratory, storage and controlled-environment systems. These products support environmental-condition monitoring; airborne-particle classification, continuous particle counting and HEPA-filter integrity testing require separate contamination-control instrumentation. Environmental transmitter combining temperature/RH measurement, local display, RS485, analogue outputs and calculated psychrometric properties.
Temperature measurementConfirm measurement range, mounting position, response requirements and calibration expectations.
Relative-humidity measurementConfirm RH range, condensation exposure, calibration expectations and installation airflow.
System integrationSelect analogue, RS485, wireless or cloud integration according to the data consumer and network architecture.
Current product position: Current RHT Climate positioning combines local display, RS485 Modbus RTU, configurable analogue outputs and psychrometric calculations for environmental/HVAC integration.
System role
RHT Climate signal and system architecture
The architecture separates the field/process interface, the NOVUS function and the downstream control or information path. Exact electrical interfaces, protocol roles and accessories remain model-dependent.
01Room / duct air
02RHT Climate
03Analogue / RS485 outputs
04BMS / logger / PLC
05Monitoring / control
Use the current NOVUS product page, manual and exact order code as the final authority for numeric ratings, approvals, firmware-dependent functions and supplied accessories.
Application scope
RHT Climate application environments
These application classes indicate the engineering context. Final selection still depends on the exact range, I/O, communication, installation and performance requirements.
Controlled storage
In controlled storage, place and specify the measurement point according to airflow, condensation risk, calibration requirements and the required analogue, RS485 or wireless information path.
Laboratories and cleanroom environmental monitoring
In laboratories and cleanroom environmental monitoring, place and specify the measurement point according to airflow, condensation risk, calibration requirements and the required analogue, RS485 or wireless information path.
Technical data
Technical data and model boundaries
The table is a selection summary, not a substitute for the current NOVUS manual or ordering information. Product families and optional versions can differ in input, output, communication, supply and approvals.
| Measured variables | Temperature and relative humidity with calculated psychrometric properties |
|---|---|
| Communication | RS485 Modbus RTU and USB Micro-B |
| Outputs | Two configurable 0–10 V or 4–20 mA analogue outputs |
| Display | Backlit LCD with local keypad |
| Calculations | Up to seven psychrometric properties |
| Alarms | Two digital outputs and internal buzzer |
| Housing | IP65; sensor-capsule rating depends on exact model |
Selection context
RHT Climate within the NOVUS portfolio
Use role, range, I/O, installation and communication requirements to distinguish nearby products. Similar naming does not imply interchangeable electrical or functional capability.
Current page
RHT Climate
Environmental transmitter combining temperature/RH measurement, local display, RS485, analogue outputs and calculated psychrometric properties.
Measured variables: Temperature and relative humidity with calculated psychrometric propertiesRS485 temperature and humidity transmitter with displayRHT-485-LCD
Networked temperature/RH transmitter with local display and RS485 Modbus RTU integration.
Communication: RS485 Modbus RTUWireless temperature and humidity monitoring systemClimate Air+
Scalable wireless temperature/RH monitoring system built around RHT Air+ sensors and the AirGate Air+ gateway for distributed critical environments.
System components: RHT Air+ wireless sensors and AirGate Air+ gatewaySelection basis: application duty, exact interface requirements and current orderable configuration.
Documentation & engineering inputs
Current NOVUS documentation and application data
Use the manufacturer page for the current orderable configuration, then provide the application information below so Primionics can review technical fit, accessories and commercial scope.
Measured variablesTemperature, relative humidity and any required psychrometric values.
Measurement locationWall, duct, room, probe position, airflow and condensation exposure.
Data interface4–20 mA, 0–10 V, RS485, wireless network or cloud/SCADA integration.
Accuracy & calibrationRequired uncertainty, calibration points, traceability and re-calibration interval.
Compliance scopeRecord retention/validation needs; separate particle/HEPA requirements if applicable.
Commercial scopeNumber of points, gateways, accessories, software and commissioning support.
