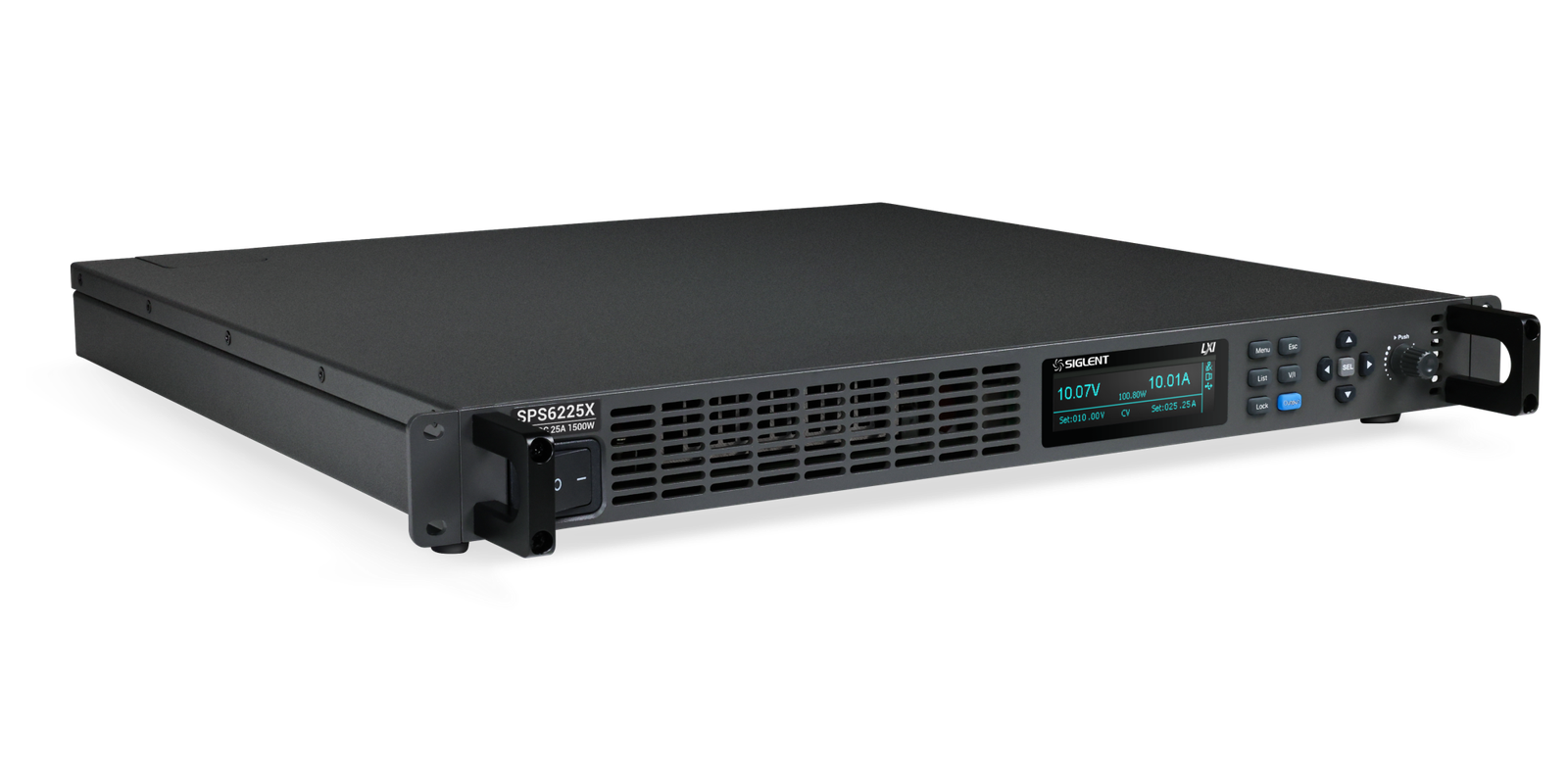

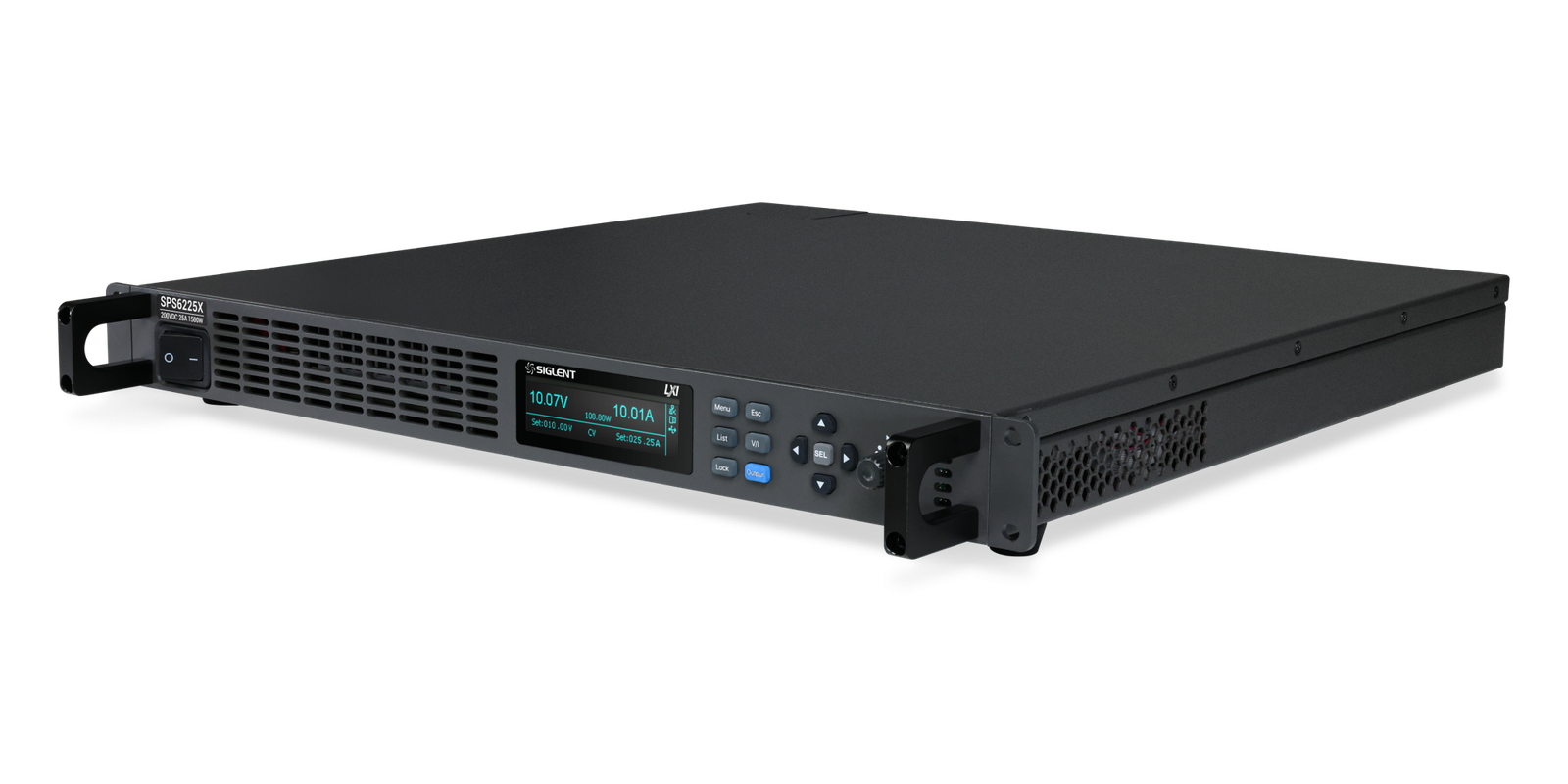

SPS6000X — Wide-range Programmable Switching DC Power Supply, 1500 W
Compact 1U programmable switching DC power supplies with wide-range constant-power output: SPS6150X delivers 100 V / 50 A and SPS6225X delivers 200 V / 25 A, each rated at 1500 W for automated DC power, battery, converter and rack-system testing.
| Model | Output | Rated Power | Resolution | Setting Accuracy | Readback Accuracy |
|---|---|---|---|---|---|
| SPS6150X | 100 V / 50 A | 1500 W | 10 mV / 10 mA | V: 0.1% ±10 mV · I: 0.2% ±30 mA | V: 0.1% ±20 mV · I: 0.2% ±40 mA |
| SPS6225X | 200 V / 25 A | 1500 W | 10 mV / 10 mA | V: 0.1% ±10 mV · I: 0.2% ±30 mA | V: 0.1% ±20 mV · I: 0.2% ±40 mA |
Key Features
Wide-range Constant-power Output
One supply covers many voltage/current combinations within its 1500 W power envelope, improving utilisation compared with fixed rectangular-output DC supplies.
CV / CC Priority Selection
Choose voltage-priority or current-priority behaviour to reduce overshoot and inrush risk when powering capacitive loads, batteries and sensitive DUTs.
Adjustable Voltage and Current Slew Rates
Programmable ramp-up and ramp-down rates help control charging current and DUT stress during power sequencing and transient tests.
Remote Sense and Output Discharge
4-wire remote sense compensates cable drop at the DUT, while the internal discharge circuit safely bleeds output energy after shutdown.
Local List Mode and Analog Control
Run up to 50 local list steps and use external analog voltage control plus voltage/current monitoring outputs for system integration.
Rack-friendly Remote Operation

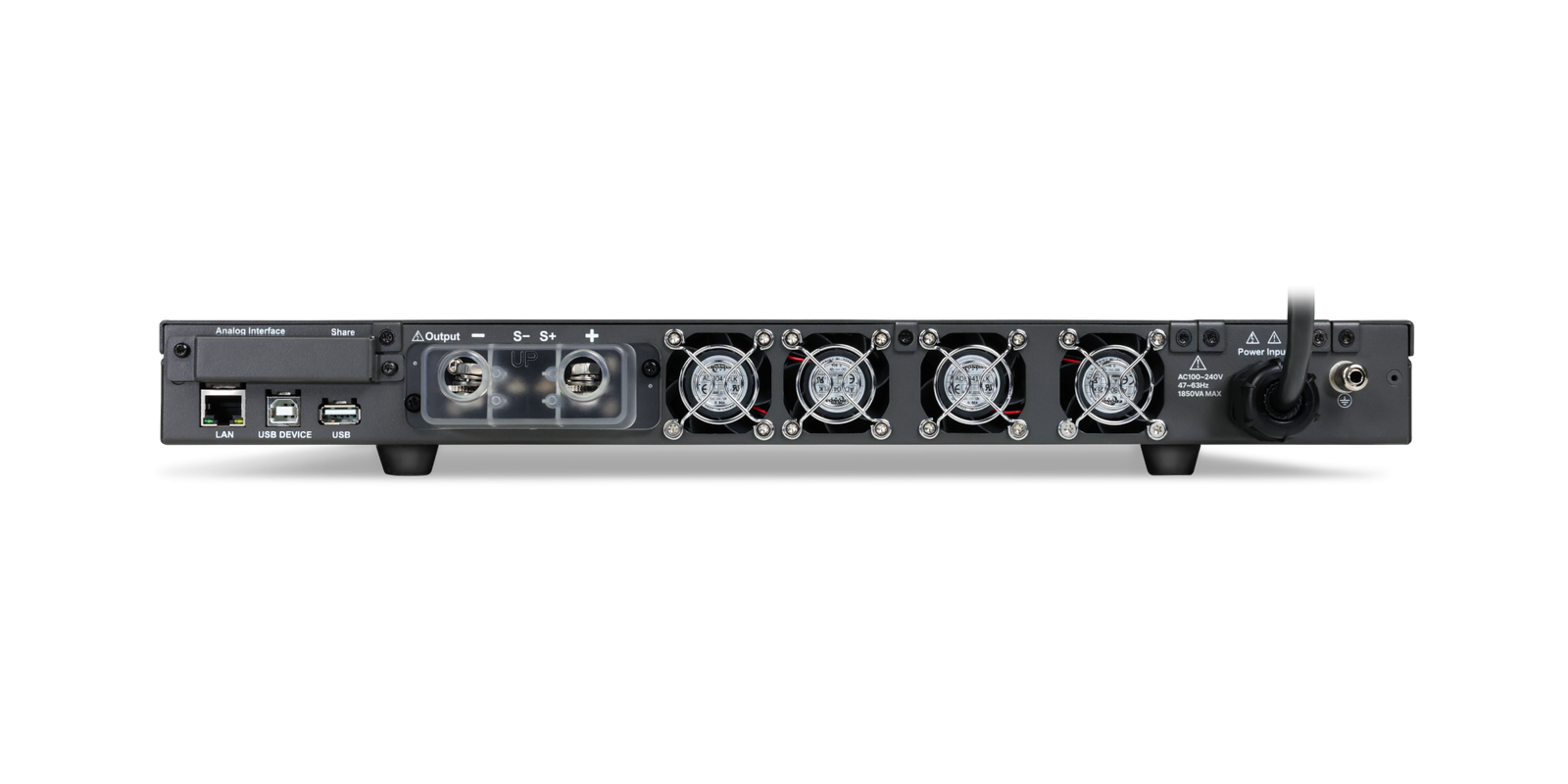

1U, 19-inch rack format with USB and LAN interfaces, browser-based control and optional USB-GPIB for automated production or burn-in racks.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| OUTPUT | ||
| Models | — | SPS6150X: 100 V / 50 A / 1500 W · SPS6225X: 200 V / 25 A / 1500 W |
| Rated power | W | 1500 |
| Parallel expansion | — | Up to five same-model chassis can be connected in parallel |
| Setting/readback resolution | — | 10 mV / 10 mA |
| Load transient recovery | ms | < 2.5 |
| PROGRAMMING AND CONTROL | ||
| Operating priority | — | CV priority · CC priority |
| List function | steps | Up to 50 local steps |
| Slew-rate control | — | Voltage/current ramp-up and ramp-down; voltage 0.001–4 V/ms, current 0.001–2.4 A/ms |
| Remote sense | — | Yes, 4-wire compensation |
| Analog control/monitoring | — | External analog voltage control and voltage/current monitor outputs |
| PROTECTION AND INTERFACE | ||
| Protection | — | OVP · OCP · LPP · OTP |
| Display | — | 3.12-inch OLED |
| Interfaces | — | USB · LAN · optional USB-GPIB |
| Mechanical | — | 44 mm / 1U height, 19-inch rack width |
Applications

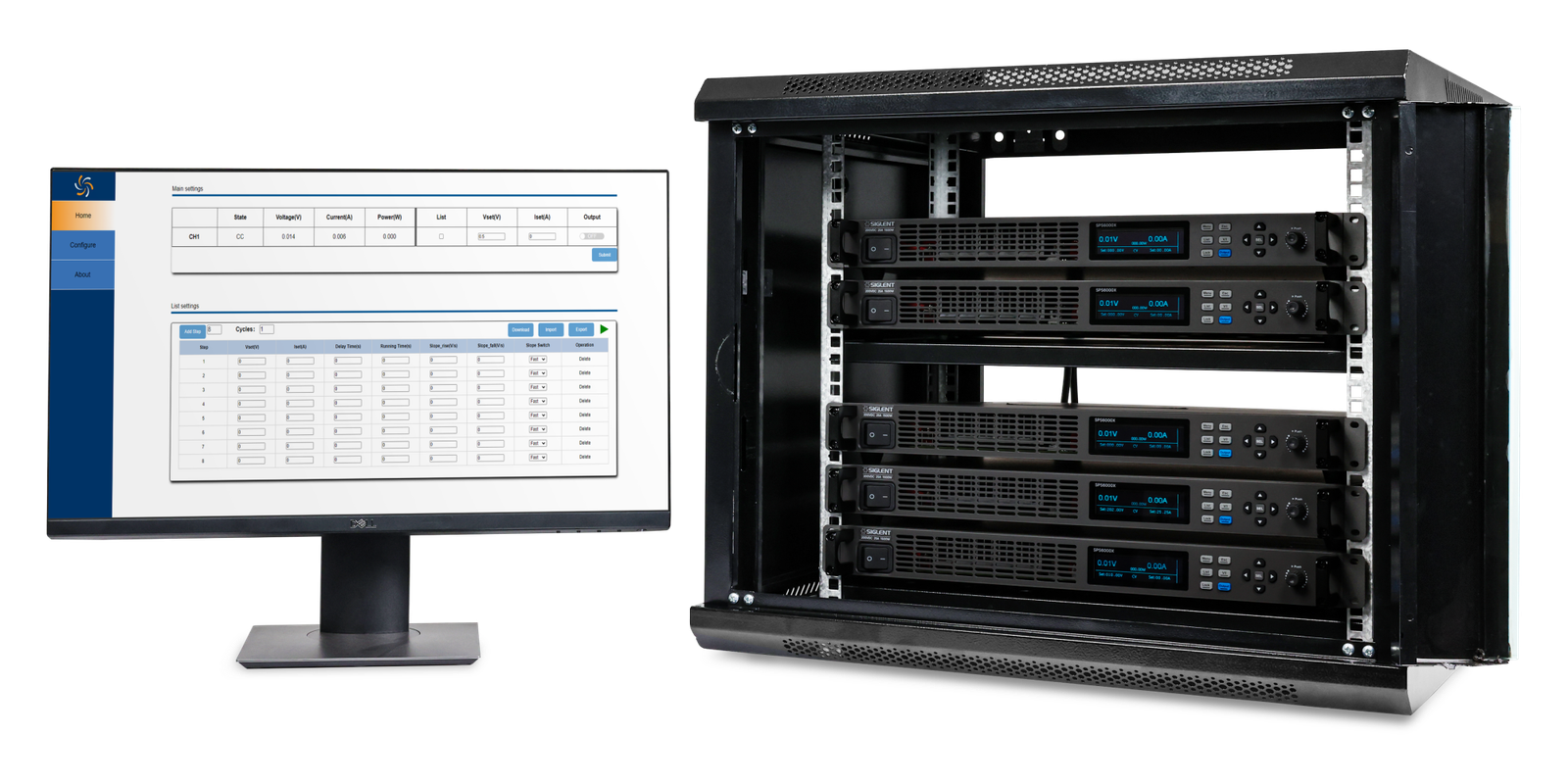

Automated Burn-in and Production
1U format, LAN/USB control and parallel expansion for DC burn-in racks and production power systems.
Battery and BMS Test
Programmable DC source for battery-pack, BMS, charger and protection-circuit validation within the model voltage/current envelope.
DC-DC Converter Characterisation
Wide-range constant-power output supports converter input sweeps, current-limit tests and controlled power sequencing.
Controlled Inrush Testing
Adjustable slew rate and CV/CC priority reduce inrush stress during capacitor, bus and high-current load testing.
Rack Power Supply
Compact programmable DC source for university, R&D and validation benches that need higher power than small bench supplies.
High-voltage DC Supply
SPS6225X supports up to 200 V DC for industrial modules, drivers and high-voltage electronics testing.
