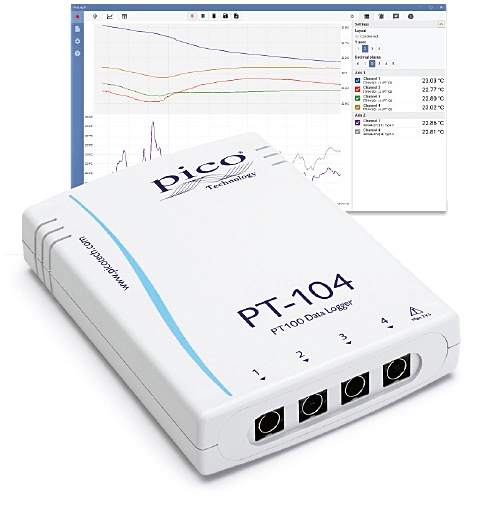

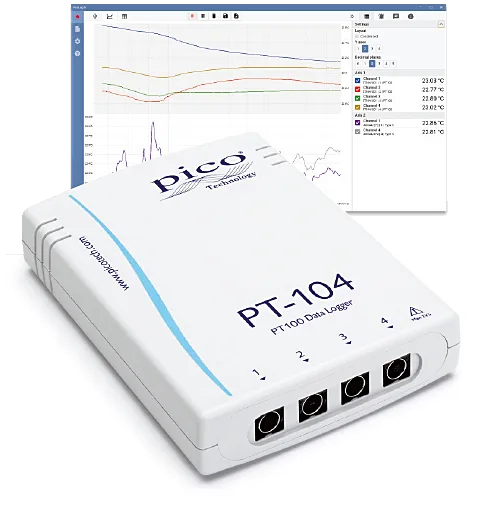

PT-104 — High-accuracy Temperature and Resistance Data Logger
Four-channel high-accuracy platinum resistance temperature logger for PT100/PT1000 sensors and resistance measurement, with 0.001 °C resolution, 0.015 °C accuracy, 24-bit ADC, USB and Ethernet interfaces.
| Model | Channels | Sensor Types | Resolution | Interfaces |
|---|---|---|---|---|
| PT-104 | 4 channels | PT100 / PT1000 | 0.001 °C | USB / Ethernet |
Key Features
High-accuracy PRT Logging
Designed for PT100 and PT1000 platinum resistance thermometers where measurement precision matters more than high speed.
0.001 °C Resolution
A 24-bit ADC and stable reference-resistor design support very fine temperature resolution.
2-, 3- and 4-wire Support
Works with two-, three- and four-wire sensors; four-wire PT100 wiring is recommended for best accuracy.
Resistance Measurement
Also measures resistance using a four-wire circuit, with 0 to 375 Ω and 0 to 10 kΩ ranges.

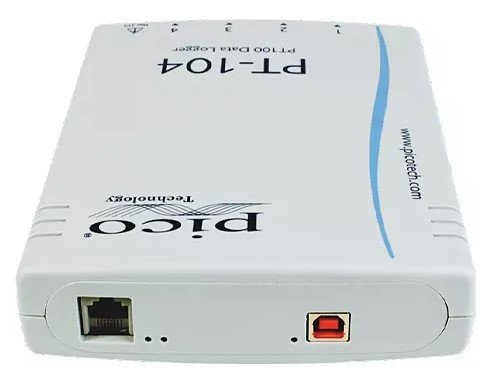

USB and Ethernet
Use USB for portable local logging or Ethernet for remote/networked monitoring.
Multi-unit Expansion
Use multiple PT-104 units together for larger PT100/PT1000 data acquisition systems.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| TEMPERATURE | ||
| Channels | channels | 4 |
| Accuracy | °C | 0.015 |
| Resolution | °C | 0.001 |
| ADC | bit | 24 |
| Sensor types | — | PT100 and PT1000 |
| Wiring | — | 2-, 3- and 4-wire sensors |
| RESISTANCE | ||
| Resistance ranges | Ω | 0 to 375 and 0 to 10 000 |
| Measurement method | — | Four-wire circuit |
| SYSTEM | ||
| Interfaces | — | USB and Ethernet |
| Expansion | — | Up to 20 PT-104 units / 80 channels |
| Power | — | No external power supply for USB use |
Applications
Teaching and Lab Experiments
Compact USB-connected data acquisition for university labs, teaching benches and student project setups.
Machine and Process Logging
Long-term voltage, current, temperature or resistance logging for process visibility and troubleshooting.
Prototype Validation
Record sensor outputs, control signals and environmental parameters during product development.
Verification Records
Generate repeatable test records for incoming inspection, burn-in checks and validation workflows.
Energy and Environment Monitoring
Track temperature, current or low-voltage sensor signals over hours, days or weeks.
Custom Data Capture
Use SDK/API workflows to integrate data acquisition into custom scripts and dashboards.
