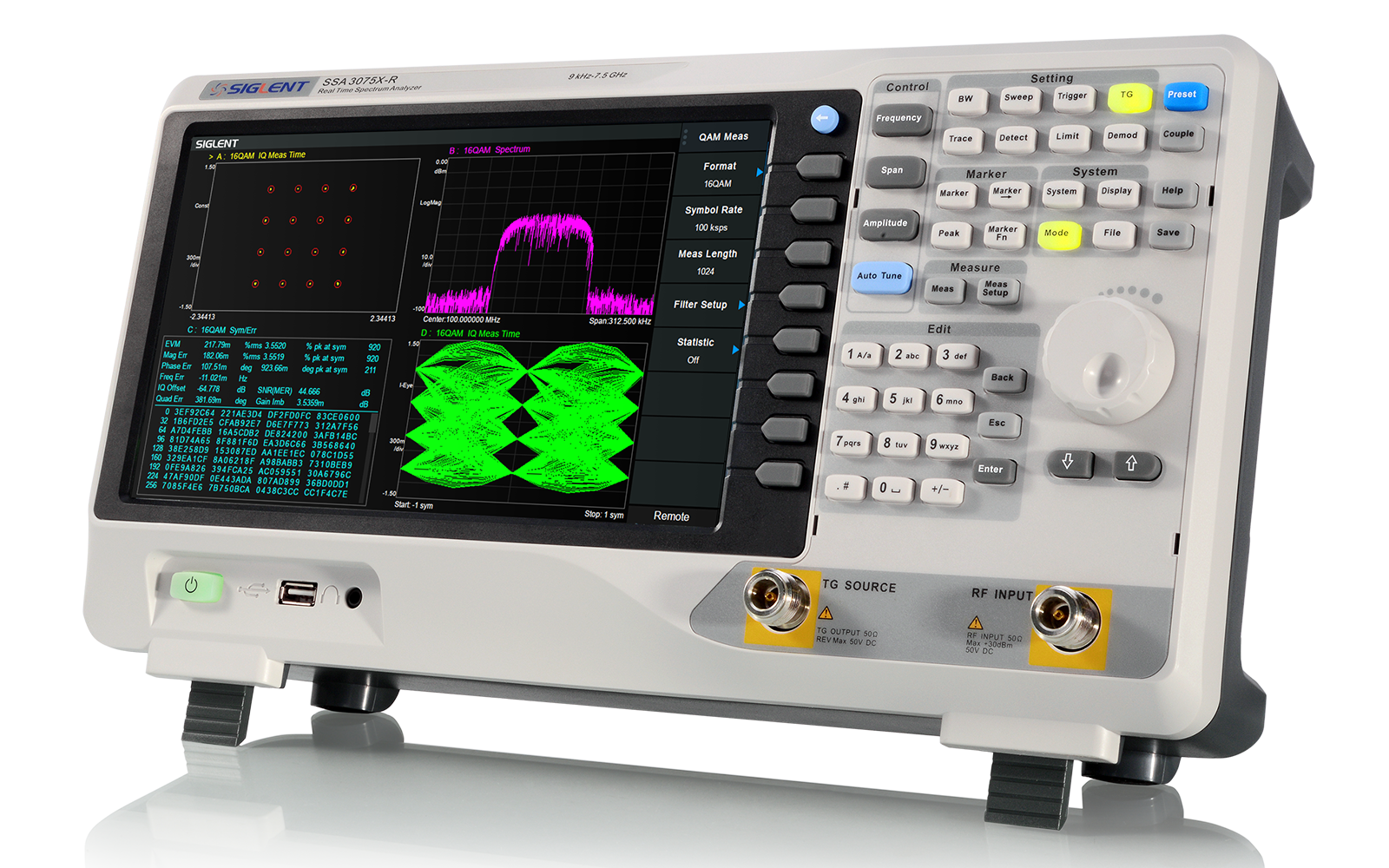

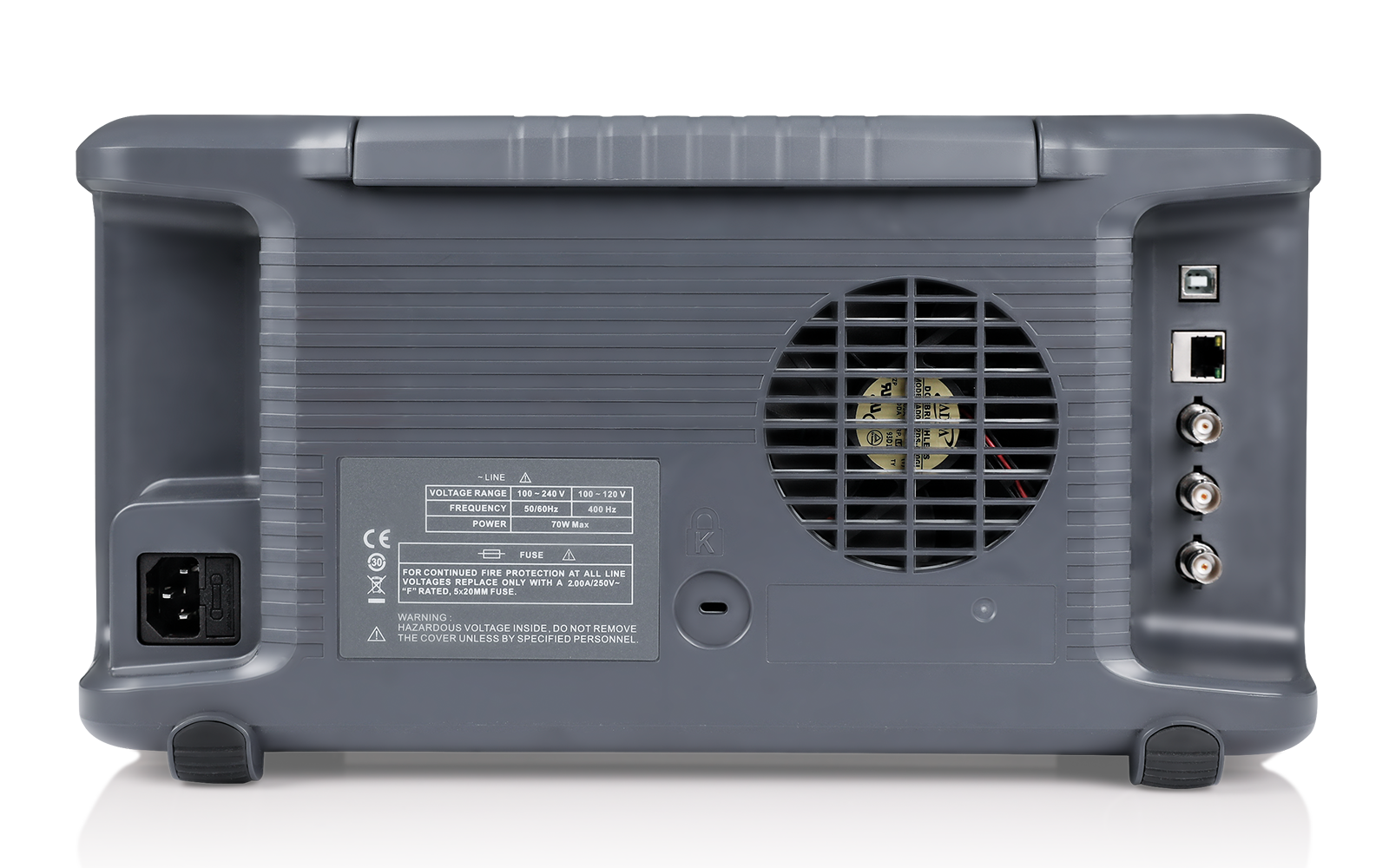

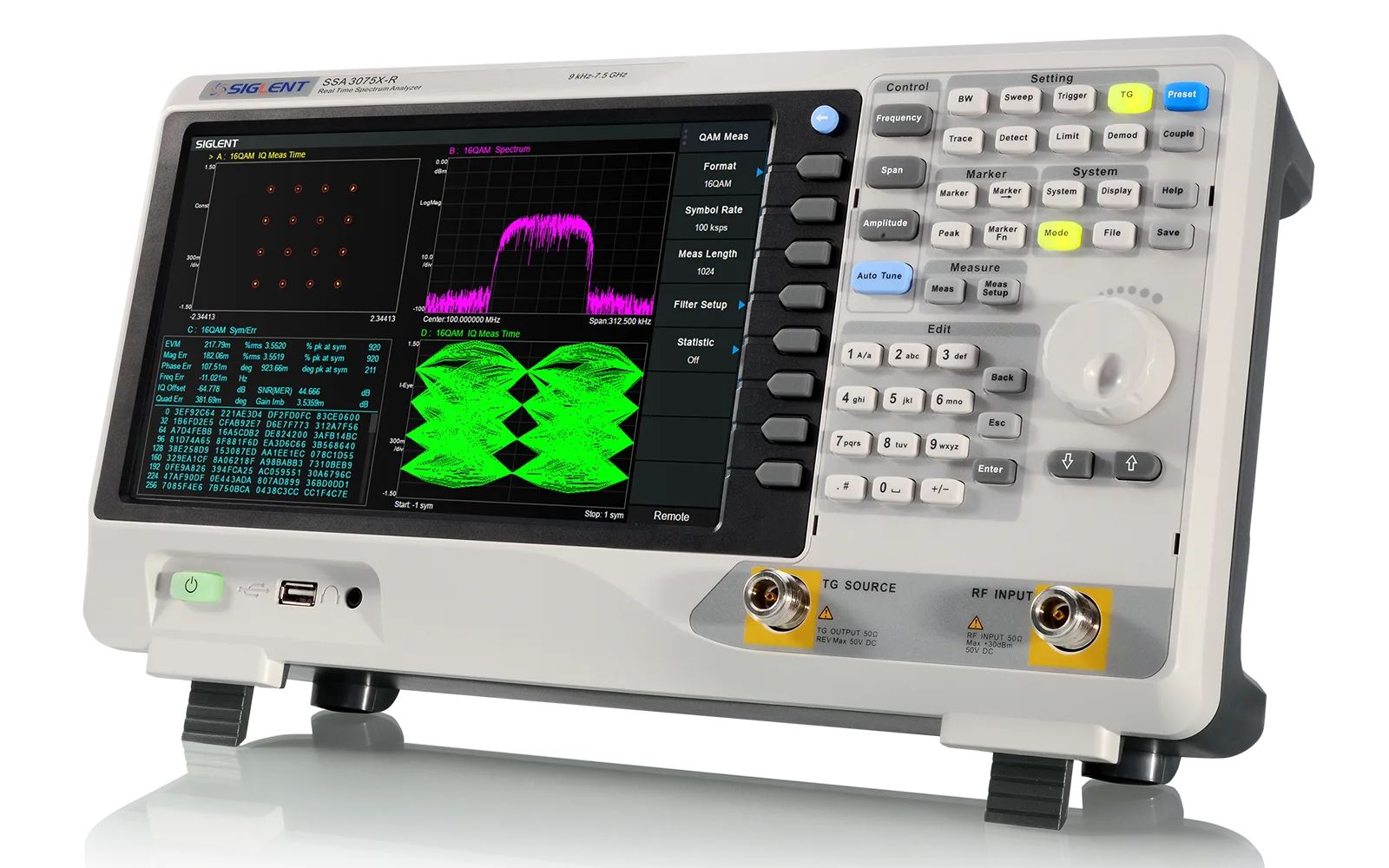

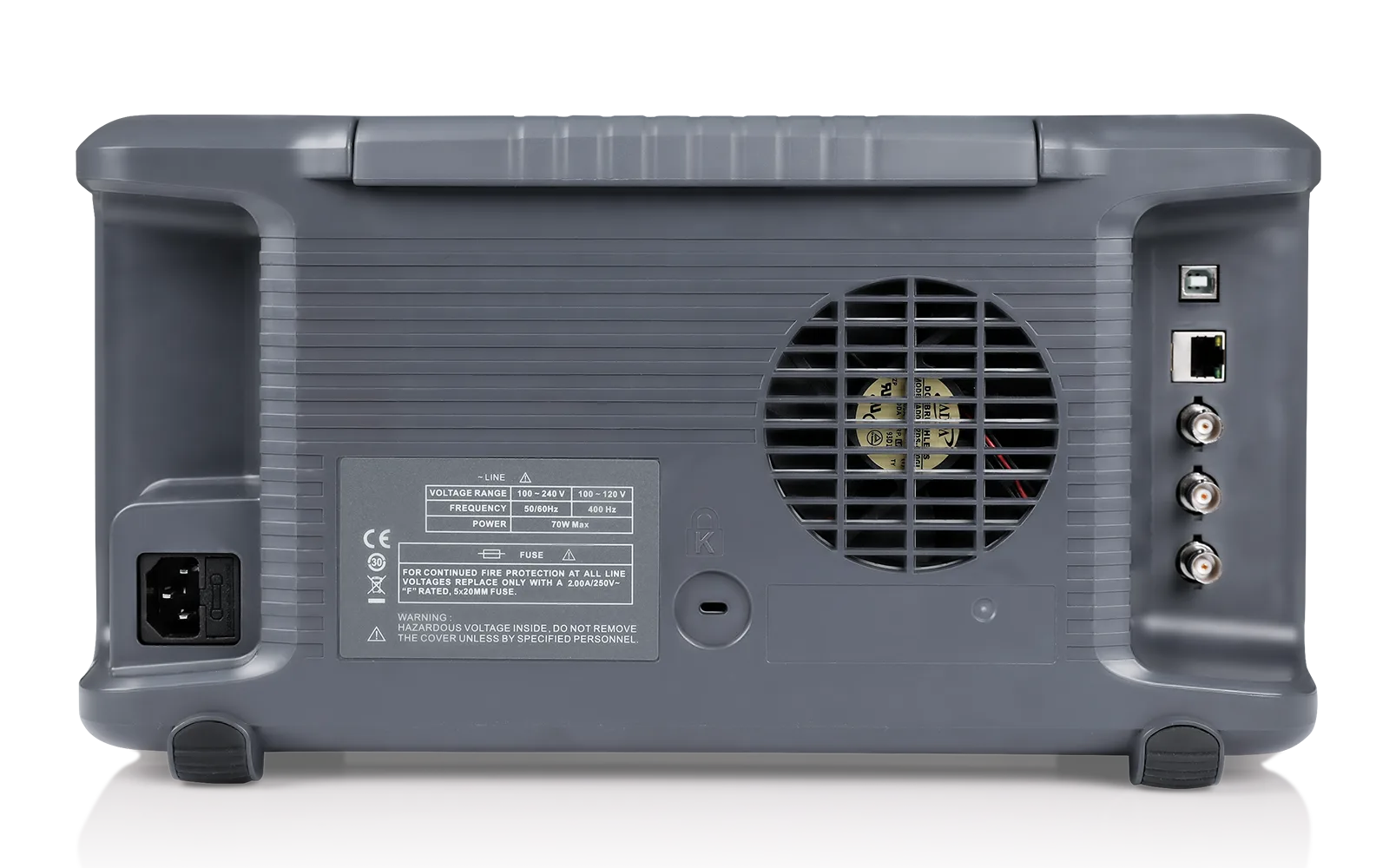

SSA3000X-R — Real-time Spectrum Analyser, 9 kHz to 7.5 GHz
Real-time spectrum analyser family for transient RF monitoring and swept spectrum analysis — 3.2 GHz, 5.0 GHz and 7.5 GHz models with up to 40 MHz real-time bandwidth, 7.20 μs 100% POI, VNA and distance-to-fault functions.
| Model | Frequency Range | RBW | Phase Noise | DANL |
|---|---|---|---|---|
| SSA3032X-R | 9 kHz – 3.2 GHz | 1 Hz – 3 MHz | < −98 dBc/Hz | −165 dBm/Hz |
| SSA3050X-R | 9 kHz – 5.0 GHz | 1 Hz – 3 MHz | < −98 dBc/Hz | −165 dBm/Hz |
| SSA3075X-R | 9 kHz – 7.5 GHz | 1 Hz – 3 MHz | < −98 dBc/Hz | −165 dBm/Hz |
Key Features
Up to 7.5 GHz Real-time Spectrum Analysis
The SSA3000X-R family covers 3.2 GHz, 5.0 GHz and 7.5 GHz models, giving a practical platform for sub-6 wireless, IoT, Bluetooth, Wi-Fi, broadcast monitoring and RF maintenance tasks.
40 MHz Real-time Analysis Bandwidth

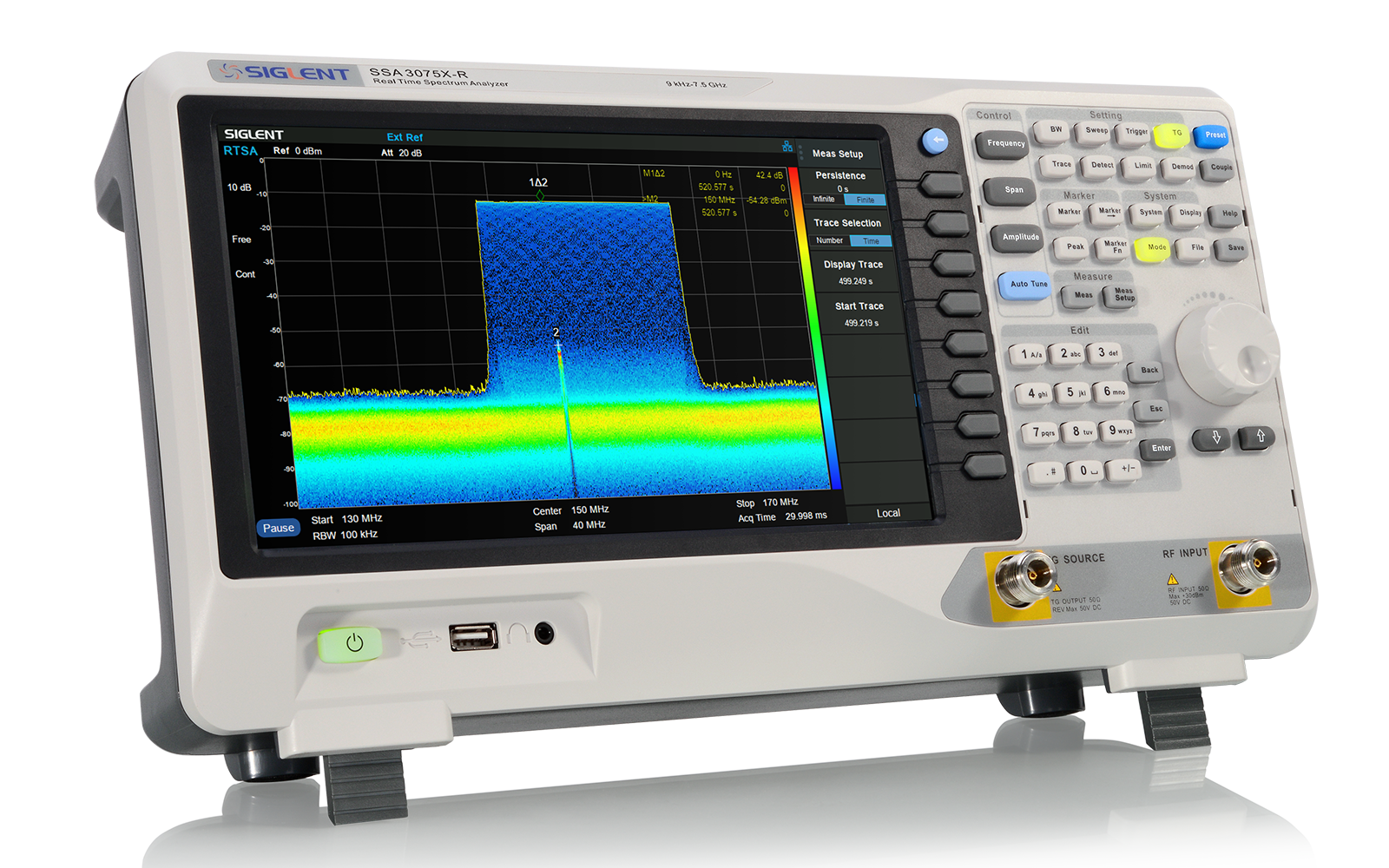

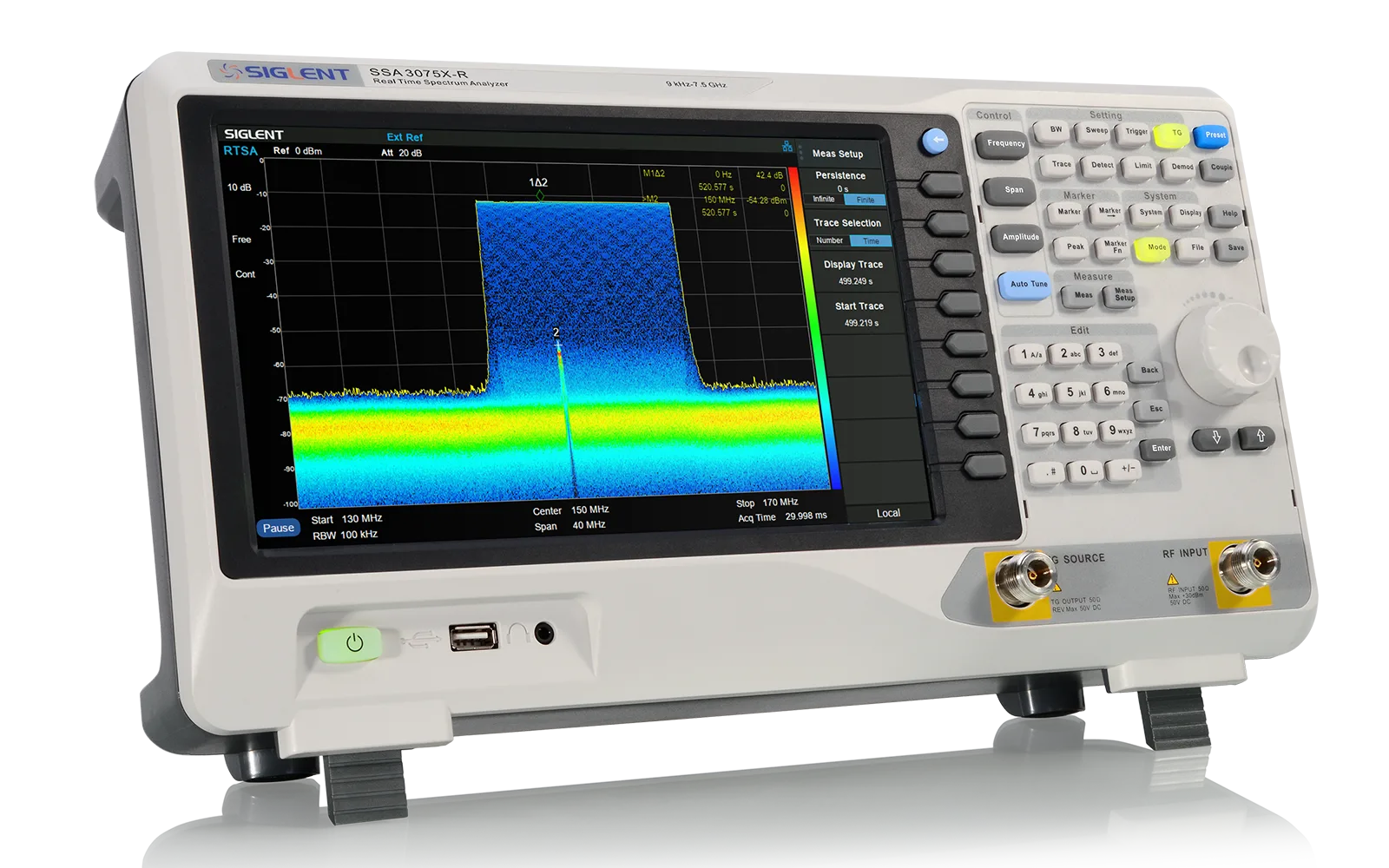

The real-time engine captures transient, burst and frequency-hopping signals across up to 40 MHz bandwidth with density, spectrogram, PvT and multi-view displays.
7.20 μs 100% Probability of Intercept
The analyzer is positioned for gap-free capture of short events down to 7.20 μs at 100% POI, which is the key reason to choose the X-R version over a basic swept-only analyzer.
−165 dBm/Hz DANL and Standard Preamplifier
Low displayed average noise level with preamplifier support helps reveal weak carriers, spurs and interference close to the measurement floor.
VNA and Distance-to-Fault Functions Standard
SIGLENT lists vector network analysis and distance-to-fault functions as included, supporting S11/S21, VSWR, return loss and cable/antenna fault location workflows.
EMI and Modulation Analysis Options
Optional EMI pre-compliance and modulation-analysis capabilities support CISPR-style scans, AM/FM analysis and vector modulation checks when those licenses are required.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| FREQUENCY | ||
| Frequency range | — | 9 kHz to 3.2 GHz / 5.0 GHz / 7.5 GHz, model-dependent |
| Models | — | SSA3032X-R · SSA3050X-R · SSA3075X-R |
| Resolution bandwidth | Hz | 1 Hz to 3 MHz |
| Tracking generator | — | Standard |
| REAL-TIME ANALYSIS | ||
| Real-time analysis bandwidth | MHz | Up to 40 |
| 100% POI | µs | 7.20 |
| Display modes | — | Density · Spectrogram · PvT · Multi-view |
| Trigger / capture | — | Real-time triggering and RF data capture for transient signals |
| SPECTRAL PERFORMANCE | ||
| DANL | dBm/Hz | −165 typ. |
| Phase noise | dBc/Hz | < −98 @ 1 GHz, 10 kHz offset typ. |
| Level measurement uncertainty | dB | < 0.7 typ. |
| MEASUREMENT FUNCTIONS | ||
| VNA mode | — | Standard, 100 kHz up to model frequency |
| Distance to fault | — | Standard cable/antenna test function |
| Advanced measurements | — | Channel power · ACPR · OBW · phase noise · monitor functions, option-dependent |
| EMI pre-compliance | — | Optional EMI filter and quasi-peak detector kit |
| Modulation analysis | — | Optional AM/FM and digital modulation analysis |
| DISPLAY / REMOTE | ||
| Display | — | 10.1-inch multi-touch screen |
| Remote control | — | Web browser remote control on PC and mobile terminals |
Applications
Real-time Interference Hunting
Capture short, bursty and frequency-hopping interferers that swept analyzers can miss.
Wi-Fi / Bluetooth / IoT Coexistence
Monitor channel occupancy and intermittent coexistence issues in crowded ISM and sub-6 GHz bands.
EMI Pre-compliance
Use EMI filter and quasi-peak detector options for conducted and radiated pre-compliance workflows.
Cable and Antenna Test
Use VNA and distance-to-fault functions for return loss, VSWR and cable fault-location checks.
RF Design and Debug
Measure spurs, harmonics, phase noise, channel power, OBW and ACPR during transmitter and module development.
Automated RF Module Test
Use SCPI and web remote control for repeatable spectrum checks in RF production and maintenance benches.
