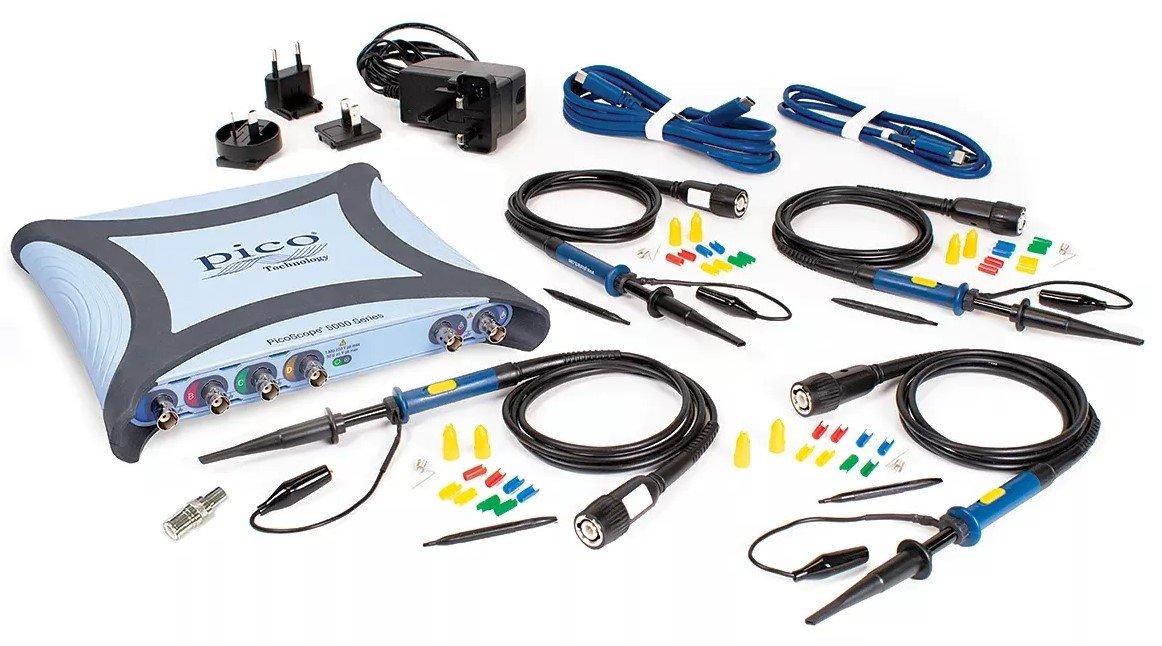

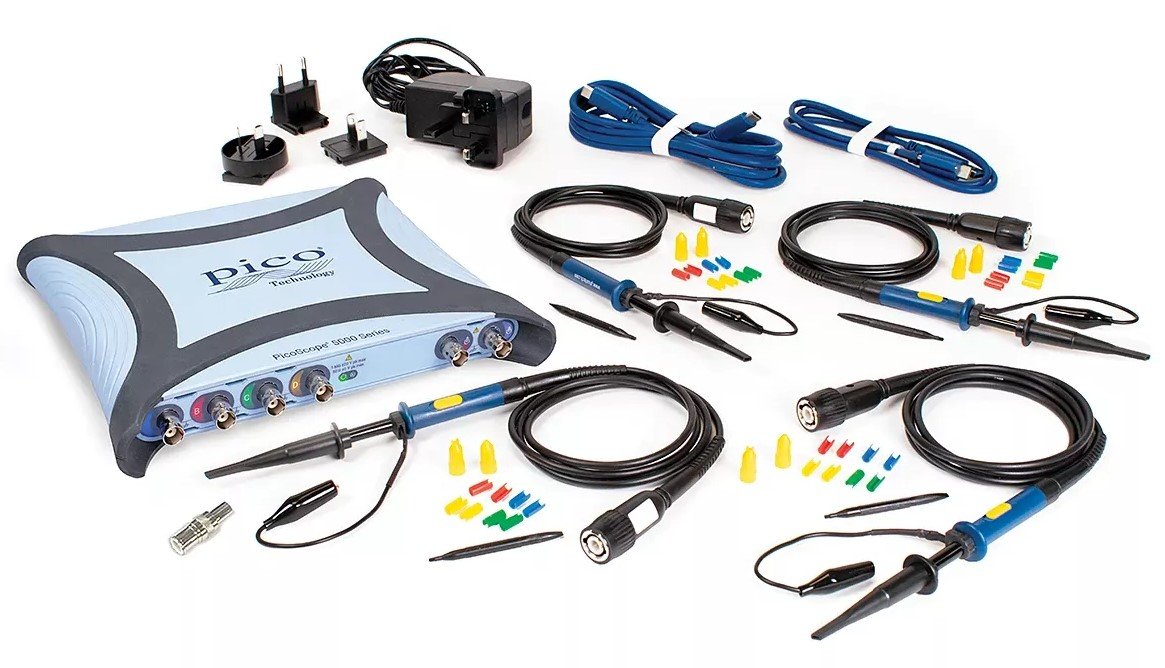

PicoScope 5000E Series — 16-bit Precision USB Oscilloscopes
Four-channel USB-C oscilloscope family for precision analog analysis, power-rail ripple, sensor signals and mixed-signal debug. Native 16-bit models cover 60 / 100 / 200 MHz, while Plus models add switchable 8/16-bit operation with up to 500 MHz bandwidth, 5 GS/s sampling and 2 GS memory.
| Model Group | 16-bit Bandwidth | 8-bit Plus Bandwidth | Channels | Memory | Notes |
|---|---|---|---|---|---|
| 5462E / 5462E MSO | 60 MHz | — | 4 CH / 4 CH + 16D | Up to 1 GS/ch | Native 16-bit precision |
| 5463E / 5463E MSO | 100 MHz | — | 4 CH / 4 CH + 16D | Up to 1 GS/ch | Native 16-bit precision |
| 5464E / 5464E MSO | 200 MHz | — | 4 CH / 4 CH + 16D | Up to 1 GS/ch | Native 16-bit precision |
| 5462E+ / 5462E+ MSO | 60 MHz | 200 MHz | 4 CH / 4 CH + 16D | Up to 2 GS/ch | Switchable 8/16-bit Plus |
| 5463E+ / 5463E+ MSO | 100 MHz | 350 MHz | 4 CH / 4 CH + 16D | Up to 2 GS/ch | Switchable 8/16-bit Plus |
| 5464E+ / 5464E+ MSO | 200 MHz | 500 MHz | 4 CH / 4 CH + 16D | Up to 2 GS/ch | Switchable 8/16-bit Plus |
Key Features
Native 16-bit Precision on Four Channels
The 5000E family is positioned for low-level analog work with 16-bit resolution on each of its four channels, supporting power-supply ripple, distortion and precision sensor measurements.
Plus Models: Speed or Precision
5000E Plus models can run in 16-bit mode for precision or 8-bit mode for higher bandwidth and faster sampling, reaching up to 500 MHz and 5 GS/s.
Deep Memory for Long Captures
Capture memory scales up to 1 GS per channel in 16-bit mode and up to 2 GS per channel in 8-bit Plus mode, supporting long data packets and detailed transient analysis.
Mixed-signal Expansion

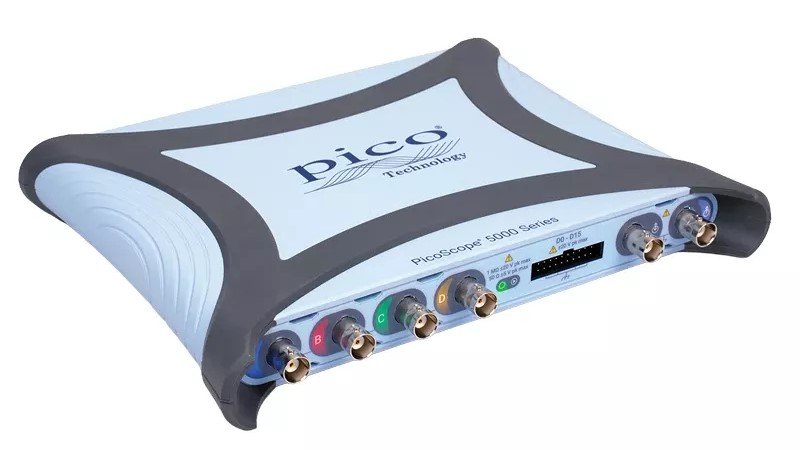

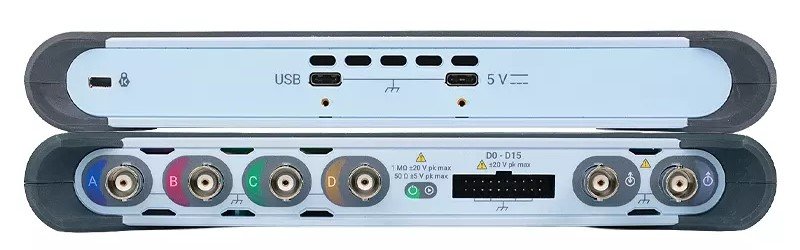

MSO variants add 16 digital channels, allowing analog and digital signals to be time-correlated during embedded, power-electronics and communications debug.
Built-in Signal Generation
Every model includes function-generator and arbitrary-waveform capabilities, with 200 MS/s AWG update rate, 32 kS buffer and 14-bit output resolution.
USB-C Bench and Field Workflow

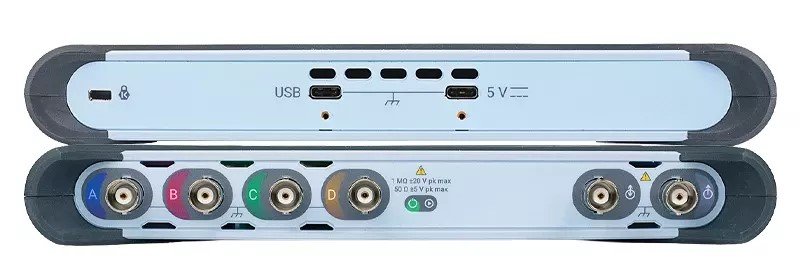

USB 5 Gbps Type-C connectivity, compact size below 0.7 kg and PicoSDK support make the series suitable for lab benches, portable validation and automated test systems.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| 5000E native 16-bit models | MHz | 60 / 100 / 200 |
| 5000E Plus 8-bit bandwidth | MHz | 200 / 350 / 500 |
| Analog channels | — | 4 |
| Digital channels | — | 16 on MSO variants |
| RESOLUTION / SAMPLING | ||
| Vertical resolution | bit | 16 on 5000E; 8 / 16 switchable on 5000E Plus |
| Enhanced vertical resolution | bit | Hardware resolution + 4 bits through processing |
| Maximum sample rate, 16-bit mode | GS/s | 2.5 with one channel; 1.25 with two channels; 625 MS/s with three or four channels |
| Maximum sample rate, Plus 8-bit mode | GS/s | 5 with one channel; 2.5 with two channels; 1.25 with three or four channels |
| MEMORY / DIGITAL | ||
| Capture memory, 16-bit mode | — | Up to 1 GS with one channel; 512 MS with two; 256 MS with three or four |
| Capture memory, Plus 8-bit mode | — | Up to 2 GS with one channel; 1 GS with two; 512 MS with three or four |
| Digital input frequency | MHz | 100 MHz / 200 Mbit/s on MSO models |
| Minimum digital pulse width | ns | 5 |
| SIGNAL GENERATION / CONTROL | ||
| AWG update rate | MS/s | 200 |
| AWG buffer | kS | 32 |
| AWG vertical resolution | bit | 14 |
| Function-generator range | — | Simple waveforms, PRBS, custom waveforms and sweeps |
| Serial decoding | — | 40 protocol decoders, subject to channel and bandwidth availability |
| PC connectivity | — | USB 5 Gbps Type-C; Hi-Speed compatible |
| Power | — | Single USB-C 3 A port or USB plus external 5 V Type-C PSU |
| Dimensions | mm | 221 × 173 × 30 |
| Weight | kg | < 0.7 |
| Warranty | years | 5 |
Applications
Sensor and Low-level Signal Capture
Use 16-bit resolution and low-noise front-end performance for sensor, audio, biomedical and instrumentation measurements.
Power-rail Ripple and Distortion
Measure small ripple and transient behaviour on larger DC rails using high resolution, deep memory and math/FFT analysis.
Mixed Analog / Digital Debug
MSO variants support correlation of four analog channels with 16 digital lines for control boards, power converters and communication nodes.
Fast-edge Debug with Plus Models
Use 8-bit Plus mode for higher bandwidth and faster timing capture when edge timing, ringing and overshoot are the priority.
PicoSDK-based Test Systems
Build C, C#, Python, LabVIEW or MATLAB workflows for automated validation, multi-scope test racks and production measurements.
Advanced USB Oscilloscope Platform
Combine high-resolution measurement, FFT analysis, serial decoding and built-in waveform generation in a compact USB instrument.
