SDS1000X HD — 12-bit HD Oscilloscopes, 100 MHz to 200 MHz
SIGLENT SDS1000X HD oscilloscopes provide 12-bit resolution, 2 GSa/s sampling, up to 100 Mpts/ch record length and up to 500,000 wfm/s capture rate in Sequence mode. The series covers 100 MHz and 200 MHz models with 2 or 4 analog channels, optional 16 digital channels, serial decode, Bode plot, power analysis and remote web control.
| Model | Bandwidth | Channels | Sample Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|
| SDS1102X HD | 100 MHz | 2 + EXT · 16 digital MSO option | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s sequence |
| SDS1104X HD | 100 MHz | 4 + EXT · 16 digital MSO option | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s sequence |
| SDS1202X HD | 200 MHz | 2 + EXT · 16 digital MSO option | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s sequence |
| SDS1204X HD | 200 MHz | 4 + EXT · 16 digital MSO option | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s sequence |
Key Features
12-bit Resolution · Low Noise Front End
12-bit ADC resolution and a typical 70 µVrms noise floor at 200 MHz full bandwidth help reveal small waveform details that are often hidden on 8-bit entry scopes.
100 MHz and 200 MHz Models
The series is available in 2-channel and 4-channel versions with external trigger input, making it suitable for embedded, power, education and general bench measurements.
2 GSa/s · Up to 100 Mpts/ch
2 GSa/s sampling and up to 100 Mpts/ch record length support longer captures of protocol activity, startup behaviour, control loops and intermittent faults.
SPO Capture and Sequence Mode
SPO technology provides up to 120,000 wfm/s in normal mode and up to 500,000 wfm/s in Sequence mode. Sequence and History functions support up to 80,000 segments or frames.

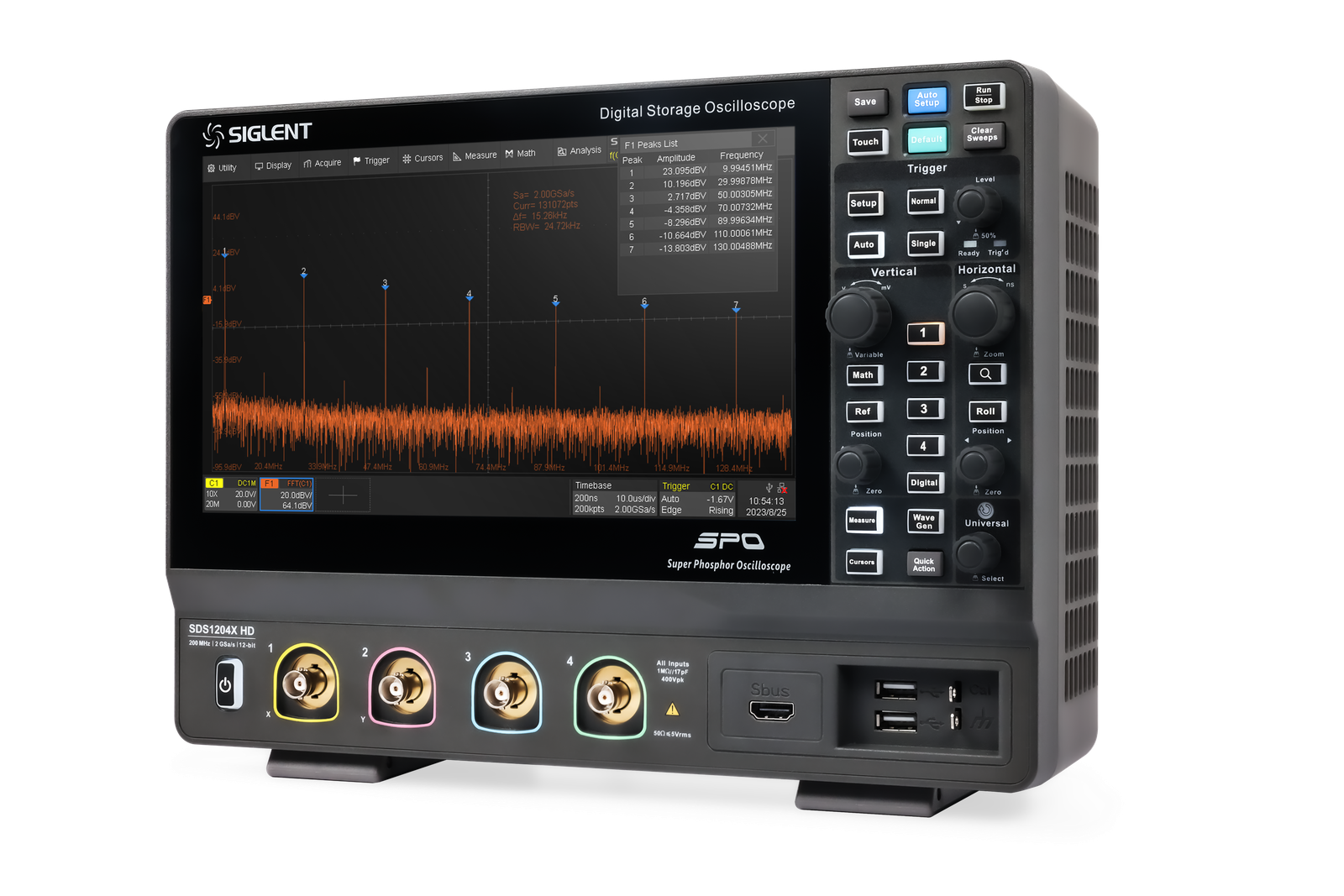

Serial Trigger and Decode
Serial trigger and decode support I²C, SPI, UART, CAN, LIN, CAN FD decode and FlexRay decode, with event-table correlation to the captured waveform.
Bode Plot, Power Analysis and Mask Test
Analysis tools include Search/Navigate, mask testing, Bode plot and power analysis for practical embedded and power-electronics validation workflows.
Math, FFT and 50+ Measurements
Measurement tools include statistics, histogram, track, trend and gating. Math functions include 2 Mpts FFT, arithmetic operations, integration, differentiation and formula editing.

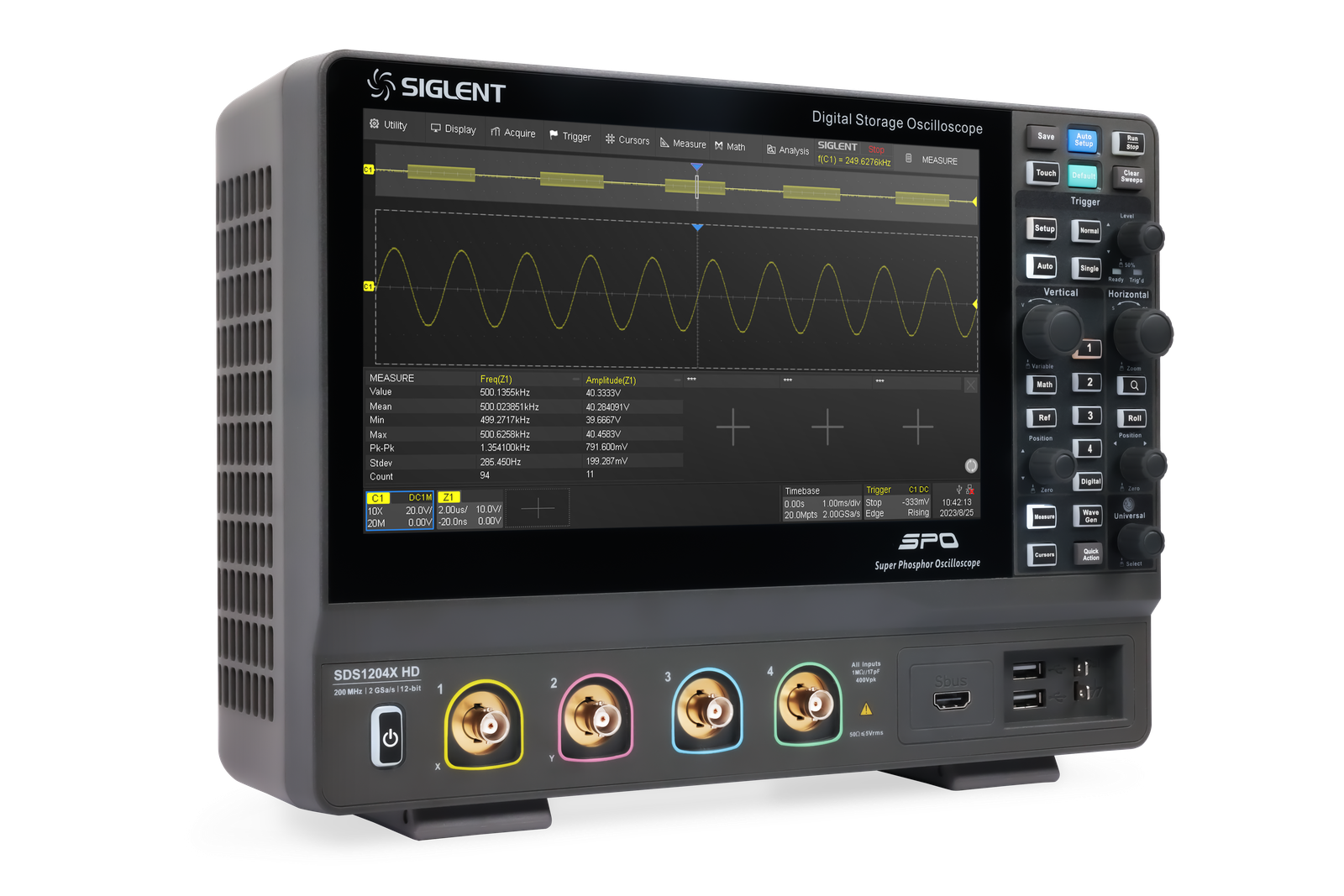

10.1-inch Touch Display and Remote Control
The 10.1-inch capacitive touch display supports efficient operation, while LAN web control, SCPI, USB and external mouse/keyboard support help in lab and automated setups.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VERTICAL | ||
| ADC resolution | bit | 12 |
| Bandwidth | MHz | 100 / 200 model-dependent |
| Analog channels | — | 2 or 4 + EXT |
| Digital channels | — | 16 with MSO option |
| Noise floor | µVrms | As low as 70 at 200 MHz full bandwidth |
| HORIZONTAL | ||
| Sample rate | GSa/s | Up to 2 |
| Record length | Mpts/ch | Up to 100 |
| Waveform capture rate | wfm/s | 120,000 normal mode · 500,000 sequence mode |
| Sequence / History | frames | Up to 80,000 segments / frames |
| TRIGGER AND DECODE | ||
| Trigger types | — | Edge · Slope · Pulse width · Window · Runt · Interval · Dropout · Pattern · Video/HDTV · Qualified · Nth edge · Delay · Setup/Hold · Serial bus |
| Serial decode | — | I²C · SPI · UART · CAN · LIN · CAN FD decode · FlexRay decode |
| ANALYSIS | ||
| Analysis tools | — | Search · Navigate · Counter · Bode plot · Power analysis · Mask test |
| Math / FFT | — | 4 math traces · 2 Mpts FFT · formula editor |
| Waveform generator | MHz | 25 MHz option |
| DISPLAY | ||
| Screen | — | 10.1-inch TFT-LCD capacitive touch · 1024 × 600 |
| Display modes | — | 256-level intensity grading · colour temperature |
| CONNECTIVITY | ||

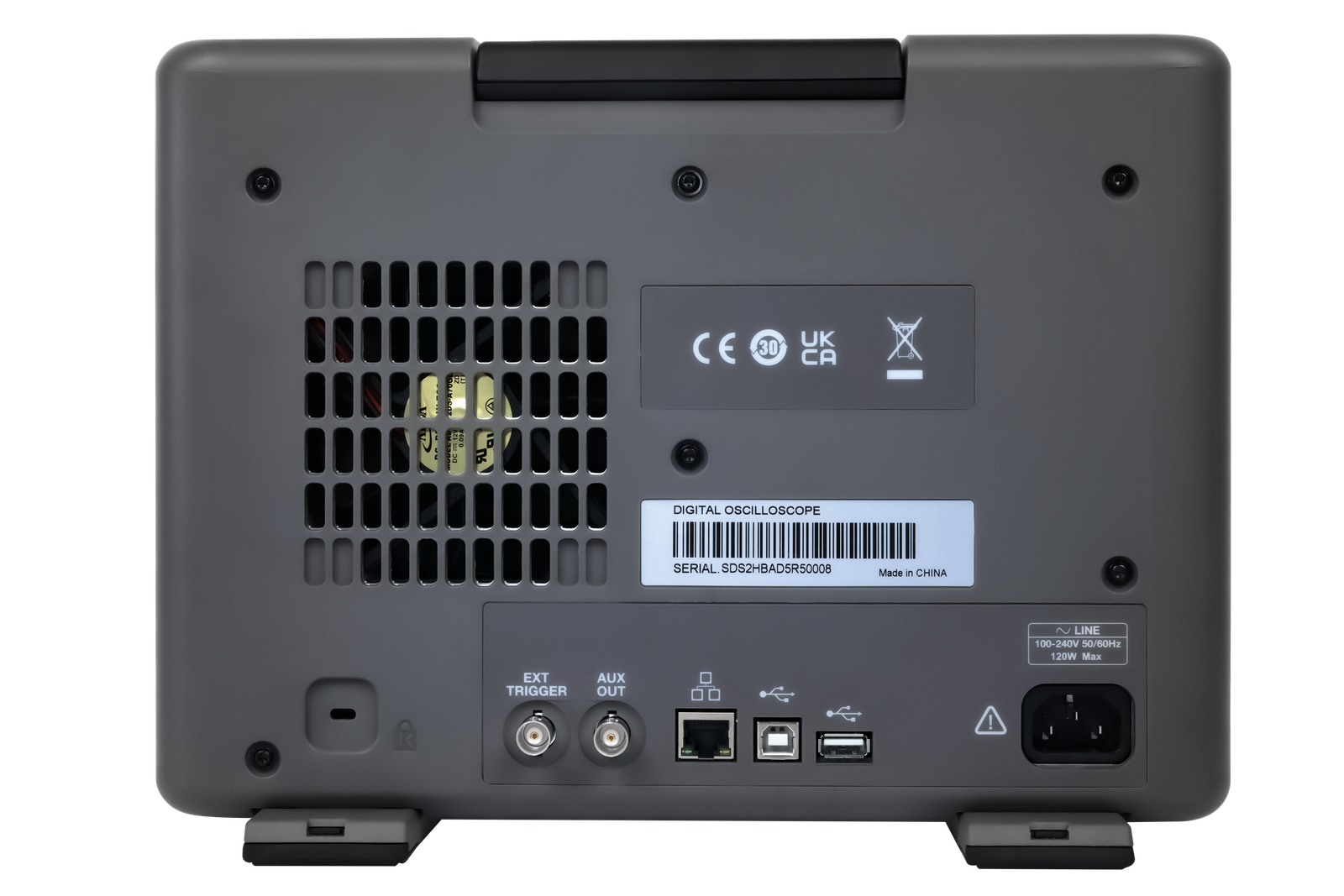

| Interfaces | — | USB Host · USB Device/USBTMC · LAN/VXI-11/Telnet/Socket · Pass/Fail · Trigger Out |
| Remote control | — | Built-in web server · SCPI · external mouse and keyboard support |
Applications
Embedded System Debug
Serial decode, long memory and mixed-signal capability support firmware-hardware correlation across common digital buses.
Power Supply and Loop-response Testing
12-bit resolution, Bode plot and power analysis support ripple, startup, switching behaviour and control-loop measurements.
CAN / LIN / FlexRay Debug
CAN, LIN, CAN FD decode and FlexRay decode help with ECU and vehicle-network troubleshooting at the bench level.
Automated Waveform QA
Mask testing, pass/fail output, LAN control and SCPI make the series usable for basic validation and production test workflows.
University and Training Labs
A practical 12-bit oscilloscope platform for undergraduate embedded systems, power electronics and measurement training labs.
Low-noise Signal Inspection
100 MHz and 200 MHz bandwidth options cover analog, digital and mixed-signal debugging where resolution and low noise matter more than GHz bandwidth.
