SHS800X — 100 / 200 MHz Handheld Oscilloscopes with DMM
Portable five-in-one handheld instruments combining a 2-channel oscilloscope, True-RMS multimeter, waveform recorder, sample/measurement logger, serial trigger/decode and FFT analysis. Suitable for field service, industrial maintenance, education and on-site troubleshooting.
| Model | Bandwidth | Channels | Sample Rate | Memory | DMM |
|---|---|---|---|---|---|
| SHS810X | 100 MHz | 2 | 1 GSa/s single · 500 MSa/s dual | 12 Mpts single · 6 Mpts dual | 6000-count True RMS |
| SHS820X | 200 MHz | 2 | 1 GSa/s single · 500 MSa/s dual | 12 Mpts single · 6 Mpts dual | 6000-count True RMS |
Key Features
Five-in-one Field Instrument

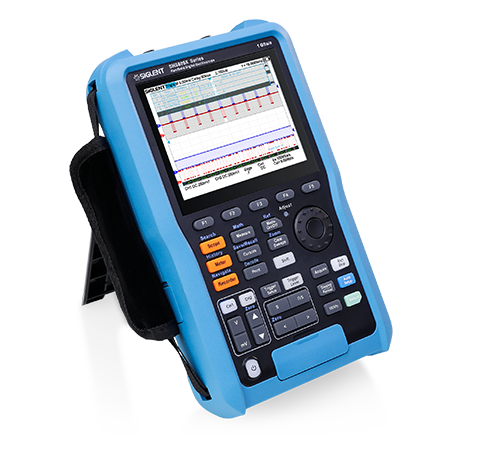

The SHS800X combines a 2-channel oscilloscope, True-RMS multimeter, recorder, logger, serial trigger/decode and FFT spectrum analysis in one portable instrument. It is practical when carrying a bench scope, DMM and logger separately is not realistic.
100 / 200 MHz Oscilloscope Models
SHS810X provides 100 MHz bandwidth and SHS820X provides 200 MHz bandwidth. Both use 2 scope channels with 1 GSa/s sampling when one channel is active and 500 MSa/s per channel when both channels are enabled.
12 Mpts Record Length
Up to 12 Mpts memory is available in single-channel acquisition, reducing the chance of missing intermittent field faults. With both channels active, the standard record length is 6 Mpts per channel.
6000-count True-RMS DMM

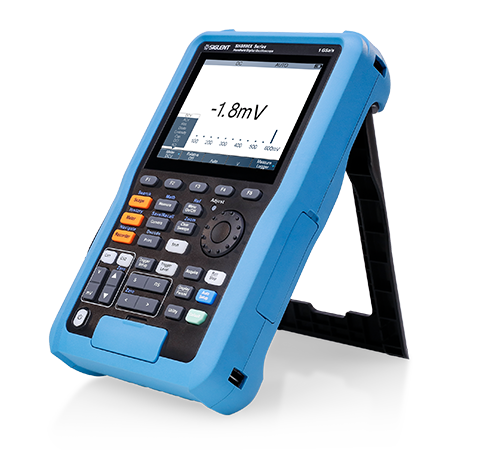

The built-in multimeter supports DC voltage, AC voltage, DC current, AC current, resistance, diode, capacitance and continuity tests. This keeps routine electrical checks and waveform diagnosis inside one handheld unit.
Recorder and Data Logger
Waveform recording up to 22 hours helps capture long-duration intermittent events. Sample logging and measurement logging support field diagnostics where the fault appears only during machine operation.
1 Mpts FFT and Serial Debug
FFT analysis up to 1 Mpts supports spectral inspection, with peak and marker functions. Serial trigger and decode help correlate I²C, SPI, UART, CAN and LIN bus activity with analog waveforms.
IP51 Portable Design
The 5.6-inch 640 × 480 display, rugged IP51 housing, shoulder-bag format and compact 276 × 168 × 68 mm body make the instrument suitable for plant-floor, lab and service work.
Battery-powered Operation
The removable 6900 mAh lithium battery supports up to 5.5 hours of operation. It can be charged inside the instrument or externally with the charger, which is useful for field-service teams.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| OSCILLOSCOPE | ||
| Bandwidth | MHz | 100 MHz — SHS810X · 200 MHz — SHS820X |
| Channels | — | 2 oscilloscope channels |
| Scope channel isolation | — | Non-isolated scope channels; use appropriate probes for floating/high-voltage systems |
| Sample rate | GSa/s | 1 single-channel · 0.5 per channel with two channels enabled |
| Record length | Mpts | 12 single-channel · 6 per channel with two channels enabled |
| Trigger types | — | Edge · Slope · Pulse width · Window · Runt · Interval · Timeout/dropout · Pattern |
| DMM / LOGGER | ||
| DMM resolution | counts | 6000 True RMS |
| DMM functions | — | DCV · ACV · DCI · ACI · Resistance · Diode · Capacitance · Continuity |
| Recorder | — | Waveform recording up to 22 hours · sample logger · measurement logger |
| FFT | pts | 1 Mpts with peaks and markers |
| DISPLAY / PHYSICAL | ||
| Display | — | 5.6-inch TFT-LCD · 640 × 480 |
| Battery | — | 6900 mAh lithium battery · up to 5.5 hours |
| IP rating | — | IP51 |
| Dimensions | mm | 276 × 168 × 68 |
| Mass | kg | 1.75 |
Applications
Industrial Equipment Troubleshooting
Portable oscilloscope, DMM and logger functions in one unit for on-site electronics and electrical service work.
Motor Drive and Control Panel Checks
Capture drive control signals, relay timing, sensor outputs and low-voltage control lines during plant-floor diagnostics.
Serial Bus and Mixed-signal Debug
Serial trigger/decode plus analog waveform capture for I²C, SPI, UART, CAN and LIN troubleshooting.
Battery and Power-module Diagnostics
Use the DMM, scope and recorder to check supply rails, charger behaviour, battery outputs and long-duration voltage events.
Portable Training Instrument
Useful for labs where students need oscilloscope, DMM, FFT and logger functions in a portable platform.
Intermittent Fault Capture
Waveform recorder and logging modes help capture slow, rare or condition-dependent faults that are difficult to reproduce on the bench.
