SHN900A Series — Portable Vector Network Analyzer
Portable 2-port VNA platform for RF field, production and maintenance work. The series covers 30 kHz to 14 GHz, 20 GHz or 26.5 GHz, with standard VNA, cable-and-antenna test, bias-tee, GPS/time/location logging and 4-hour battery operation.
| Model | Frequency Range | Ports | Dynamic Range | Output Range |
|---|---|---|---|---|
| SHN914A | 30 kHz – 14 GHz | 2 | 100 dB | -45 dBm to +10 dBm |
| SHN920A | 30 kHz – 20 GHz | 2 | 100 dB | -45 dBm to +10 dBm |
| SHN926A | 30 kHz – 26.5 GHz | 2 | 100 dB | -45 dBm to +10 dBm |
Key Features
Portable VNA to 26.5 GHz
Three handheld models cover 14 GHz, 20 GHz and 26.5 GHz for field RF components, antenna systems, transmission lines, tower amplifiers and microwave assemblies.
Standard 2-port Network Analysis

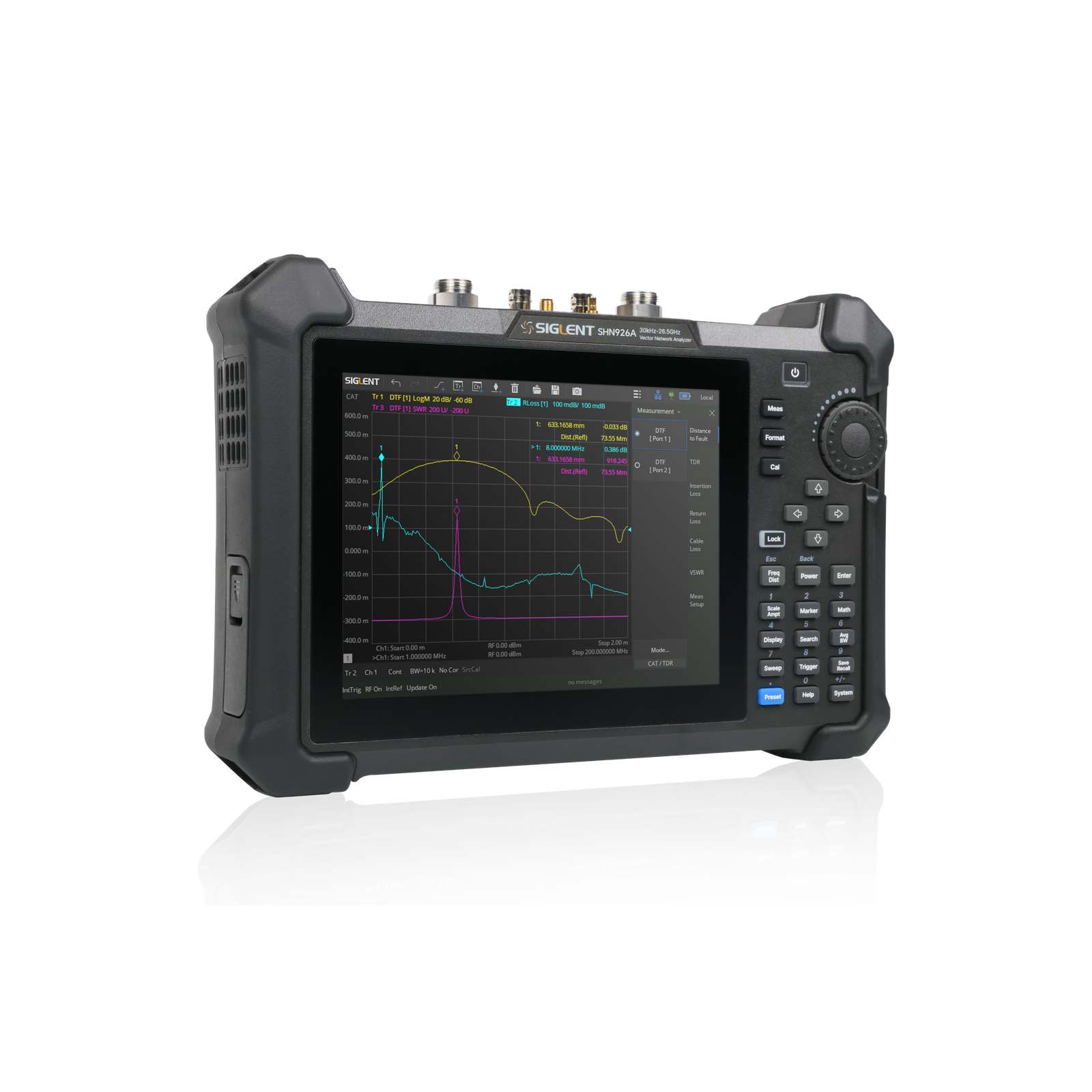

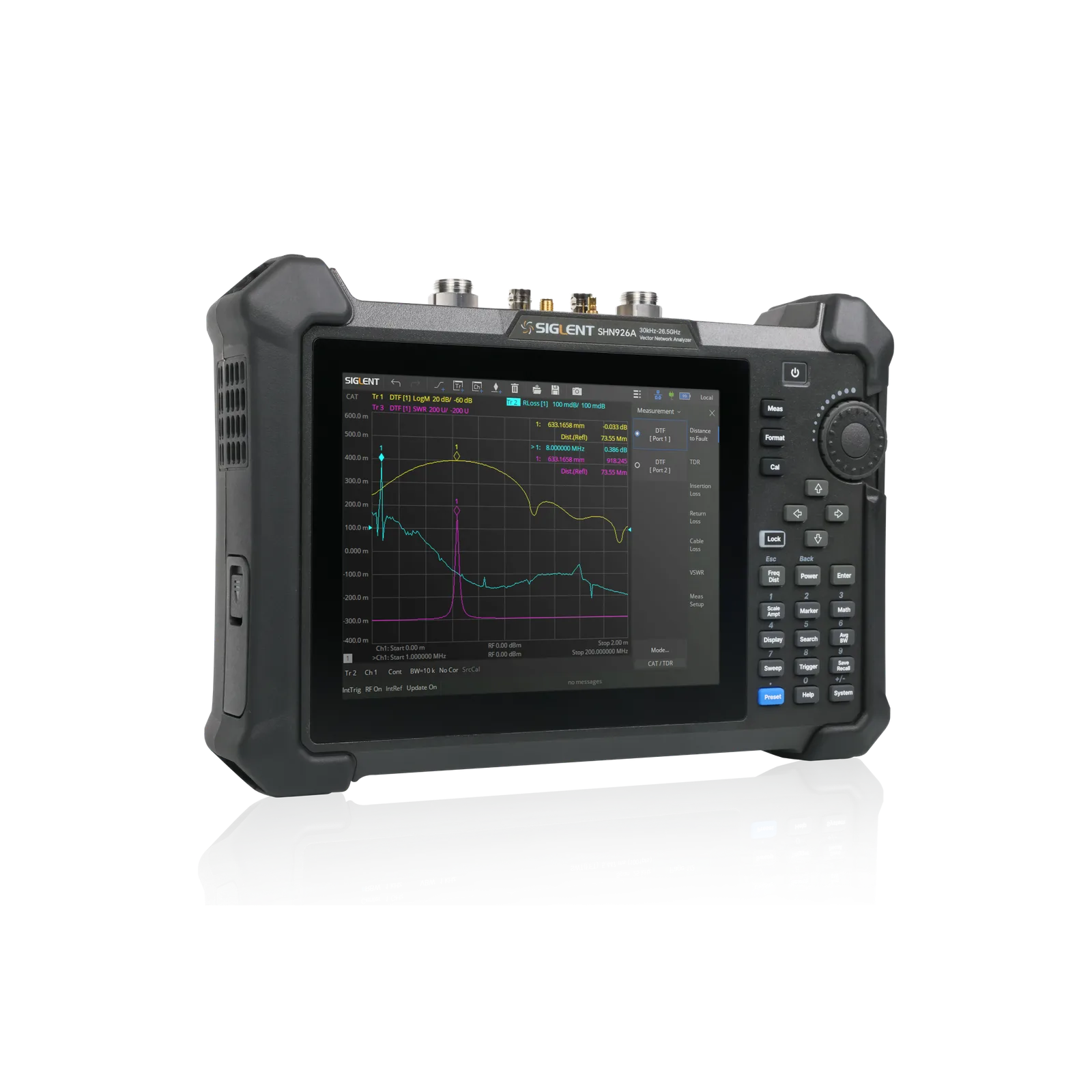

Supports full S-parameter workflows, differential-parameter measurement, receiver measurement, Smith chart, impedance conversion and port-matching debugging.
CAT and Distance-to-Fault Workflows

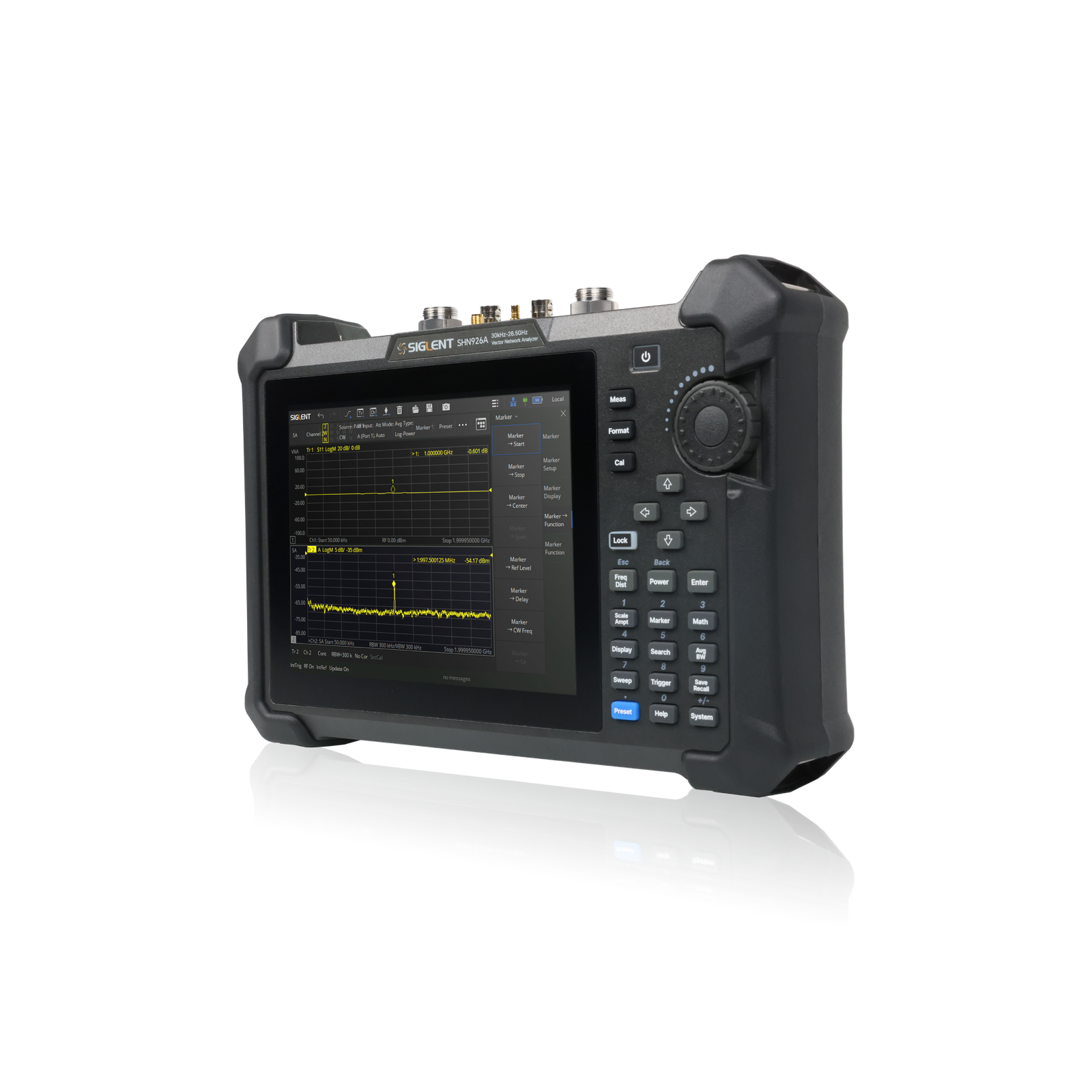

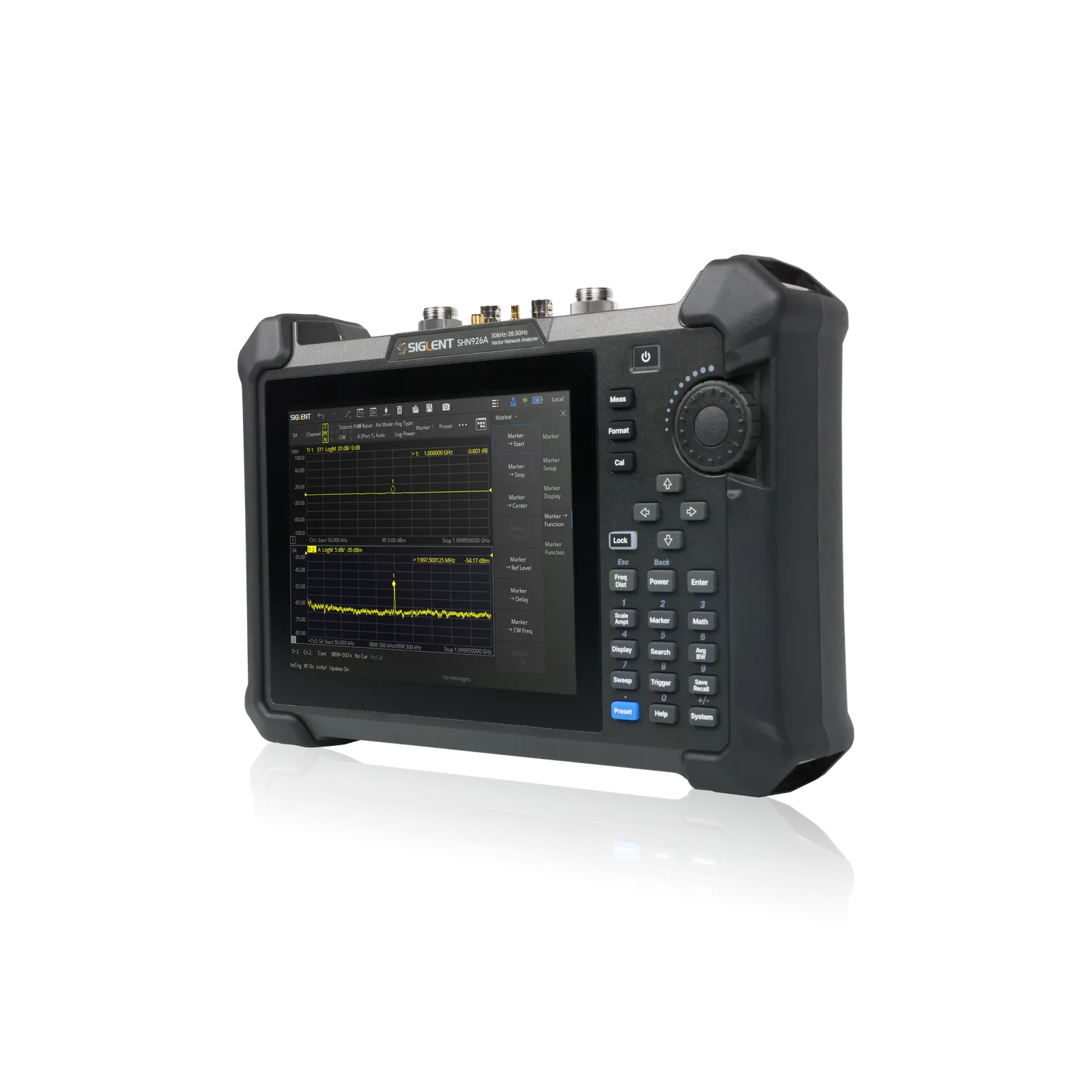

Cable and antenna test mode is standard for VSWR, return loss, single-port cable loss, antenna matching and distance-to-fault measurements during installation and maintenance.
Bias-Tee and GPS Included

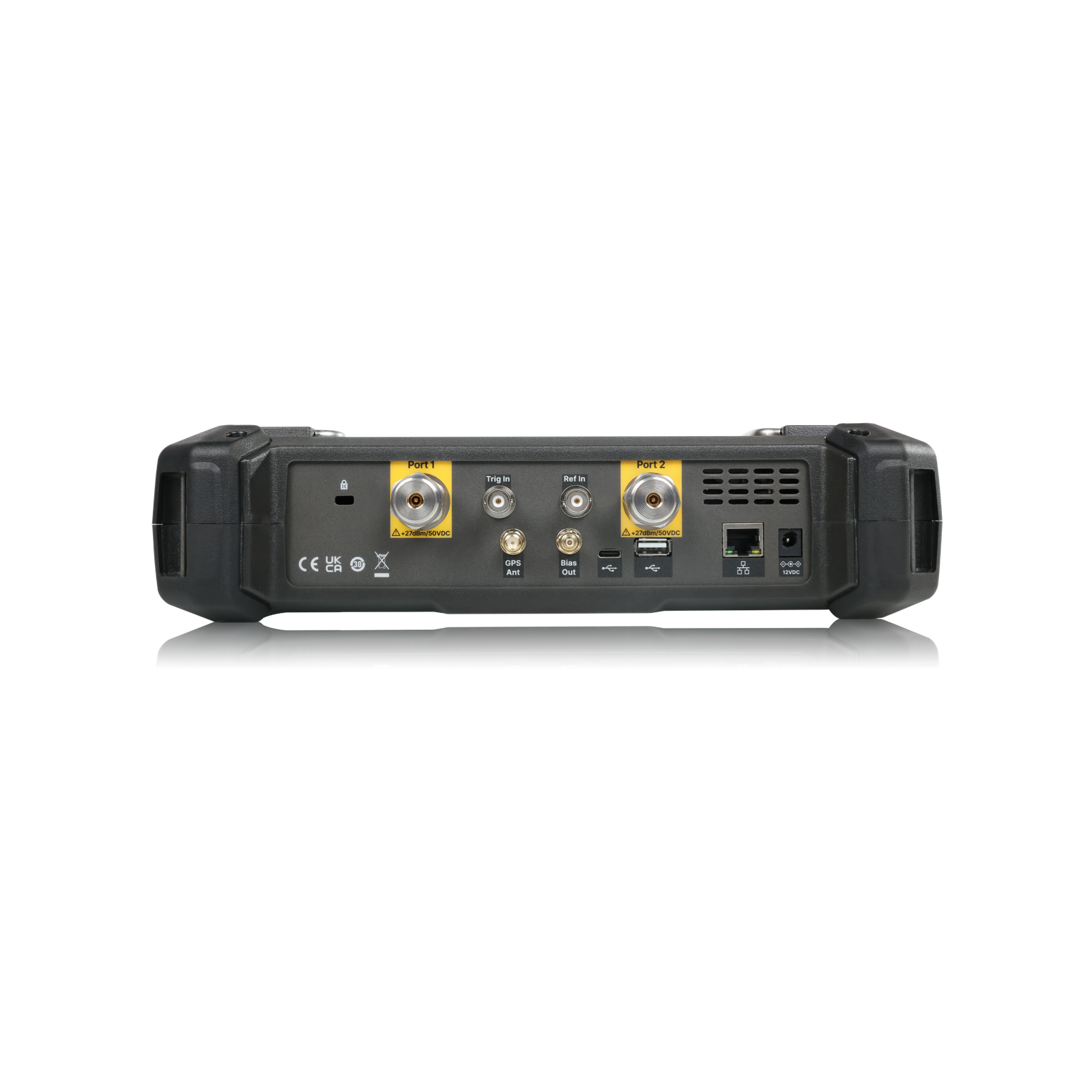

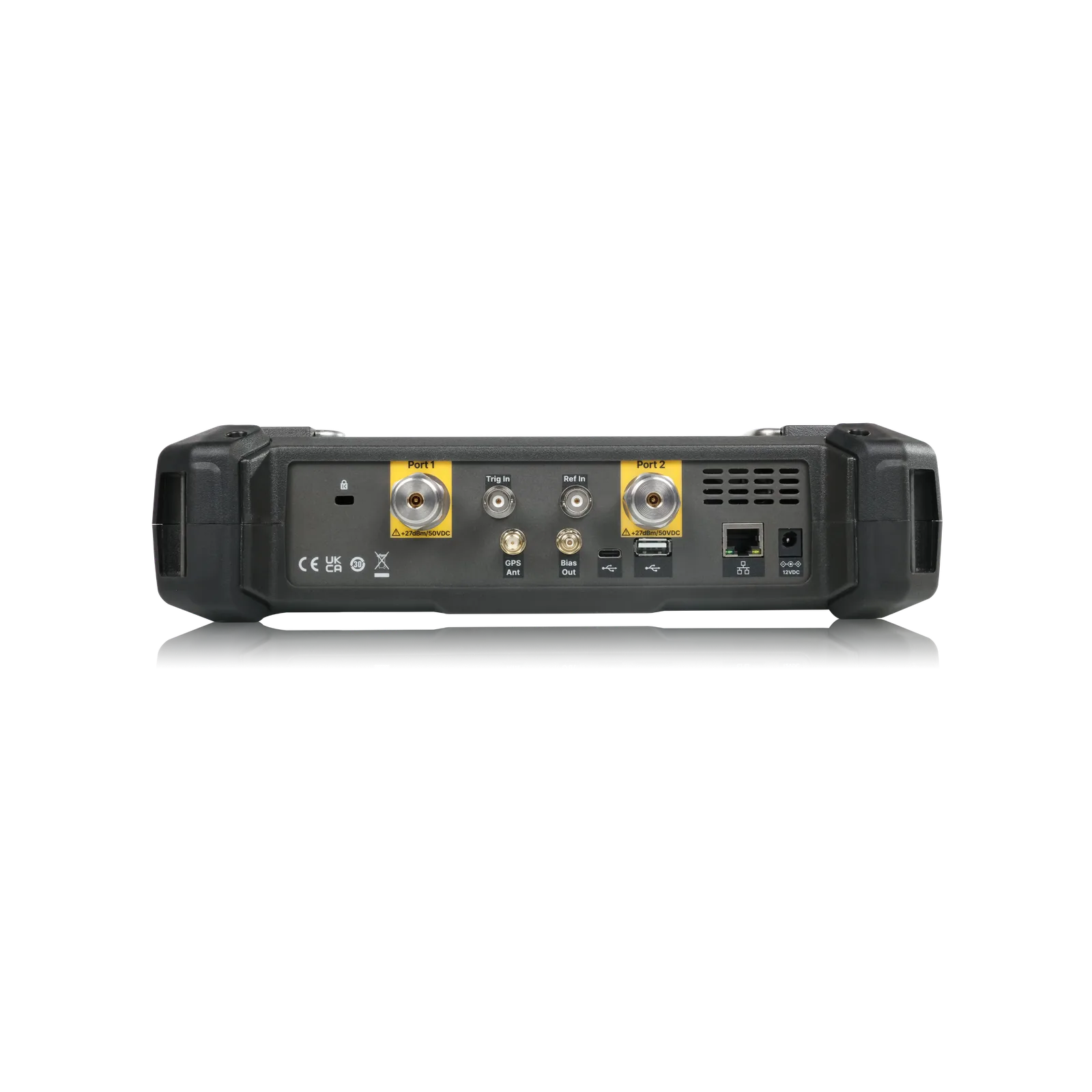

Standard bias-tee support helps power external measured objects, while GPS/time/location logging records field measurement position for site reports and traceability.
Field-ready Mechanical Package

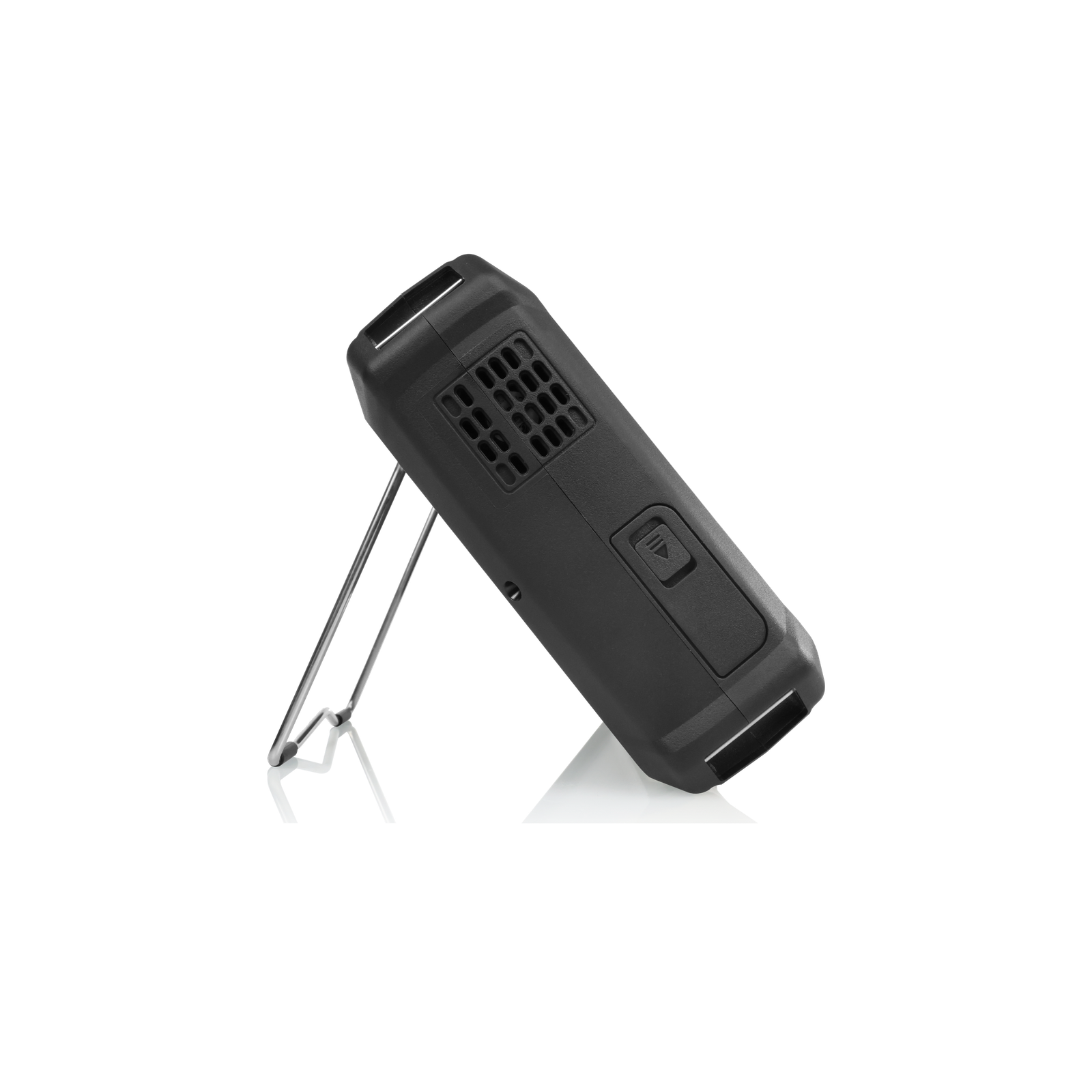

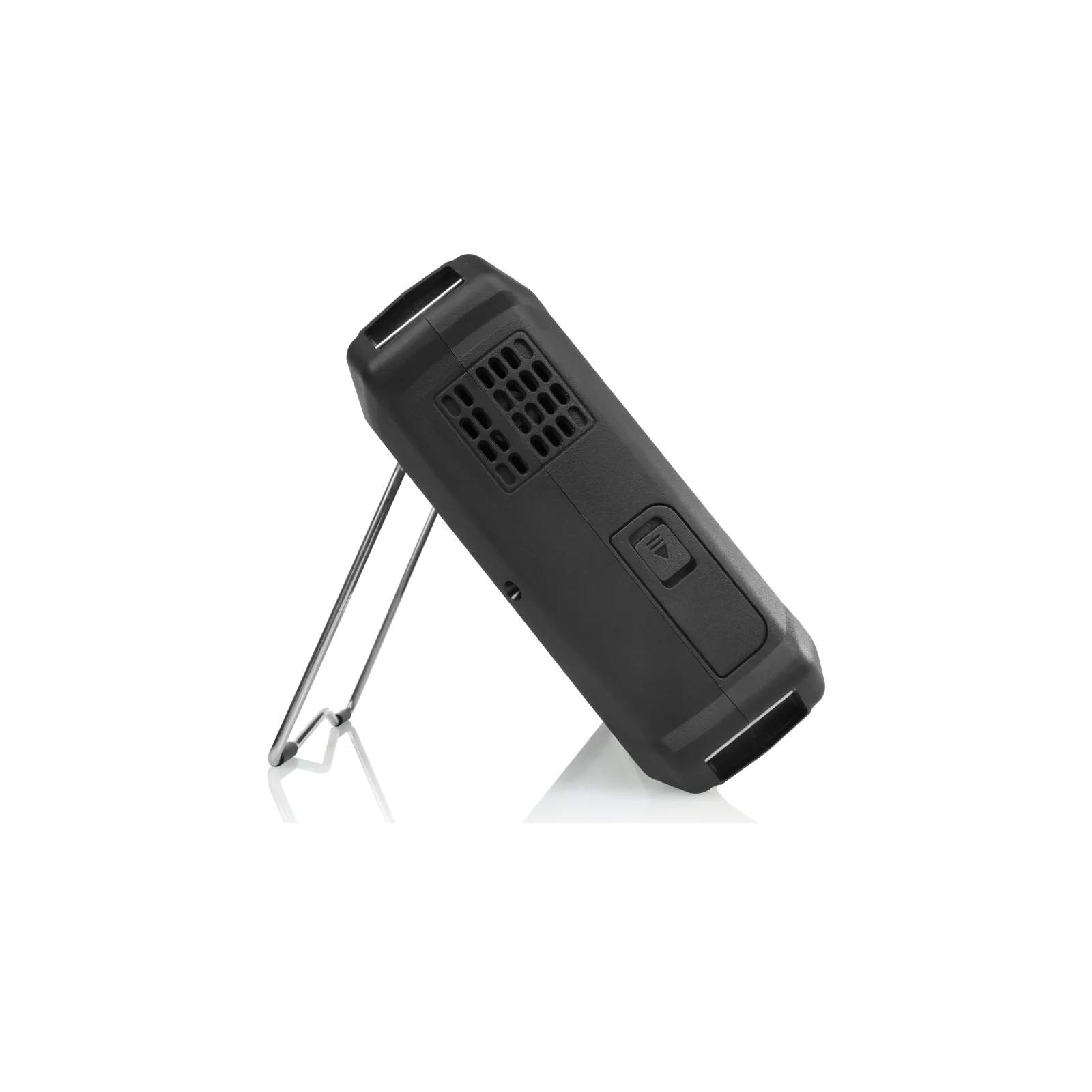

The 8.4-inch multi-touch screen, 4-hour working time, 3.2 kg net weight and portable package are aimed at outdoor, narrow-space and aerial-work measurement conditions.
Expandable Analysis Modes
Spectrum analysis, time-domain analysis, enhanced TDR, pulse measurement, scalar mixer measurement and frequency-offset workflows are available depending on configuration.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| SHN914A | GHz | 0.00003 to 14 |
| SHN920A | GHz | 0.00003 to 20 |
| SHN926A | GHz | 0.00003 to 26.5 |
| Ports | — | 2 |
| VNA PERFORMANCE | ||
| Dynamic range | dB | 100 dB in model table; 110 dB typ. platform statement |
| Trace noise | — | 0.003 dB rms, 0.03° rms |
| Output power range | dBm | -45 to +10 |
| Frequency resolution | Hz | 1 |
| IF bandwidth | Hz | 10 to 3 M |
| STANDARD FUNCTIONS | ||
| Network analysis | — | 2-port S-parameters, differential-parameter, receiver measurement and Smith chart workflows |
| Cable and antenna test | — | Standard CAT, VSWR, return loss, cable loss and DTF workflows |
| Bias-tee | — | Standard |
| GPS/time/location logging | — | Standard |
| OPTIONAL / CONFIGURABLE MODES | ||
| Spectrum analysis | — | SHN900-SA option |
| Time-domain analysis | — | SHN900-TDA option |
| Enhanced TDR | — | SHN900-TDR option |
| Pulse measurement | — | Supported in SHN900A platform workflows |
| FIELD OPERATION | ||
| Display | — | 8.4-inch multi-touch screen |
| Working time | h | 4 typ. |
| Net weight | kg | 3.2 |
| Size | mm | 310 × 215 × 78.5 |
Applications
Antenna and Feedline Maintenance
Measure return loss, VSWR, cable loss and distance-to-fault at tower sites and remote RF installations.
RF Component Characterization
Use 2-port S-parameters for filters, cables, connectors, attenuators, amplifiers and microwave assemblies up to 26.5 GHz.
Line-side Acceptance Test
Portable VNA workflows support RF assembly verification where moving a full bench VNA is impractical.
Automotive Electronics and RF Systems
Characterize cables, antennas, RF modules and high-frequency interconnects used in vehicle electronics development.
Cable Fault Location
DTF and time-domain workflows help locate connector damage, cable discontinuities and installation-related faults.
Field-to-Lab Correlation
Record GPS/time/location-tagged results in the field and compare against lab measurements for maintenance and acceptance reports.
