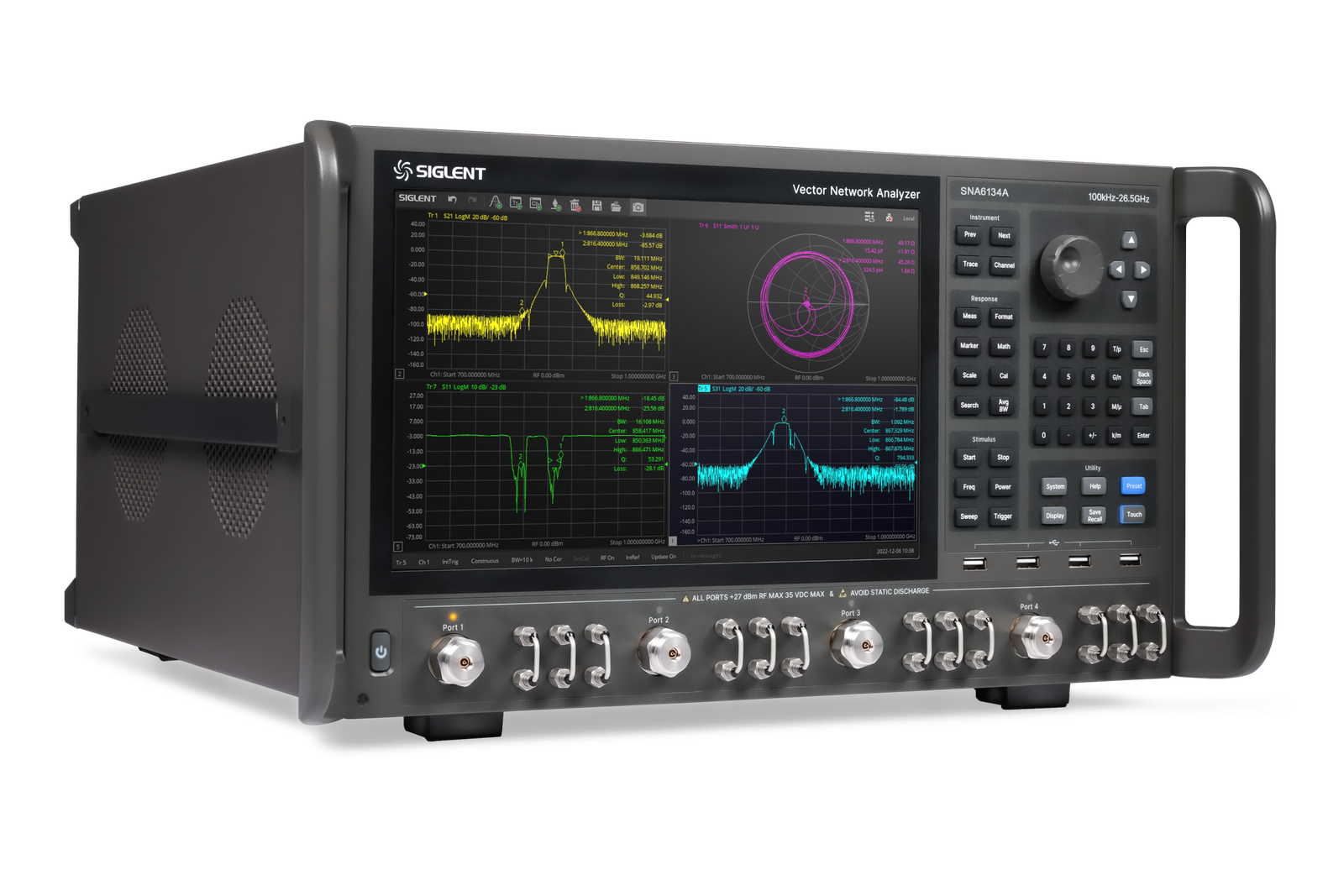

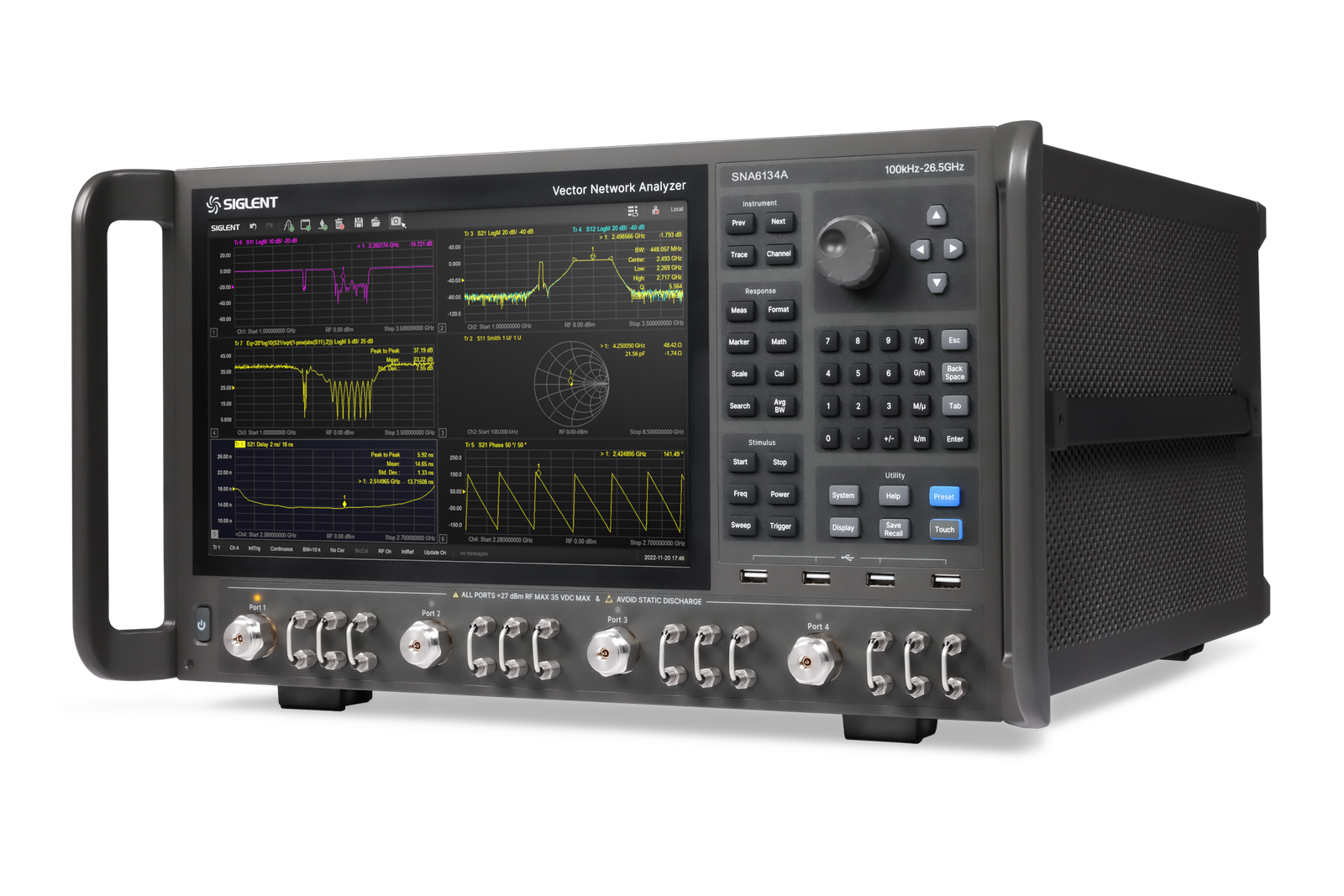

SNA6000A Series — Vector Network Analyzer
High-performance VNA platform for RF and microwave component characterization. The series covers 100 kHz to 13.5 GHz or 26.5 GHz, with 2-port and 4-port models, 135 dB dynamic range, standard bias-tee and pulse hardware, and extended DRA variants for direct receiver access.
| Model | Frequency Range | Ports | DRA | Dynamic Range |
|---|---|---|---|---|
| SNA6022A | 100 kHz – 13.5 GHz | 2 | No | 135 dB |
| SNA6024A | 100 kHz – 13.5 GHz | 4 | No | 135 dB |
| SNA6032A | 100 kHz – 26.5 GHz | 2 | No | 135 dB |
| SNA6034A | 100 kHz – 26.5 GHz | 4 | No | 135 dB |
| SNA6122A | 100 kHz – 13.5 GHz | 2 | Yes | 135 dB |
| SNA6124A | 100 kHz – 13.5 GHz | 4 | Yes | 135 dB |
| SNA6132A | 100 kHz – 26.5 GHz | 2 | Yes | 135 dB |
| SNA6134A | 100 kHz – 26.5 GHz | 4 | Yes | 135 dB |
Key Features
13.5 GHz and 26.5 GHz VNA Families
Choose 13.5 GHz or 26.5 GHz bandwidth depending on RF component, microwave filter, antenna, connector, cable, amplifier and production-test requirements.
2-port and 4-port Models
2-port models fit standard S-parameter work, while 4-port models support multiport DUTs and include a second source for more advanced measurement workflows.
135 dB Dynamic Range
High dynamic range supports accurate low-loss passband and high-rejection stopband measurements for filters, duplexers, cables and microwave components.
DRA Extended Variants
SNA61xxA models add Direct Receiver Access with source, reference and measurement jumpers for advanced receiver-access and external test-set configurations.
Standard Bias-Tee and Pulse Hardware
Bias-tee connection and pulse hardware support active-device setups such as amplifiers, mixers and pulsed-RF characterization when the required measurement options are configured.
Remote Automation Ready
LAN, USB Device and USB Host interfaces support automated RF test benches using SCPI, VXI-11, socket, Telnet, WebServer, LabVIEW and IVI workflows.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL FAMILY | ||
| Standard models | — | SNA6022A, SNA6024A, SNA6032A, SNA6034A |
| DRA extended models | — | SNA6122A, SNA6124A, SNA6132A, SNA6134A |
| Frequency families | GHz | 0.0001 to 13.5 / 26.5 |
| Ports | — | 2-port or 4-port, model dependent |
| VNA PERFORMANCE | ||
| Dynamic range | dB | 135 |
| Trace noise | — | 0.005 dB rms, 0.012° rms |
| Number of points | — | 2 to 100,001 |
| Frequency resolution | Hz | 1 |
| IF bandwidth | Hz | 1 to 10 MHz |
| SOURCE / RECEIVER | ||
| Output level setting | dBm | -55 to +10 |
| Level resolution | dB | 0.05 |
| Noise floor | dBm/Hz | -135, 8 GHz to 20 GHz |
| Bias-tee connection | — | Standard |
| Pulse hardware | — | Standard; pulsed-RF measurement workflows depend on configured measurement option |
| Second source | — | Included on 4-port models |
| DRA jumpers | — | Standard on SNA61xxA models |
| CONTROL | ||

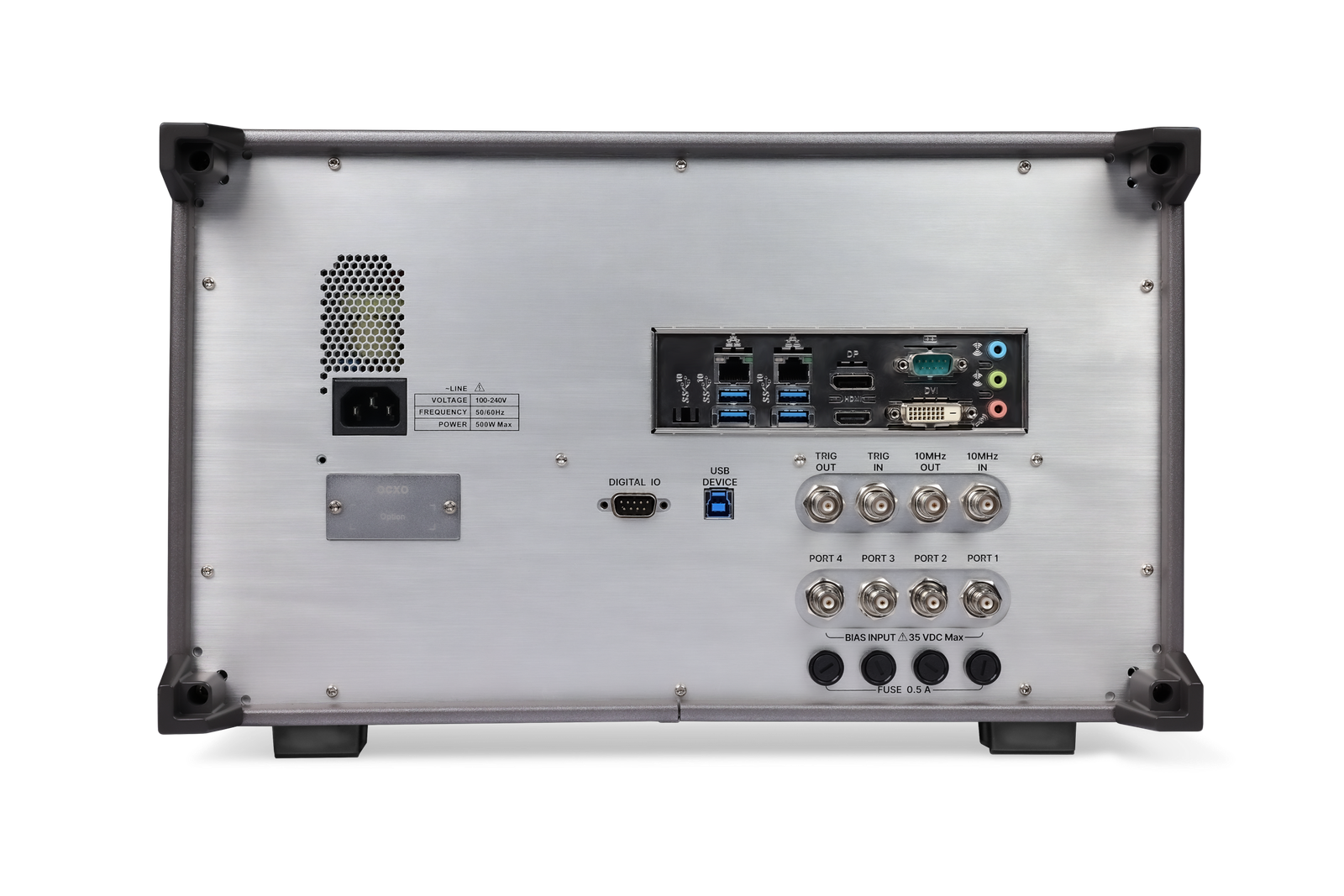

| Interfaces | — | LAN, USB Device, USB Host, USB-GPIB adapter support |
| Remote control | — | SCPI, LabVIEW and IVI over USB-TMC, VXI-11, Socket, Telnet and WebServer |
Applications
Filters, Duplexers and Connectors
Measure insertion loss, return loss, stopband rejection, phase and group-delay behavior up to 13.5 or 26.5 GHz.
K-band Component Characterization
26.5 GHz models support K-band passive-component and microwave interconnect characterization.
Amplifier and Mixer Measurement
Bias-tee, pulse hardware, swept power and spectrum-analysis options support active-device characterization workflows.
4-port Network Testing
4-port models reduce reconnection effort for couplers, differential devices, antenna systems and multiport RF modules.
Time-domain and TDR Workflows
Configured time-domain workflows help locate discontinuities, cable faults and interconnect issues in RF and high-speed digital paths.
Automated RF Test
LAN/USB remote control and SSM switch-matrix integration support higher-throughput RF production and validation benches.
