PicoScope 6000E Series — Up to 3 GHz Deep-memory MSO USB Oscilloscopes
High-performance PC oscilloscope family for multi-channel signal integrity, embedded debug, serial-bus validation and automated test. The range spans 300 MHz to 3 GHz, up to 10 GS/s sampling, up to 4 GS capture memory, 4 or 8 analog channels, external MSO pods and an integrated signal generator / AWG.
| Model family | Bandwidth | Analog channels | Resolution | Memory | Notes |
|---|---|---|---|---|---|
| 6403E / 6403E-D4 | 300 MHz | 4 | 8-bit | 1 GS | Entry 4-channel high-speed model |
| 6404E / 6404E-D4 | 500 MHz | 4 | 8-bit | 2 GS | High-speed 4-channel model |
| 6405E / 6405E-D4 | 750 MHz | 4 | 8-bit | 2 GS | 50 Ω / 1 MΩ input workflow |
| 6406E / 6406E-D4 | 1 GHz | 4 | 8-bit | 2 GS | 1 GHz 4-channel model |
| 6424E / 6424E-D4 | 500 MHz | 4 | 8 / 10 / 12-bit FlexRes | up to 4 GS | Higher-resolution 4-channel model |
| 6425E / 6425E-D4 | 750 MHz | 4 | 8 / 10 / 12-bit FlexRes | up to 4 GS | Higher-resolution 750 MHz model |
| 6426E / 6426E-D4 | 1 GHz | 4 | 8 / 10 / 12-bit FlexRes | up to 4 GS | Higher-resolution 1 GHz model |
| 6428E-D | 3 GHz | 4 | 8 / 10 / 12-bit FlexRes | up to 4 GS | 50 Ω high-speed model |
| 6804E / 6804E-D4 | 500 MHz | 8 | 8-bit | 2 GS | Eight analog channels |
| 6824E / 6824E-D4 | 500 MHz | 8 | 8 / 10 / 12-bit FlexRes | up to 4 GS | Eight analog channels with FlexRes |
Key Features
300 MHz to 3 GHz Model Coverage
The 6000E family covers 300 MHz, 500 MHz, 750 MHz, 1 GHz and 3 GHz classes, allowing Primionics to position the right model for embedded, RF, signal-integrity and research benches.

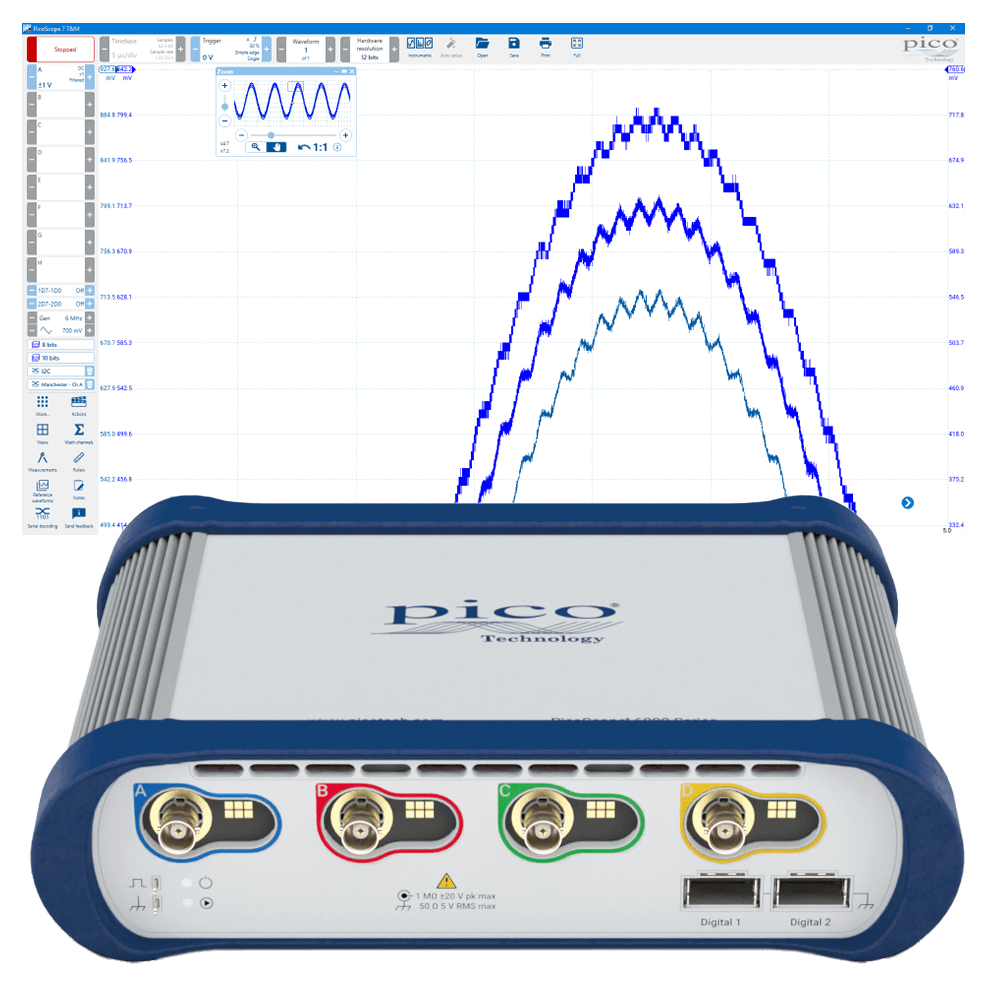

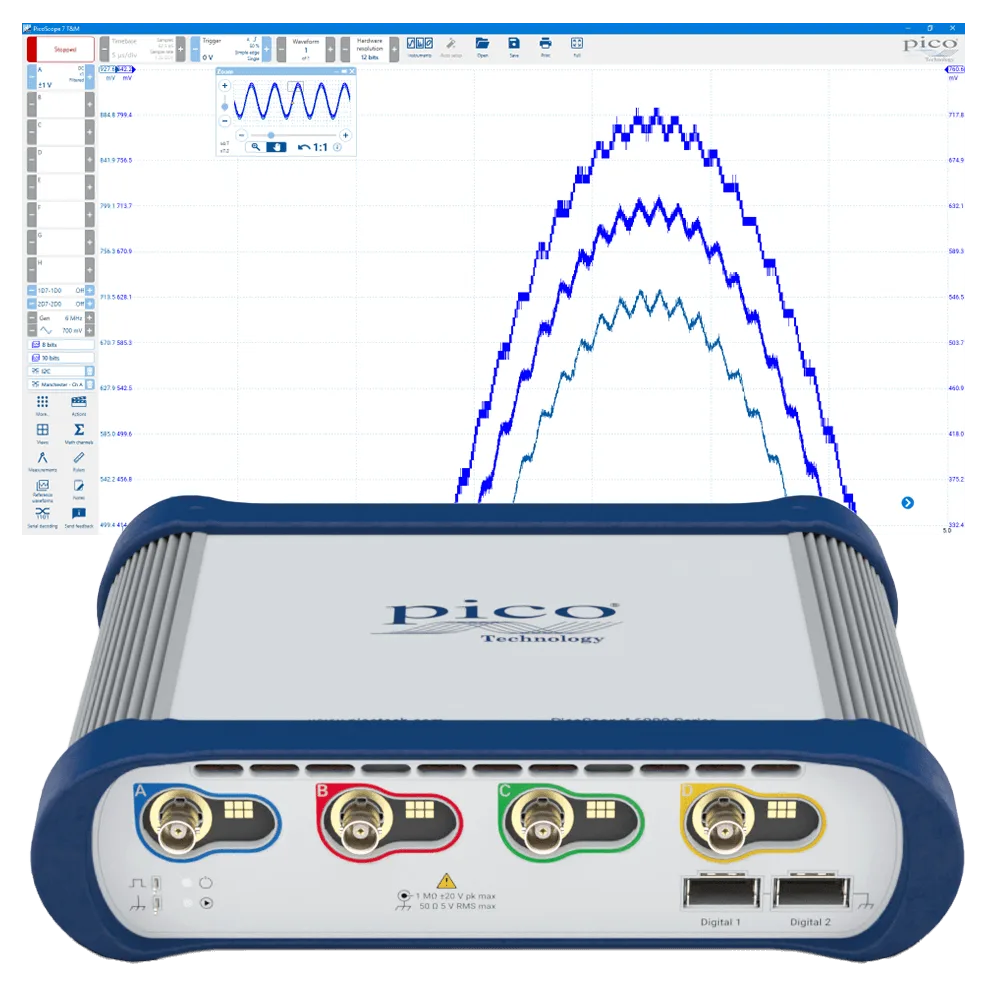

4 or 8 Analog Channels plus 16 Digital
Four-channel and eight-channel models are available. Two external MSO ports can add up to 16 digital channels for time-correlated analog and digital debugging.
Ultra-deep Capture Memory
Up to 4 GS capture memory supports long-duration high-speed capture, packet gaps, rare timing faults and segmented waveform storage for advanced debug workflows.
High-speed and FlexRes Architectures
8-bit models target speed and cost, while FlexRes models provide 8, 10 or 12-bit hardware resolution with additional resolution enhancement when suitable.
40+ Serial Decoders and Deep Analysis
Use analog and digital channels for serial decode, waveform buffer navigation, masks, measurements and DeepMeasure-style timing analysis across large captures.

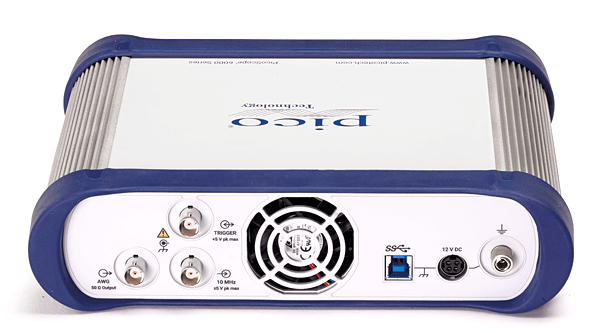

Integrated Signal Generator and AWG
Rear-panel generator output supports sine and square signals to 50 MHz, PRBS up to 50 Mb/s and a 14-bit arbitrary waveform generator with 40 kS memory.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| MODEL RANGE | ||
| Bandwidth classes | — | 300 MHz · 500 MHz · 750 MHz · 1 GHz · 3 GHz |
| 4-channel 8-bit models | — | 6403E · 6404E · 6405E · 6406E, plus D4 package variants |
| 4-channel FlexRes models | — | 6424E · 6425E · 6426E · 6428E-D, plus D4 package variants where applicable |
| 8-channel models | — | 6804E / 6804E-D4 and 6824E / 6824E-D4 |
| ACQUISITION | ||
| Maximum real-time sampling | GS/s | Up to 10 on 6428E-D; up to 5 on other 6000E models |
| Capture memory | GS | 1 to 4, model and resolution-mode dependent |
| Resolution | bit | 8-bit models; FlexRes models: 8 / 10 / 12-bit hardware with optional enhancement |
| Analog channels | — | 4 or 8, model-dependent |
| Input ranges | — | Wide 1 MΩ / 50 Ω model-dependent workflows; 6428E-D is 50 Ω high-speed oriented |
| MSO / DIGITAL | ||
| Digital channels | — | Up to 16 via two external MSO ports |
| Digital bandwidth | — | 500 MHz / 1 Gb/s maximum detectable input frequency |
| Minimum digital pulse width | ns | 1 |
| Digital input threshold | V | ±8 V range, approximately 5 mV steps |
| GENERATOR / AWG | ||
| Function generator | MHz | Sine / square from 100 μHz to 50 MHz; other waves to 10 MHz |
| PRBS generator | Mb/s | Up to 50 |
| AWG update rate | MS/s | Up to 200 |
| AWG memory | kS | 40 |
| AWG resolution | bit | 14 |
| CONTROL / INTERFACE | ||
| Serial decoders | — | 40+ protocol decoders in PicoScope 7 workflow |
| External reference | — | 10 MHz reference input for synchronizing test equipment |
| PC connection | — | USB 3.0 Type-B |
| Power | — | 12 V DC input |
Applications
High-speed Board Debug
Use the 750 MHz, 1 GHz or 3 GHz models for fast edge timing, crosstalk checks, reference-clock validation and signal-integrity investigation.

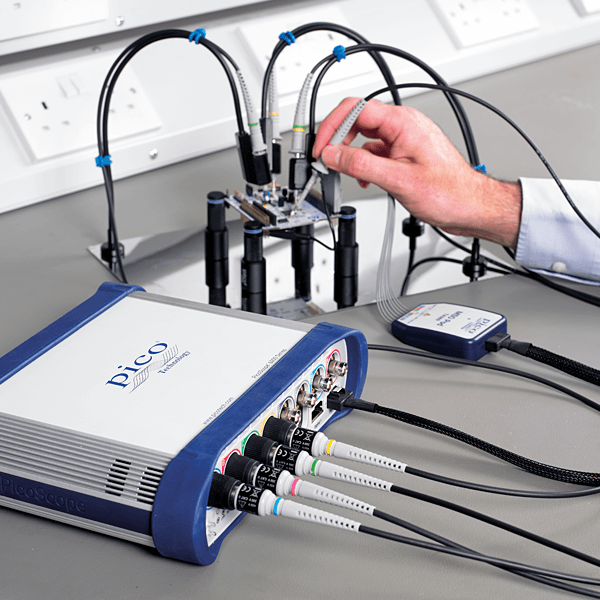

Mixed Analog / Digital Debug
Combine analog channels, digital pods, deep memory and serial decoders to debug complex embedded systems and multi-protocol boards.
ECU and Multi-bus Validation
Capture analog sensors, power rails, clocks and digital buses together for ECU bring-up, gateway validation and hardware fault analysis.
Wide-band Power Analysis
Evaluate fast switching behaviour, gate-drive timing, ringing and control-loop response using high bandwidth and long capture memory.
Automated Test Integration
Use PicoSDK and USB 3.0 connectivity to integrate deep-memory oscilloscope capture into automated validation and production test systems.
Multi-channel Research Capture
Eight-channel models support simultaneous high-speed capture for scientific instrumentation, timing experiments and multi-sensor setups.
